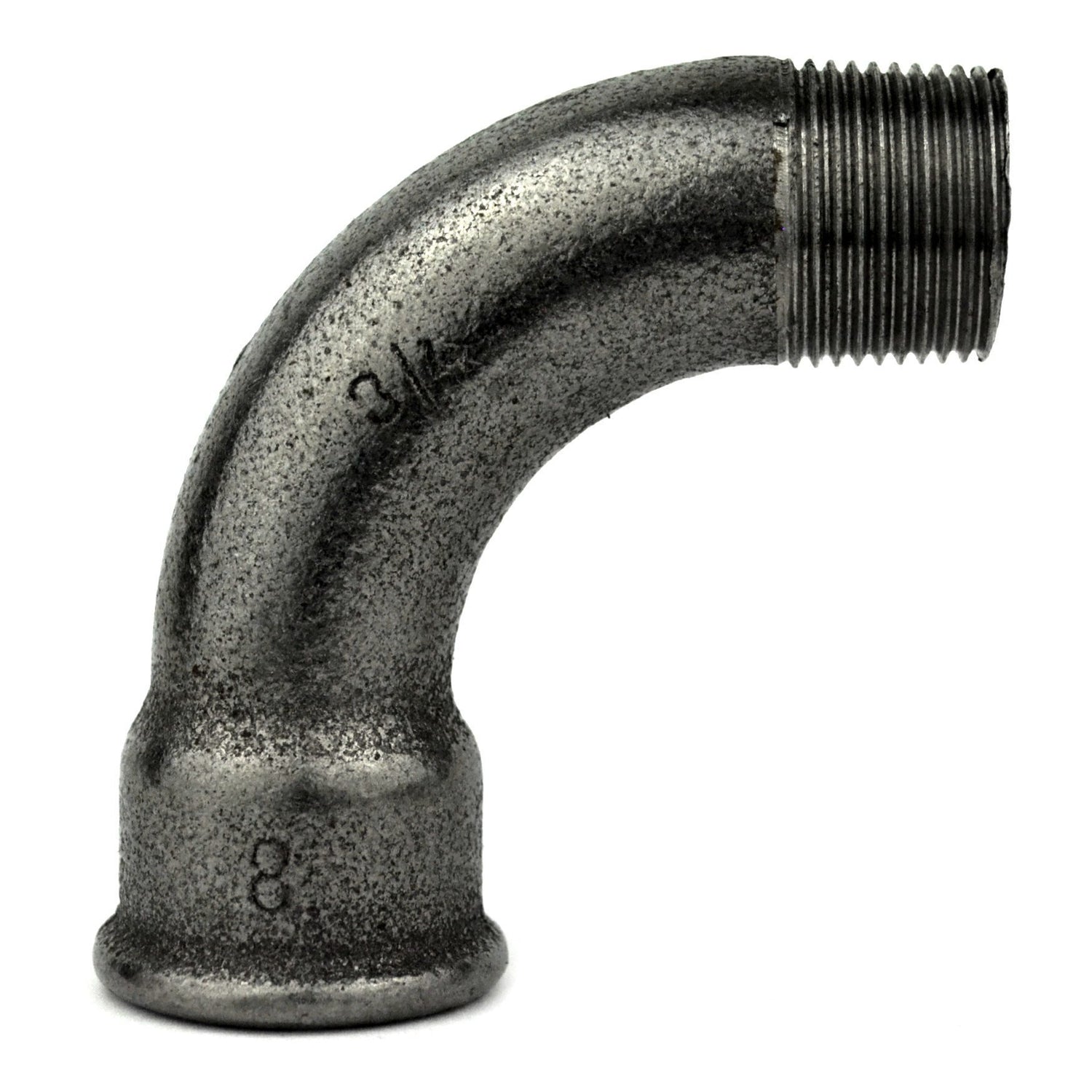

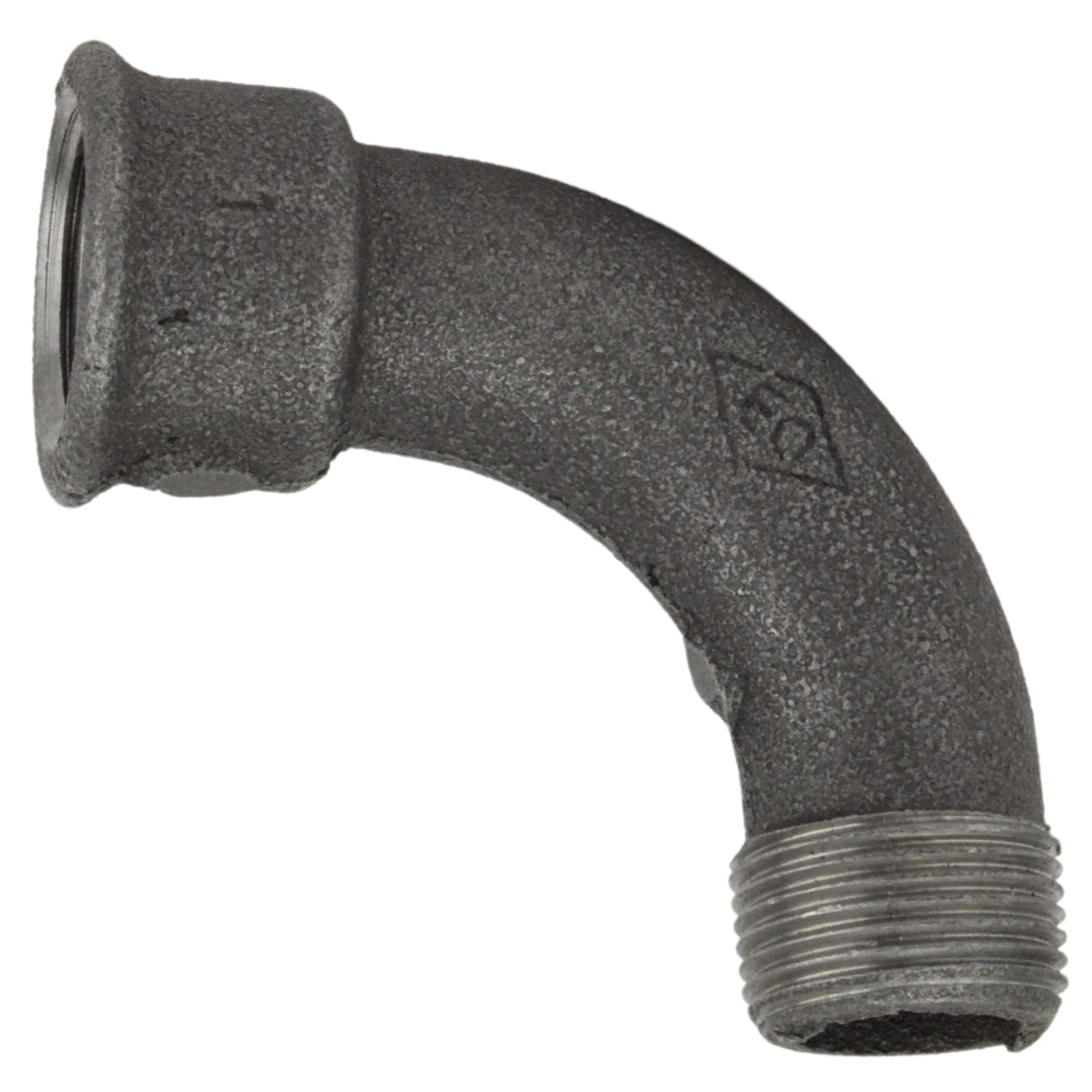

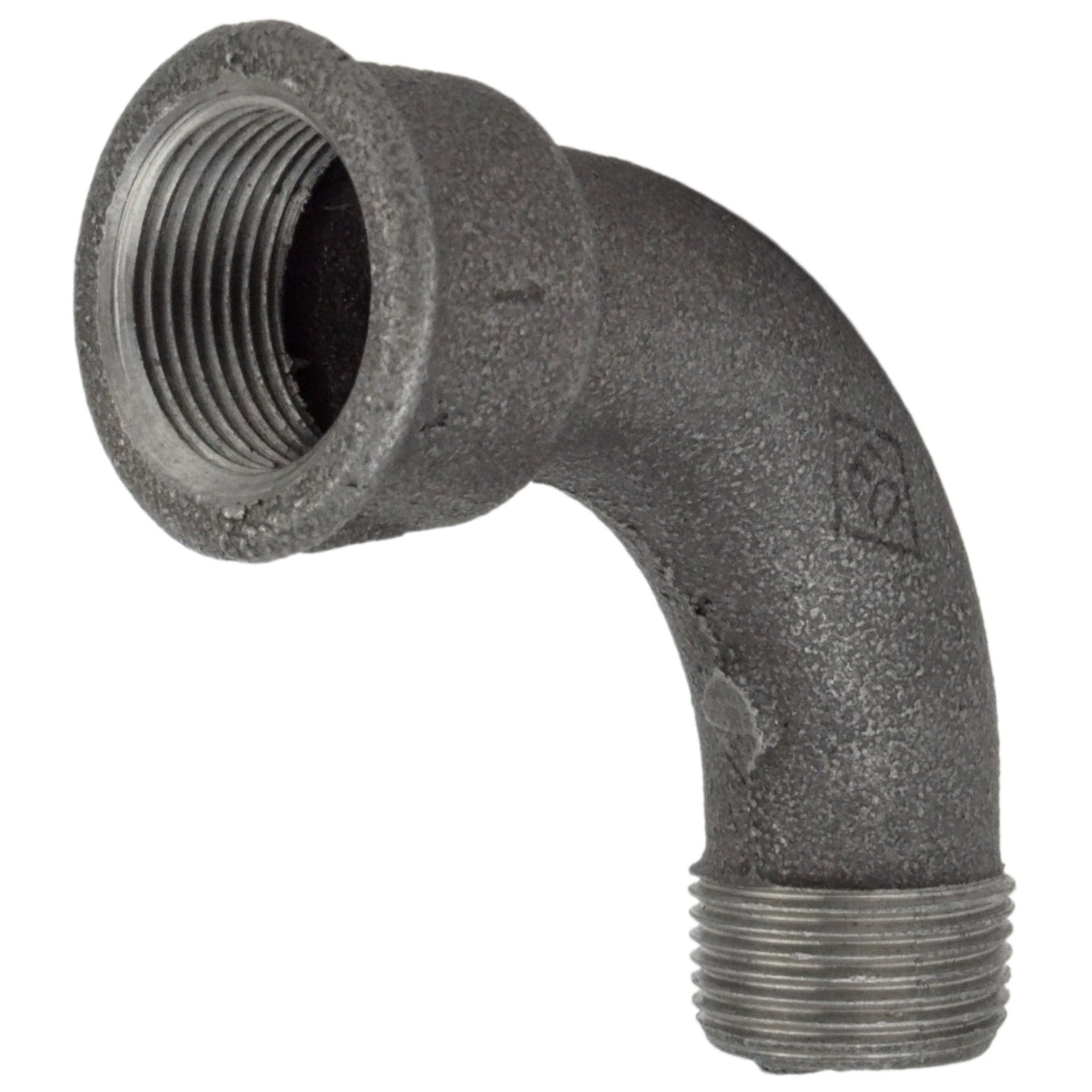

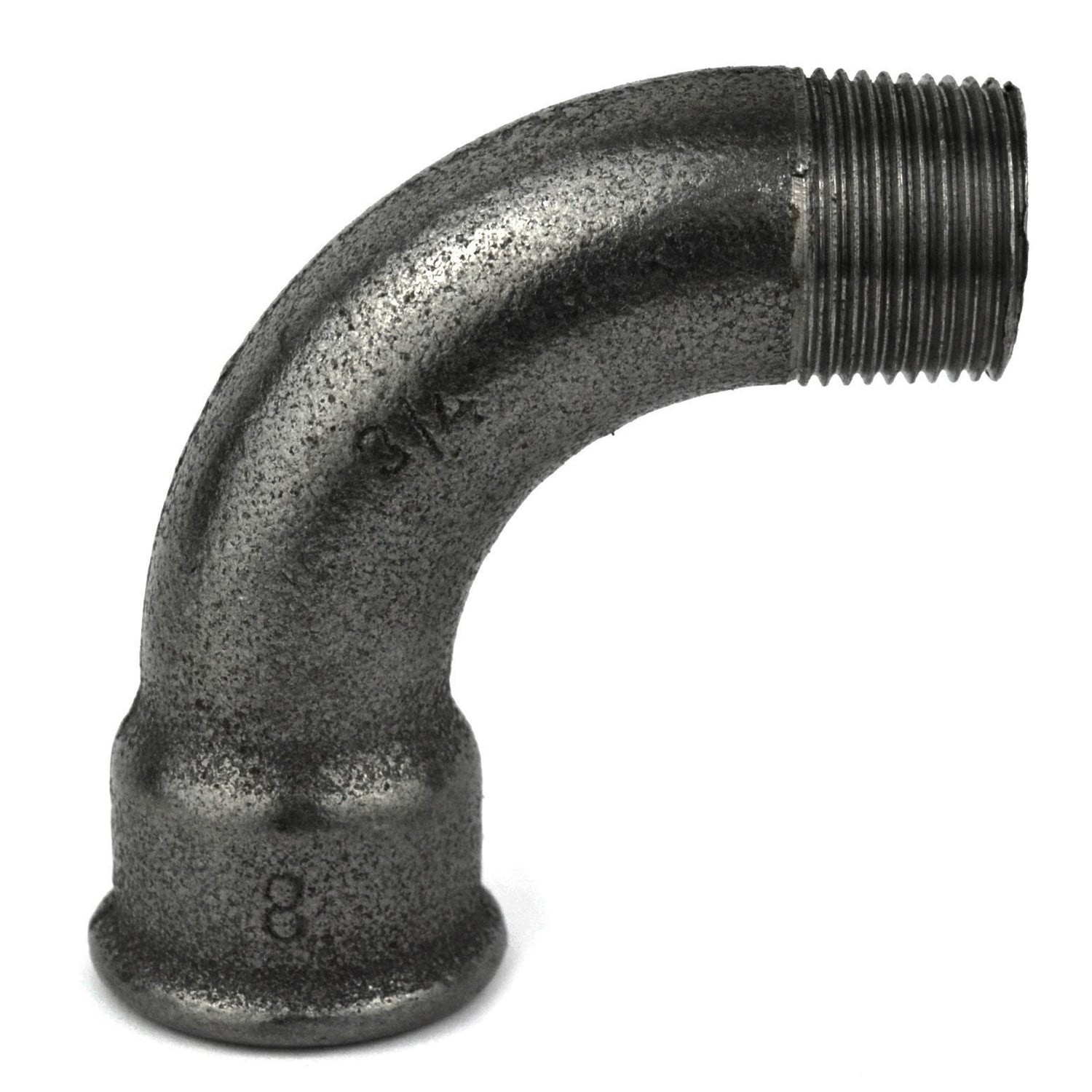

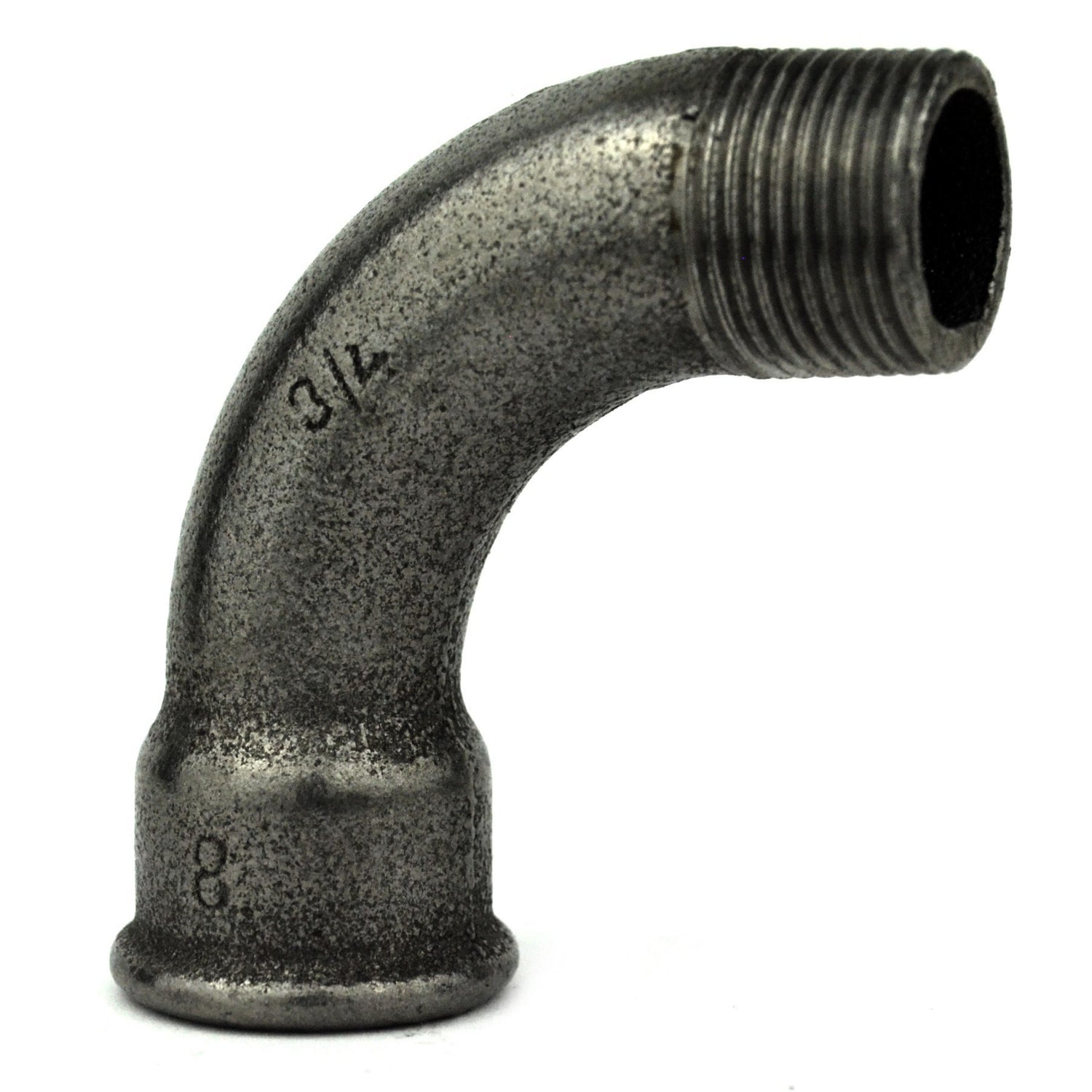

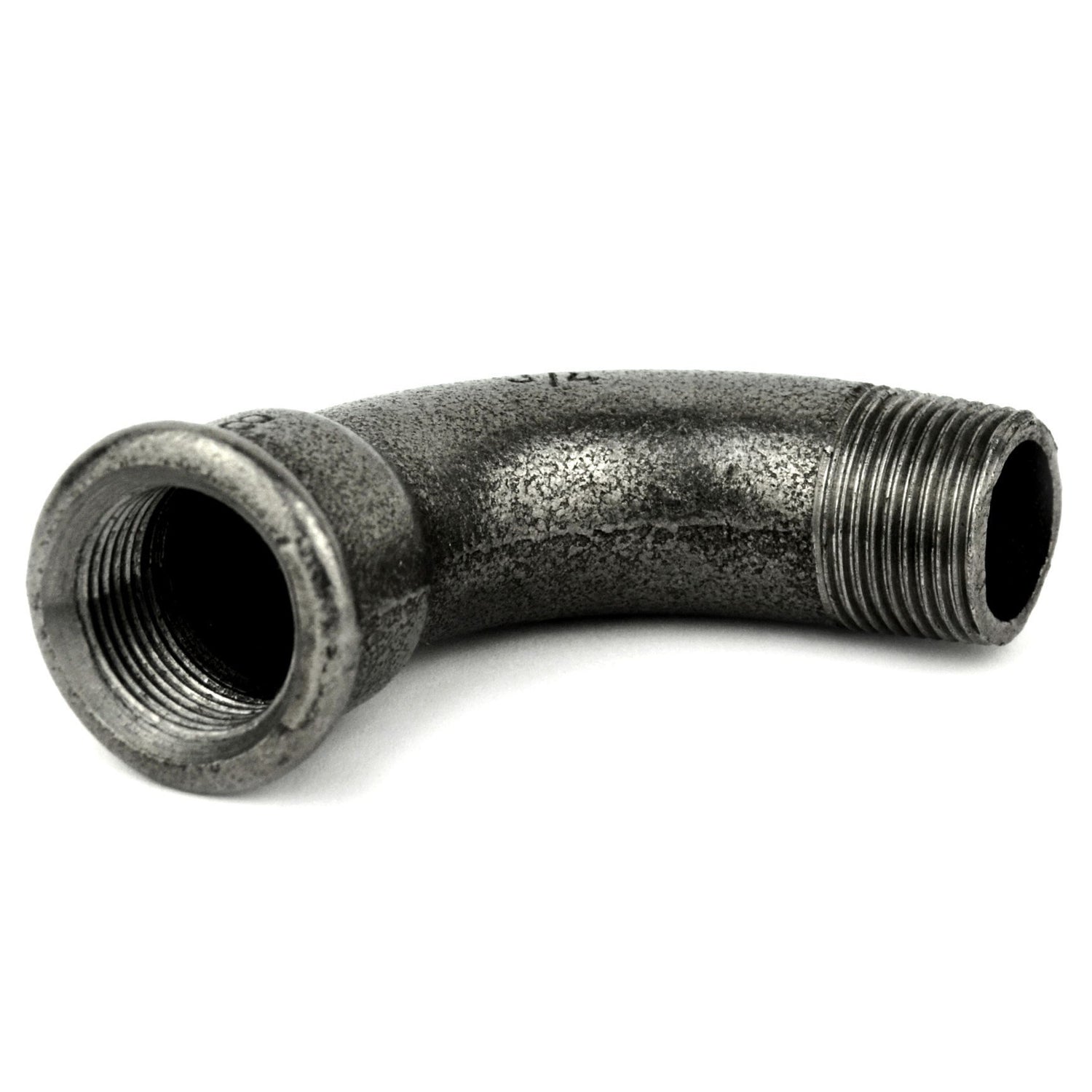

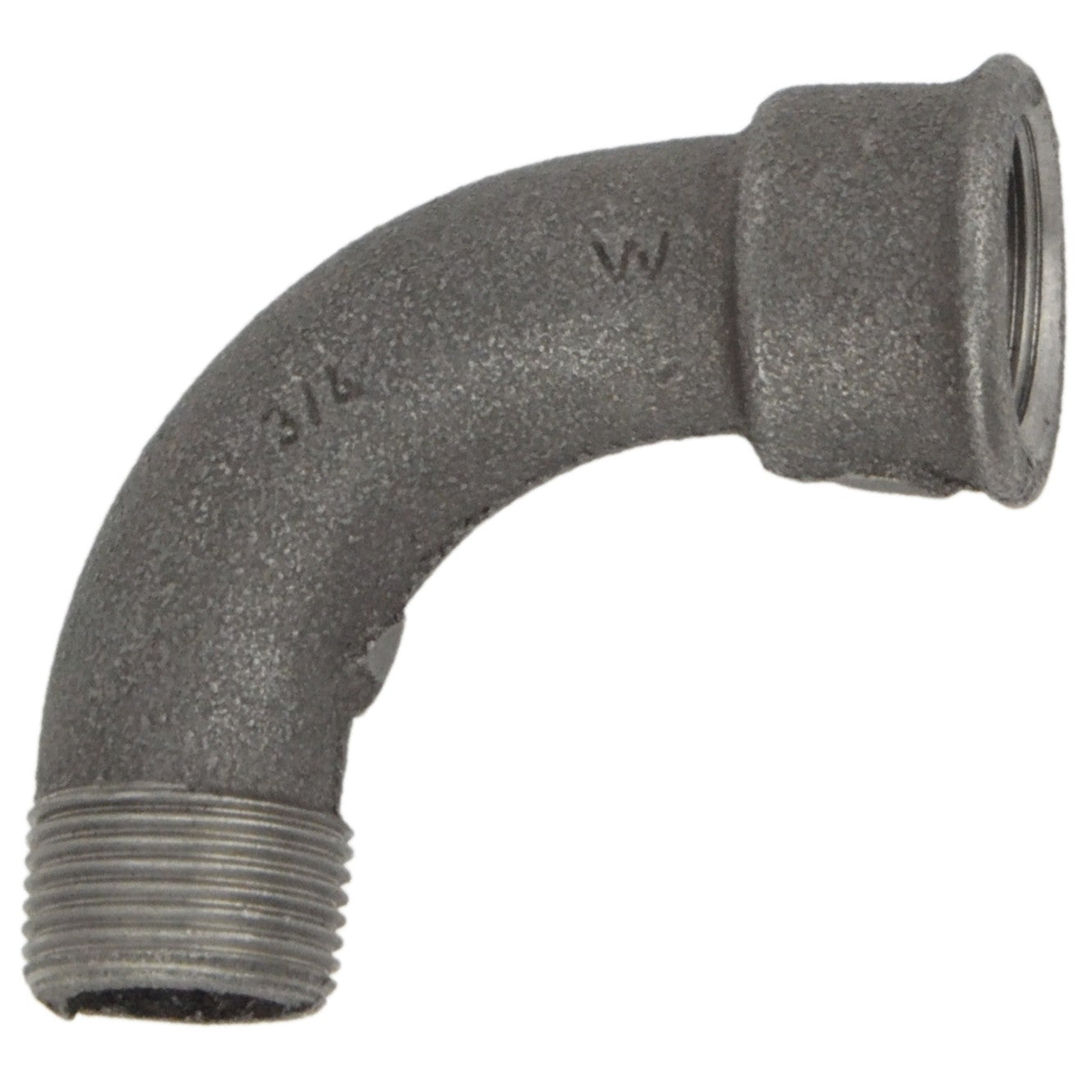

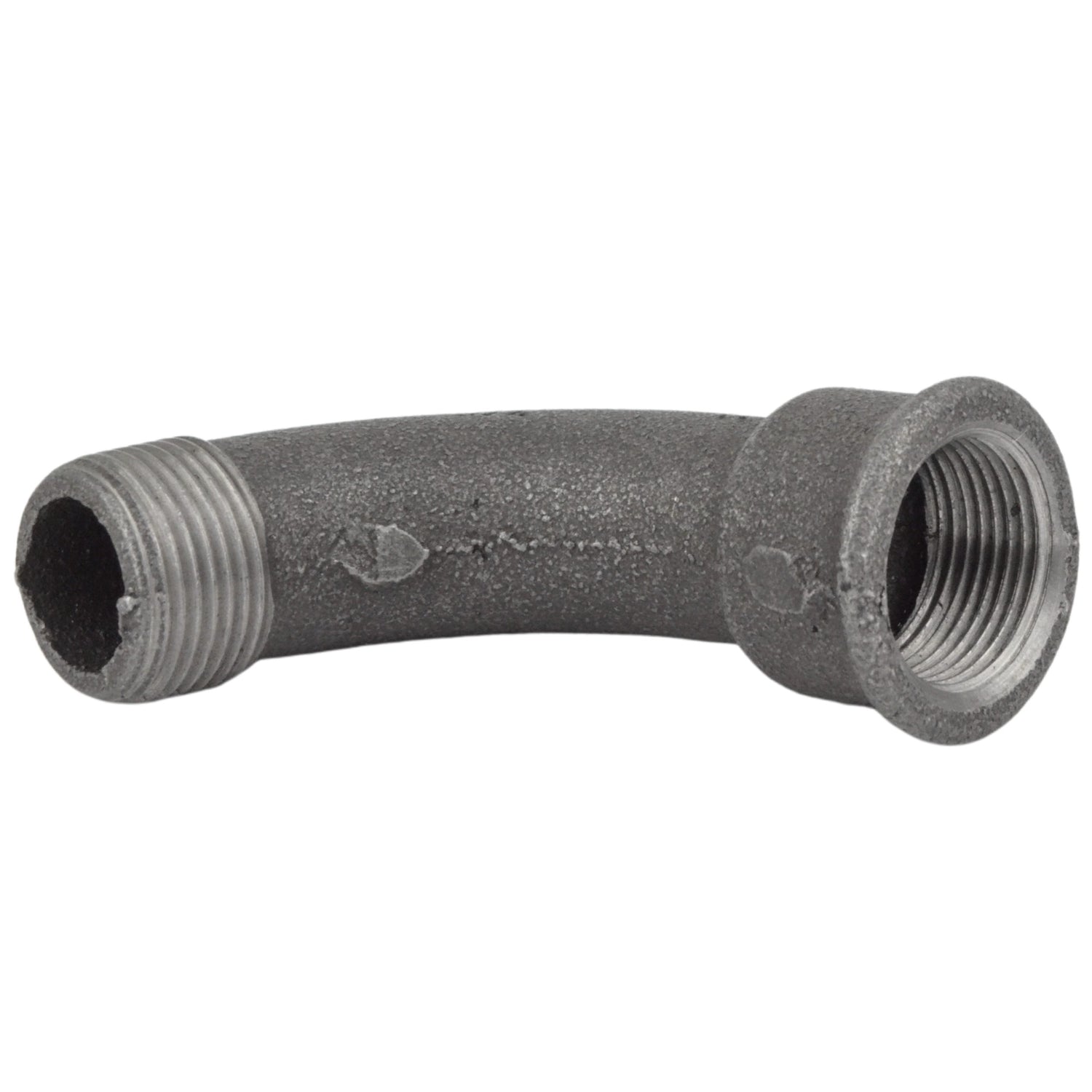

Black cast iron 90° (degree) large radius bend Male/Female plumbing fitting

This large radius bend Male/Female (M/F) in black cast iron allows threaded or tapped fittings or threaded pipes to be easily connected by screwing. It is compatible with all black cast iron or galvanised fittings and black steel or galvanised threaded pipes of the same size sold in our online shop. The parts simply screw together, without welding, to make strong assemblies easily.

Description of the Large radius bend Male/female fitting:

This curved elbow is perfect for connecting different parts at a 90° angle (90 degrees). One side is threaded (female) to screw on a threaded fitting or pipe (male), the other side is threaded (male) to screw on a female fitting (threaded). Both sides are the same size.

The curved shape of the elbow allows you to give more amplitude to your angle than with a small radius M/F elbow fitting.

Premium or Eco range

This part is available in our Premium or Economic ranges. In both cases, these are genuine, fully functional plumbing fittings.

The differences are as follows:

Large radius bend male/female features and premium elbow uses:

Although we use our fittings for decoration, this is a genuine piece of plumbing made from white-core malleable iron that complies with EN 10242 and ISO49 standards. Superior quality and a guarantee of foolproof sturdiness!

The threads on this part are BSPT (ISO 7-1 standard) with a cylindrical female (tapped) end and a tapered male (threaded) end.

• Vissage over 10 to 15mm (depending on the nature of the part being screwed and the strength of the screwing)
• Materials: black cast iron
• Colours: dark grey
• High quality
• Made in Europe (Premium)

Fitting size large radius bend elbow male/female:

Tapping / Threads: 3/8'' | 12x17mm
dimensions mm (length x width x height): 57 x 55 x 25
weight (kg): 0.08
