Distributor elbow - 3 ways - galvanised cast iron

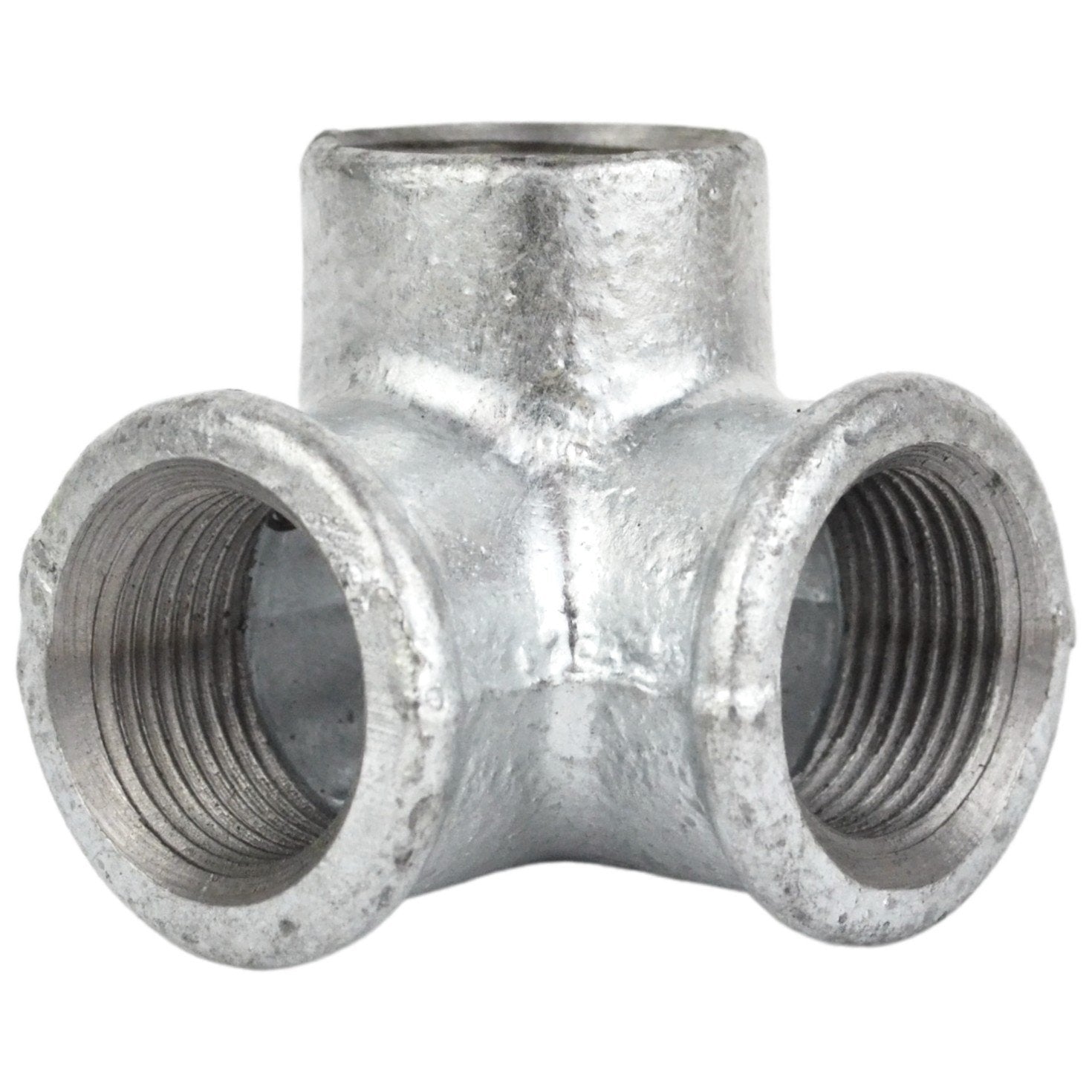

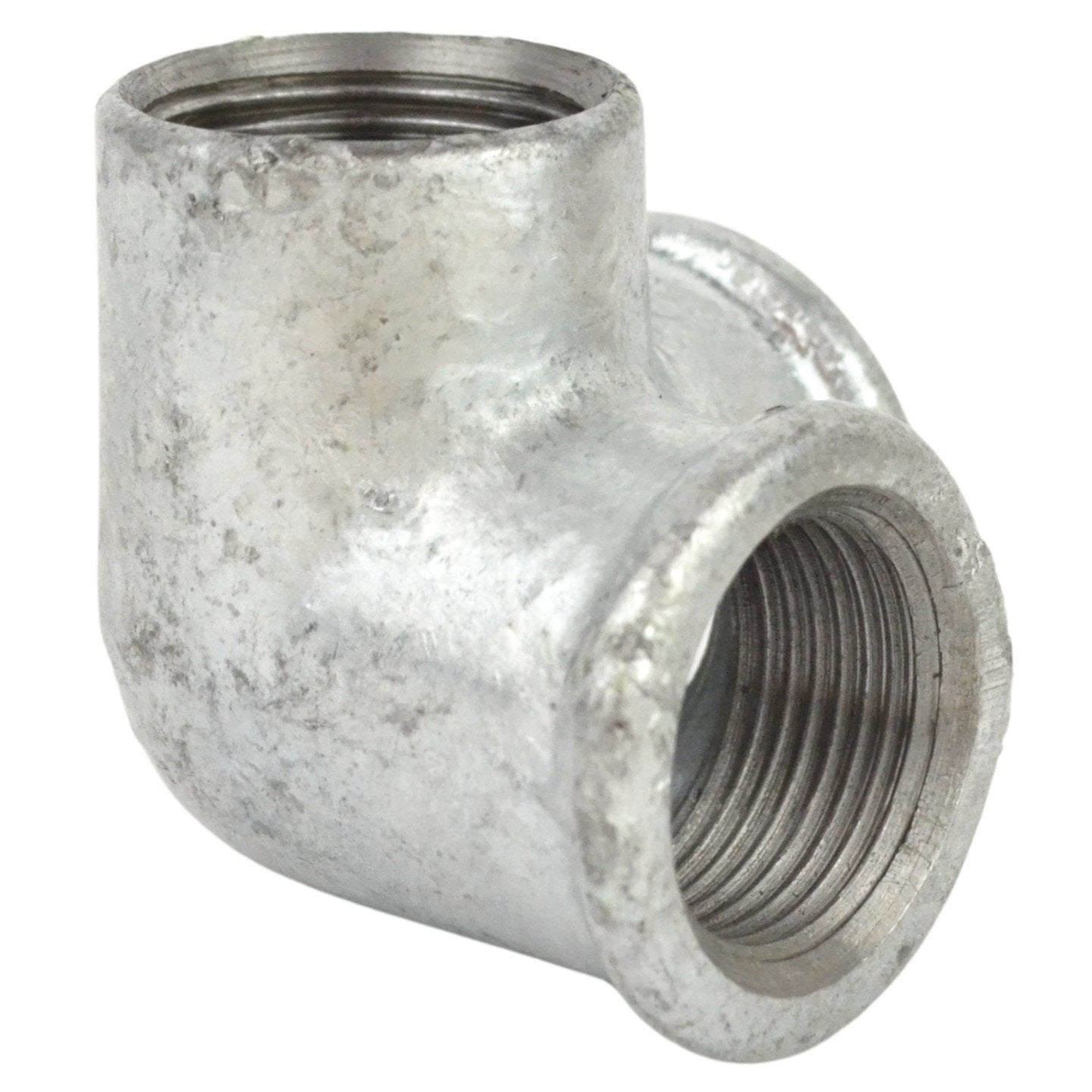

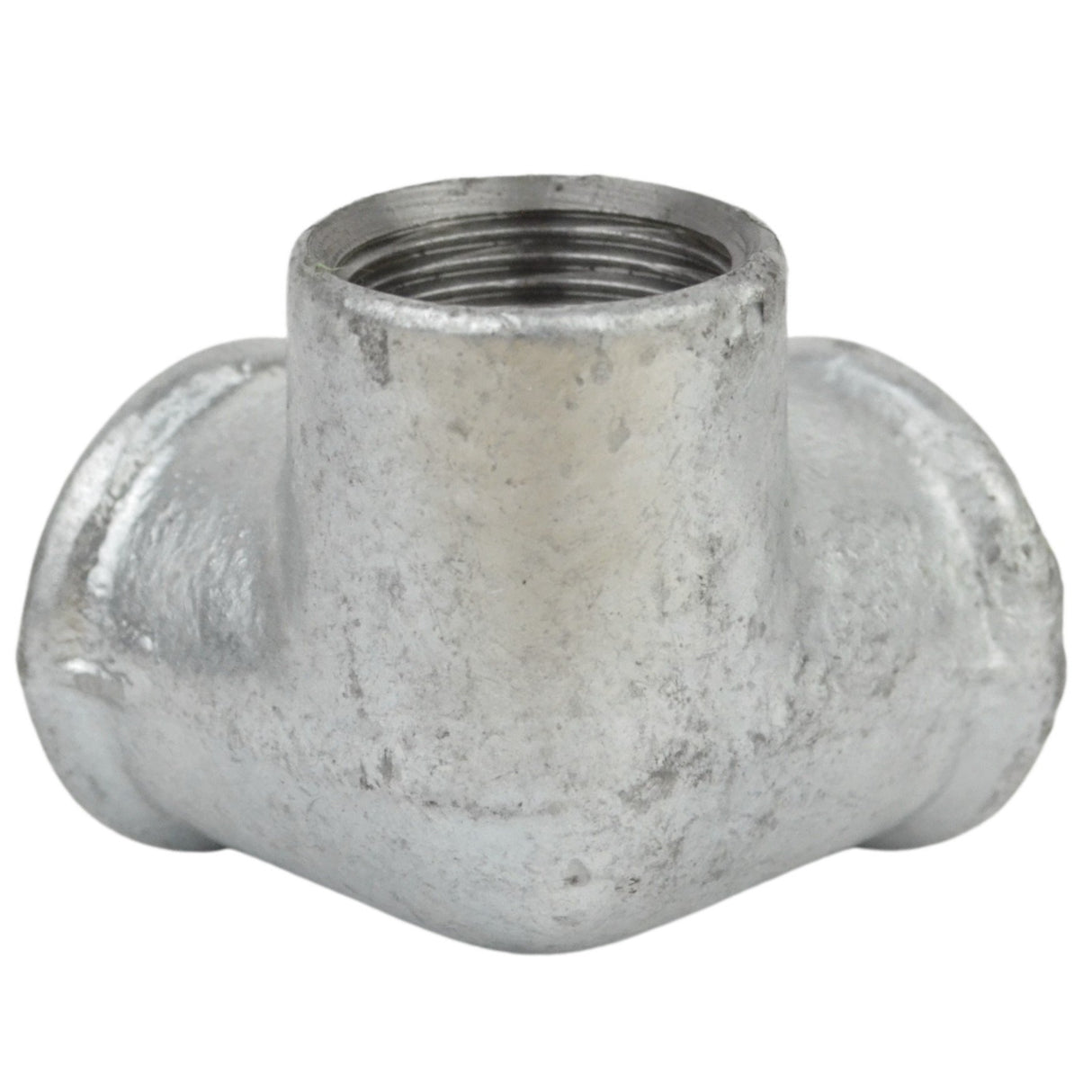

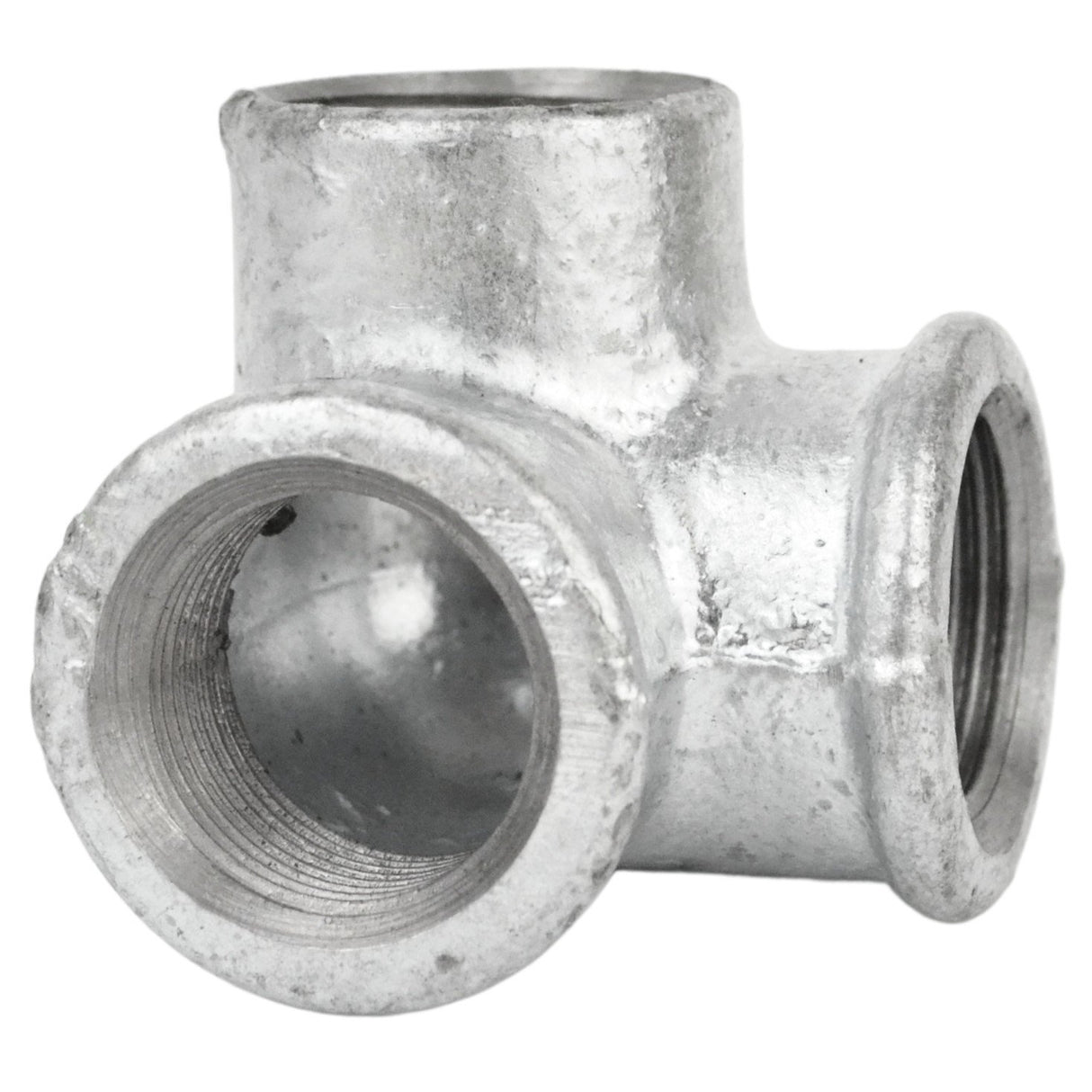

Galvanised cast iron 3-way elbow distributor plumbing fitting
This cast iron distributor on a 3-way galvanised cast iron elbow is ideal for creating complex cast iron and steel plumbing fitting structures. It is compatible with all galvanised cast iron fittings or black and galvanised steel threaded pipes or black of the same size sold in our online shop. The parts simply screw together, without welding, to make strong assemblies easily.
Description of Distributor fitting on galvanised 3-way elbow
This 3-way galvanised cast iron distributor will allow you to connect 3 pipes or 90-degree fittings. It is particularly useful for creating furniture structures or fittings such as racks or table bases.
3-way elbow galva distributor features and uses
Although we use our fittings for decoration, this is a genuine piece of malleable iron plumbing. Superior quality and a guarantee of foolproof sturdiness!
The Threads on this part are BSPT (ISO 7-1 standard) with female (tapped) cylindrical type ends.
- Vissage over 10 to 15mm (depending on the nature of the part being screwed and the strength of the screwing)
- Materials: galvanised cast iron
- Colour: galva (slightly shiny silver-grey)
- High quality
3-way distributor fitting size
Tap / Thread: 3/8'' | 12x17mm
dimensions mm (length x width x height): - x - x -
weight (kg): 0.09
Tap / Threads: 1/2'' | 15x21mm
weight (kg): 0.14
Tapping / Threads: 3/4'' | 20x27mm
dimensions mm (length x width x height): 65 x 52 x 36
weight (kg): 0.20
Tap / Threads: 1'' | 26x34mm
dimensions mm (length x width x height): 75 x 60 x 44
weight (kg): 0.32
Tapping / Threads: 1''1/4 | 33x42mm
dimensions mm (length x width x height): 90 x 72 x 55
weight (kg): 0.51
Table of plumbing fitting sizes in inches and mm:
|
Size inch. |
Size mm |
Diameter outside. |
DN |
| 3/8" | 12/17mm | 17mm | DN10 |
| 1/2" | 15/21mm | 21mm | DN15 |
| 3/4" | 20/27mm | 27mm | DN20 |
| 1" | 26/34mm | 34mm | DN25 |
| 1"1/4 | 33/42mm | 42mm | DN32 |
