Why Use Galvanized Threaded Steel Pipes?
Galvanized steel pipes with tapered threads are essential for plumbing, renovation work, and sturdy DIY projects such as industrial shelves or furniture. Strong and corrosion-resistant, these pipes are designed to assemble easily with ISO 7-1 threaded fittings.
In this comprehensive guide, you’ll learn how to measure, cut, thread, and assemble a galvanized steel pipe step by step with the right tools. For a deeper dive into thread standards and compatibility, read our essential guide to galvanized threaded pipe EN 10241 / ISO 7-1.
Selecting the Right Galvanized Steel Pipe
Choosing the correct diameter and pipe type is critical for any project. Use our steel-pipe diameter guide (DN, mm, inches) to avoid mistakes.
Save time with pre-cut galvanized steel pipes ready to use. For décor or loft-style furniture, check out our black steel pipes.
Tools You Need to Cut, Thread, and Assemble
Recommended equipment:
- Galvanized steel pipe (pre-cut or full length)
- Tape measure and marker
- Steel pipe cutter (Virax 210120, Rothenberger Super 2)
- Deburring / reaming tool
- Manual or electric threader (Virax 1362 or Rothenberger BSPT)
- Thread-cutting oil (Rothenberger RONOL)
- Pipe wrenches (Virax Viragrip or Bahco type)
- Pipe vise (bench or tripod style)
- Sealing products: high-density PTFE tape or Loctite 55 cord
- Safety gear: goggles, gloves, cleaning rags
Step 1: Measure and Cut the Pipe
1. Measure Precisely
Measure the desired length with a tape measure and mark the cut line using a marker or utility knife.
2. Make a Straight Cut
Clamp the pipe firmly in a pipe vise. Use a pipe cutter (e.g., Virax) for a clean, square cut—tightening gradually while rotating.
Alternatives: a hacksaw or angle grinder with a metal disc—use cautiously and deburr thoroughly afterward.
Step 2: Deburr and Chamfer the Pipe
After cutting:
- Ream the pipe interior with a deburring tool or half-round file.
- Create a light 45° external chamfer with a flat file.
This step ensures a clean thread start with no burrs or resistance.

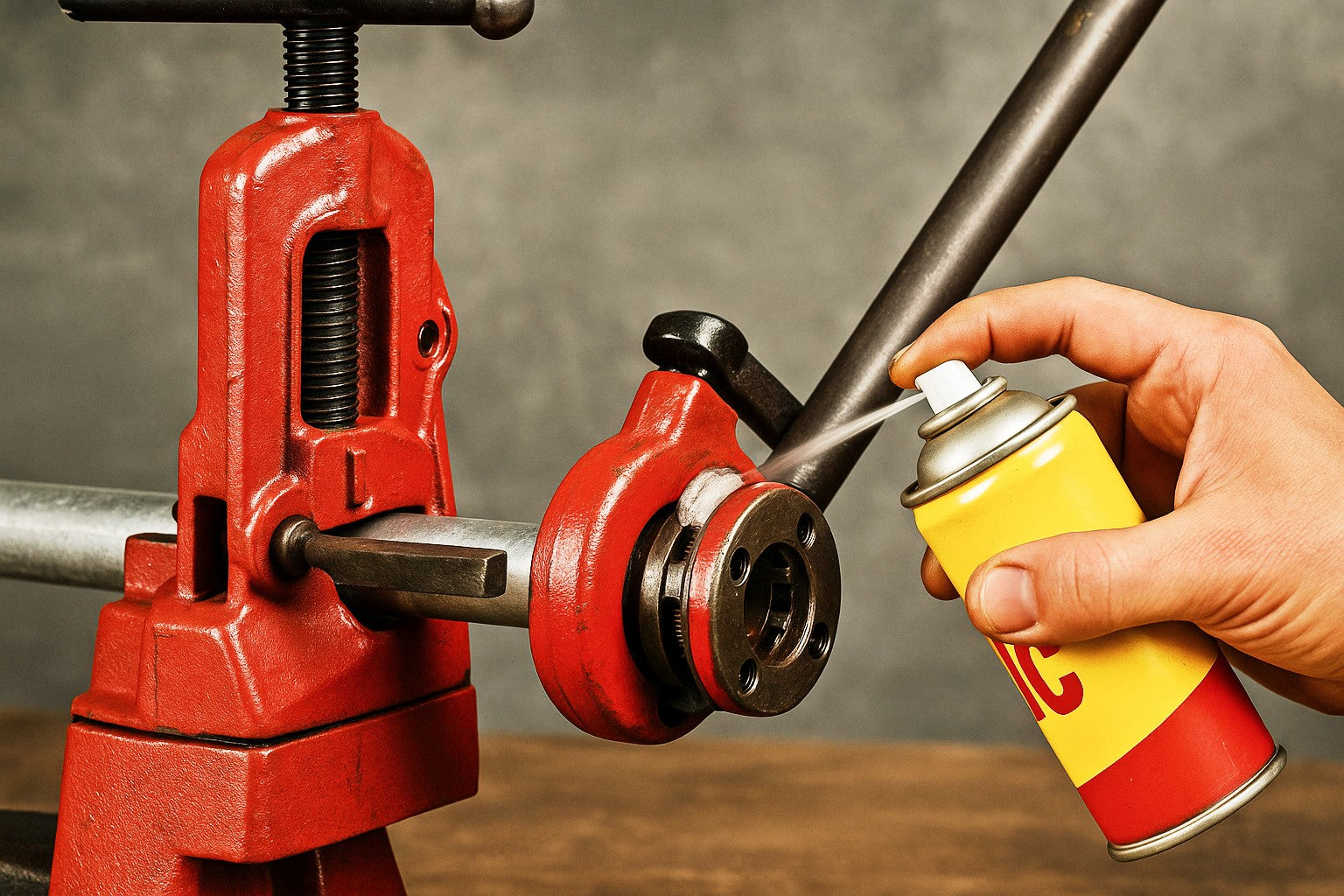

Step 3: Thread the Pipe
1. Choose the Correct Die
Select a die that matches your pipe diameter (e.g., ½″, ¾″, 1″) with BSPT taper (ISO 7-1). Check the tool or box for BSP / R compatibility.
2. Lubricate Generously
Apply cutting oil to the pipe end and die teeth.
3. Hand-Thread the Pipe
Start the die square to the pipe. Turn clockwise with steady pressure, adding oil regularly.
Cut about 15–20 mm of threads, then back the die off counter-clockwise.
4. Clean and Inspect
Wipe chips away and ensure threads are sharp, even, and burr-free.
Step 4: Seal and Assemble the Fittings
1. Apply Thread Sealant
Two effective options:
- PTFE tape: wrap clockwise from the second thread, 2–3 turns.
- Loctite 55 cord: wind 5–6 turns around the threads—no cure time.
Avoid covering the first thread so sealant doesn’t clog the pipe.
2. Tighten the Fitting
- Always start by hand to avoid cross-threading.
- Use two pipe wrenches—one to hold the pipe, one to tighten the fitting.
- Moderate torque: usually 1–3 turns past hand-tight.
Step 5: Leak-Test the Assembly
Never skip this step:
- Water test: open the water supply slowly and inspect each joint for drips.
- Air test (gas or dry pressure): spray soapy water—bubbles mean leaks.
If you find a leak: tighten slightly or disassemble, clean, and reseal correctly.
Common Mistakes to Avoid
- Crooked threads: always start by hand and check alignment.
- No deburring: leads to poor die engagement or metal chips inside the system.
- Over- or under-tightening: too loose leaks; too tight can split a fitting.
- No sealant: always use PTFE tape or a metal-thread sealant.
Tips for a Long-Lasting Installation
Threading removes the pipe’s zinc coating, exposing raw steel:
- Apply a zinc-rich cold-galvanizing spray on exposed threads after assembly.
- Wipe excess cutting oil and protect damp areas.
- Use union fittings where possible for easier maintenance.
Where to Buy Ready-to-Thread Pipes
Save time by ordering steel pipes cut and threaded to your specs:
- Pre-cut galvanized steel pipes – multiple lengths, threads already cut.
- Black steel pipes – perfect for decorative or furniture builds.
For further reading:
Conclusion
With the right tools, methodical steps, and a bit of practice, cutting, threading, and assembling galvanized steel pipes becomes straightforward. Whether for plumbing, custom furniture, or a heating network, these skills give you accuracy and independence.
