Complete Diameter Chart for Steel Pipes (Black & Galvanized): DN, Inches, Millimetres and Threads Explained

Diamètre des tubes de plomberie en pouces - mm et diamètres nominaux

Home Invasion |

In a nutshell: if you’re looking for the exact match between “DN 50”, 2″, “60.3” or “26 × 34”, you’re in the right place!
We untangle every unit here, using the official dimensions of standard EN 10241 together with BSPT thread lengths (ISO 7-1).

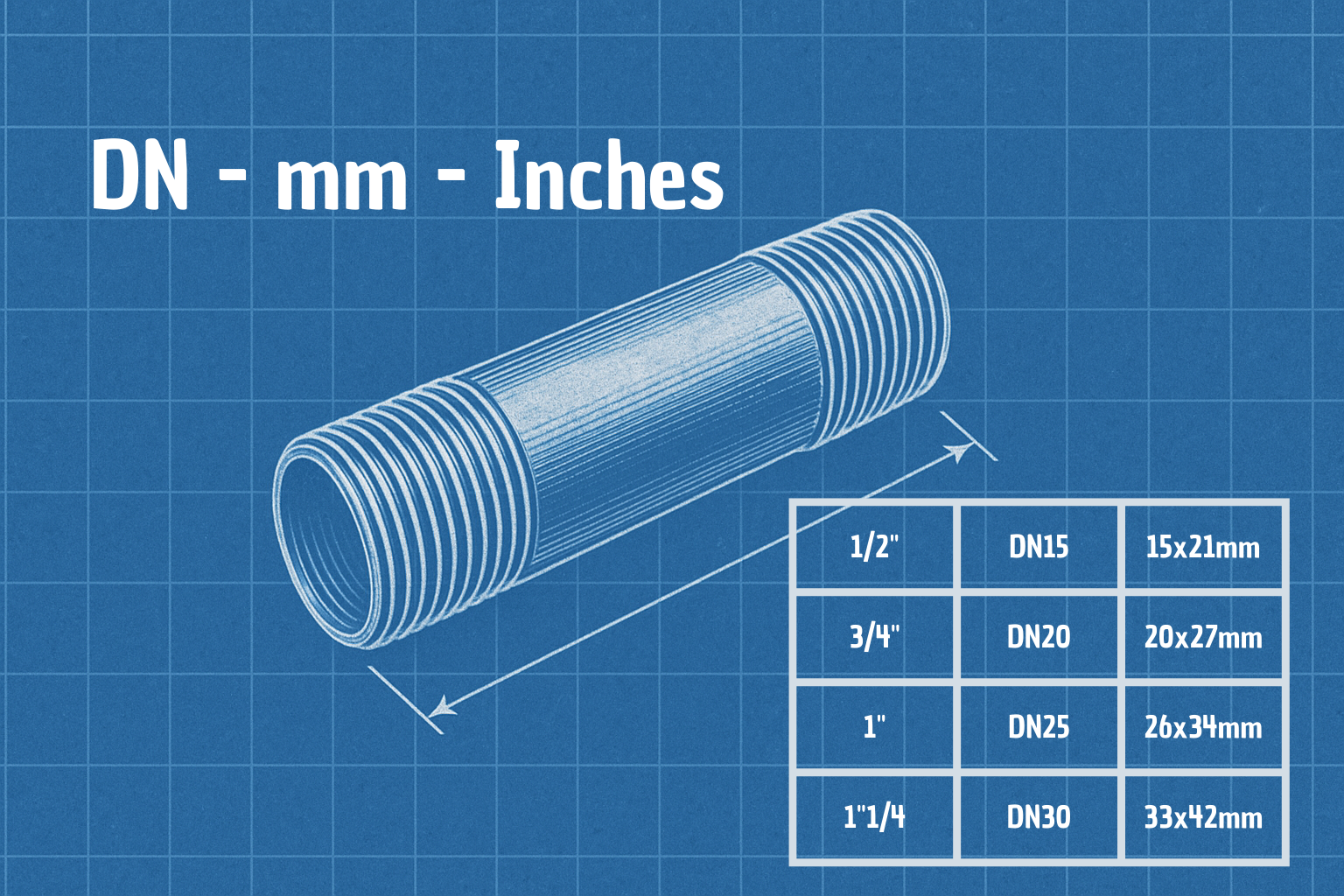

Quick-memo size table:

Summary table of plumbing-pipe sizes (mm / inch / DN)

1. Why this article?

Whether you’re a professional plumber or a keen DIYer, you often have to juggle three systems:

  • the inch () — an Anglo-Saxon legacy;
  • the DN (Nominal Diameter) — a commercial “code” defined by ISO;
  • the true diameter in millimetres.

Add the difference between welded and seamless pipe and the confusion is complete! This guide helps:

  • Installers who need to quote correctly,
  • Buyers who must order the right “26 × 34 mm galvanized” item,
  • Makers restoring vintage steel heating circuits.

2. Quick reminder of the units

  • The inch () dates back to the industrial revolution: 1″ = 25.4 mm, but in plumbing it refers to the historical inside diameter.
  • DN (Nominal Diameter): rounded values (8, 10, 15 …) that do not equal the real diameter — they’re only codes.
  • Outside Ø (OD) / Inside Ø (ID): the only dimensions you can measure with callipers. OD is fixed by EN 10241; the minimum ID depends on wall thickness (2.3 → 4 mm for the medium series).

3. Master conversion table (DN ↔ inches ↔ mm)

UX tip: the table is sortable; click a header to reorder.

DN Inch “mm” size (FR) OD (mm) Min ID* (mm) Male thread R L₂ (mm)
8 ¼″ 8 × 13 13.5 8.9 8.4
10 ⅜″ 12 × 17 17.2 12.6 9.9
15 ½″ 15 × 21 21.3 16.7 11.4
20 ¾″ 20 × 27 26.9 22.3 13.0
25 1″ 26 × 34 33.7 28.5 16.3
32 1¼″ 33 × 42 42.4 37.2 17.6
40 1½″ 40 × 49 48.3 42.5 19.2
50 2″ 50 × 60 60.3 54.5 21.4
65 2½″ 66 × 76 76.1 69.7 25.7
80 3″ 80 × 90 88.9 81.7 26.4
100 4″ 102 × 114 114.3 106.3 28.9

*Min ID calculated with the minimum wall thickness of EN 10241 (2.3 → 4 mm).

4. How to read a “26 × 34 mm” designation?

Memory rule: in French notations “15 × 21”, “20 × 27”, “26 × 34”…

  • the first number ≈ historical inside diameter;
  • the second numberoutside diameter of the male BSPT thread.
Value Meaning EN 10241 figure
26 mm Historical ID (before wall thickness) Min ID ≈ 28.5 mm for DN 25
34 mm Male BSPT thread OD True OD = 33.7 mm

🧩 Conclusion: “26 × 34 mm” ⇢ DN 25 / 1″

“26” and “34” are rounded values used on-site for quick identification. For calculations or pressure-drop sizing, always rely on the exact figures in the standard.

5. BSPT thread (R): the backbone of steel plumbing

Inch size DN Taper Angle Thread length L₂ (mm)
¼″ 8 1:16 55° 8.4
⅜″ 10 9.9
½″ 15 11.4
¾″ 20 13.0
1″ 25 16.3
1¼″ 32 17.6
1½″ 40 19.2
2″ 50 21.4
2½″ 65 25.7
3″ 80 26.4
4″ 100 28.9

Need ready-threaded lengths? Visit our pre-cut galvanized steel pipes ↗.

*Extract from ISO 7-1. Use hemp & compound or PTFE tape for sealing.

For complete dimensional checks and leak-free assembly, read our essential EN 10241 guide ↗.

6. Welded vs seamless pipe – what difference?

Welded pipe: a steel strip is rolled then longitudinally welded (ERW). The seam is visible under a light bench or microscope.

  • Pros : affordable, widely available, easy to cut straight.
  • Cons : pressure rating roughly 20 % lower at the same DN; re-threading beyond the first third is not recommended.

Seamless pipe: produced hot-finished (HFS) or by extrusion.

  • Pros : higher pressure and bending strength; no heat-affected zone.
  • Cons : 15–25 % more expensive; slight ovality often needs correction before threading.

How to tell them apart ? Bevel one end: a slight bead or layered look means welded. On galvanized tube, the weld line is often shinier.

7. Typical applications and max flow rate

Reference: cold water at 15 °C, head loss ≤ 250 Pa / m.

DN Inch Max flow (L / min) Typical uses
15 ½″ 35 Domestic fixtures, 8-bar compressed air
20 ¾″ 60 Wall-hung boiler loops, DHW recirculation
25 1″ 100 Fire-hose reels, steam ring mains
32 1¼″ 180 Primary manifold in plant room
40 1½″ 280 Process air, light fuel oil
50 2″ 450 Industrial cooling circuits

8. FAQ – conversions & technical answers

¼″ — DN 8 — 8 × 13 mm

¼″ equals what size in mm ?
¼″ equals 8 × 13 mm.
¼″ equals what DN ?
¼″ equals DN 8.
8 × 13 mm equals what size in inches ?
8 × 13 mm equals ¼″.
8 × 13 mm equals what DN ?
8 × 13 mm equals DN 8.
DN 8 equals what size in mm ?
DN 8 equals 8 × 13 mm.
DN 8 equals what size in inches ?
DN 8 equals ¼″.

⅜″ — DN 10 — 12 × 17 mm

⅜″ equals what size in mm ?
⅜″ equals 12 × 17 mm.
⅜″ equals what DN ?
⅜″ equals DN 10.
12 × 17 mm equals what size in inches ?
12 × 17 mm equals ⅜″.
12 × 17 mm equals what DN ?
12 × 17 mm equals DN 10.
DN 10 equals what size in mm ?
DN 10 equals 12 × 17 mm.
DN 10 equals what size in inches ?
DN 10 equals ⅜″.

½″ — DN 15 — 15 × 21 mm

½″ equals what size in mm ?
½″ equals 15 × 21 mm.
½″ equals what DN ?
½″ equals DN 15.
15 × 21 mm equals what size in inches ?
15 × 21 mm equals ½″.
15 × 21 mm equals what DN ?
15 × 21 mm equals DN 15.
DN 15 equals what size in mm ?
DN 15 equals 15 × 21 mm.
DN 15 equals what size in inches ?
DN 15 equals ½″.

¾″ — DN 20 — 20 × 27 mm

¾″ equals what size in mm ?
¾″ equals 20 × 27 mm.
¾″ equals what DN ?
¾″ equals DN 20.
20 × 27 mm equals what size in inches ?
20 × 27 mm equals ¾″.
20 × 27 mm equals what DN ?
20 × 27 mm equals DN 20.
DN 20 equals what size in mm ?
DN 20 equals 20 × 27 mm.
DN 20 equals what size in inches ?
DN 20 equals ¾″.

1″ — DN 25 — 26 × 34 mm

1″ equals what size in mm ?
1″ equals 26 × 34 mm.
1″ equals what DN ?
1″ equals DN 25.
26 × 34 mm equals what size in inches ?
26 × 34 mm equals 1″.
26 × 34 mm equals what DN ?
26 × 34 mm equals DN 25.
DN 25 equals what size in mm ?
DN 25 equals 26 × 34 mm.
DN 25 equals what size in inches ?
DN 25 equals 1″.

1¼″ — DN 32 — 33 × 42 mm

1¼″ equals what size in mm ?
1¼″ equals 33 × 42 mm.
1¼″ equals what DN ?
1¼″ equals DN 32.
33 × 42 mm equals what size in inches ?
33 × 42 mm equals 1¼″.
33 × 42 mm equals what DN ?
33 × 42 mm equals DN 32.
DN 32 equals what size in mm ?
DN 32 equals 33 × 42 mm.
DN 32 equals what size in inches ?
DN 32 equals 1¼″.

1½″ — DN 40 — 40 × 49 mm

1½″ equals what size in mm ?
1½″ equals 40 × 49 mm.
1½″ equals what DN ?
1½″ equals DN 40.
40 × 49 mm equals what size in inches ?
40 × 49 mm equals 1½″.
40 × 49 mm equals what DN ?
40 × 49 mm equals DN 40.
DN 40 equals what size in mm ?
DN 40 equals 40 × 49 mm.
DN 40 equals what size in inches ?
DN 40 equals 1½″.

2″ — DN 50 — 50 × 60 mm

2″ equals what size in mm ?
2″ equals 50 × 60 mm.
2″ equals what DN ?
2″ equals DN 50.
50 × 60 mm equals what size in inches ?
50 × 60 mm equals 2″.
50 × 60 mm equals what DN ?
50 × 60 mm equals DN 50.
DN 50 equals what size in mm ?
DN 50 equals 50 × 60 mm.
DN 50 equals what size in inches ?
DN 50 equals 2″.

2½″ — DN 65 — 66 × 76 mm

2½″ equals what size in mm ?
2½″ equals 66 × 76 mm.
2½″ equals what DN ?
2½″ equals DN 65.
66 × 76 mm equals what size in inches ?
66 × 76 mm equals 2½″.
66 × 76 mm equals what DN ?
66 × 76 mm equals DN 65.
DN 65 equals what size in mm ?
DN 65 equals 66 × 76 mm.
DN 65 equals what size in inches ?
DN 65 equals 2½″.

3″ — DN 80 — 80 × 90 mm

3″ equals what size in mm ?
3″ equals 80 × 90 mm.
3″ equals what DN ?
3″ equals DN 80.
80 × 90 mm equals what size in inches ?
80 × 90 mm equals 3″.
80 × 90 mm equals what DN ?
80 × 90 mm equals DN 80.
DN 80 equals what size in mm ?
DN 80 equals 80 × 90 mm.
DN 80 equals what size in inches ?
DN 80 equals 3″.

4″ — DN 100 — 100 × 114 mm

4″ equals what size in mm ?
4″ equals 100 × 114 mm.
4″ equals what DN ?
4″ equals DN 100.
100 × 114 mm equals what size in inches ?
100 × 114 mm equals 4″.
100 × 114 mm equals what DN ?
100 × 114 mm equals DN 100.
DN 100 equals what size in mm ?
DN 100 equals 100 × 114 mm.
DN 100 equals what size in inches ?
DN 100 equals 4″.

Technical questions

What is the minimum wall thickness for DN 25 pipe ?
3.2 mm (EN 10241 medium series).
Is there a BSP thread for DN 65 ?
Yes : taper thread R 2½″ ISO 7-1.
What pressure can a welded DN 50 pipe handle ?
PN 25 (≈ 25 bar) at 120 °C in EN 10255 M.
How do I tell welded from seamless pipe ?
The welded type shows a longitudinal seam; seamless is uniform.
DN 50 – what’s the max water flow ?
≈ 450 L/min at 2 m/s velocity.
Hemp or PTFE for sealing ?
Hemp + paste for diameters > 1″; PTFE tape for quick jobs ≤ 1″.
Can I thread an existing galvanized pipe ?
Yes, but spray cold-galv on the bare steel afterwards.
Torque for a ¾″ BSPT joint ?
Around 90 N·m (adjust with lubrication).
Remove galvanizing before welding ?
Yes – strip about 30 mm to avoid toxic fumes.
Thread depth for a DN 40 housing ?
≈ 19 mm (L₂ ISO 7-1).

9. Best installation practices

  • Torque: start at 70 % of the max value, then tighten another quarter-turn if needed.
  • Cut tolerances: ± 1 mm for DN ≤ 40, ± 2 mm above.
  • Inspection: plug gauge, dye-penetrant or borescope for DN ≥ 80.

10. Conclusion & next steps

You now master DN-inch terminology and sound assembly practice. To go further :
