Large radius bend 45° M/F Galvanised cast iron

$8.00
Tax included Shipping calculated at checkout.

Size

Shipping and Delivery

Product Type Delivery Method Preparation Time Transport Time Delivery Time
All Parts Pickup Point 0 to 3 days 3 to 6 days 3 to 9 days
All Parts Home Delivery 0 to 3 days 3 to 5 days 3 to 8 days
Tubes > 90cm Home Delivery 0 to 3 days 3 to 5 days 3 to 8 days
Tubes > 200cm Home Delivery 0 to 3 days 3 to 5 days 3 to 8 days
Assembled Products Home Delivery & Pickup Point 0 to 5 days (see methods) 3 to 11 days

* Tubes longer than 90cm cannot be delivered to a pickup point

For confirmation of delivery times on specific items, please send us a message

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

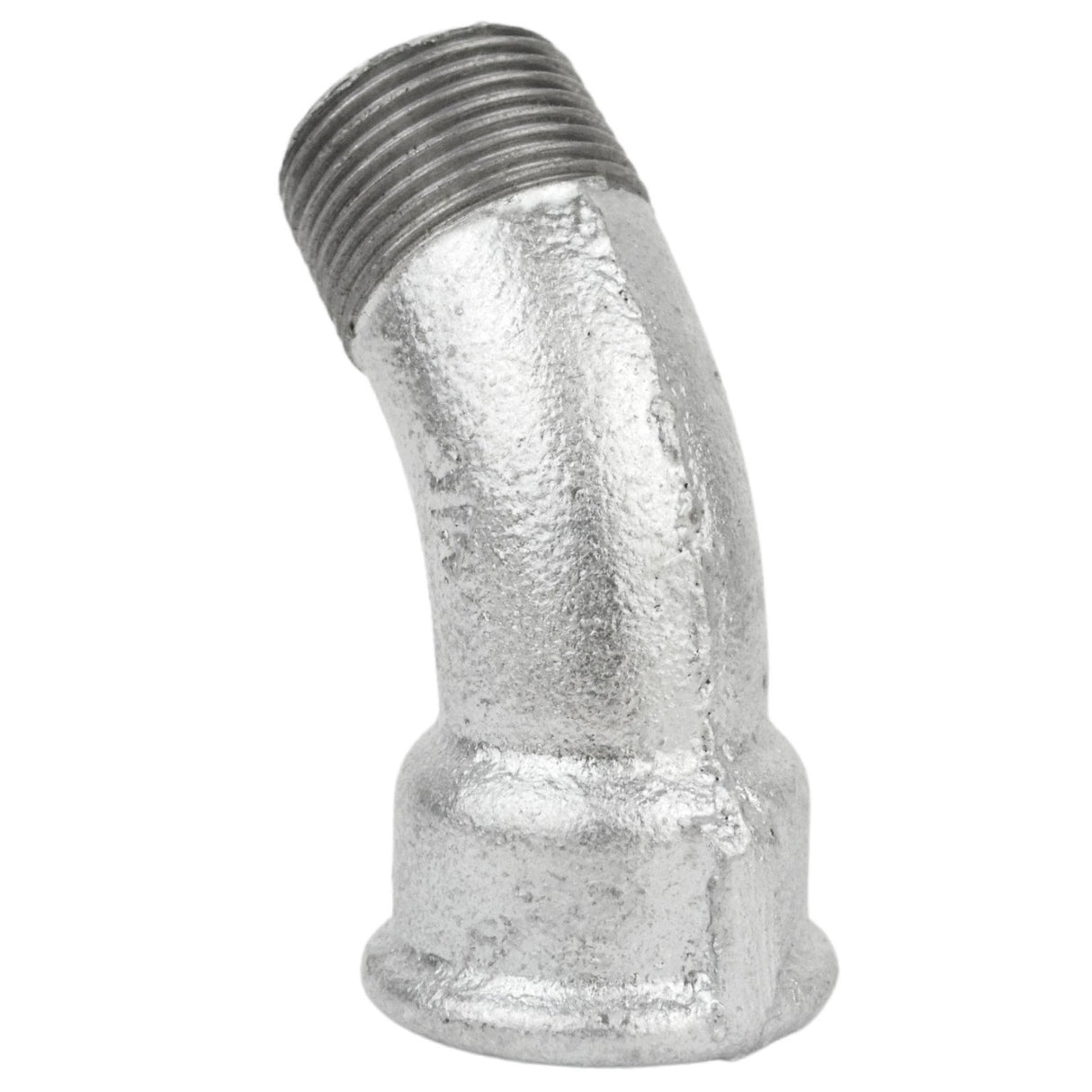

Plumbing Fitting 45° Curved Elbow (Degrees) Large radius bend Male/Female in Galvanised Cast Iron

This Large radius bend 45° Male/female (M/F) in galvanised cast iron allows threaded fittings or threaded pipes to be easily connected by screwing. It is compatible with all galvanised cast iron or black fittings and galvanised steel or black threaded pipes of the same size sold in our online shop. The parts simply screw together, without welding, to make strong assemblies easily.

Description of the Fitting Large radius bend 45 Degrees Galva Male/female

This 45° curved elbow is perfect for joining parts at an angle of 135° (135 degrees), i.e. 45° more than a 90° elbow. One side is threaded (male), the other is tapped (female).

Large radius bend Male/female 45° characteristics and Uses

.

Although we use our fittings for decoration, this is a genuine piece of white-core malleable iron plumbing that complies with EN 10242 and ISO49 standards. Superior quality and a guarantee of foolproof sturdiness!

The threads on this part are BSPT (ISO 7-1 standard) with a cylindrical (threaded) female end.

  • Vissage over 10 to 15 mm (depending on the nature of the part being screwed and the force of the screwing)
  • Materials: galvanised cast iron
  • Colour: galva (slightly shiny silver-grey)
  • High quality
  • Manufactured in Europe

Dimensions of the Fitting Elbow Galvanised Large radius bend 45° Male/female

Tapping / Threads : 3/8'' | 12x17 mm
Dimensions mm (length x width x height) : 50 x 25 x 35
Weight (kg) : 0.07

Tap / Thread : 1/2'' | 15x21 mm
Dimensions mm (length x width x height) : 64 x 30 x 42
Weight (kg) : 0.1

Tap / Threads : 3/4'' | 20x27 mm
Dimensions mm (length x width x height) : 70 x 37 x 52
Weight (kg) : 0.15

Tap / Threads : 1'' | 26x34 mm
Dimensions mm (length x width x height) : 87 x 45 x 62
Weight (kg) : 0.27

Tap / Threads : 1''1/4 | 33x42 mm
Dimensions mm (length x width x height) : 112 x 54 x 78
Weight (kg) : 0.48

Table of plumbing fitting sizes in inches and mm:

Size
Inch.
Size
mm
Diameter
outside.
3/8" 12/17 mm 17 mm
1/2" 15/21 mm 21 mm
3/4" 20/27 mm 27 mm
1" 26/34 mm 34 mm
1"1/4 33/42 mm 42 mm
