Why build a staircase guardrail from plumbing pipes
- Authentic industrial style — black cast iron and red valve handwheels
- Thread-only assembly — no welding, no specialised tools
- Structural strength — EN 10242 malleable cast iron fittings
- 100% demountable — ideal for renters or when you move out

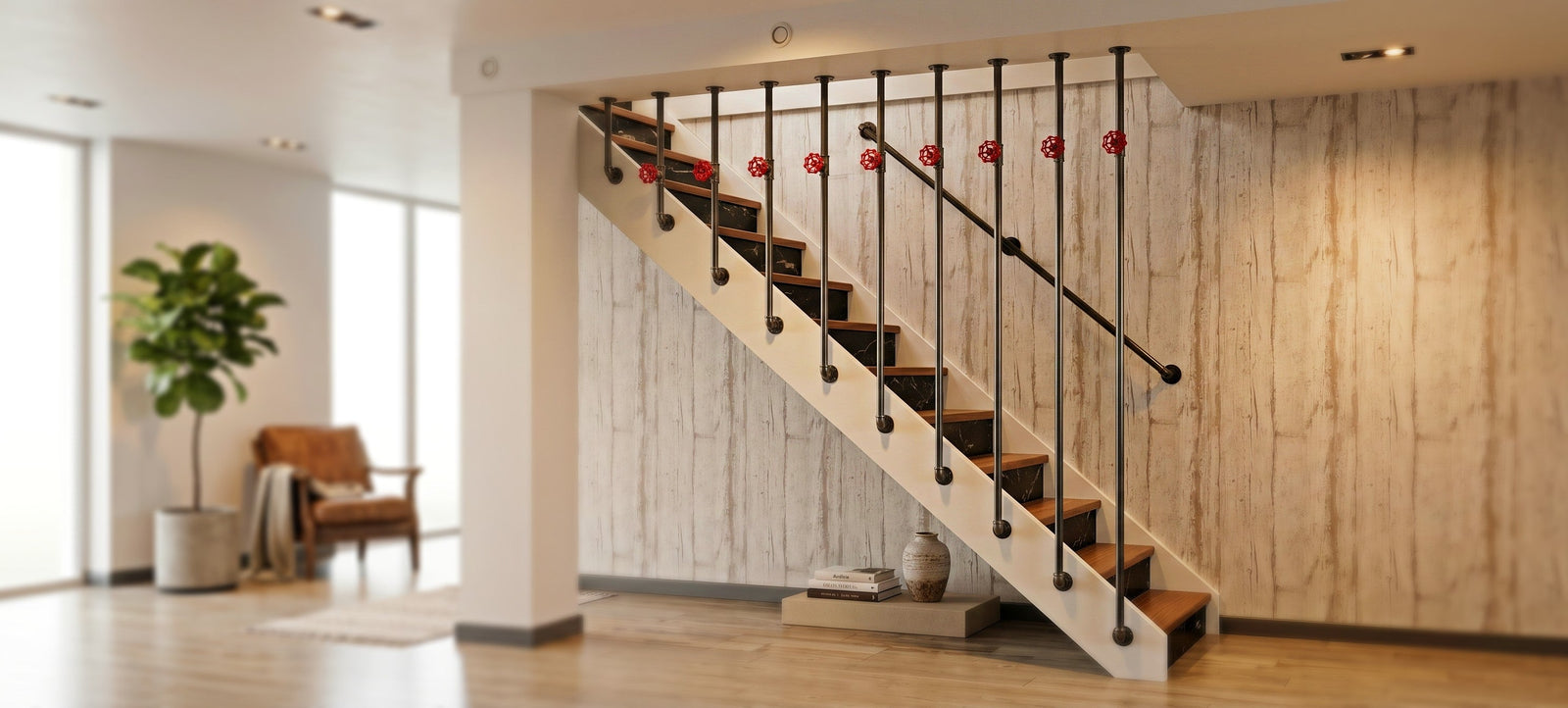

A staircase guardrail made from black steel pipes and black cast iron fittings turns a basic staircase into an industrial centrepiece. Each post is built from threaded parts that you screw together by hand, from floor to ceiling, without drilling the pipe or welding anything.
Technically, this kind of installation is called a floor-to-ceiling raking guardrail with vertical balusters — also known as a staircase railing or balustrade. The balusters run the full height, from the stair tread to the ceiling, forming a continuous barrier along the flight.
The principle is simple: a floor flange anchors each post to the stair tread, a 90° M/F elbow redirects the pipe vertically, and a tee holds a decorative red handwheel acting as a baluster. Repeat on each stair tread all the way up to the ceiling.
This tutorial walks through the full build of a guardrail in 3/4" (20×27 mm) pipes, the ideal diameter for combining looks and sturdiness. Adapt the pipe lengths to your staircase height — the rest stays the same.
Materials needed for your staircase guardrail
- All fittings are 3/4" (DN20), the standard for decorative guardrails
- Quantities depend on the number of stair treads of your staircase
- Each post = 2 flanges + 1 elbow + 1 tee + 1 handwheel + 2 pipes
The table below lists the parts per post. Multiply by the number of stair treads you want to fit. A standard straight staircase with 13 stair treads typically requires 10 to 12 posts.
| Part | Qty / post | Size | Finish |
|---|---|---|---|
| Small-diameter flange (Ref. 321) | 2 | 3/4" | Black |
| 90° M/F small radius elbow (Ref. 92) | 1 | 3/4" | Black |
| Threaded black steel pipe — long (main post) | 1 | 3/4" × custom-cut | Black |
| Equal tee F/F/F (Ref. 130) | 1 | 3/4" | Black |
| Red handwheel 72 mm on nipple | 1 | 3/4" | Red |
| Threaded black steel pipe — short (top of post) | 1 | 3/4" × custom-cut | Black |
The fittings and pipes you need
3/4" black cast iron flange
90° M/F black elbow (Ref. 92)
Equal tee F/F/F black (Ref. 130)
Red handwheel 72 mm on nipple
3/4" threaded black steel pipe
Measure the distance between the stair tread and the ceiling. Subtract the footprint of the fittings (bottom flange + elbow ≈ 6 cm, tee ≈ 4 cm, ceiling flange ≈ 3 cm). The long pipe goes from the elbow to the tee. The short pipe goes from the tee to the ceiling flange. Position the tee (and therefore the handwheel) at the desired height — usually between 80 and 100 cm above the stair nosing so it can serve as a handrail.
At Home Invasion, pipes are available custom-cut, threaded at both ends to the exact length you need.
Tools you'll need
- Cordless drill / driver — to fix the flanges to the stair treads and the ceiling
- Tape measure — to measure the tread-to-ceiling height of each post
- Spirit level — to check the posts are vertical
- Carpenter's pencil — to mark the flange locations
- Adjustable wrench — for final tightening of the fittings (optional, hand-tightening is usually enough)
- Wood or masonry drill bit — depending on the material of your stair treads and ceiling
Building your staircase guardrail: step by step
- Assemble from bottom to top: flange → elbow → pipe → tee + handwheel → pipe → flange
- Each post screws together on its own — no need to build them all at once
- Start with the bottom post, then work your way up one stair tread at a time
Plan the layout
Locate each post. The rule: one post per stair tread, positioned at the outer edge of the stair nosing (open side of the staircase). Also mark the ceiling fixing points directly above each bottom flange.
Space the posts evenly. The spacing depends on the depth of your stair treads (usually 25 to 30 cm). Too wide and safety suffers; too tight and the overall look becomes heavy.
Fix the flanges to the stair treads
Screw a 3/4" black cast iron flange onto each stair tread at the marked location. Use wood screws for wooden stair treads, or suitable wall anchors for concrete or tiles.
The flange can be fixed either to the top of the stair tread (easier) or to the side of the stringer (more discreet). Either way, the female thread of the flange must point upwards to receive the elbow.
Install the elbows and pipes
Screw a 90° M/F elbow into each flange. The male side of the elbow screws into the flange; the female side receives the vertical pipe.
Then insert the long pipe (main post) into the elbow. This pipe runs from the stair tread up to the level of the tee. Tighten by hand, orienting the elbow so the pipe is perfectly vertical.
Assemble the tees and handwheels
Screw an equal tee F/F/F onto the top of the long pipe. The side branch (the T branch) should point outward from the staircase, toward the visible side.
Screw a red handwheel 72 mm on nipple into the tee branch. The nipple built into the handwheel screws directly into the tee's female thread — no extra fitting required.
The red handwheel adds a striking decorative element and also serves as a safety baluster between posts.
Fix the ceiling flanges and complete the post
Screw the short pipe into the top outlet of the tee. This pipe reaches up to the ceiling.
Fix a 3/4" flange to the ceiling directly above the post, then screw the short pipe into the flange. If the pipe is slightly too long, back the tee off by a quarter turn to compensate — the tolerance of threaded fittings allows for fine adjustment.
Adjust and tighten everything
Once all the posts are in place:
- Check each post for verticality with a spirit level.
- Check the horizontal alignment of the tees and handwheels — they should form an even line at the same height.
- Tighten each fitting by a further quarter turn with the adjustable wrench.
- Retighten the flange screws if needed.
The tapered BSPT thread of the cast iron fittings provides mechanical locking without PTFE tape or hemp — this is a decorative build, not a pressure installation.
Pro tips for your industrial guardrail
- Order custom-cut pipes. Each stair tread has a different height to the ceiling. Measure every post individually and order custom-cut threaded pipes to the right length (watch out — do a trial run first to be sure, custom-cut items cannot be returned!).
- Protect the steel. The black pipes and fittings are raw, with no finish. To prevent oxidation, apply paint, a clear wax or a varnish after assembly.
- Concrete or tiled stair treads? Use metal expansion wall anchors. The flange has 4 fixing holes — drill all 4 to guarantee the guardrail's strength.
A staircase guardrail must withstand a horizontal force of 60 daN (standard NF P 01-012). The EN 10242 malleable cast iron 3/4" fittings far exceed this requirement. However, make sure you:
- Firmly anchor each flange into a support that can carry the load
- Tighten all the fittings all the way
- Keep the spacing between posts under 11 cm (the standard for guardrail balusters) if young children use the staircase
Customer project
Want to go further?
The same fittings and pipes are used to build other industrial furniture and accessories:
Frequently asked questions
Which pipe diameter should I choose for a staircase guardrail?
3/4" (20×27 mm) is the best choice. It offers an outer diameter of 27 mm, comfortable to grip as a handrail, and more than enough mechanical strength for a guardrail. 1/2" would look too thin, and 1" would add weight without any real benefit.
How many posts do I need for a standard staircase?
Plan on one post per stair tread on the open side of the staircase. A standard straight staircase with 13 stair treads needs around 10 to 12 posts (the first and last stair treads may not always need a post depending on the layout).
Do I need PTFE tape or hemp on the fittings?
No. PTFE tape and hemp are used to seal pressurised installations (water, gas). Here, the build is purely decorative and structural. The tapered BSPT thread of the cast iron fittings provides enough mechanical locking with a simple screw-in assembly.
Does a pipe guardrail meet safety standards?
EN 10242 malleable cast iron 3/4" fittings far exceed the strength required by NF P 01-012 (60 daN horizontal force). Make sure the flanges are firmly anchored in a load-bearing support and that the spacing between posts stays under 11 cm.
Can I paint the black cast iron pipes and fittings?
Yes. Degrease the parts with acetone, apply an anti-rust primer, then the top-coat paint (spray can or spray gun). Many industrial projects, however, deliberately keep the factory burnt black finish, protected with a coat of wax or clear matt varnish.
