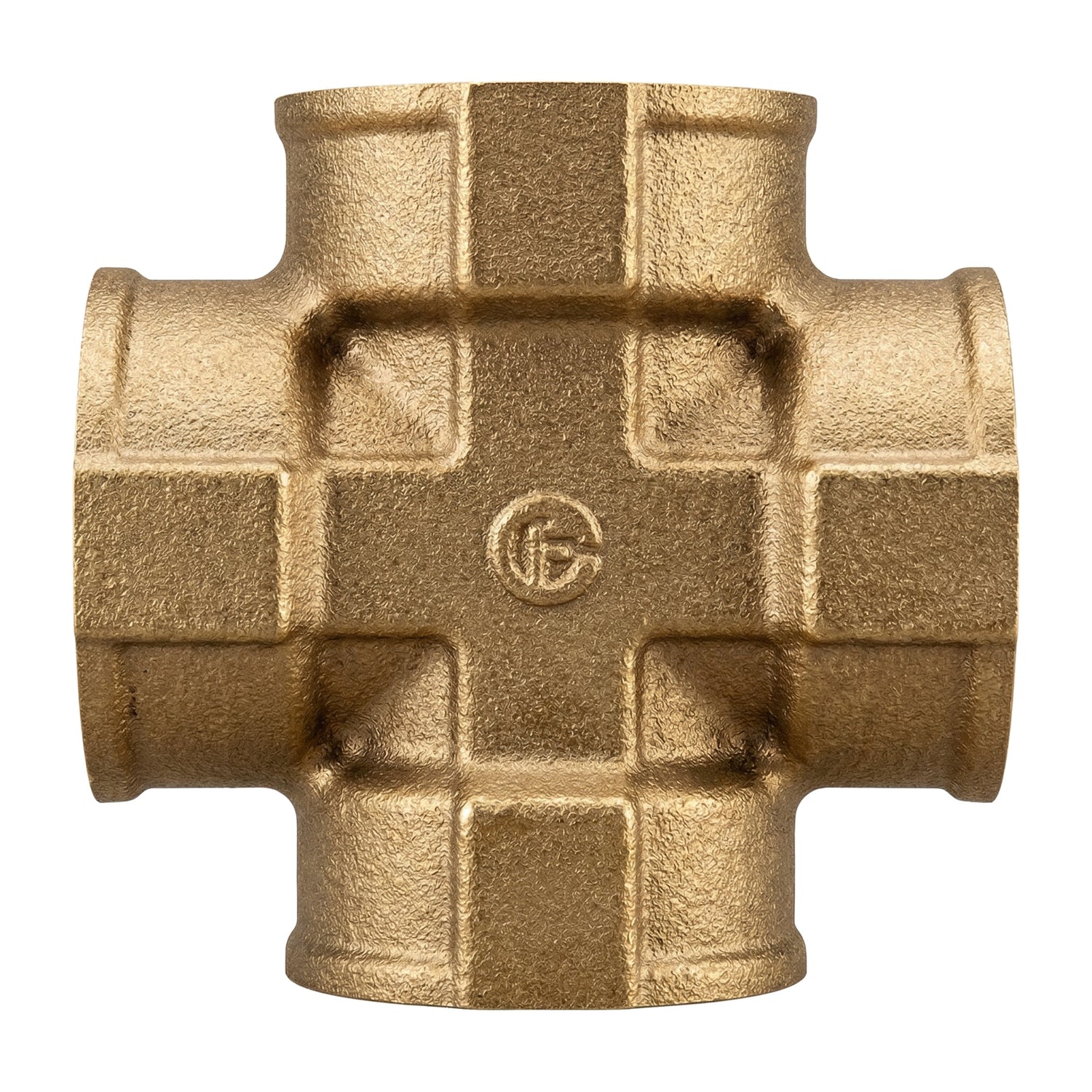

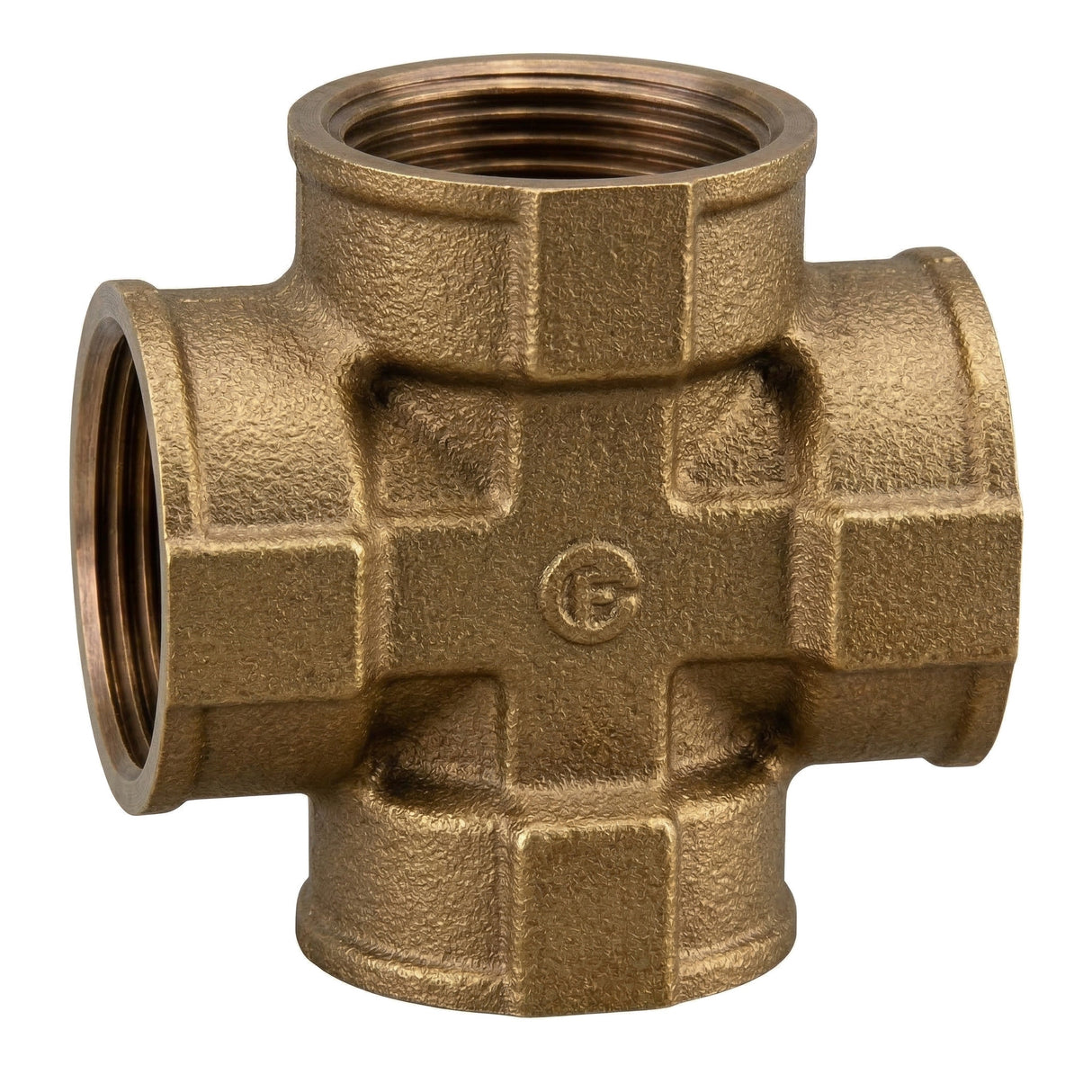

Brass Female Cross
Croix female brass screw-in, offering four female threaded outlets of the same diameter to create a junction in your plumbing network or decorative project. ISO 228-1 BSPP compliant thread. Raccord professionnel adapté aux installations complexes.
Description of the Brass Female Cross
Cette croix female distribue un flux dans quatre directions simultanées. Les quatre sorties female threaded de same diameter accueillent des male fittings threaded. Elle est indispensable pour les installations nécessitant des ramifications multiples à partir d'un point unique.
Le assembly s'effectue without soldering by simply screwing. La croix brass est also un élément de choix pour la decoration créative : création d'étagères en grille, structures de luminaires, ou tout assemblage nécessitant des intersections à angle droit.
Technical Characteristics
| Material | Laiton CW617N - 4MS |
| Colour | Golden brass |
| Nominal pressure | PN 16 bar |
| Thread standard | ISO 228-1 - BSPP Gaz (thread cylindrique) |
| Sealing | By flat gasket (thickness from 1 mm) |
| Gasket seats | Flat and wide on male and female ends |
| Shape | 6-sided |
| Type | Femelle × 4 (female threaded sur les 4 sorties) |
| Number of outlets | 4 (Cross) |
| Compatible fluids | Drinking water, glycol water, compatible fluids |
| Temperature | Depending on the type of sealing chosen |
| Use | Drinking water supply, general plumbing, HVAC |
Conditions of Use and Installation
- Working pressure : PN 16 bar
- Temperature : Depending on the type of sealing chosen
- Fluids : Drinking water, glycol water, compatible fluids
- Installation : Appliquer un moderate tightening torque et choisir des matériaux adaptés (risque de corrosion galvanique). Plats de maintien adaptés aux clés du marché.
Certifications and Compliance
- Drinking water : Compliant with the decree of 25 June 2020 relating to metallic materials and products intended for installations en contact avec l'eau destinée à la consommation humaine.
- 4MS : Compliant with 4MS requirements — Harmonisation des règles de certification européennes pour les matériaux et produits en contact avec l'eau potable.
Applications and Installation Tips
Uses
- Domestic plumbing : connection d'installations eau chaude et froide
- Industrial plumbing : installations conformes PN 16 bar
- Interior decoration : création de luminaires, étagères, porte-serviettes en exposed brass
- DIY and creative home improvement : projets sur mesure avec fittings à screw
Installation tips
- Utilisez du PTFE tape (téflon) ou de la filasse pour assurer l'sealing sur les threads male
- Pour les portées de flat gasketes, utilisez un flat gasket d'épaisseur minimale 1 mm
- Serrez à la open-end wrench ou adjustable wrench — ne pas utiliser de pince multiprise pour éviter de marquer la pièce
- Appliquer un moderate tightening torque — un tightening excessif peut endommager le thread
Technical Drawing
Dimensions (mm)
All dimensions are expressed in millimetres (mm), unless otherwise stated.
| G | G (mm) | OD | L | H |
|---|---|---|---|---|
| 3/8" | 12x17 | 11 | 8.5 | 36 |
| 1/2" | 15x21 | 14.5 | 10 | 43 |
| 3/4" | 20x27 | 19.5 | 11 | 50 |
| 1" | 26x34 | 25 | 13 | 61 |
| 1"1/4 | 33x42 | 33 | 14 | 72 |
| 1"1/2 | 40x49 | 39 | 15.5 | 81.5 |
| 2" | 50x60 | 50 | 17 | 97 |
Size Correspondence
Cette croix est available in the following sizes. Utilisez ce tableau pour trouver la correspondance entre millimètres, pouces et DN.
| Size (mm) | 12x17 | 15x21 | 20x27 | 26x34 | 33x42 | 40x49 | 50x60 |
|---|---|---|---|---|---|---|---|
| Inches | 3/8'' | 1/2'' | 3/4'' | 1'' | 1''1/4 | 1''1/2 | 2'' |
| DN | DN10 | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 |
| Tube O.D. | 17 mm | 21 mm | 27 mm | 34 mm | 42 mm | 49 mm | 60 mm |
The appearance of the part may vary depending on the batch in stock (see photos). Contact us for confirmation.
