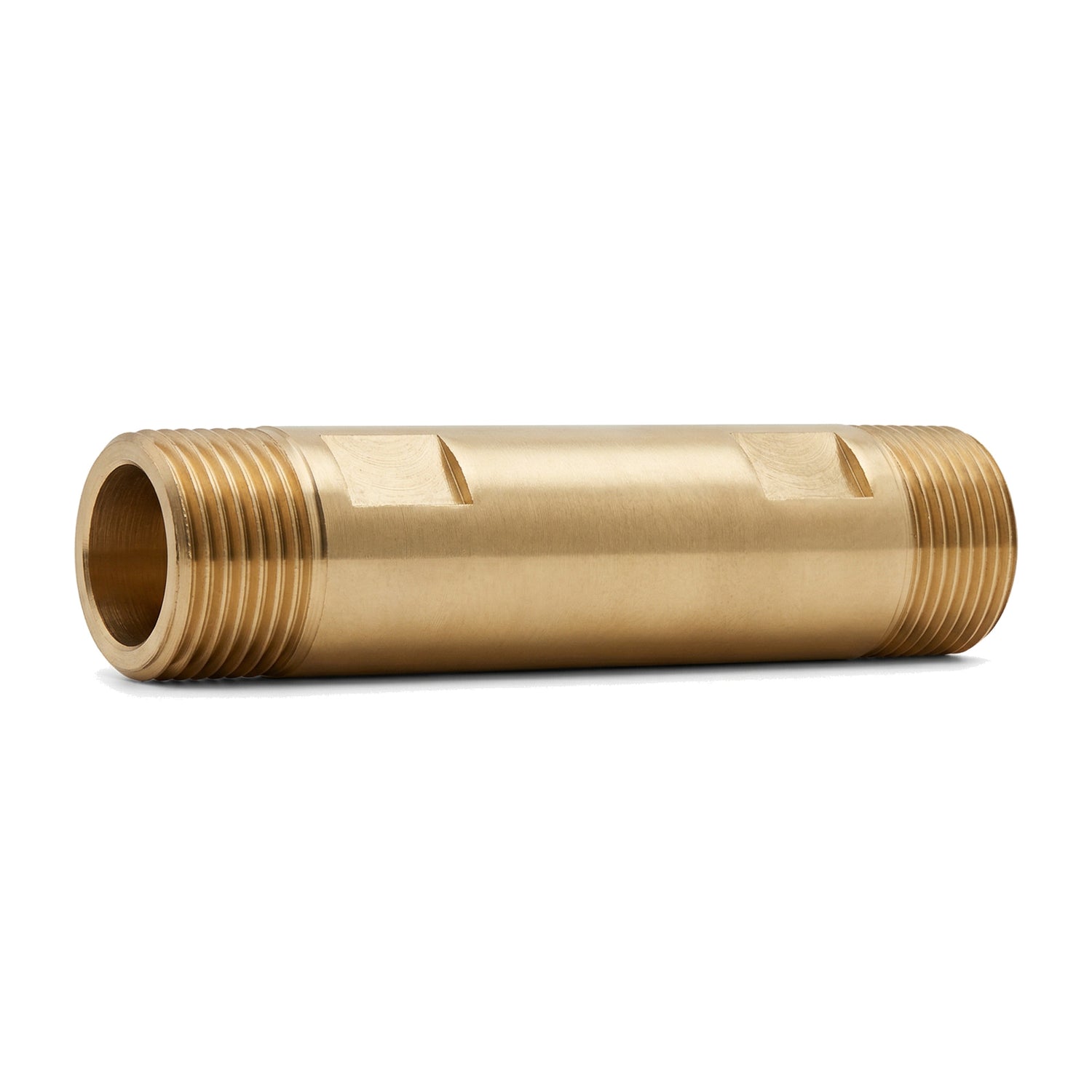

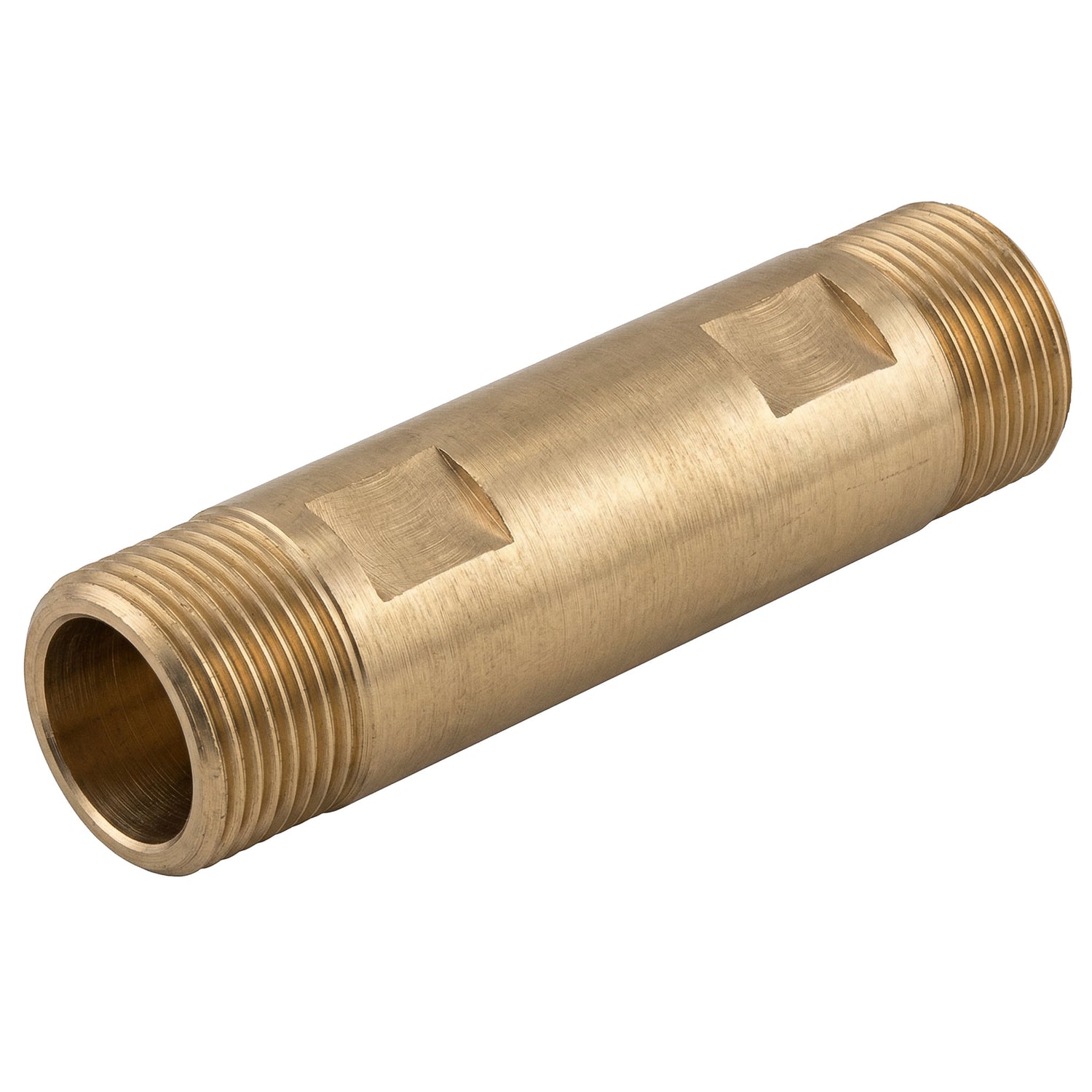

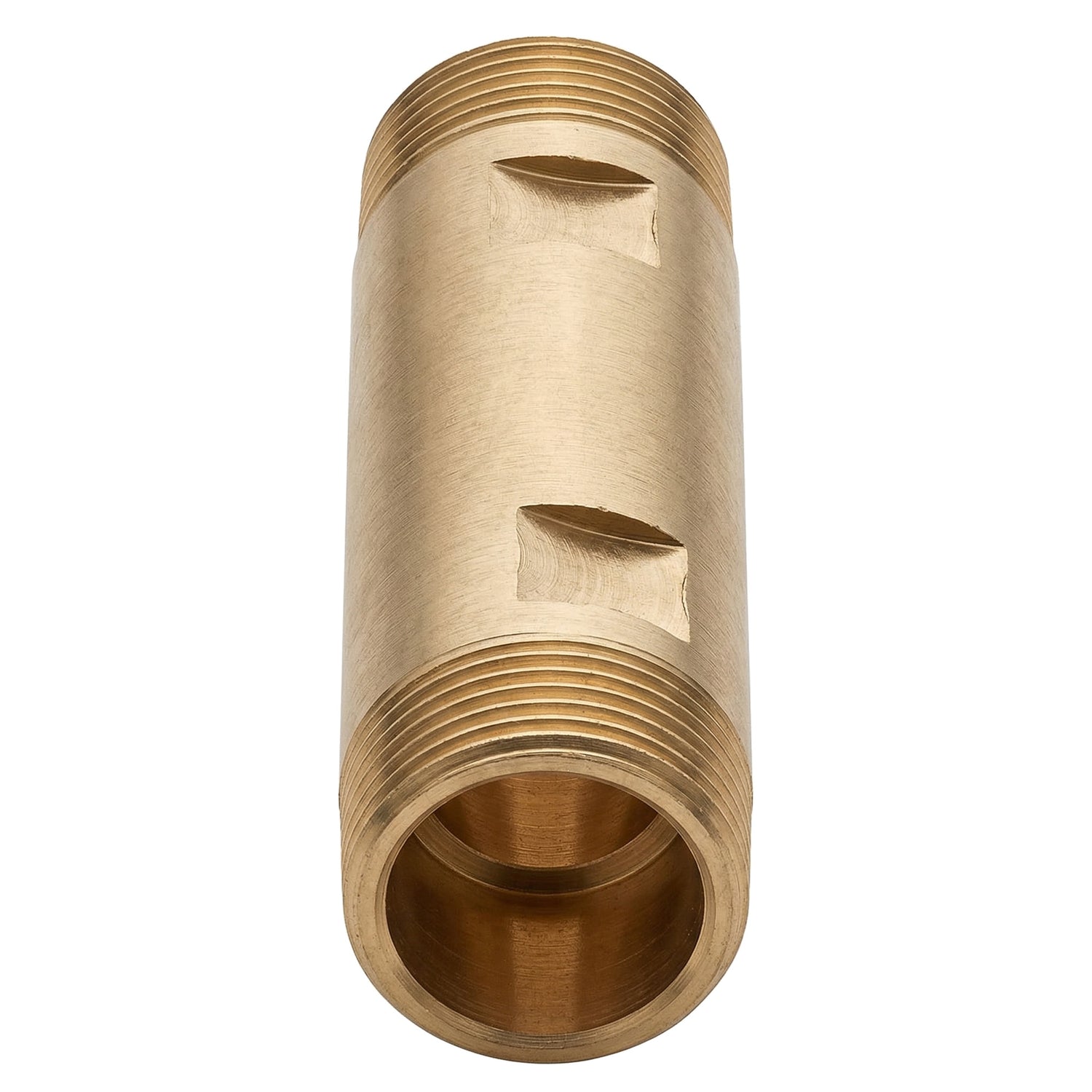

Brass Meter Connecting Tube 3/4" M/M
Brass 3/4'' M/M standpipe for water meter connection. Male threaded on both sides in 3/4'', this pipe connects the meter to the distribution network. ISO 228-1 BSPP standard.
Brass Water Meter Standpipe Description
This standpipe is specifically designed for water meter connections. It sits between the meter and the rest of the installation, held in place by swivel nuts or union fittings. The 3/4'' diameter is the standard for domestic meters.
Available in various lengths to suit the distance between the meter and the connection point. The brass ensures corrosion resistance and a long service life on drinking water networks.
Technical Specifications
| Material | Brass CW617N - 4MS |
| Colour | Golden brass |
| Nominal pressure | PN 16 bar |
| Thread standard | ISO 228-1 - BSPP Gas (parallel thread) |
| Sealing | Guaranteed flat gasket seal (minimum thickness 1 mm) |
| Gasket seats | Flat and wide on male and female ends |
| Shape | Threaded cylindrical tube |
| Type | Male / Male 3/4'' (threaded on both sides) |
| Compatible fluids | Drinking water, glycol water, compatible fluids |
| Temperature | Depends on the type of seal used |
| Application | Drinking water supply, general plumbing, HVAC |
Operating Conditions and Installation
- Operating pressure : PN 16 bar
- Temperature : Depends on the type of seal used
- Fluids : Drinking water, glycol water, compatible fluids
- Installation: Apply moderate tightening torque and use suitable materials (risk of galvanic corrosion). Wrench flats compatible with standard tools.
Certifications and Compliance
- Drinking water: Compliant with the French decree of 25 June 2020 on metallic materials and products intended for installations in contact with water for human consumption.
- 4MS: Compliant with 4MS requirements — Harmonisation of European certification rules for materials and products in contact with drinking water.
Applications and Installation Tips
Applications
- Meter connections: installation and removal of water and gas meters
- Domestic plumbing: hot and cold water installation connections
- Industrial plumbing: PN 16 bar compliant installations
Installation tips
- Use PTFE tape (Teflon) or hemp to ensure sealing on male threads
- For flat gasket seats, use a flat gasket with a minimum thickness of 1 mm
- Tighten with an open-end wrench or adjustable wrench — do not use slip-joint pliers to avoid damaging the fitting
- Apply moderate tightening torque — over-tightening may damage the thread
Technical Drawing
Dimensions (mm)
All dimensions are expressed in millimetres (mm) unless otherwise stated.
| G | G (mm) | L |
|---|---|---|
| 3/4" | 20x27 | 110 |
| 3/4" | 20x27 | 170 |
Available Lengths
This standpipe is available in the following lengths.
| Length | 110 mm | 170 mm |
|---|
The appearance of the part may vary depending on the batch in stock (see photos). Contact us for confirmation.
