Equal coupling black malleable iron

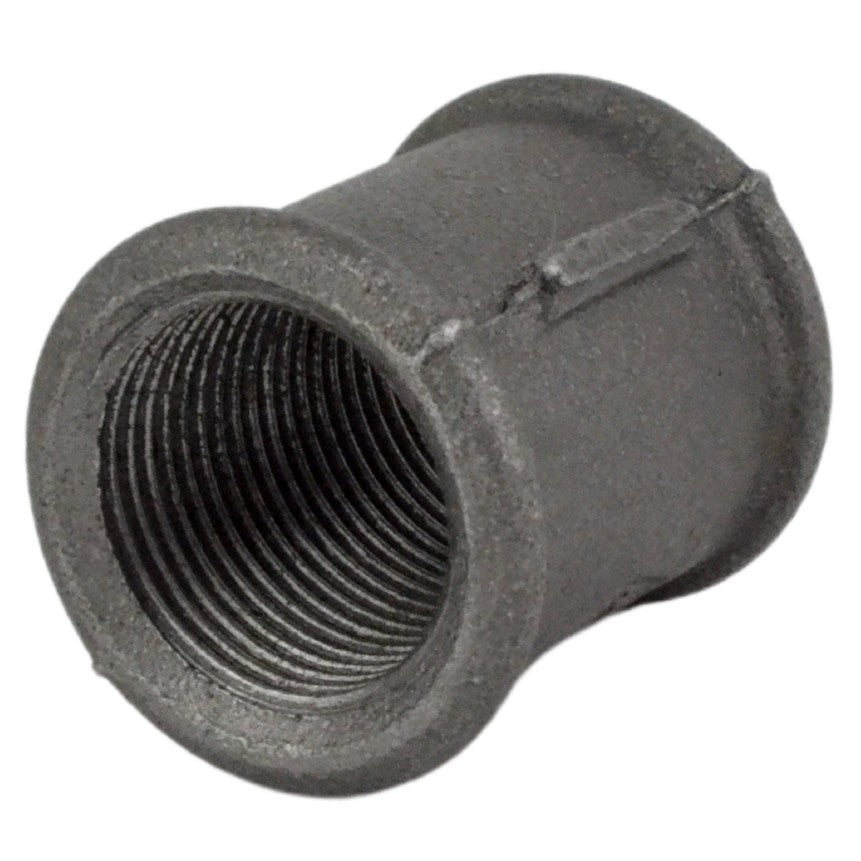

Black cast iron female/female equal coupling plumbing fitting.

This black cast iron Female/Female equal coupling allows threaded fittings or threaded pipes of the same size to be easily connected by screwing; it is particularly useful for joining two pipes together and thus extending their length. It is compatible with all black cast iron or galvanized fittings and black steel or galvanized threaded pipes of the same size sold in our online shop. The parts simply screw together, without welding, to make strong assemblies easily.

Description of the female/female equal coupling:

The equal coupling has two female ends (tapped) of the same size. Its shape makes it easy to screw on using an adjustable spanner.

Premium or Eco range?

This part is available in our Premium or Economy ranges. In both cases, these are genuine plumbing fittings that are perfectly functional.

The differences are as follows:

Premium equal coupling features and uses:

Although we use our fittings for decoration, this is a genuine plumbing part made of whiteheart malleable cast iron that complies with EN 10242 and ISO49 standards. Superior quality and a guarantee of rock-solid sturdiness!

The threads on this part are BSPT (ISO 7-1 standard) with cylindrical female (tapped) ends.

• Screws in 10 to 15mm (depending on the part screwed in and the force applied)
• Materials: black cast iron
• Colour: dark grey
• High quality
• Made in Europe

Common assembly example:

Pipe 1 + Equal coupling + Pipe 2 = Total length of assembly

• 3/8'' = Pipe 1 + Pipe 2 + x cm
• 1/2'' = Pipe 1 + Pipe 2 + x cm
• 3/4'' = Pipe 1 + Pipe 2 + x cm
• 1'' = Pipe 1 + Pipe 2 + x cm
• 1''1/4 = Pipe 1 + Pipe 2 + x cm

Female/female equal coupling dimensions:

Tapping / Threads: 3/8'' | 12x17mm
dimensions mm (length x width x height): 30 x 25
weight (kg): 0.05

Tapping / Threads: 1/2'' | 15x21mm
dimensions mm (length x width x height): 35 x 30
weight (kg): 0.08

Tapping / Threads: 3/4'' | 20x27mm
dimensions mm (length x width x height): 40 x 35
weight (kg): 0.11

Tapping / Threads: 1'' | 26x34mm
dimensions mm (length x width x height): 45 x 45
weight (kg): 0.16

Tapping / Threads: 1''1/4 | 33x42mm
dimensions mm (length x width x height): - x -
weight (kg): 0.26

Conversion table of plumbing fitting sizes in inches and mm:

Goes well with

Compatible products: Black steel pipes · All black cast iron fittings

Useful guides:

• How to screw fittings and pipes together
