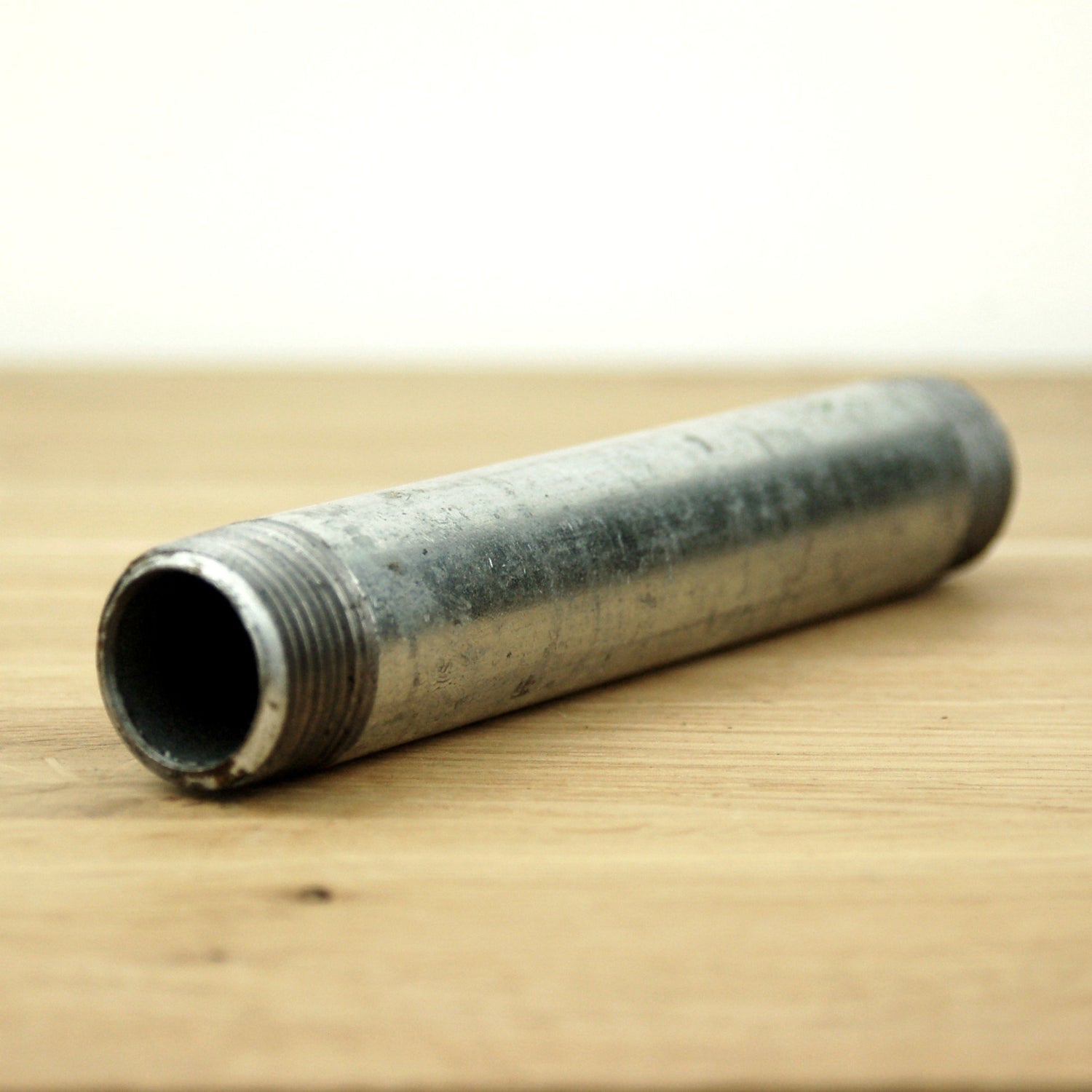

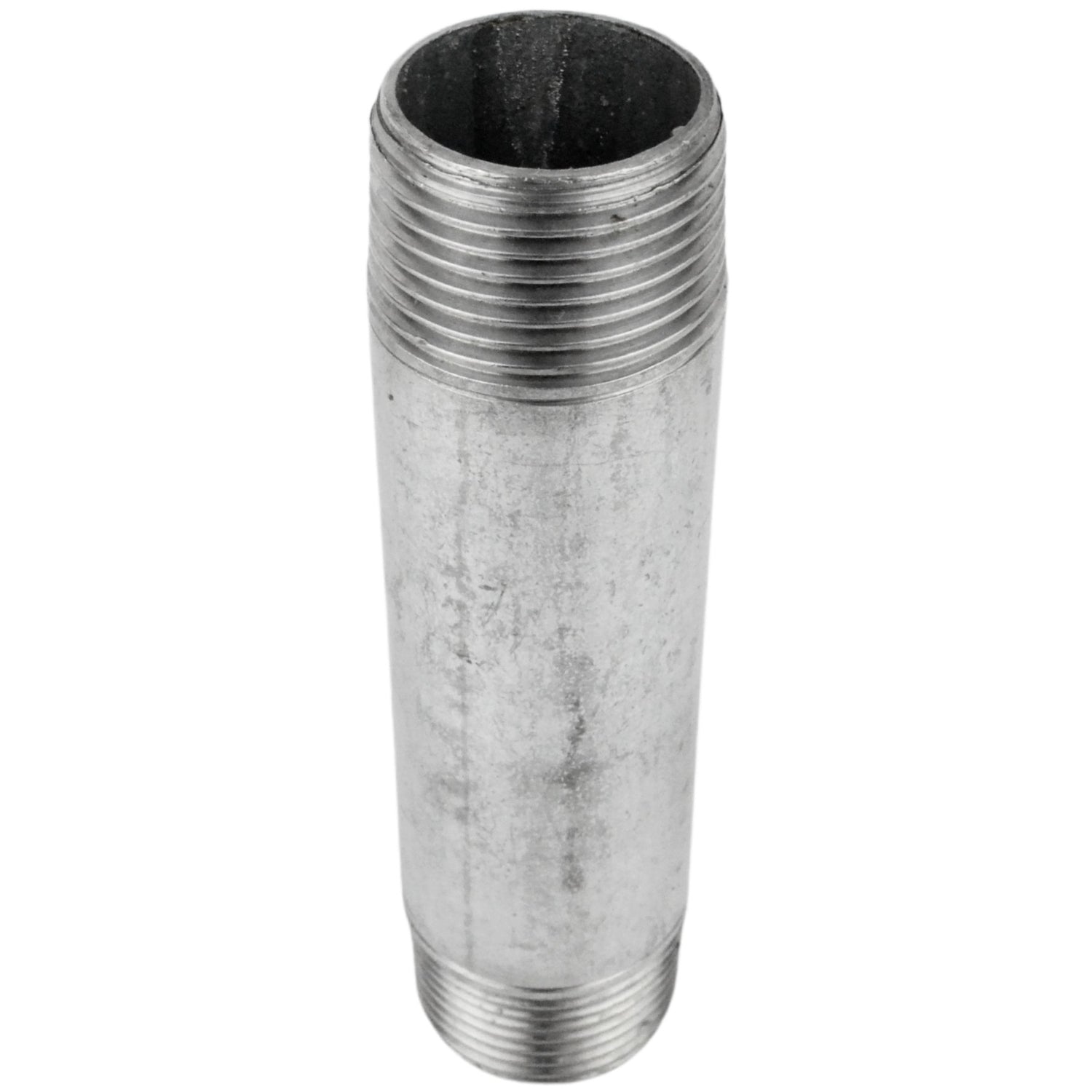

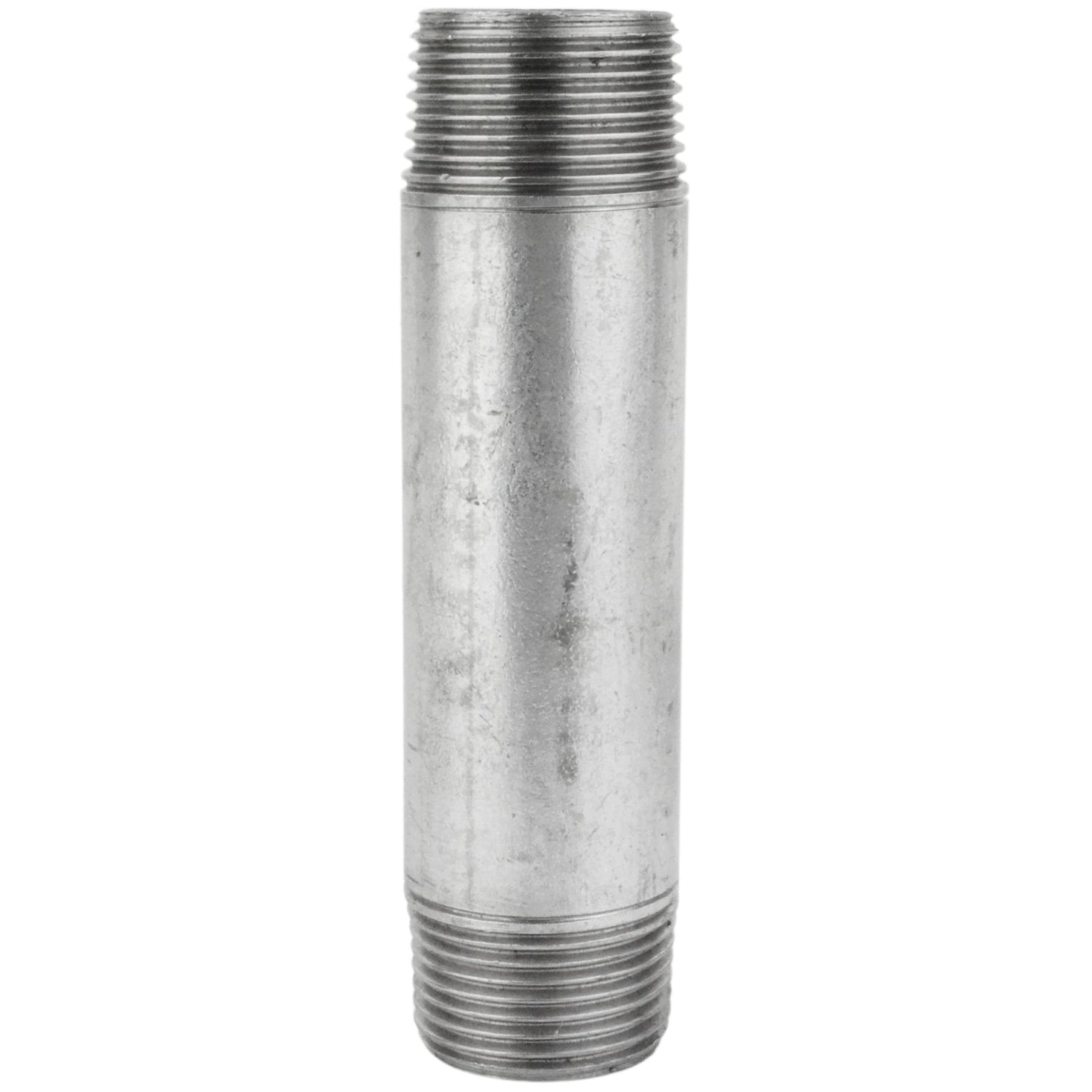

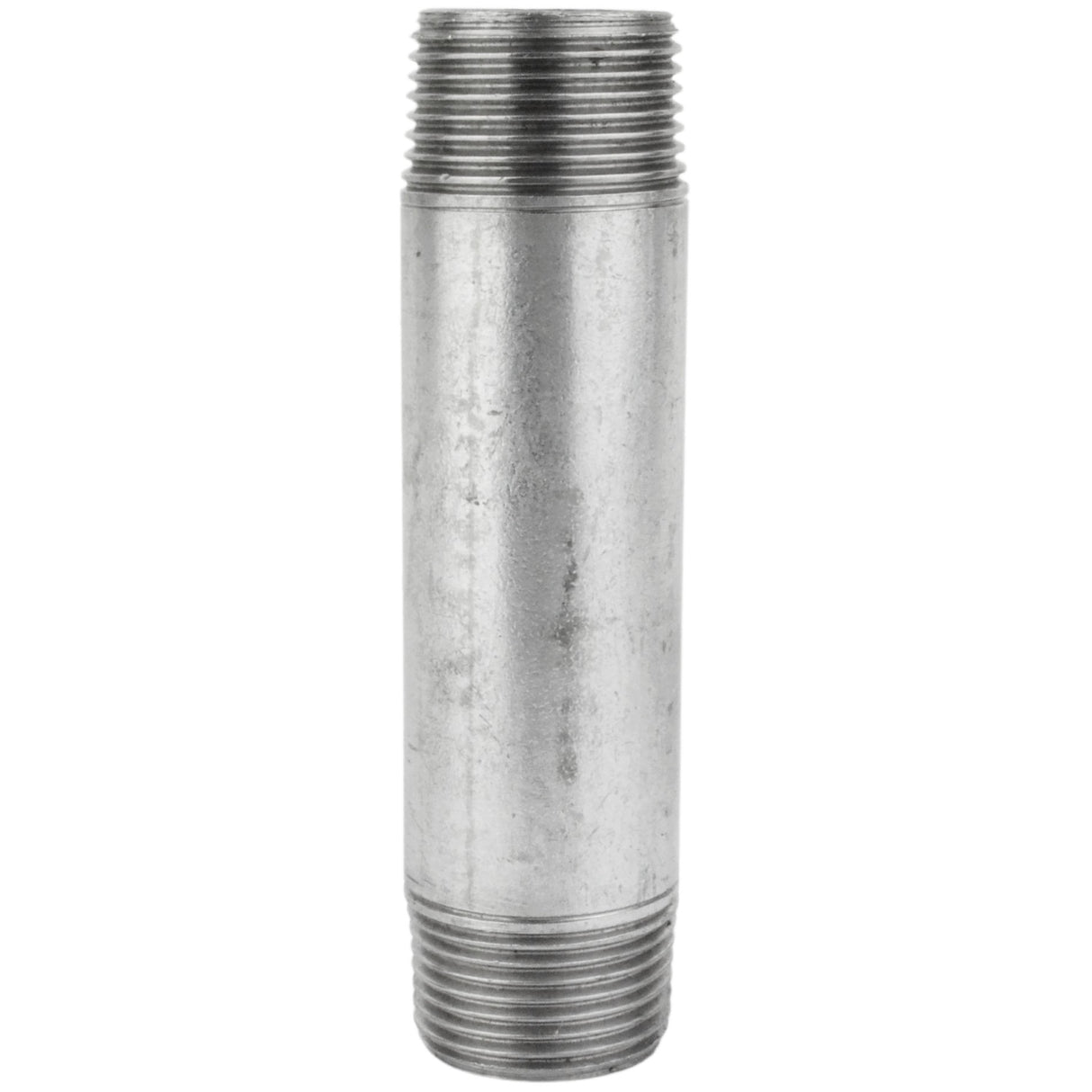

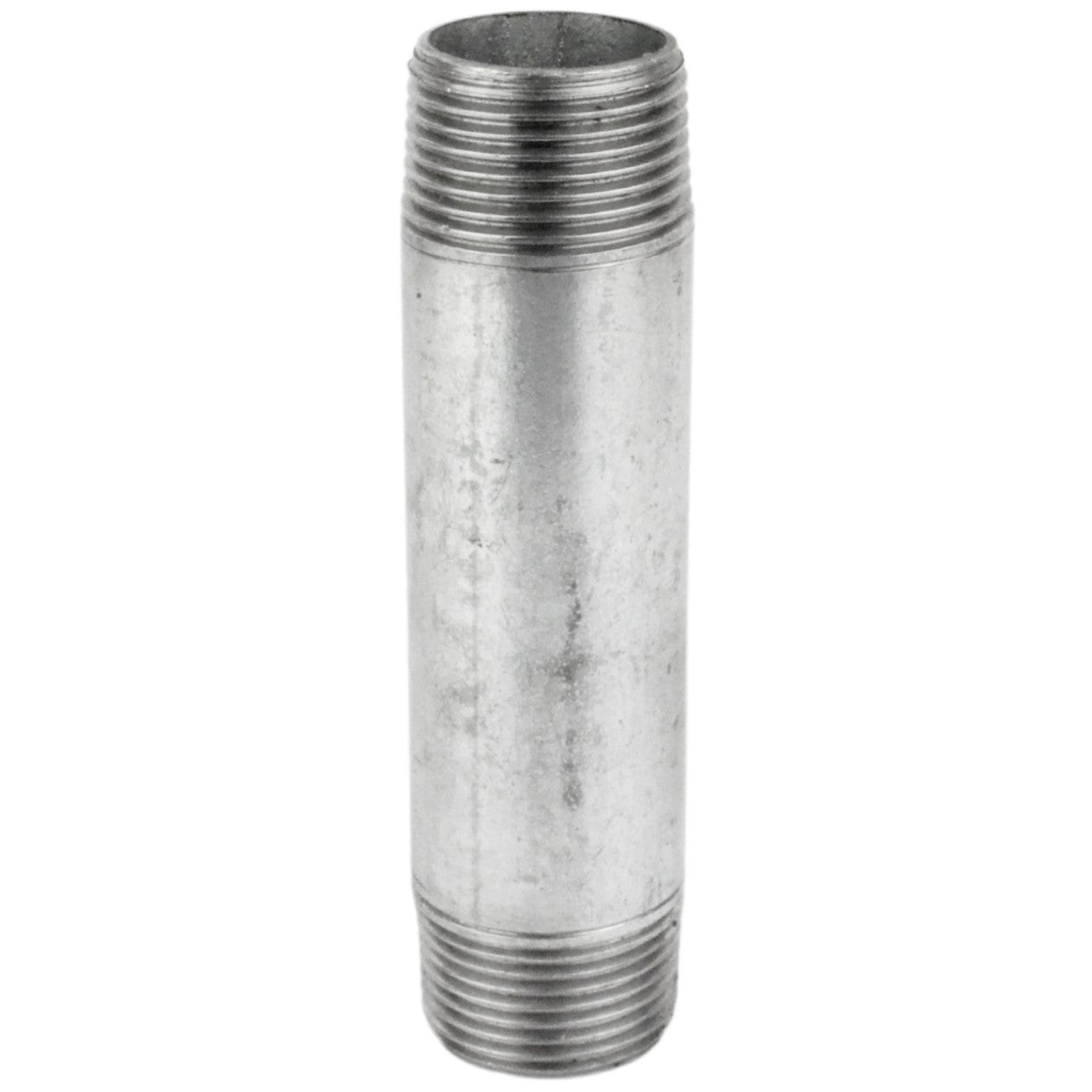

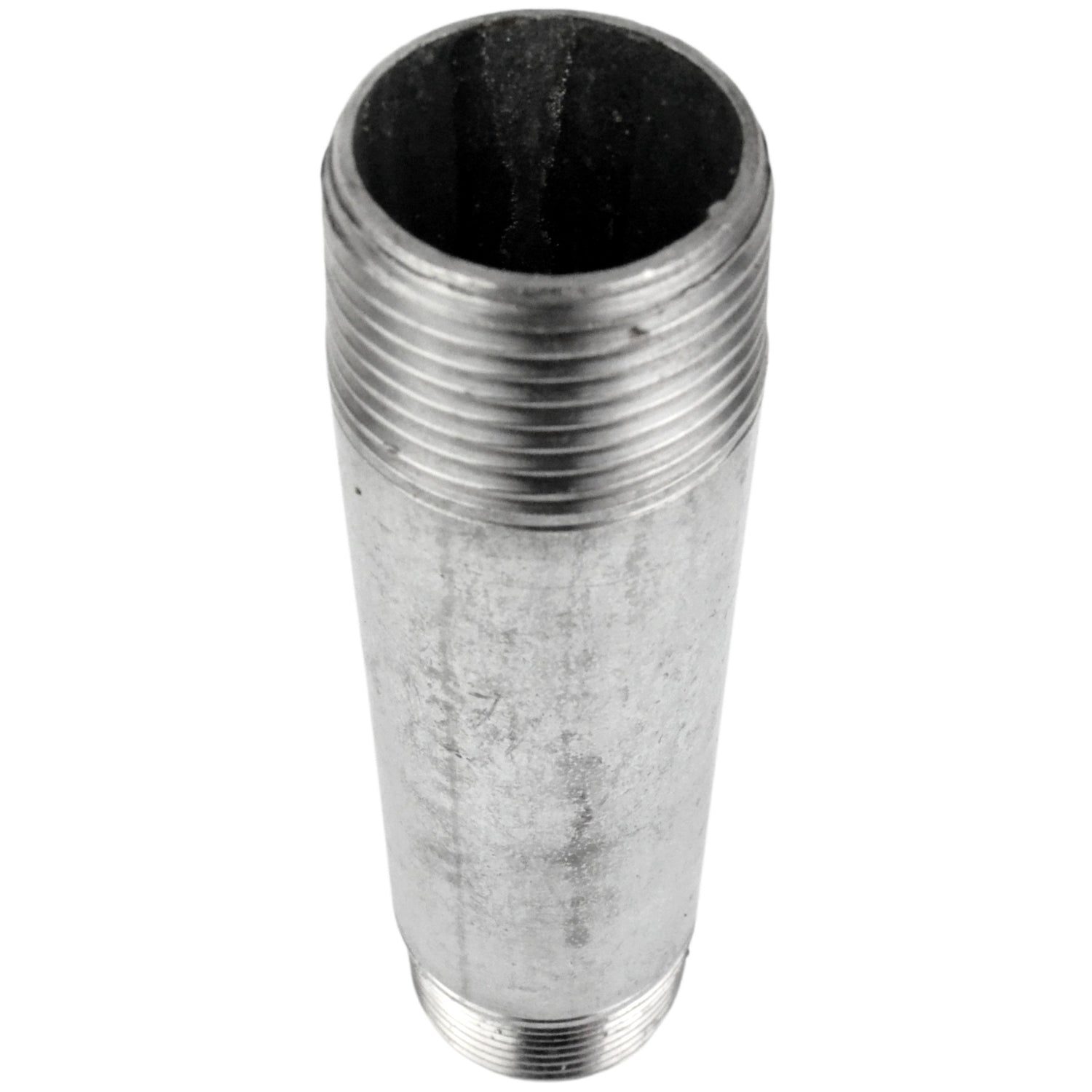

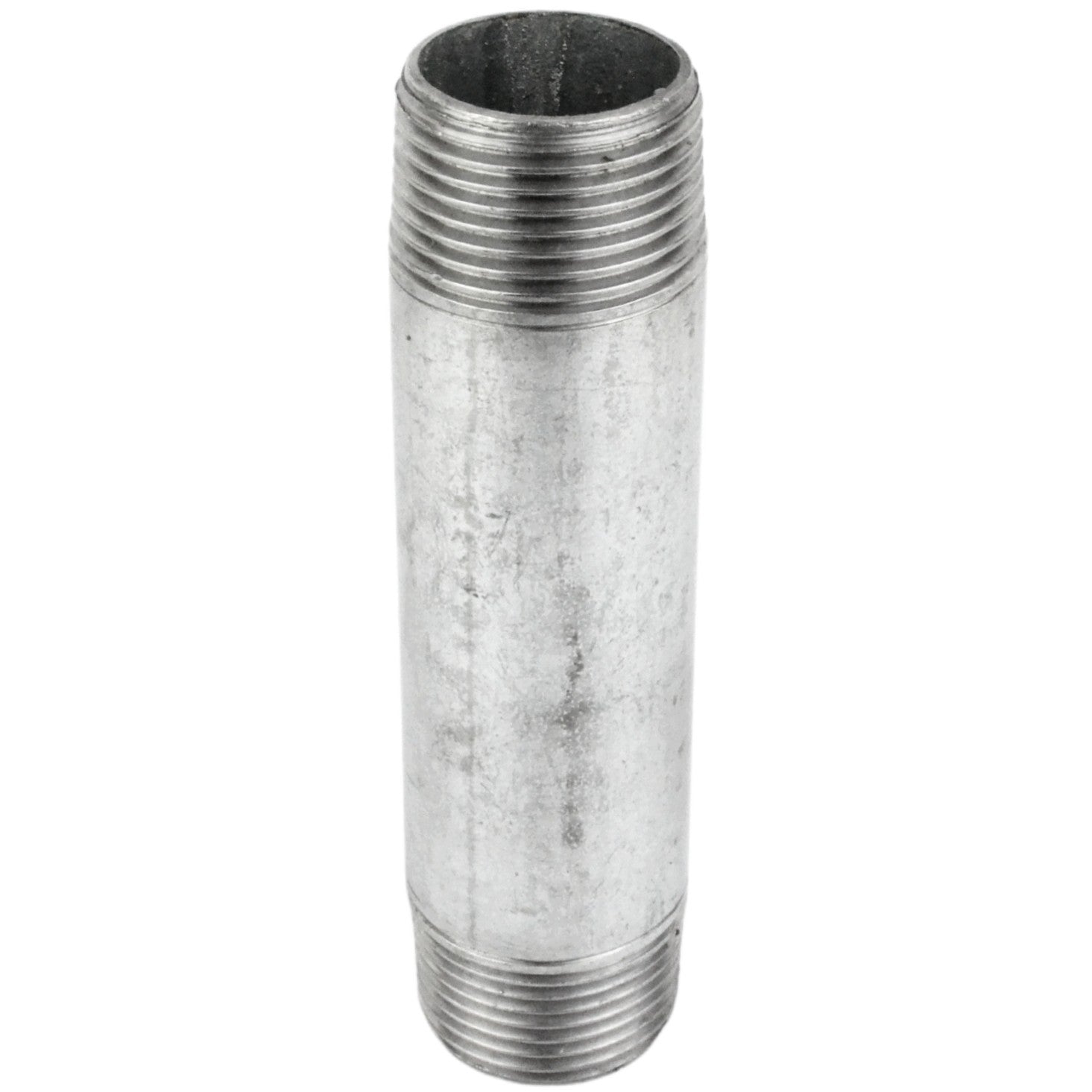

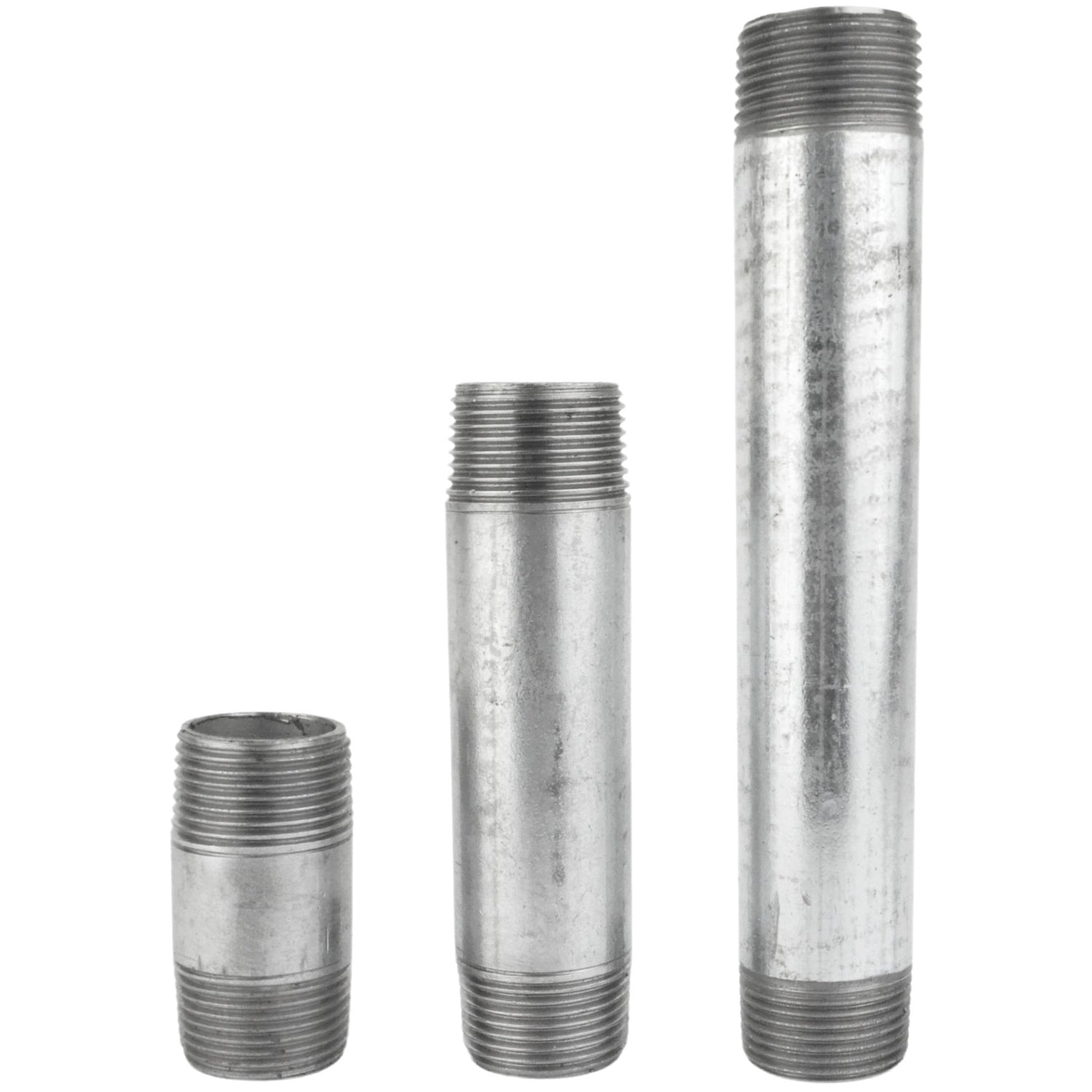

Plumbing and Deco pipe 3/4'' | 20x27mm, Outside diameter 27mm, Galvanised steel
Use
The threaded (male) steel coils can be paired with any threaded (female) cast iron fitting of the same size to create plumbing pipe structures. The 27mm pipes are great for all types of "Do It Yourself" projects in cast iron plumbing pipes and fittings.
Not too big, not too small, 3/4" Pipes are ideal for making all types of industrial furniture, from table bases to racks, but also fittings (dressing rooms, bookcases, shelves), or decorative objects like pipe lamps for example. Cast iron pipes do not exist for this type of diameter, the so-called "gas" pipes are made of welded steel.
Our 3/4'' (DN20) pipes can also be used with standing clamps.
Features
Diameter
27mm. The outside diameter of the pipe is always the second number, in this case 20x27mm.
Diameter correspondence table:
| Size inch |
Size mm |
Outer diameter |
| 3/8" |
12/17mm |
17mm |
| 1/2" |
15/21mm |
21mm |
| 3/4" |
20/27mm |
27mm |
| 1" |
26/34mm |
34mm |
| 1"1/4 |
33/42mm |
42mm |
Does the Dimension Indicated Include Thread (Screw Pitch)?
Yes, the dimensions shown include the Threads on each side of the pipe. The screwing is done over 10 to 15mm depending on the force exerted.
Materials
Steel
Colours
Galvanised
Weight
Approximately 16g / cm.
Delivery
Please note: Pipes longer than 100cm are not eligible for RELAY delivery (HOME delivery only).

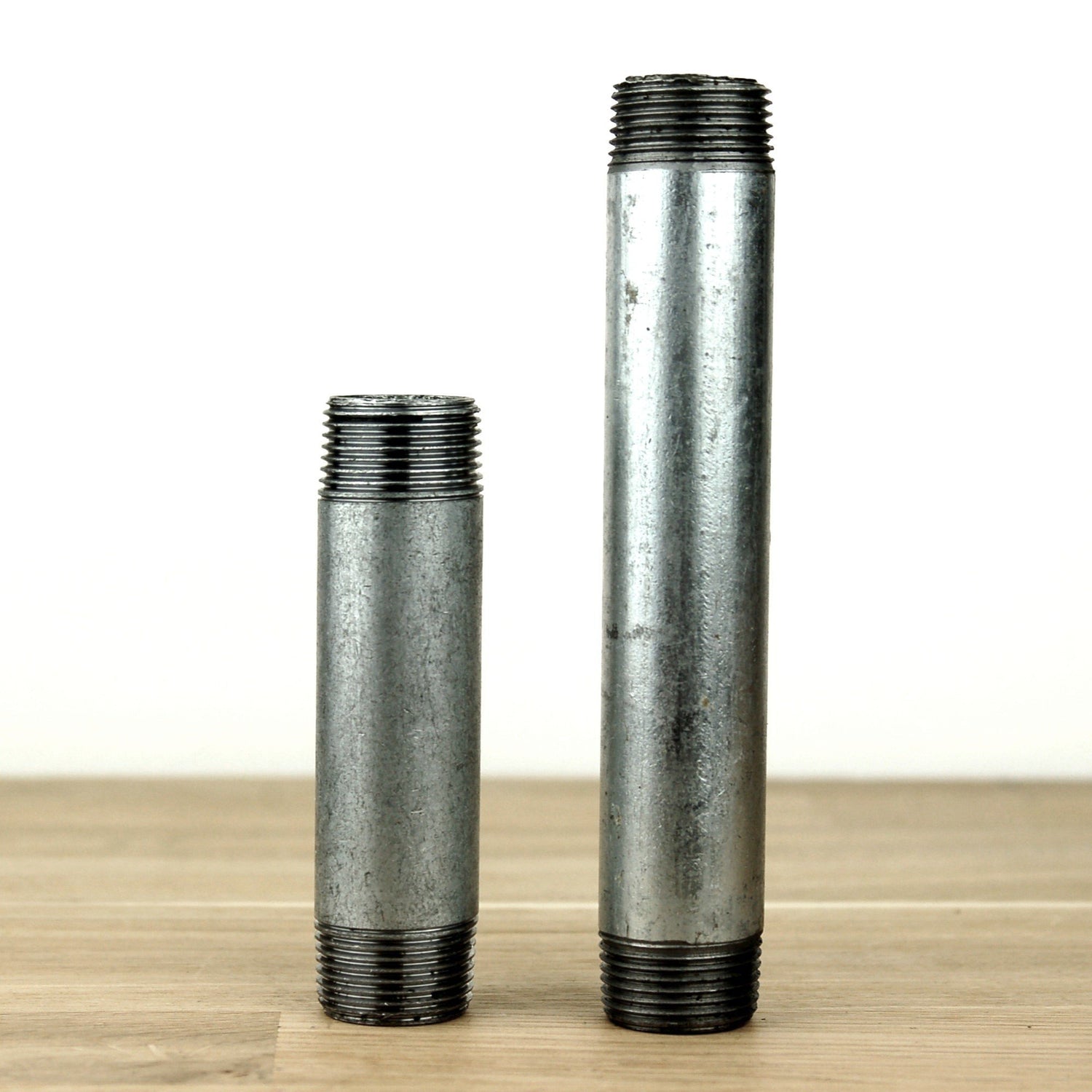

Available lengths
- 4cm = 40mm
- 5cm = 50mm
- 6cm = 60mm
- 8cm = 80mm
- 10cm = 100mm
- 12cm = 120mm
- 15cm = 150mm
- 18cm = 180mm
- 20cm = 200mm
- 25cm = 250mm
- 30cm = 300mm
- 40cm = 400mm
- 50cm = 500mm
- 70cm = 700mm
- 85cm = 850mm
- 100cm = 1000mm
- 150cm = 1500mm
- 200cm = 2000mm
- 250cm = 2500mm
Need a Bespoke Pipe?
Check out our product sheets.
