Brass Reducing Elbow M/F
Reducing Male/Female Brass Elbow screw-in fitting, allowing a 90° direction change while reducing the diameter of your pipe. This fitting combines two functions in a single piece: deviation and reduction. ISO 228-1 BSPP standard.
Reducing M/F Brass Elbow Description
This reducing elbow allows you to simultaneously make a 90° direction change and a diameter reduction. The male (threaded) side has a larger diameter than the female (tapped) side, enabling the transition between two different pipe sizes.
Assembly by simple screwing without soldering. Particularly useful in configurations where space is limited and two functions need to be combined at a single connection point.
Technical Specifications
| Material | Brass CW617N - 4MS |
| Colour | Golden brass |
| Nominal pressure | PN 16 bar |
| Thread standard | ISO 228-1 - BSPP Gas (parallel thread) |
| Sealing | By guaranteed flat gasket (thickness from 1 mm) |
| Gasket seats | Flat and wide on male and female ends |
| Shape | Hexagonal (wrench tightening) |
| Type | Male (threaded) / Female (tapped) — different diameters |
| Angle | 90° |
| Compatible fluids | Drinking water, glycol water, compatible fluids |
| Temperature | Depending on the sealing type chosen |
| Application | Drinking water supply, general plumbing, HVAC |
Conditions d'Application et Installation
- Working pressure : PN 16 bar
- Temperature : Depending on the sealing type chosen
- Fluids : Drinking water, glycol water, compatible fluids
- Installation: Apply a moderate tightening torque and choose suitable materials (risk of galvanic corrosion). Wrench flats compatible with standard wrenches.
Certifications and Compliance
- Drinking water: Compliant with the French decree of 25 June 2020 on metallic materials and products intended for installations in contact with water for human consumption.
- 4MS : Compliant with 4MS requirements — Harmonisation of European certification rules for materials and products in contact with drinking water.
Applications and Installation Tips
Applications
- Domestic plumbing: connection of hot and cold water systems
- Industrial plumbing: PN 16 bar compliant installations
- Interior decoration: creation of light fixtures, shelves, towel rails in exposed brass
- DIY and creative projects: custom projects with screw-in fittings
Installation tips
- Use PTFE tape (Teflon) or hemp to ensure sealing on male threads
- For flat gasket seats, use a flat gasket with a minimum thickness of 1 mm
- Tighten with an open-end wrench or adjustable wrench — do not use pliers to avoid marking the fitting
- Apply a moderate tightening torque — excessive tightening can damage the thread

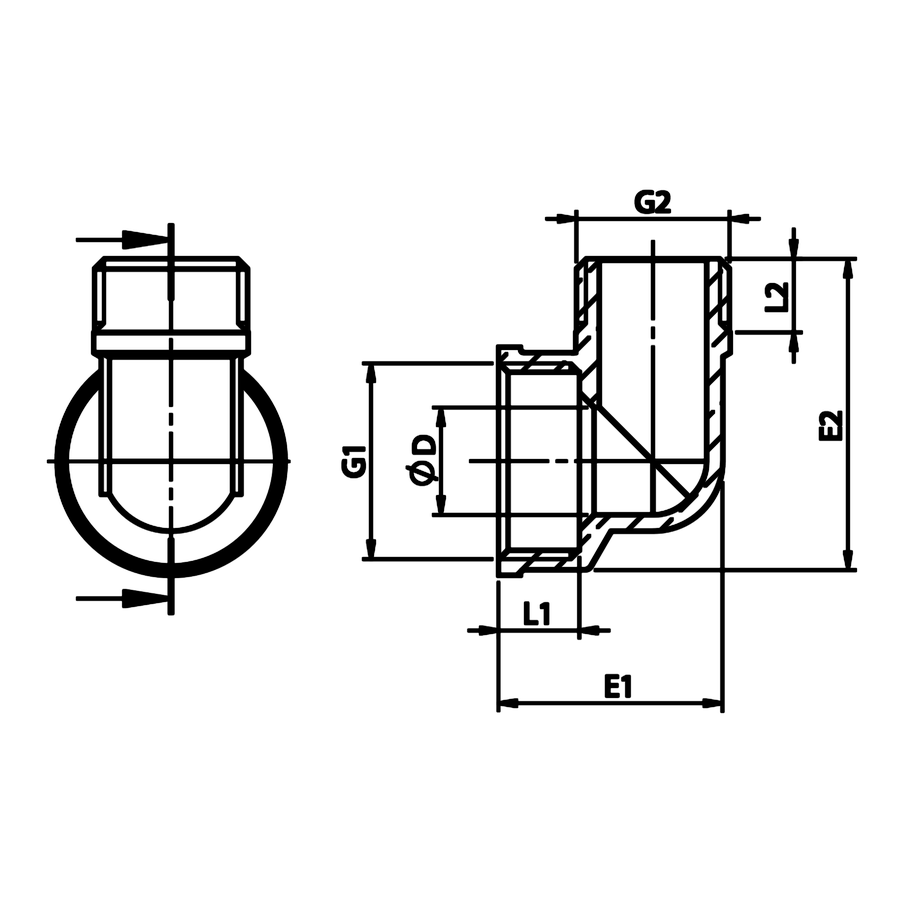

Technical Drawing
Dimensions (mm)
All dimensions are expressed in millimetres (mm) unless otherwise stated.
| G1 | G1 (mm) | G2 | G2 (mm) | OD | L1 | L2 | E1 | E2 |
|---|---|---|---|---|---|---|---|---|
| 3/4" | 20x27 | 1/2" | 15x21 | 11 | 8.5 | 8.5 | 30.5 | 37 |
Available Size Combinations
This reducing elbow allows transition from one diameter to another. The table below shows the available combinations.
| Inlet | Outlet | Notation (mm) |
|---|---|---|
| 3/4'' | 1/2'' | 20x27 > 15x21 |
The appearance of the fitting may vary depending on the batch in stock (see photos). Contact us for confirmation.
