Brass Female Plug
Brass female plug, screw-in, used to seal off a pipe or a male threaded fitting. Essential for neatly finishing a pipe run or temporarily closing off an outlet. Thread compliant with ISO 228-1 BSPP.
Description of the Brass Female Plug

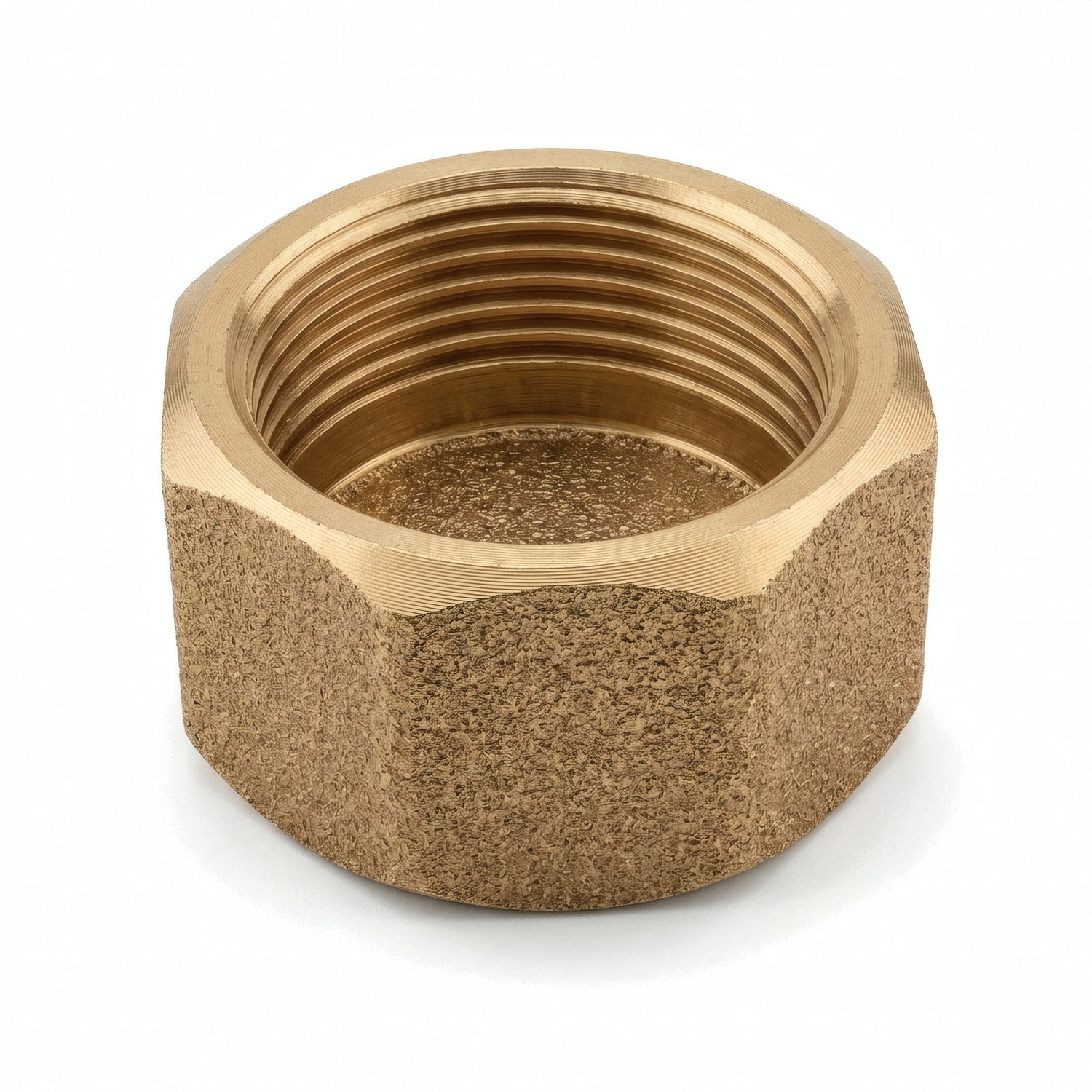

This female (tapped) plug screws onto a male threaded component to hermetically seal the end of a circuit. It is compatible with all the male fittings of the same size sold on the site.
Its 6-sided shape allows easy tightening and loosening with a spanner. Solder-free assembly. In décor, the plug serves as an aesthetic finish to neatly complete an assembly of exposed brass fittings.
Technical Specifications
| Material | Brass CW617N - 4MS |
| Colour | Gold-coloured brass |
| Nominal pressure | PN 16 bar |
| Thread standard | ISO 228-1 - BSPP Gas (parallel thread) |
| Sealing | Guaranteed flat gasket sealing (thickness from 1 mm) |
| Gasket seats | Flat and wide on the female end |
| Shape | 6-sided hex (spanner tightening) |
| Type | Female (tapped) |
| Compatible fluids | Drinking water, glycol water, compatible fluids |
| Temperature | Depending on the type of sealing chosen |
| Application | Drinking water supply, general plumbing, HVAC |
Operating Conditions and Installation
- Operating pressure: PN 16 bar
- Temperature: Depending on the type of sealing chosen
- Fluids: Drinking water, glycol water, compatible fluids
- Installation: Apply moderate tightening torque and choose suitable materials (risk of galvanic corrosion). Wrench flats sized to fit standard spanners.
Certifications and Compliance
- Drinking water: Compliant with the French decree of 25 June 2020 on metallic materials and products intended for installations in contact with water for human consumption.
- 4MS: Compliant with 4MS requirements — Harmonisation of European certification rules for materials and products in contact with drinking water.
Applications and Installation Tips
Uses
- Domestic plumbing: connecting hot and cold water systems
- Industrial plumbing: PN 16 bar compliant installations
- Interior décor: making light fixtures, shelves and towel rails in exposed brass
- DIY and creative projects: custom projects with screw-in fittings
Installation tips
- Use PTFE tape (Teflon) or hemp to ensure sealing on male threads
- For flat gasket seats, use a flat gasket with a minimum thickness of 1 mm
- Tighten with an open-end spanner or an adjustable spanner — do not use slip-joint pliers, to avoid marking the part
- Apply a moderate tightening torque — overtightening can damage the thread
Technical Drawing
Dimensions (mm)
All dimensions are given in millimetres (mm) unless otherwise stated.
| G | G (mm) | S | L | E |
|---|---|---|---|---|
| 1/8" | 5x10 | 13 | 6 | 7.5 |
| 1/4" | 8x13 | 16 | 8 | 10 |
| 3/8" | 12x17 | 19 | 8.5 | 10.5 |
| 1/2" | 15x21 | 23 | 10 | 12 |
| 3/4" | 20x27 | 29 | 11 | 13 |
| 1" | 26x34 | 36 | 13 | 15.5 |
| 1"1/4 | 33x42 | 45 | 14 | 16.5 |
| 1"1/2 | 40x49 | 52 | 15.5 | 18.5 |
| 2" | 50x60 | 64 | 17 | 20 |
Size Equivalences
This plug is available in the following sizes. Use this table to find the equivalence between millimetres, inches and DN.
| Size (mm) | 5x10 | 8x13 | 12x17 | 15x21 | 20x27 | 26x34 | 33x42 | 40x49 | 50x60 |
|---|---|---|---|---|---|---|---|---|---|
| Inches | 1/8'' | 1/4'' | 3/8'' | 1/2'' | 3/4'' | 1'' | 1''1/4 | 1''1/2 | 2'' |
| DN | DN5 | DN8 | DN10 | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 |
| Outer pipe dia. | 10 mm | 13 mm | 17 mm | 21 mm | 27 mm | 34 mm | 42 mm | 49 mm | 60 mm |
The appearance of the part may vary depending on the batch in stock (see photos). Contact us for confirmation.
