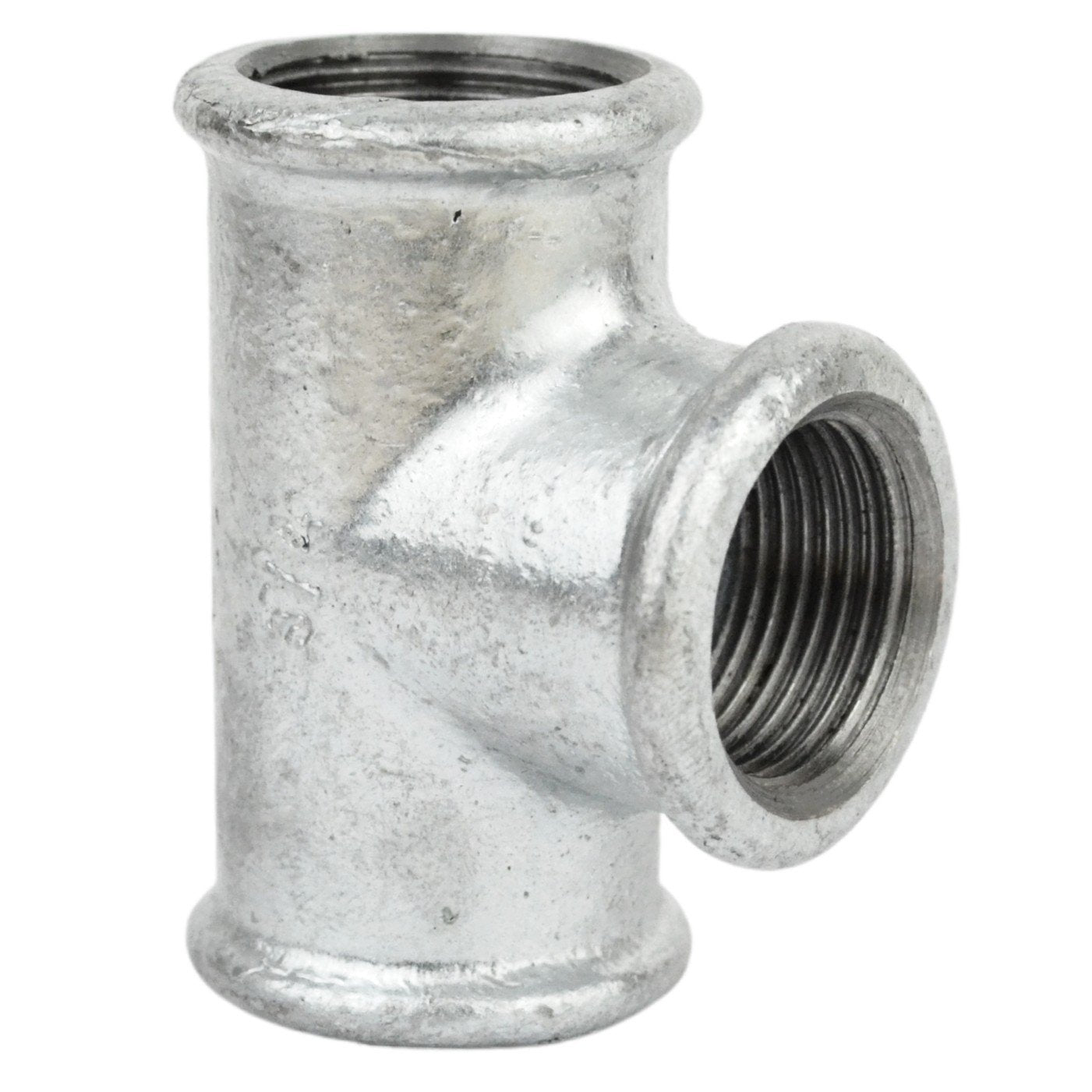

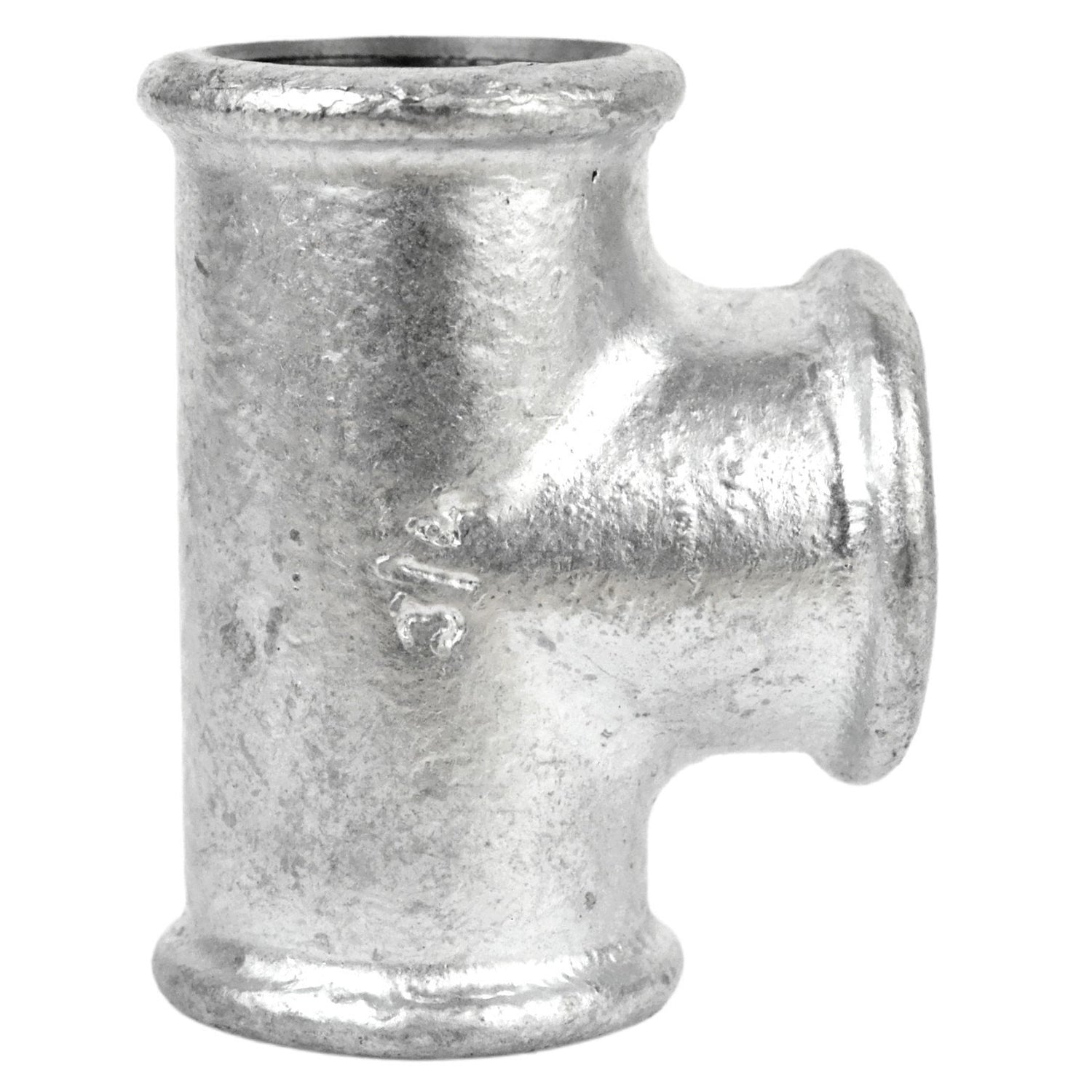

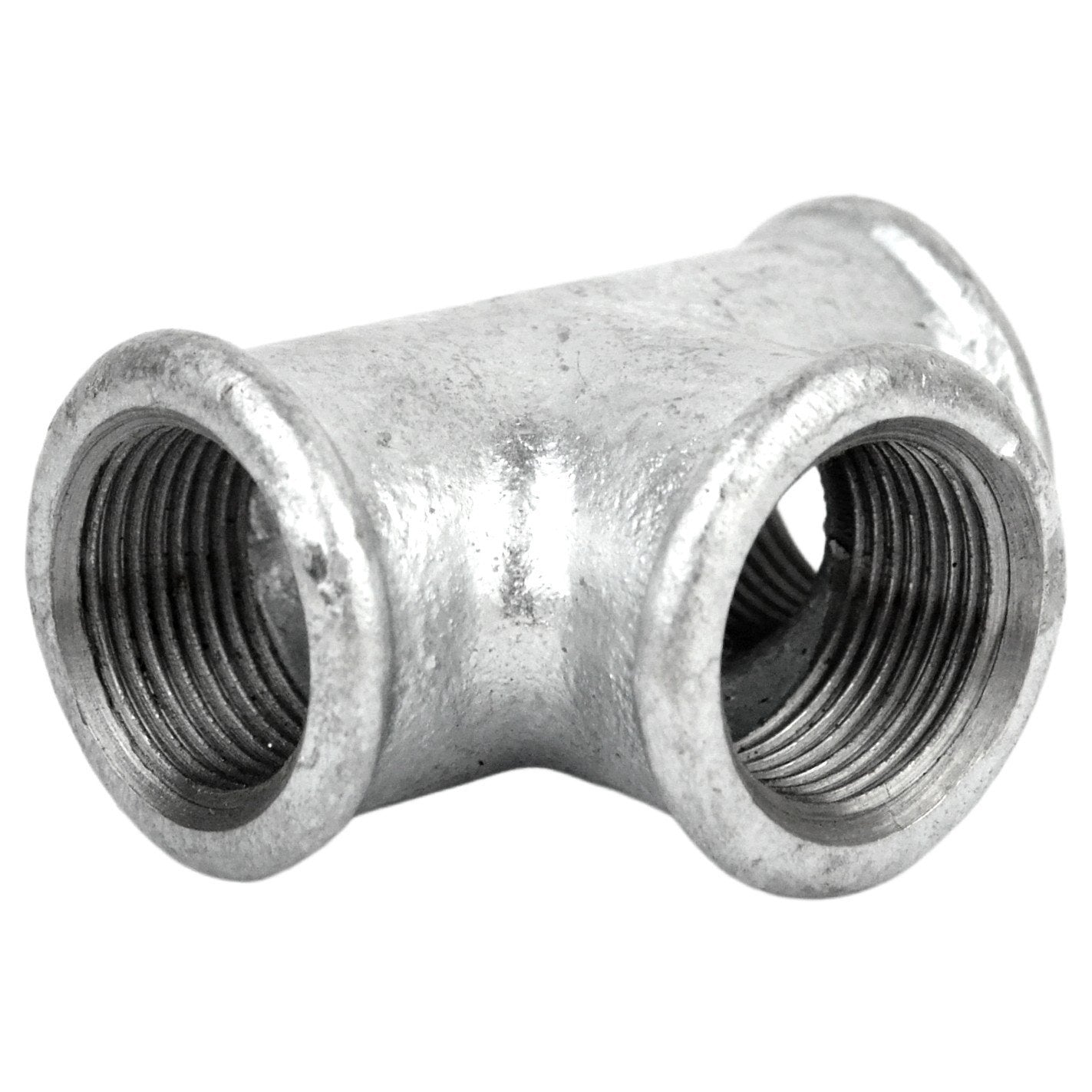

Equal T (Tee) plumbing fitting Female / Female / Female, galvanised cast iron

This galvanised cast iron Tee is ideal for making cast iron and steel plumbing fitting structures. It is compatible with all galvanised cast iron or black fittings and galvanised steel or black threaded pipes of the same size sold in our online shop. The parts simply screw together, without welding, to make strong assemblies easily.

Description of the T fitting (Tee)

The Equal Tee (all inlets are the same size) is a versatile part, with 3 ways, allowing 3 pipes or fittings of the same size to be screwed together. If you need a part with more ways, you can turn to our distributors (up to 6 ways).

Tee features and uses

Although we use our fittings for decoration, this is a genuine piece of plumbing made from white-core malleable iron that complies with EN 10242 and ISO49 standards. Superior quality and a guarantee of foolproof sturdiness!

The Threads on this part are BSPT (ISO 7-1 standard) with cylindrical female (tapped) ends.

• Vissage over 10 to 15mm (depending on the nature of the part being screwed and the strength of the screwing)
• Materials: galvanised cast iron
• Colour: galva (slightly shiny silver-grey)
• High quality
• Manufactured in Europe

Tee fitting dimensions

Tapping / Threads : 3/8'' | 12x17mm

Dimensions (length x width x height) : 48 x 35 x 35 mm

Weight: 0.09 kg

Tap / Thread : 1/2'' | 15x21mm

Dimensions (length x width x height) : 54 x 44 x 30 mm

Weight: 0.14 kg

Tap / Thread : 3/4'' | 20x27mm

Dimensions (length x width x height) : 65 x 52 x 36 mm

Weight: 0.22 kg

Tap / Thread : 1'' | 26x34mm

Dimensions (length x width x height) : 75 x 60 x 44 mm

Weight: 0.3 kg

Tap / Threads : 1''1/4 | 33x42mm

Dimensions (length x width x height) : 90 x 72 x 55 mm

Weight: 0.54 kg

Table of plumbing fitting sizes in inches and mm:
