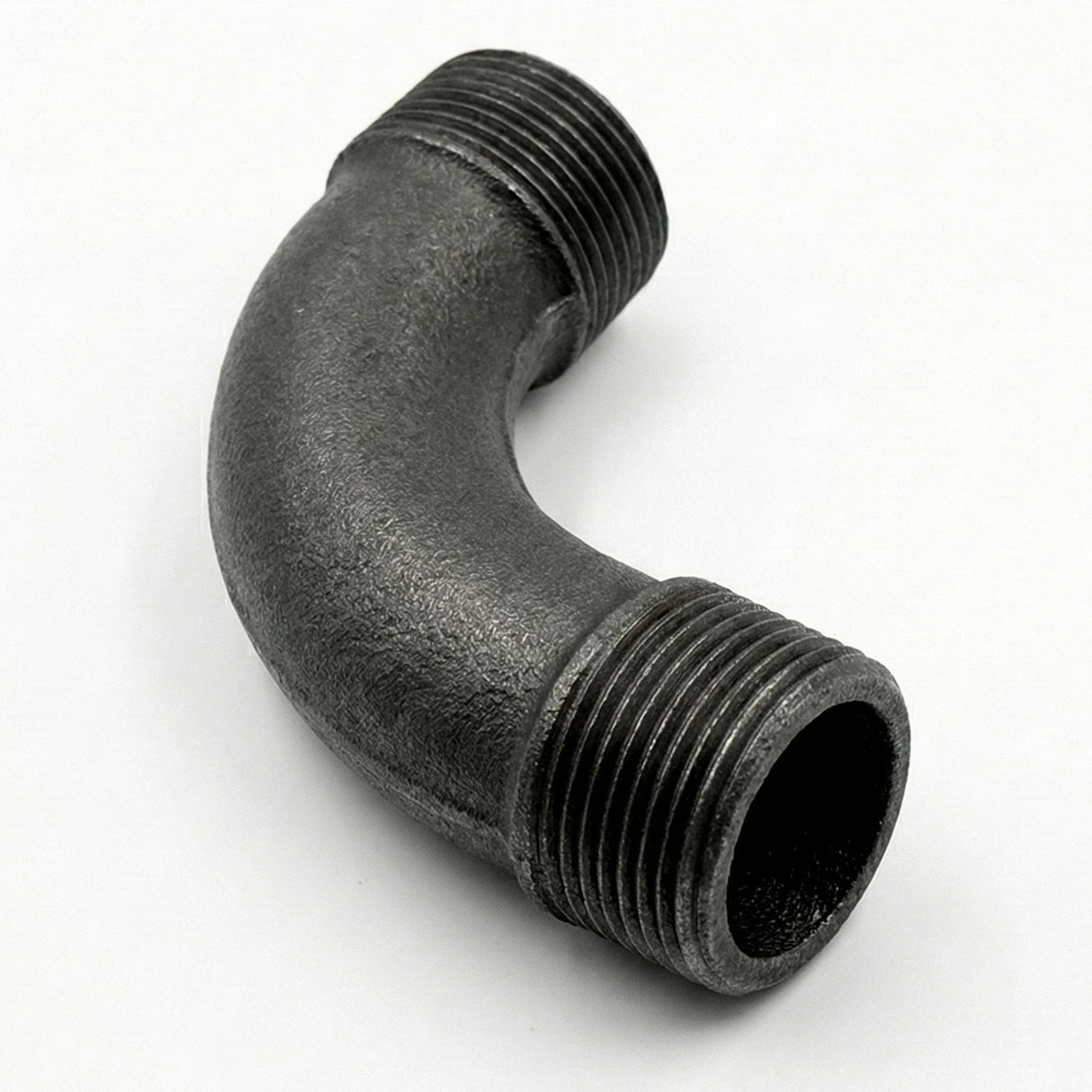

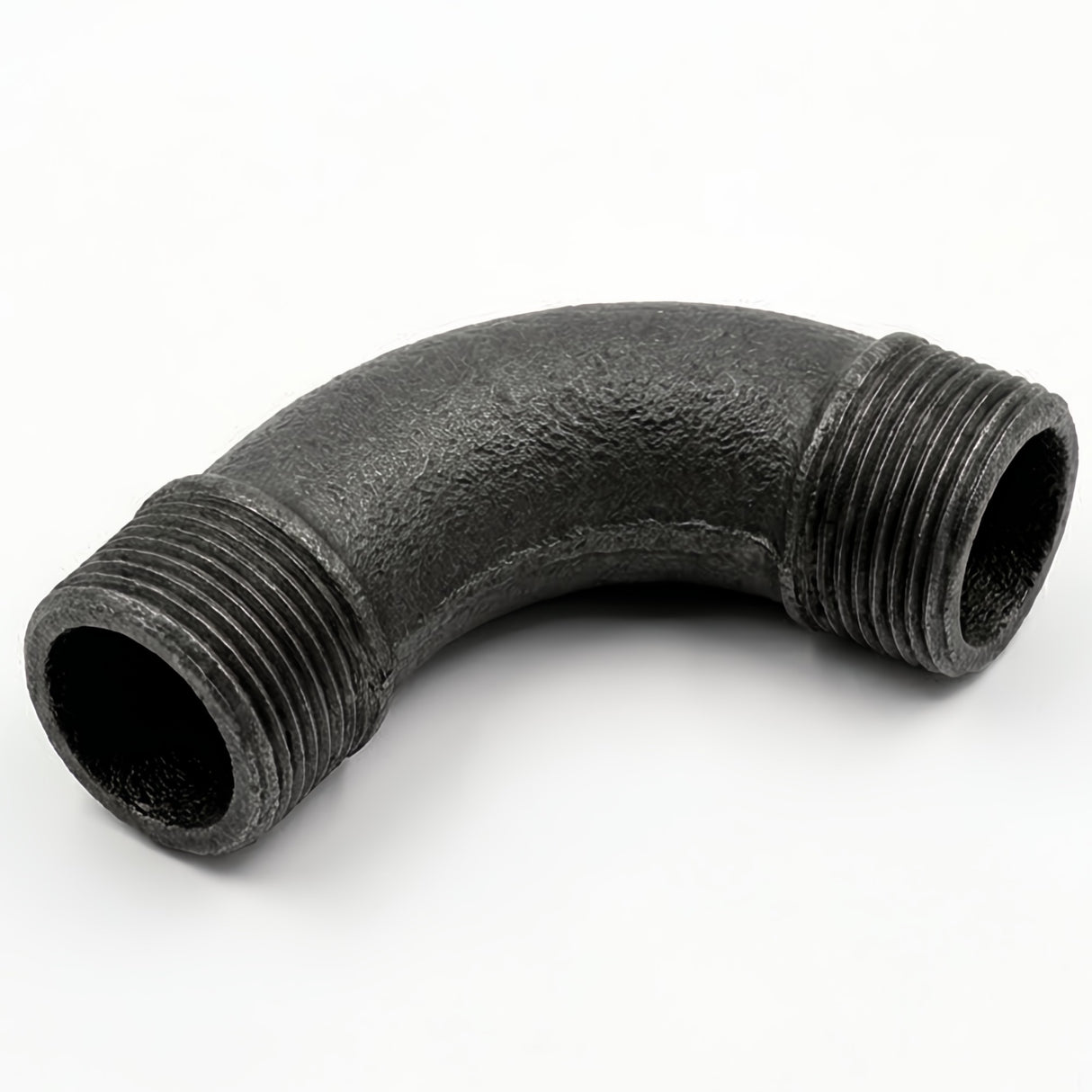

Large radius bend 90° M/M black cast iron
- Material: Black Malleable Iron
- Color: Grey / Dark Grey

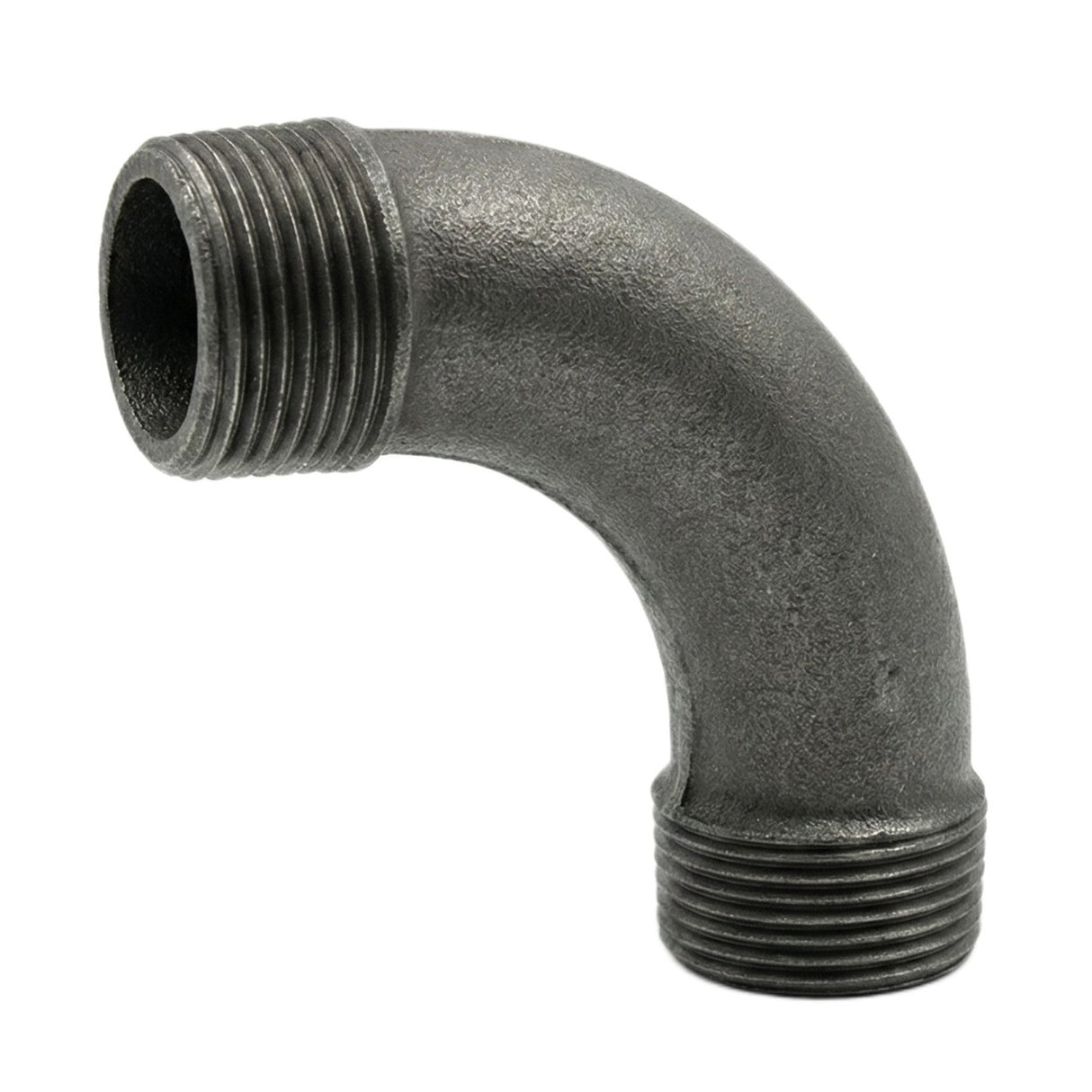

The large radius 90° Male/Male bend in black iron (ref. 3) is a right-angle elbow fitting whose elongated curve provides a smoother flow than short radius elbows. Its Male/Male configuration (two external threads) connects two female fittings together.
Why use this large radius M/M elbow?
- Large radius of curvature: The progressive curve reduces pressure losses and offers a smoother aesthetic than the short radius elbow (90° square).
- Male/Male configuration: Both male threaded ends connect two female fittings (sockets, tees, F/F elbows) directly, without an intermediate piece.
The essential for your Deco & DIY projects
In industrial furniture or decoration creations, the large radius M/M elbow brings an elegant curve to your structures. Its rounded profile creates a more organic visual effect than the sharp-angle elbow, ideal for lighting fixtures, frames and shelves with refined design.
Technical Specifications and Standards
- Standardized Design: Manufactured in accordance with EN 10242 and ISO 49 standards. Malleable iron grade EN-GJMW-400-5 (according to EN 1562).
- Standardized Threads: Two Male tapered (R) ends conforming to ISO 7-1 (BSPT).
- Reliability: 100% of fittings tested for leak tightness.
Service Conditions
- Max Temperature: 155°C (Water).
- Compatibility: Potable water, wastewater, gas, steam, non-corrosive liquids.
Dimensions and Footprint
Scroll the table horizontally to see all measurements.
| Size | DN | Ø Fitting | b (mm) | Weight (kg) |
|---|---|---|---|---|
| 1/2" | DN15 | 15×21 | 48 | 0,104 |
| 3/4" | DN20 | 20×27 | 60 | 0,177 |
b = distance from axis to thread end.
