Closing a threaded plumbing loop: R/L nipples, R/L couplings or union fittings
You're building a bed frame, a mirror frame or a plant trellis in threaded pipe and the fourth fitting just won't tighten. It's not a defect, and it's not a thread issue: it's the geometry of a closed circuit that blocks tightening. Threaded plumbing has four solutions for this. This guide breaks them down — the mechanical principle, when to use each one, and the complete list of references available at Home Invasion in black malleable iron, galvanised steel and brass.
Why a closed frame blocks tightening
Picture four pipes and four elbows assembled into a rectangle, like the frame of a mirror, a bed, a plant trellis or a railing. You screw in the first elbow, the second, the third: everything tightens normally. On the fourth, nothing moves any more.
The reason is mechanical. All standard threaded fittings — elbow, tee, coupling, nipple, flange — have a right-hand thread on every side. They screw in clockwise. This is the universal plumbing convention: with very rare exceptions (the R/L parts we're about to discuss), everything you find in standard stock has right-hand threads.
To keep the assemblies readable, we write RR (Right/Right) for standard parts with two right-hand threads — the catalogue default for every plumbing part: equal nipple, coupling, elbow, tee, etc. And R/L (Right/Left) for the special parts with a right-hand thread on one side and a left-hand thread on the other. The R/L part is the key that unlocks the loop; the RR parts are the standard supports that flank it.
On an open circuit (a shelf, a bike rack, a coat stand that ends in a dead end), there's no problem: the pipe turns freely, you tighten the end and stop. On a closed circuit, the pipe is trapped between two fittings already in place. Turning that pipe in the tightening direction on one side means turning it in the loosening direction on the other. The two motions cancel each other out.

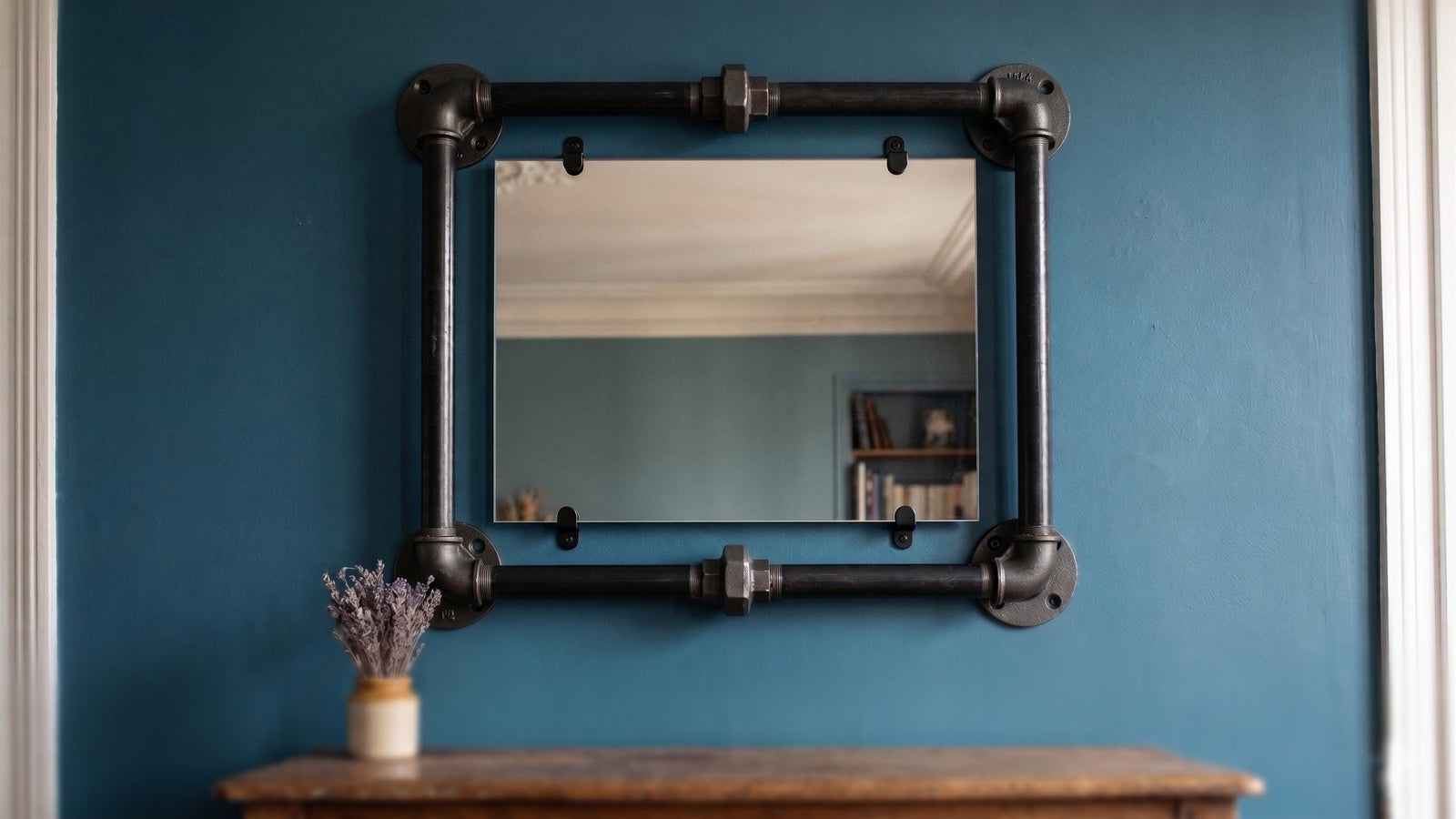

This deadlock affects every loop project: the perimeter frame of a coffee table, the rectangular frame of a wall shelf, a mirror frame, a plant trellis, or the last link of a railing. Threaded plumbing has four assemblies to solve the problem.
| Assembly | Central part | Ends of the assembly | Special pipe required? |
|---|---|---|---|
| 1 — Pipe + R/L coupling + left-hand-threaded pipe | R/L coupling | Depends on the pipes (typically male right) | Yes (made to order) |
| 2 — RR nipple + R/L coupling + R/L nipple | R/L coupling tightened with a wrench | 2 male right | No |
| 3 — RR coupling + R/L nipple + R/L coupling | R/L nipple tightened with a wrench | 2 female right | No |
| 4 — Union fitting | Free-turning nut, 3 pieces | Male/Female or Female/Female depending on the variant | No |
The first three rely on the same principle: a left-hand thread embedded somewhere in the chain, which reverses the tightening direction on one side. The fourth uses no reversed thread and works on a different mechanism — an independent free-turning nut.
Here is the mechanism of Assembly 3 (RR coupling + R/L nipple + R/L coupling) in two steps:
Assembly 1 — Pipe + R/L coupling + left-hand-threaded pipe
How it works
The most minimal assembly inserts an R/L coupling between two pipe sections, one of which has been specially left-hand threaded on one end.
M-R = male right • F-R = female right • M-L = male left • F-L = female left
The standard pipe (male right on both ends) screws into the female right of the coupling. The special pipe (one end left-hand threaded, the other standard right to merge with the rest of the circuit) screws by its M-L into the F-L of the coupling. When you turn the central coupling, its two threads pull both pipes towards it simultaneously: the loop closes.
When to use it
For aesthetically clean projects where you want to avoid the bulky "knot" of a union fitting and the triple presence of nipple + coupling + nipple. Visually, you only see a coupling between two pipes — the joint blends into the silhouette of the circuit.
The constraint
Left-hand-threaded pipe doesn't exist in standard stock. It has to be made to order: left-hand thread cut by a plumbing workshop or specialised supplier, to be specified explicitly when ordering. All the other fittings in the circuit (elbows, tees, flanges, standard nipples) stay right-hand.
In the Home Invasion catalogue
The two R/L couplings in the catalogue (used as the central piece of assembly 1).
| Reference | Material | Sizes |
|---|---|---|
| R/L coupling, black malleable iron | Black malleable iron (EN 10242) | 3/8" → 3" (9 sizes) |
| R/L coupling, galvanised | Galvanised steel | 3/8" → 4" (10 sizes, up to DN100) |
The HI black malleable iron fittings cover decoration and non-sanitary technical plumbing. The galvanised fittings add corrosion resistance for cold water or workshop use. No R/L coupling in brass in the catalogue: sanitary uses are handled with union fittings (assembly 4).
Assembly 2 — RR nipple + R/L coupling + R/L nipple (male ends)
How it works
When your loop closes between two fixed female fittings — for example two female elbows — assembly 2 avoids the made-to-order pipe. You insert a three-piece assembly that presents two male right ends: an RR nipple on the left, an R/L nipple on the right, and an R/L coupling between them.
External ends in M-R, screwing into the fixed females of the loop. The central R/L coupling is tightened with a wrench.
The two nipples are first hand-engaged into the fixed females of the loop: on the left, an RR nipple (two right-hand threads, the catalogue default); on the right, an R/L nipple. The R/L coupling is then positioned between the two. When you turn it with a wrench in a given direction, its F-R and F-L pull both nipples towards itself simultaneously: the joint tightens without rotating the connected pipes.
When to use it
The loop closes between two fixed female profiles — typically between two F/F black malleable iron elbows, between two females from a black malleable iron fittings collection, or between two galvanised females. It's the most versatile assembly when you're building with female elbows, which are the décor norm.
In the Home Invasion catalogue
The central R/L coupling is still the one shown above (black malleable iron or galvanised). The RR nipple on the left and the R/L nipple on the right are picked from the grid below, depending on the circuit's material.
The parts of assembly 2: RR nipple (on the left) + central R/L coupling (already shown above) + R/L nipple (on the right).
| Reference | Material | Sizes |
|---|---|---|
| R/L nipple, black malleable iron | Black malleable iron (EN 10242) | 3/8" → 2" (7 sizes: 3/8", 1/2", 3/4", 1", 1"1/4, 1"1/2, 2") |
| R/L nipple, galvanised | Galvanised steel | 1/4" → 2" (8 sizes: 1/4", 3/8", 1/2", 3/4", 1", 1"1/4, 1"1/2, 2") |
Assembly 3 — RR coupling + R/L nipple + R/L coupling (female ends)
How it works
Assembly 3 is the mirror of the previous one. When the loop closes between two fixed males — two threaded pipes, two RR nipples already in place — the logic is reversed: the assembly presents two female right ends, and an R/L nipple acts as the central tightening piece.
External ends in F-R, receiving the fixed males of the loop. The central R/L nipple is tightened with a wrench.
The two couplings (an RR on the left, an R/L on the right) are first hand-engaged onto the fixed males of the loop. The R/L nipple is then positioned between the two. When you turn the central piece with a wrench, its M-R and M-L pull both couplings towards each other simultaneously: the joint tightens without rotating the connected pipes.
When to use it
The loop closes between two male profiles — typically a frame built from threaded pipe (male on both ends by default), an assembly that closes between two fixed RR nipples in black malleable iron, or between two galvanised males. It's the assembly for "bare pipe" jobs without female elbows at the joints.
In the Home Invasion catalogue
The central R/L nipple and the R/L coupling on the right are the references already shown in assemblies 1 and 2: R/L nipple in black malleable iron or galvanised for the central piece, R/L coupling in black malleable iron or galvanised for the piece on the right. The RR coupling on the left is taken from the table below, in black malleable iron or galvanised. For DN / mm / inch conversions between the sizes mentioned, see the diameter guide.
The RR coupling on the left of assembly 3. The central R/L nipple and the R/L coupling on the right are the same as in assemblies 1 and 2.
Assembly 4 — The union fitting
Anatomy of a union fitting
The union fitting differs from the previous three by a different mechanism: it uses no reversed thread. It's a three-piece part — a male body, a female body, and a central nut — where the nut tightens independently of the threads.
Each of the two bodies screws separately onto the pipe or fitting it's destined for. Once in place, the two bodies are brought together and the central nut is tightened: the nut turns without driving the bodies it brings together, so the connected pipes stay still. That's exactly what's needed to close a deadlocked loop.
Three sealing seats, three uses
Where R/L nipples and couplings seal via flax/hemp packing + PTFE tape on the thread, the union fitting seals on a sealing seat built into the part. Three families exist.
- Conical metal-to-metal seat — a male cone is crushed against a female cone, sealing through pure contact. Standard on black malleable iron and galvanised unions. No gasket to replace, but the tightening torque matters (see pitfalls).
Variants in the HI catalogue
Union fittings come in four materials and several profiles: straight, 90° elbow, and a painted décor range. For black malleable iron and galvanised, here are the eight references to compare at a glance.
The eight union fittings in black malleable iron and galvanised — straight and 90° elbow, F/F and M/F profiles.
| Reference | Profile | Sealing | Sizes |
|---|---|---|---|
| F/F union, black malleable iron | F/F straight | Flat (Premium / Eco) | 3/8" → 4" |
| M/F union, black malleable iron | M/F straight | Conical metal/metal | 3/8" → 4" |
| F/F union elbow, black malleable iron | Integrated 90° F/F elbow | Conical | 3/8" → 2" |
| M/F union elbow, black malleable iron | Integrated 90° M/F elbow | Conical | 3/8" → 2" |
| F/F union, painted range | F/F, black painted finish | Flat | See product page |
The F/F union in the painted range follows the HI décor-range convention: outer diameter 27 mm, thread engagement 10 mm per side regardless of the nominal "size" labelled. Constant dimensions, handy for décor calculations. Check the product page before mixing with real plumbing, whose dimensions vary with the nominal diameter.
| Reference | Profile | Sealing | Sizes |
|---|---|---|---|
| F/F union, galvanised | F/F straight | Flat | 3/8" → 4" |
| M/F union, galvanised | M/F straight | Conical metal/metal | 3/8" → 4" |
| F/F union elbow, galvanised | 90° F/F elbow | Conical | 3/8" → 2" |
| M/F union elbow, galvanised | 90° M/F elbow | Conical | 3/8" → 2" |
Typical application: closing a frame with two unions
On a complete rectangular or square frame, a common trick is to place two union fittings in the middle of two parallel sides. Each works as an independent articulation: pre-assemble each half-frame, then tighten the two central nuts with a wrench. No pipe rotates, the frame closes flat.
Choosing the right assembly for your project
The right assembly depends on three criteria: the profile of the parts already in the loop (male, female, or bare threaded pipe), the material of the circuit, and the access you want to keep to the joint.
| Project | Loop profile | Assembly | Central reference |
|---|---|---|---|
| Bed frame in black malleable iron closed as a rectangle | 2 fixed female elbows | Assembly 2 | R/L coupling, black malleable iron |
| Rectangular mirror frame in threaded pipe | 2 fixed males (pipes) | Assembly 3 | R/L nipple, black malleable iron |
| Clean-line plant trellis | 2 pipe sections | Assembly 1 (special pipe to order) | R/L coupling, black malleable iron |
| Modular industrial bench in painted finish | 2 fixed females | Assembly 4 (painted range) | F/F union, painted décor |
| Closed-frame stair railing | 2 fixed males (pipes) | Assembly 3 (galvanised) | R/L nipple, galvanised |
For decorative projects (bed frame, mirror, trellis, bench), black malleable iron or the painted range are the go-to options. For workshop or cold-water technical plumbing, switch to galvanised. The complete materials guide details the uses × materials matrix.
Pitfalls to avoid
Forgetting that all RR parts have right-hand threads
This is the source of the problem. Elbows, tees, RR couplings, RR nipples, flanges — all the standard plumbing catalogue is right-hand threaded on both sides. Only R/L parts (nipples and couplings) and made-to-order left-hand-threaded pipes are the exception. On a closed loop, you absolutely must integrate an R/L part somewhere in the chain, otherwise no tightening is possible.
Over-tightening a conical union
A conical metal-to-metal seat seals by controlled deformation. One extra wrench turn and the cone is crushed beyond its elastic zone: the seat is permanently deformed and leaks. Hand-tighten, then a quarter turn with the wrench, no more. The flat EPDM seat tolerates over-tightening better because the gasket absorbs the margin.
Using an iron or galvanised assembly for sanitary use
Black malleable iron and galvanised steel are not suitable for continuous hot potable water. An assembly 1, 2 or 3 in iron or galvanised on a hot-water sanitary circuit will eventually rust. For sanitary, switch to assembly 4 in brass — it's the only catalogue material at HI approved for that use.
Mixing the painted range with real plumbing in the same loop
The HI painted range has constant dimensions (Ø 27 mm, 10 mm engagement) while real plumbing fittings have dimensions that vary with the nominal diameter. Mixing them in the same closed loop produces unpredictable lengths and a frame that won't close. Pick one or the other for the whole project.
Forgetting to seal the R/L threads
R/L nipples and couplings seal like a standard fitting: flax/hemp packing, paste or PTFE tape on the thread, in the direction of tightening. The detail is covered in the tightening threaded fittings tutorial.
Frequently asked questions
What's the difference between an R/L nipple and an R/L coupling?
The R/L nipple is male/male: it screws into two female fittings. The R/L coupling is female/female: it receives inside it two male fittings or two threaded pipes. Both have a right-hand thread on one side and a left-hand thread on the other: turning the part tightens both sides simultaneously. The choice depends on the profile — male or female — of the parts already fixed in the loop.
Why do you need a left-hand-threaded pipe in assembly 1?
Because the R/L coupling has an F-R on one side and an F-L on the other. The F-R receives any standard male right (a normal right-hand-threaded pipe). But the F-L requires a male left opposite it — and no standard-stock fitting or pipe has a left-hand thread. The left-hand-threaded pipe must therefore be made to order to fit on the F-L side of the coupling.
How do you tell a left-hand thread from a right-hand thread?
Hold the part facing you, threads upward. On a right-hand thread (standard), the threads slope down to the right: you screw it in clockwise. On a left-hand thread, the threads slope down to the left: you screw it in counter-clockwise. On an R/L nipple or coupling, the left-hand side is usually marked with a groove or notch so you don't mix it up.
Which R/L nipple size for a 3/4" bed frame?
If the rest of the frame is in 3/4" (20/27), the R/L nipple is taken in 3/4" — the nominal size must be identical throughout the loop. The R/L nipple in black malleable iron and the R/L nipple, galvanised are both available in 3/4". Check the profile of the neighbouring parts to pick the right assembly (2 or 3) depending on whether the loop closes between males or females.
Does a conical union need PTFE on the seat?
No. A conical metal-to-metal union seals through direct contact between the two cones: adding PTFE on the seat prevents the metal-to-metal contact and compromises sealing. PTFE or flax/hemp packing is used on the threads of the two bodies that screw into the adjacent pipe or fitting — not on the seat itself.
