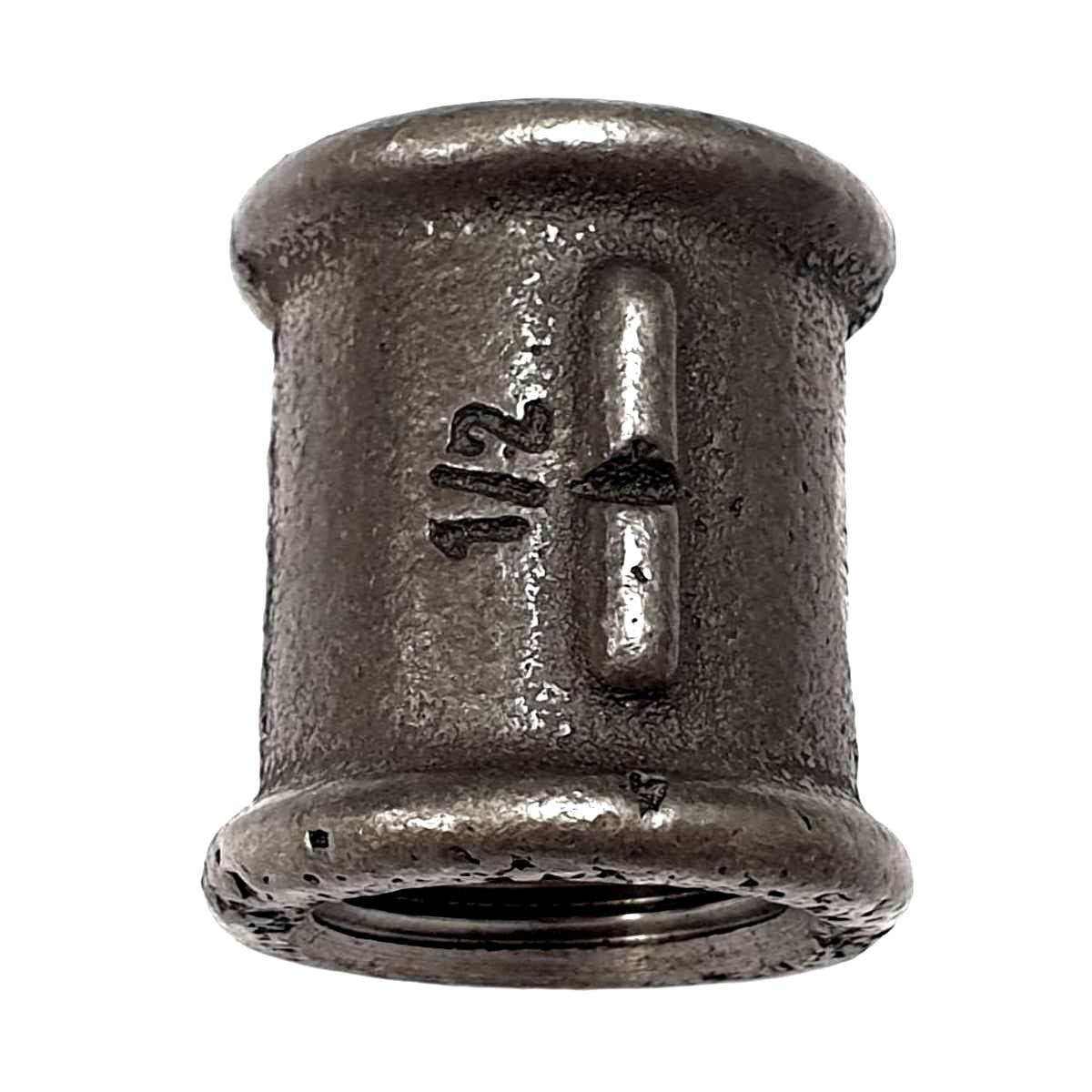

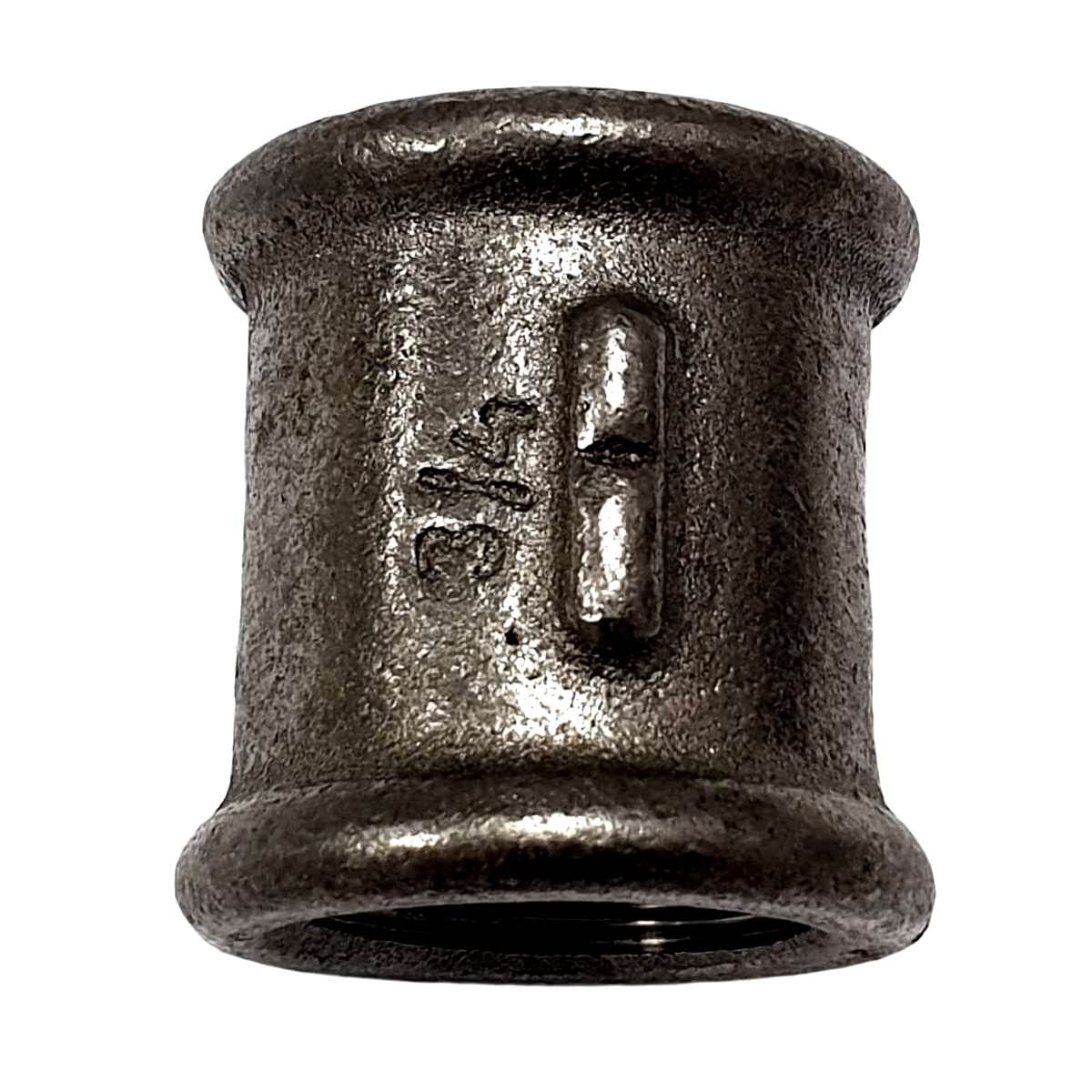

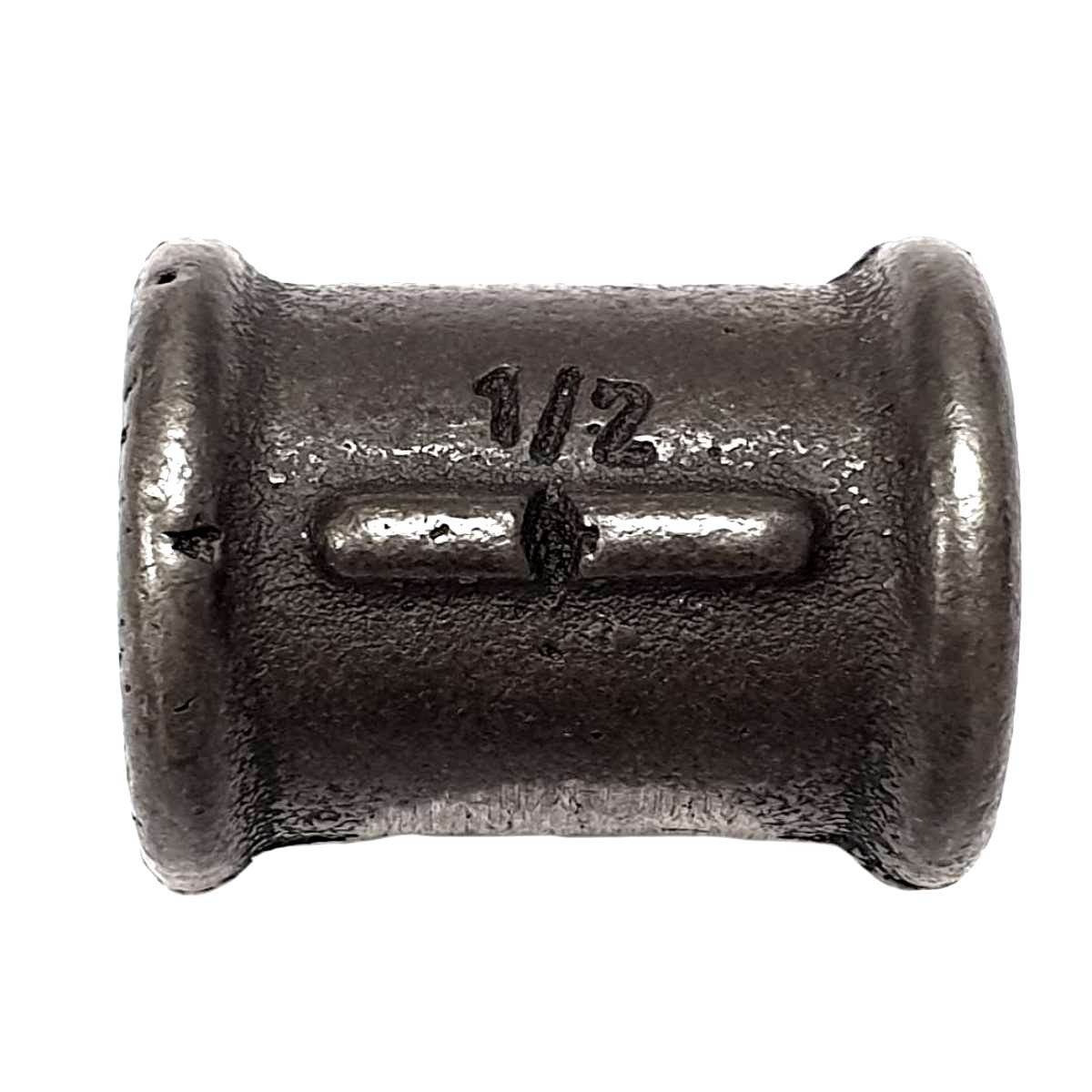

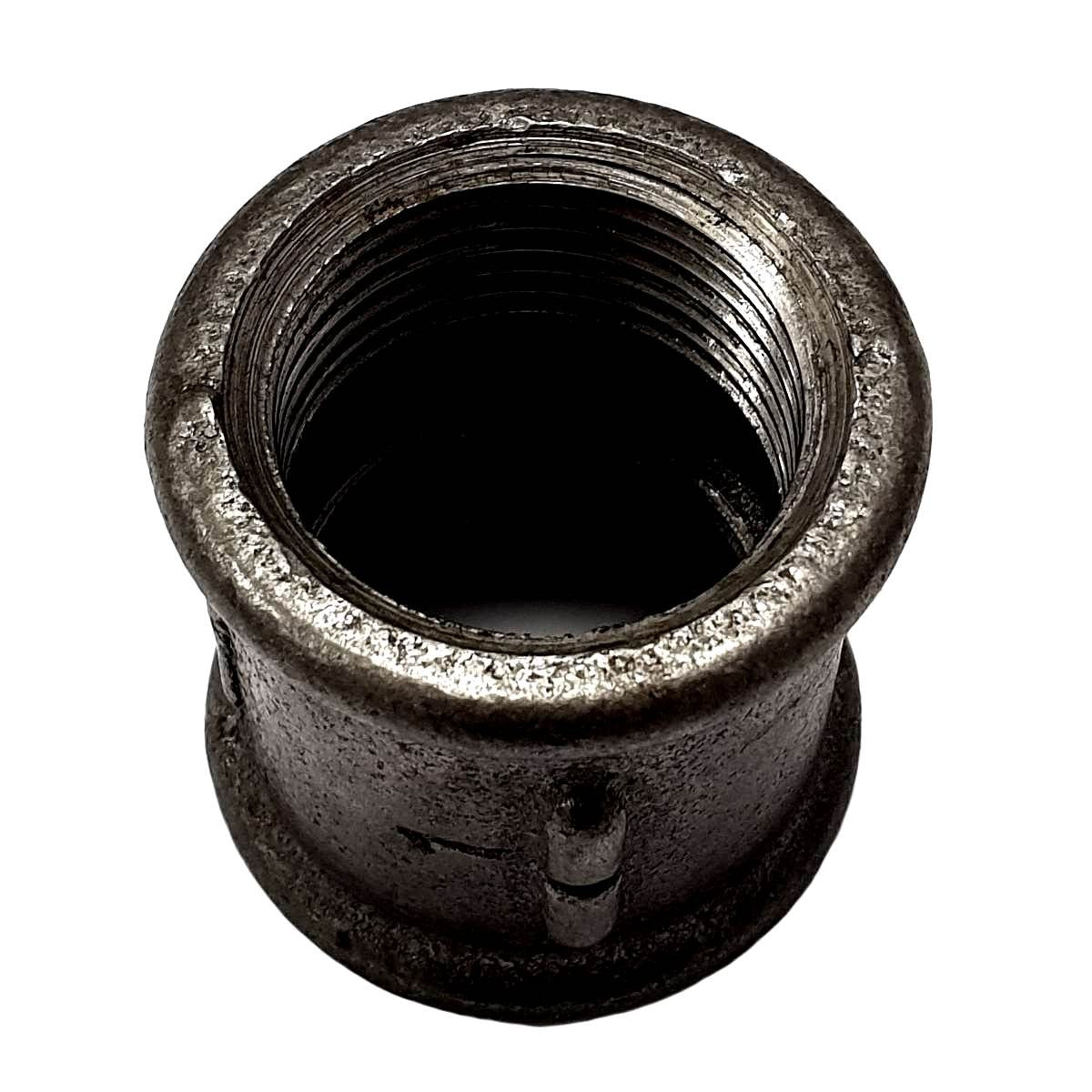

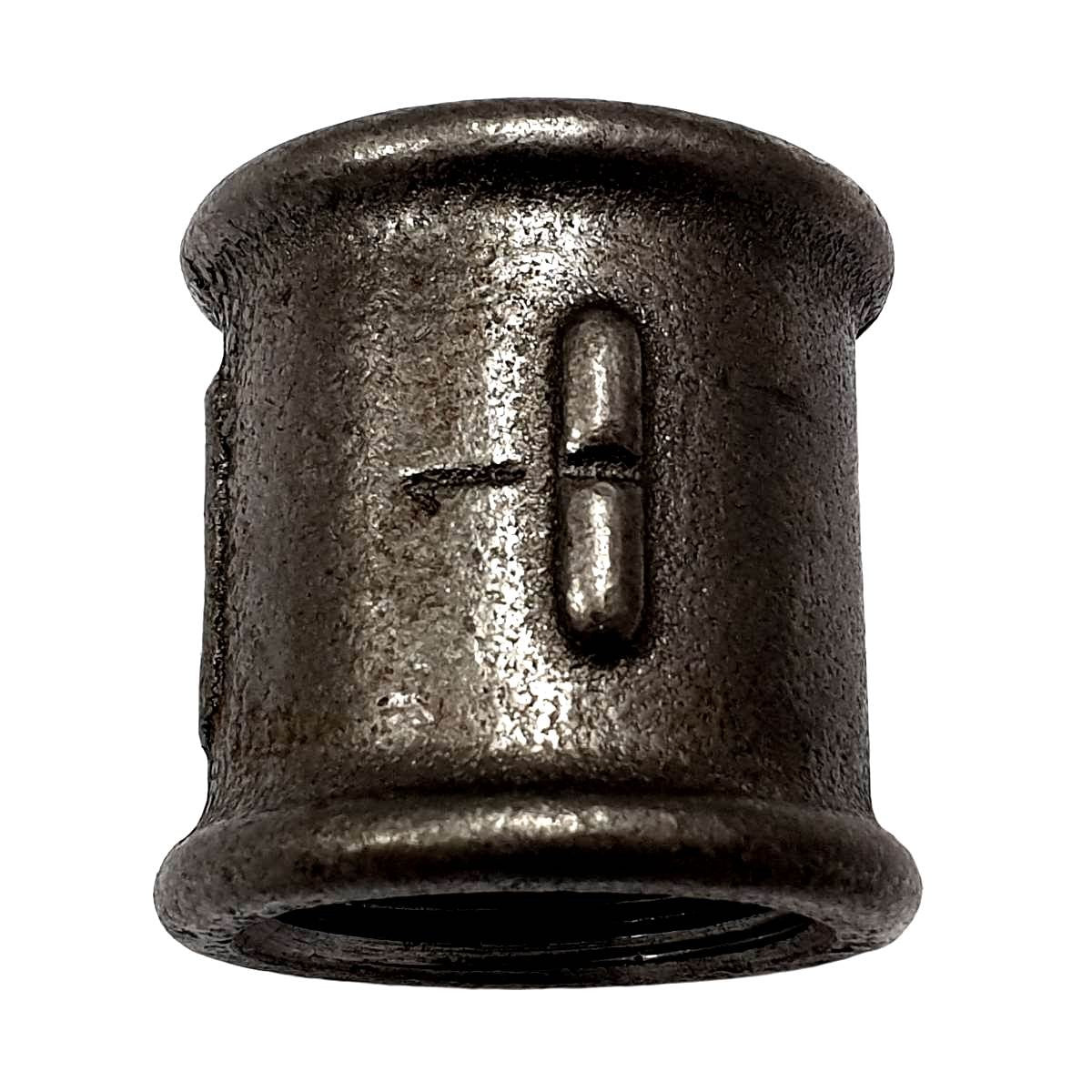

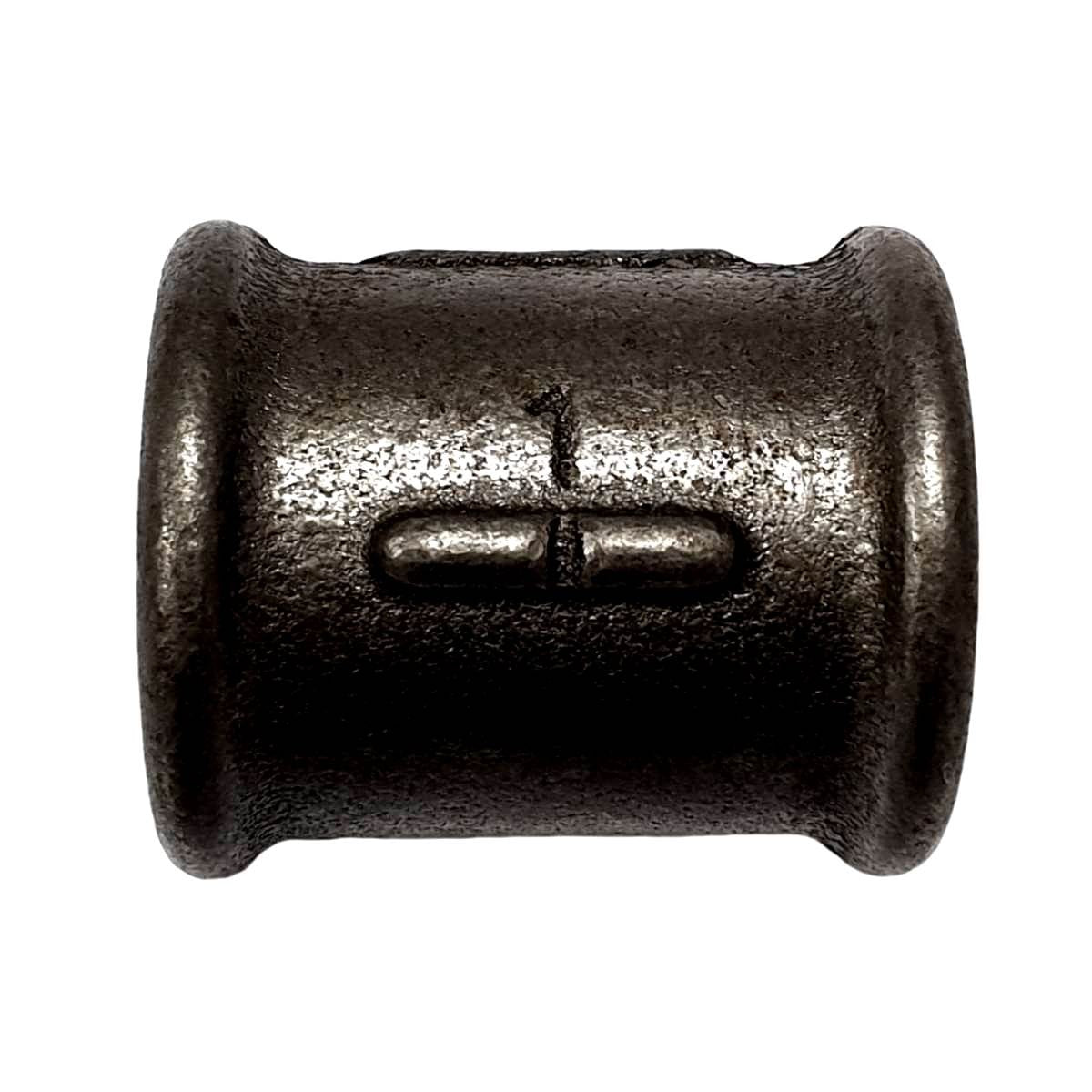

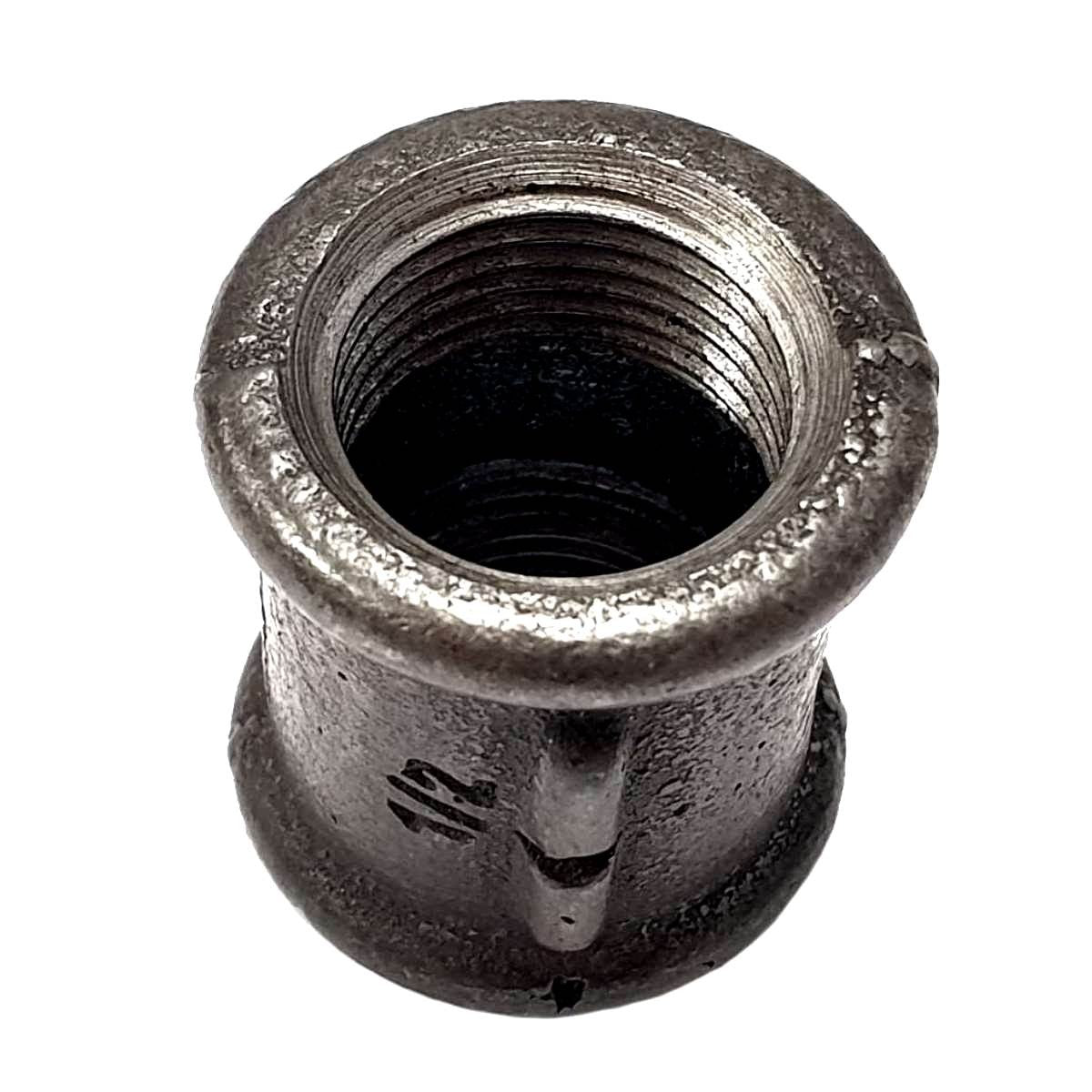

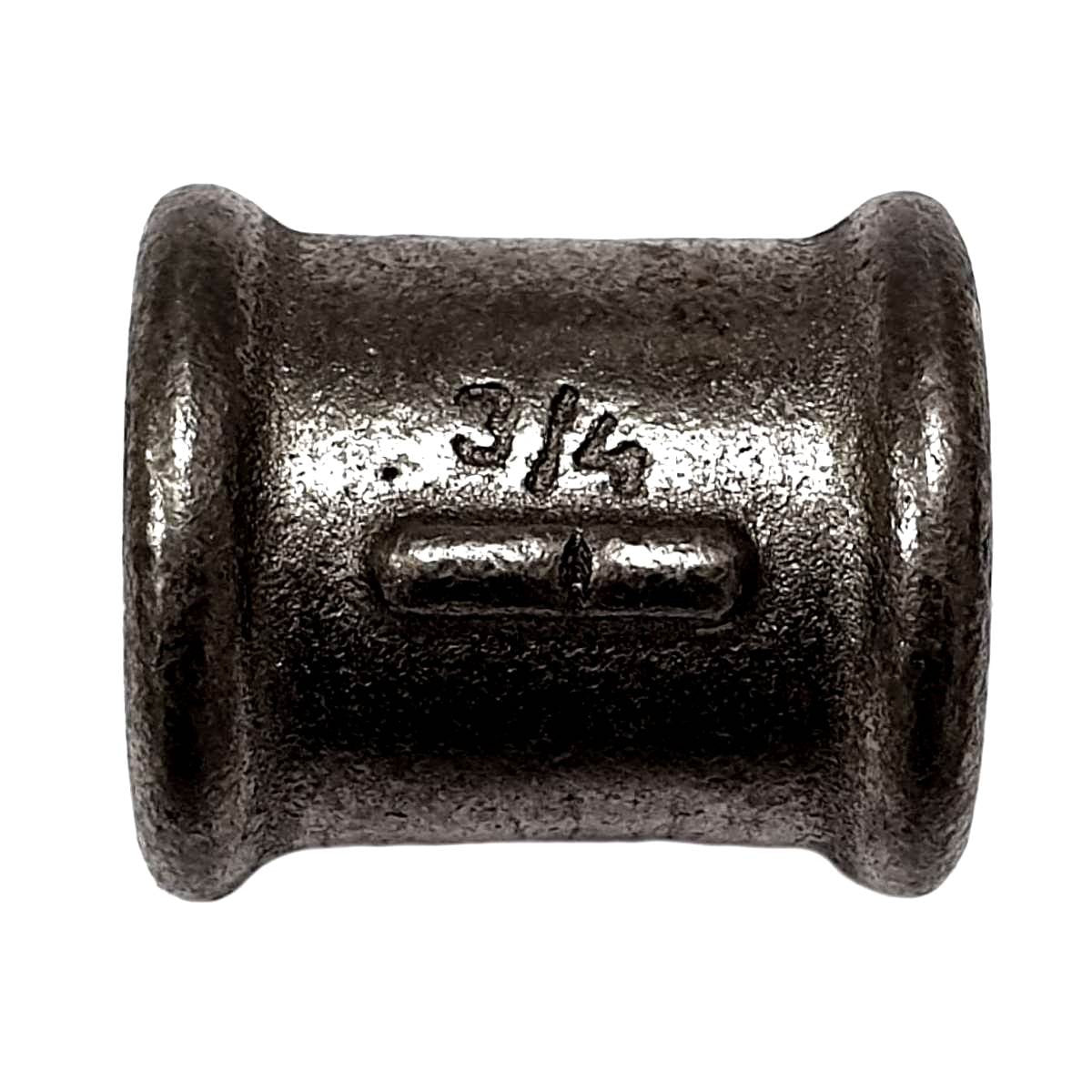

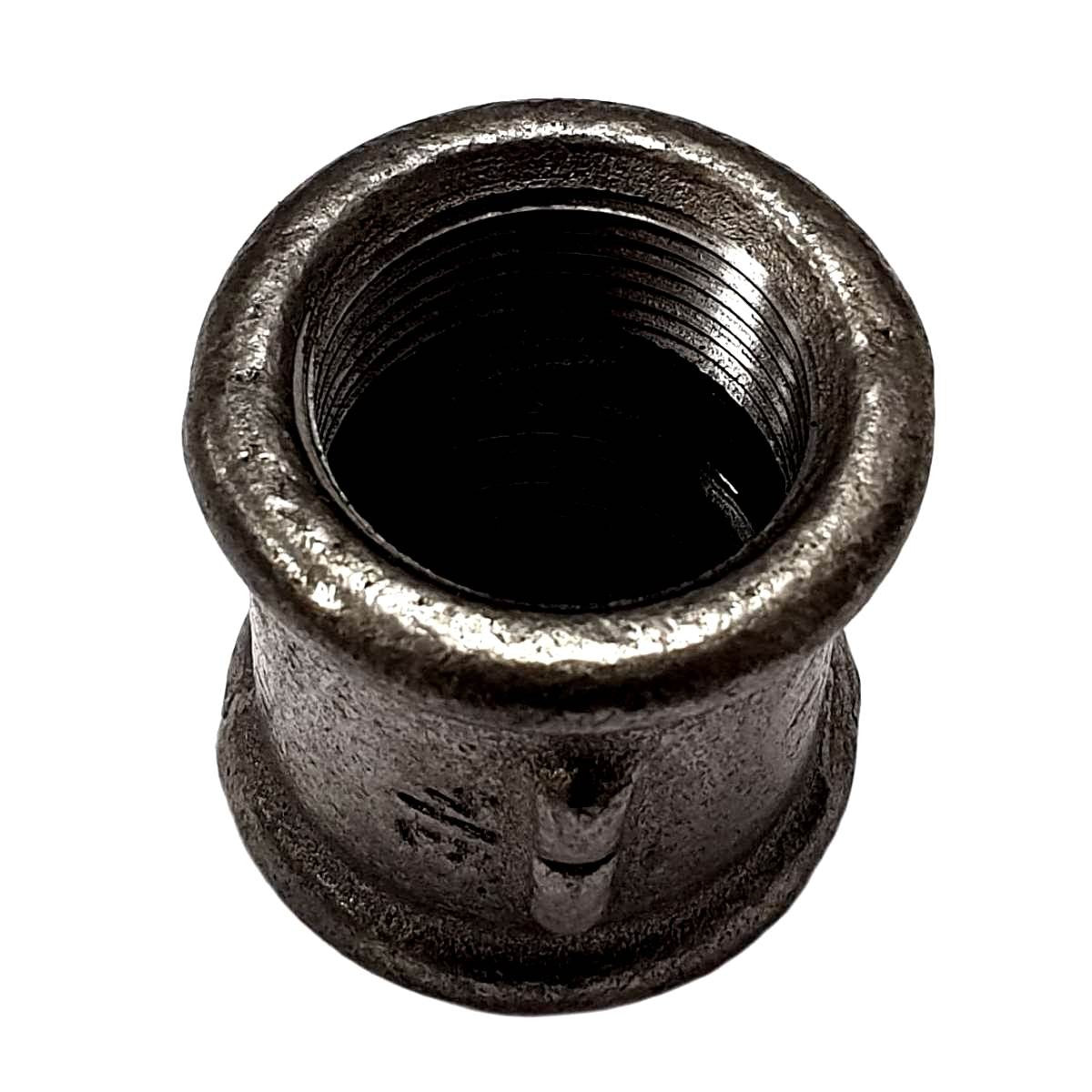

Right/Left Coupling F/F Black Cast Iron
- Material : Black malleable iron
- Colour : Grey / Dark grey
The right/left F/F coupling in black cast iron (ref. 271) has a right-hand thread on one side and a left-hand thread on the other. Important: the left-hand side does not accept a standard tube or fitting (which are right-hand threaded). It screws onto a right/left nipple (ref. 281), or onto a left-hand threaded tube (non-standard).
How does a right/left fitting work?
A standard fitting always screws in the same direction (clockwise). The right/left coupling has a reversed thread on one of its sides. The result: by turning it one way, both ends screw in simultaneously. Turn it the other way and it unscrews from both sides at once. This allows you to connect or separate two fixed elements without turning them.

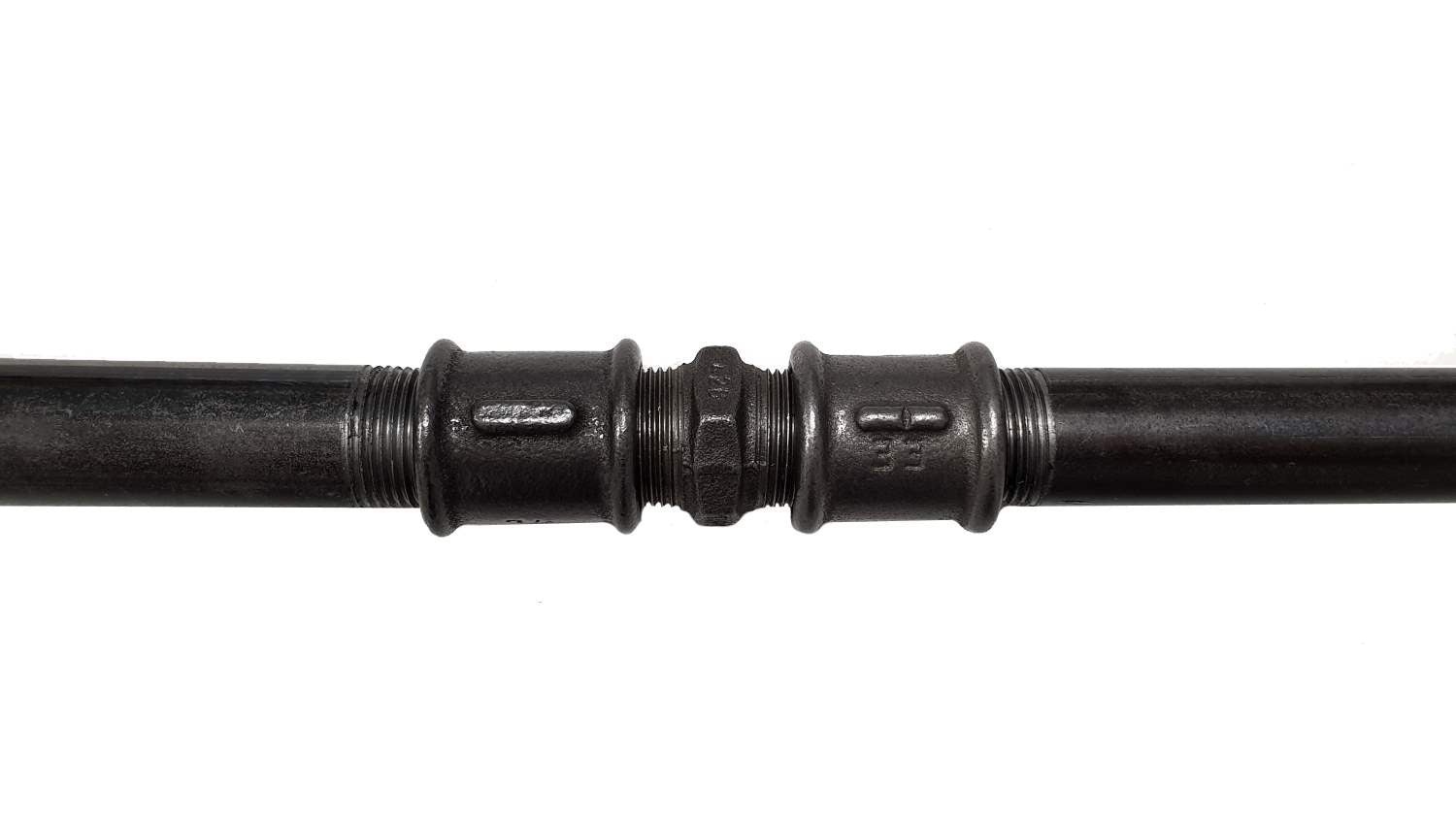

Coupling + Nipple: the essential pair
The right/left coupling (F/F) is only used with the right/left nipple M/M:
- The R/L nipple (M/M) screws into an existing female fitting (tee, elbow, flange…).
- The R/L coupling (F/F) covers the nipple and the adjacent fitting or pipe. Turning it tightens both sides at once.

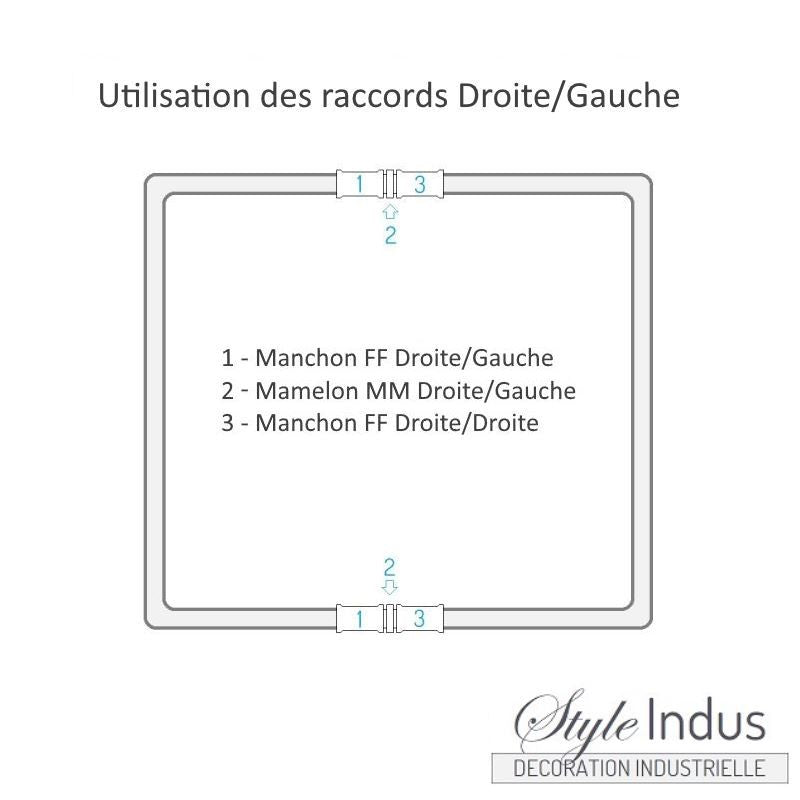

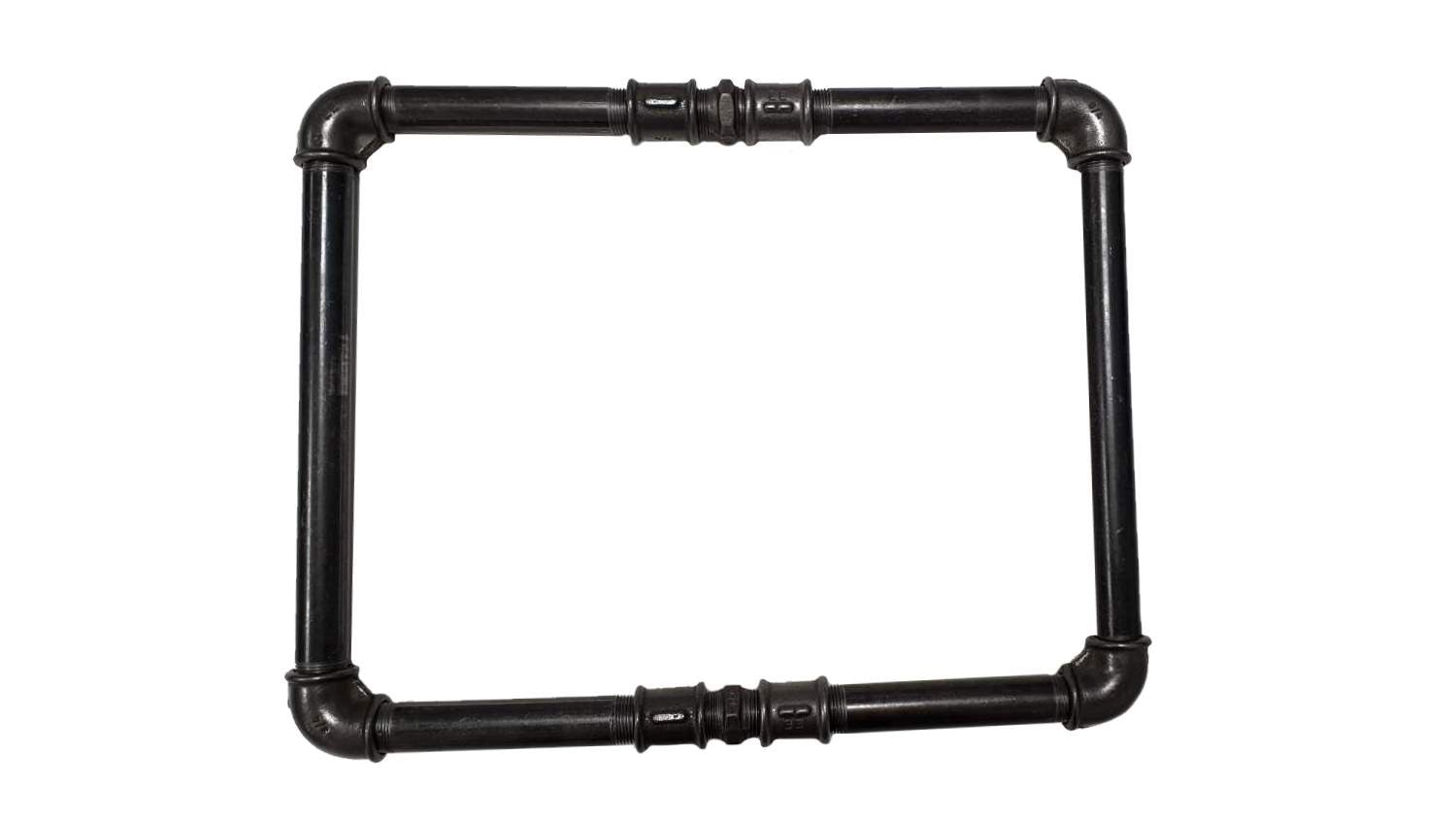

Interesting use for decoration: in a frame or rectangular shape made of pipes and fittings, the last connection is impossible with standard fittings. The combination R/L nipple + R/L coupling + standard coupling closes the loop by tightening both sides simultaneously. A more compact and economical alternative to union fittings F/F.
Specifications
- Standard : Manufactured per EN 10242 and ISO 49. Malleable iron grade EN-GJMW-400-5 (per EN 1562).
- Threads : One right-hand female thread (Rp) + one left-hand female thread, per ISO 7-1 (BSP).
- Reliability : 100% leak-tested.
- Thread engagement: 10 to 15 mm
- Material : black malleable iron
- Colour : dark grey
Service conditions
- Max temperature : 155°C (water).
- Compatibility : Drinking water, wastewater, gas, steam, non-corrosive liquids.

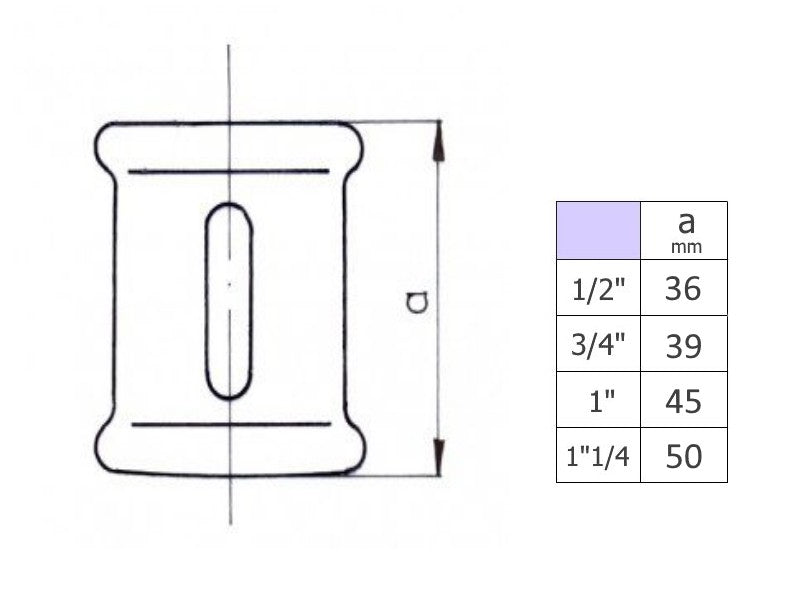

Dimensions
Scroll the table horizontally to see all measurements.

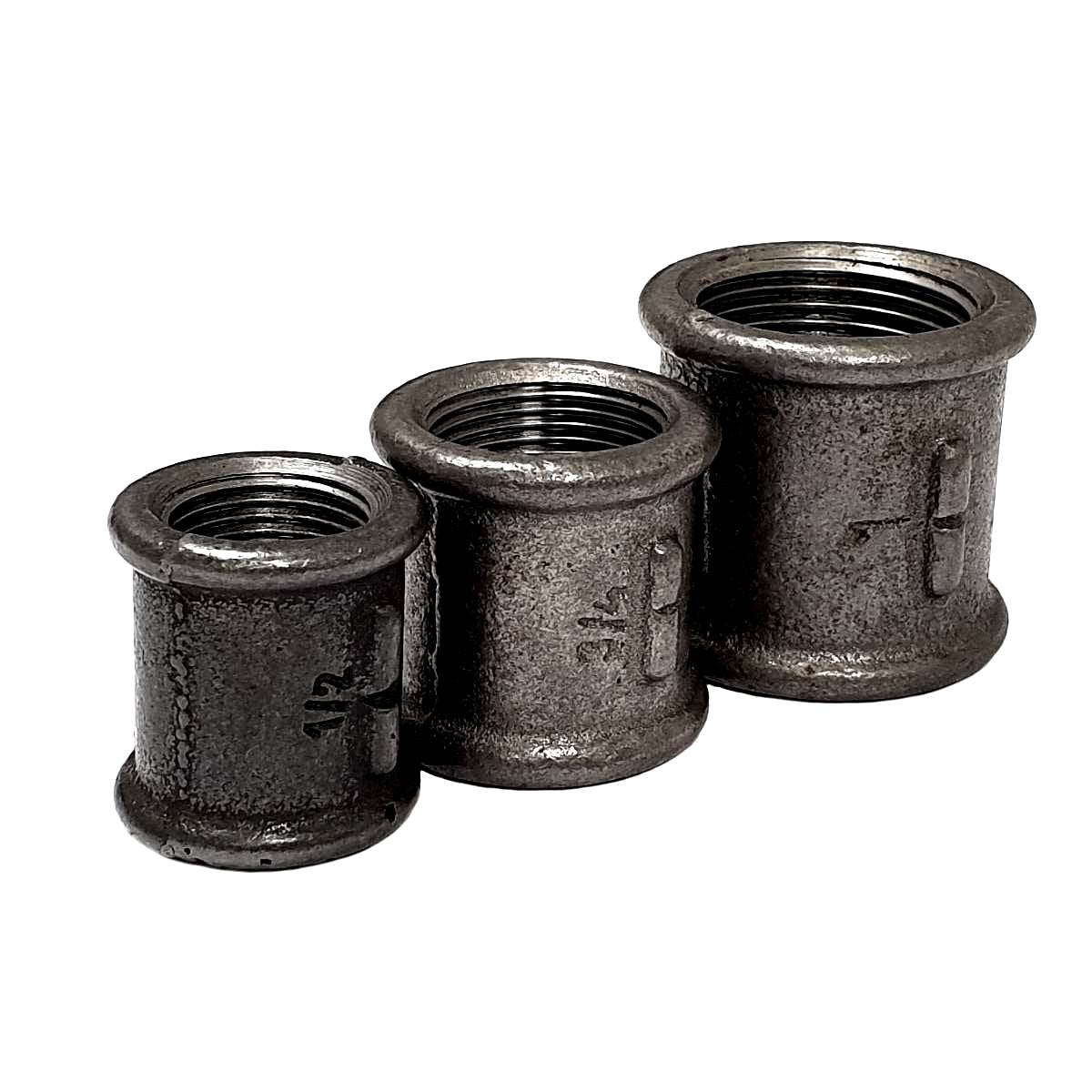

| Size (inches) | Size (mm) | DN | Length L (mm) | Weight (kg) |
|---|---|---|---|---|
| 3/8" | 12×17 | DN10 | 32 | 0,039 |
| 1/2" | 15×21 | DN15 | 38 | 0,075 |
| 3/4" | 20×27 | DN20 | 42 | 0,105 |
| 1" | 26×34 | DN25 | 47 | 0,156 |
| 1"1/4 | 33×42 | DN32 | 52 | 0,255 |
| 1"1/2 | 40×49 | DN40 | 56 | 0,363 |
| 2" | 50×60 | DN50 | 64 | 0,584 |
| 2"1/2 | 66×76 | DN65 | 72 | 0,770 |
| 3" | 80×89 | DN80 | 80 | 1,143 |
