Brass Flanged Lock Nut

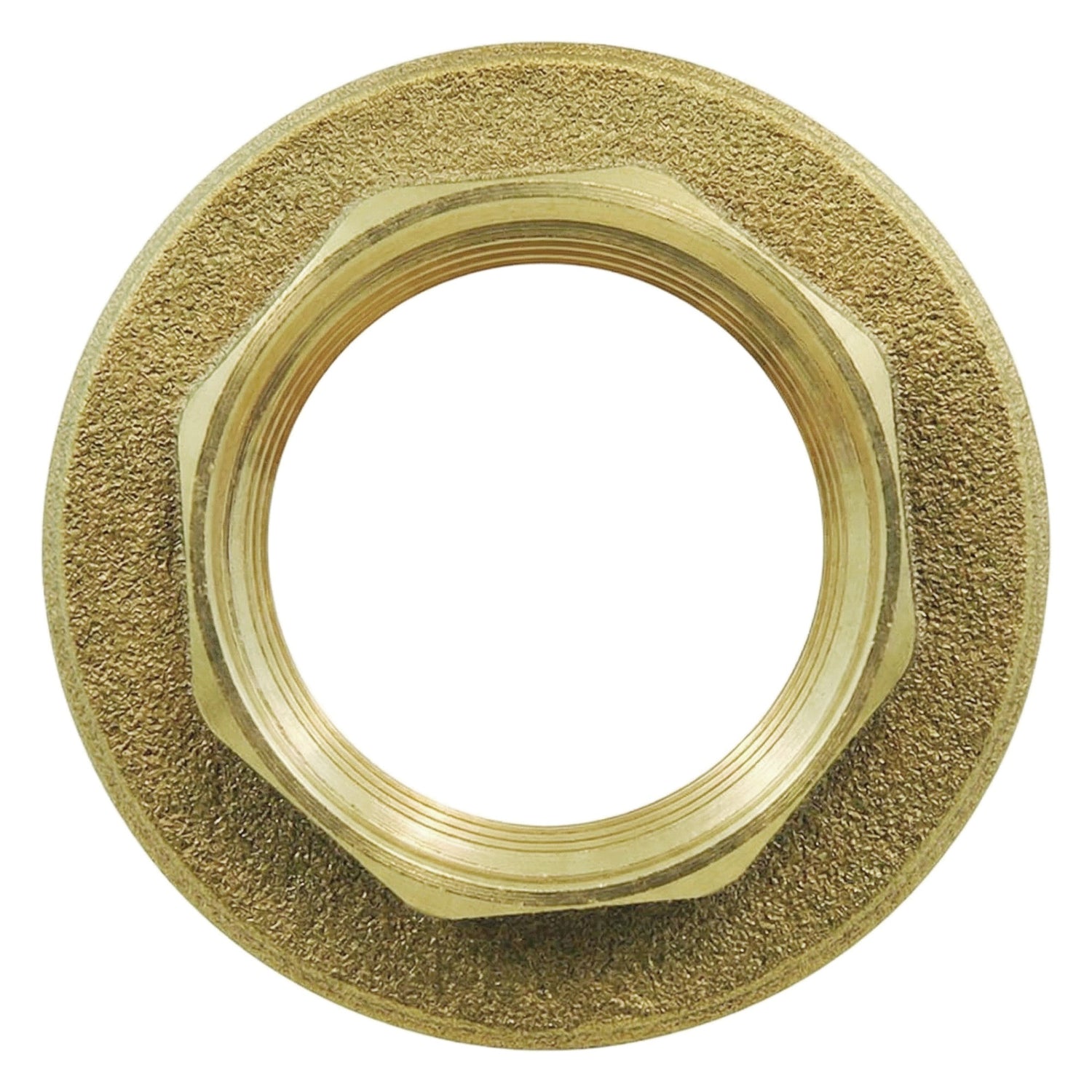

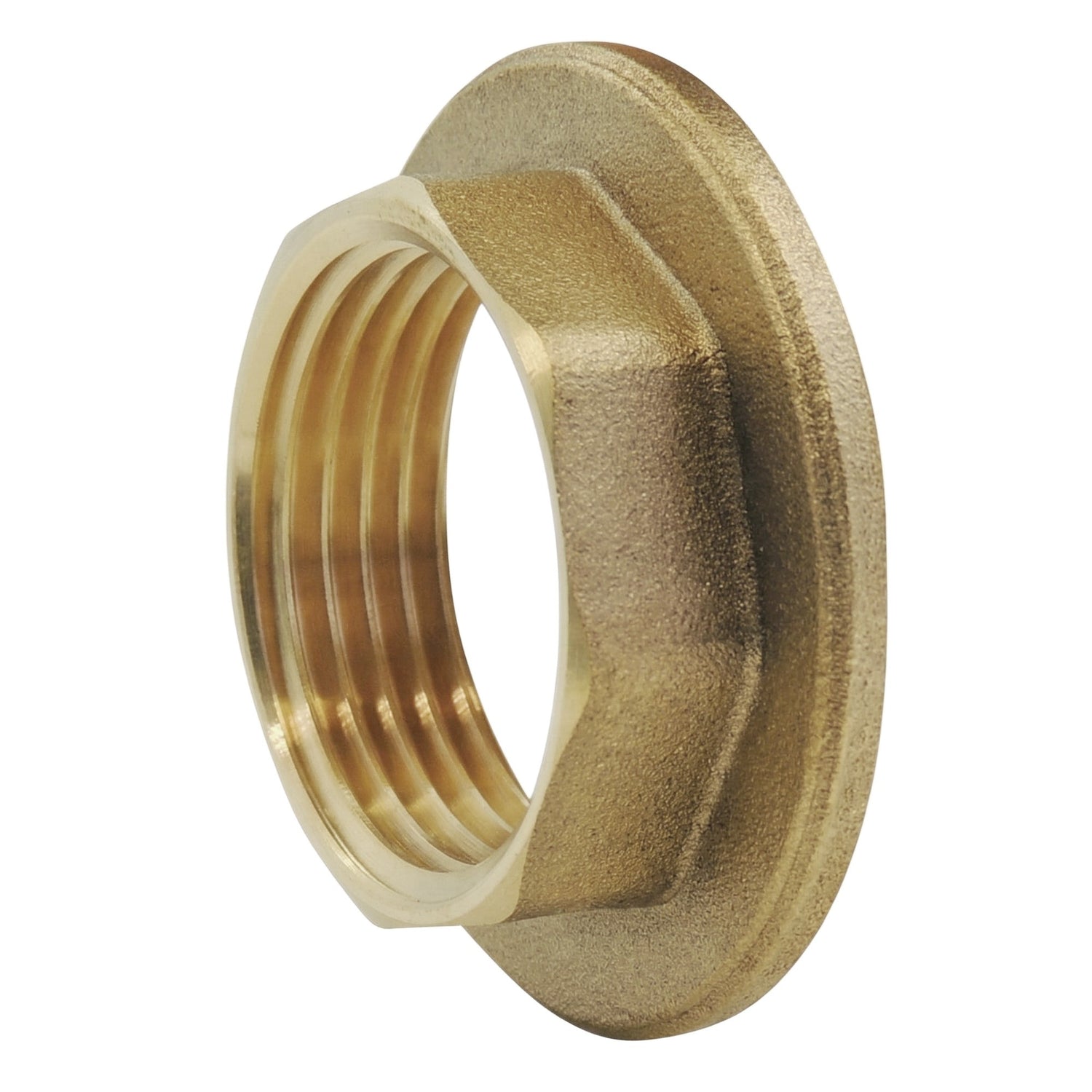

Brass flanged lock nut to lock and secure a threaded fitting in place. The wide flange provides an extended bearing surface and a neat finish. Used in plumbing, lighting and decoration. ISO 228-1 BSPP thread.
Brass Flanged Lock Nut Description
This flanged lock nut screws onto a male thread to lock a fitting in position. The wide flange distributes tightening pressure over a larger surface, preventing damage to adjacent parts. It ensures a secure hold with no risk of loosening.
An essential part for wall pass-throughs, tap fixings and decorative assemblies. Its neat and polished appearance also makes it an ideal visible component for exposed brass installations.
Technical Specifications
| Material | Brass CW617N - 4MS |
| Colour | Golden brass |
| Nominal pressure | PN 16 bar |
| Thread standard | ISO 228-1 - BSPP Gas (parallel thread) |
| Sealing | Guaranteed flat gasket seal (minimum thickness 1 mm) |
| Gasket seats | Flat and wide on male and female ends |
| Shape | Circular flange |
| Type | Female (internally threaded) with flange |
| Compatible fluids | Drinking water, glycol water, compatible fluids |
| Temperature | Depends on the type of seal used |
| Application | Drinking water supply, general plumbing, HVAC |
Operating Conditions and Installation
- Operating pressure : PN 16 bar
- Temperature : Depends on the type of seal used
- Fluids : Drinking water, glycol water, compatible fluids
- Installation: Apply moderate tightening torque and use suitable materials (risk of galvanic corrosion). Wrench flats compatible with standard tools.
Certifications and Compliance
- Drinking water: Compliant with the French decree of 25 June 2020 on metallic materials and products intended for installations in contact with water for human consumption.
- 4MS: Compliant with 4MS requirements — Harmonisation of European certification rules for materials and products in contact with drinking water.
Applications and Installation Tips
Applications
- Domestic plumbing: hot and cold water installation connections
- Industrial plumbing: PN 16 bar compliant installations
- Interior decoration: creating light fixtures, shelves, towel rails in exposed brass
- DIY and creative projects: custom projects with screw-in fittings
- Wall pass-through fixing: essential for securing a wall pass-through pipe in position
Installation tips
- Use PTFE tape (Teflon) or hemp to ensure sealing on male threads
- For flat gasket seats, use a flat gasket with a minimum thickness of 1 mm
- Tighten with an open-end wrench or adjustable wrench — do not use slip-joint pliers to avoid damaging the fitting
- Apply moderate tightening torque — over-tightening may damage the thread
Technical Drawing
Dimensions (mm)
All dimensions are expressed in millimetres (mm) unless otherwise stated.
| G | G (mm) | OA | L1 | L2 | S |
|---|---|---|---|---|---|
| 3/8" | 12x17 | 30 | 9 | 7 | 19 |
| 1/2" | 15x21 | 35 | 10 | 7.5 | 23 |
| 3/4" | 20x27 | 42 | 11 | 8.2 | 29 |
| 1" | 26x34 | 50 | 13 | 9.8 | 36 |
Size Equivalences
This lock nut is available in the following sizes. Use this table to find the equivalence between millimetres, inches and DN.
| Size (mm) | 12x17 | 15x21 | 20x27 | 26x34 |
|---|---|---|---|---|
| Inches | 3/8'' | 1/2'' | 3/4'' | 1'' |
| DN | DN10 | DN15 | DN20 | DN25 |
| Ext. tube dia. | 17 mm | 21 mm | 27 mm | 34 mm |
The appearance of the part may vary depending on the batch in stock (see photos). Contact us for confirmation.
