E27 glossy metal socket - 4 colours

E27 glossy metal socket - 4 colours

E27 metal socket with a threaded body, fitted with two rings for fixing a lampshade. It takes E27 screw cap bulbs and fits to the end of a 3 x 0.75 mm² electrical cable to make a wall lamp, a table lamp or a ceiling light. It comes with a conical cable grip in transparent thermoplastic.

Features and use

• Threaded metal body, glossy finish, with a double ring for a lampshade.
• Compatible with E27 cap bulbs.
• Conical cable grip in transparent thermoplastic supplied.
• Rated voltage and current: 250 V / 4 A.
• Screw terminals for rigid or flexible conductors from 0.5 to 2.5 mm².
• Fixing via M10x1 threaded hole.

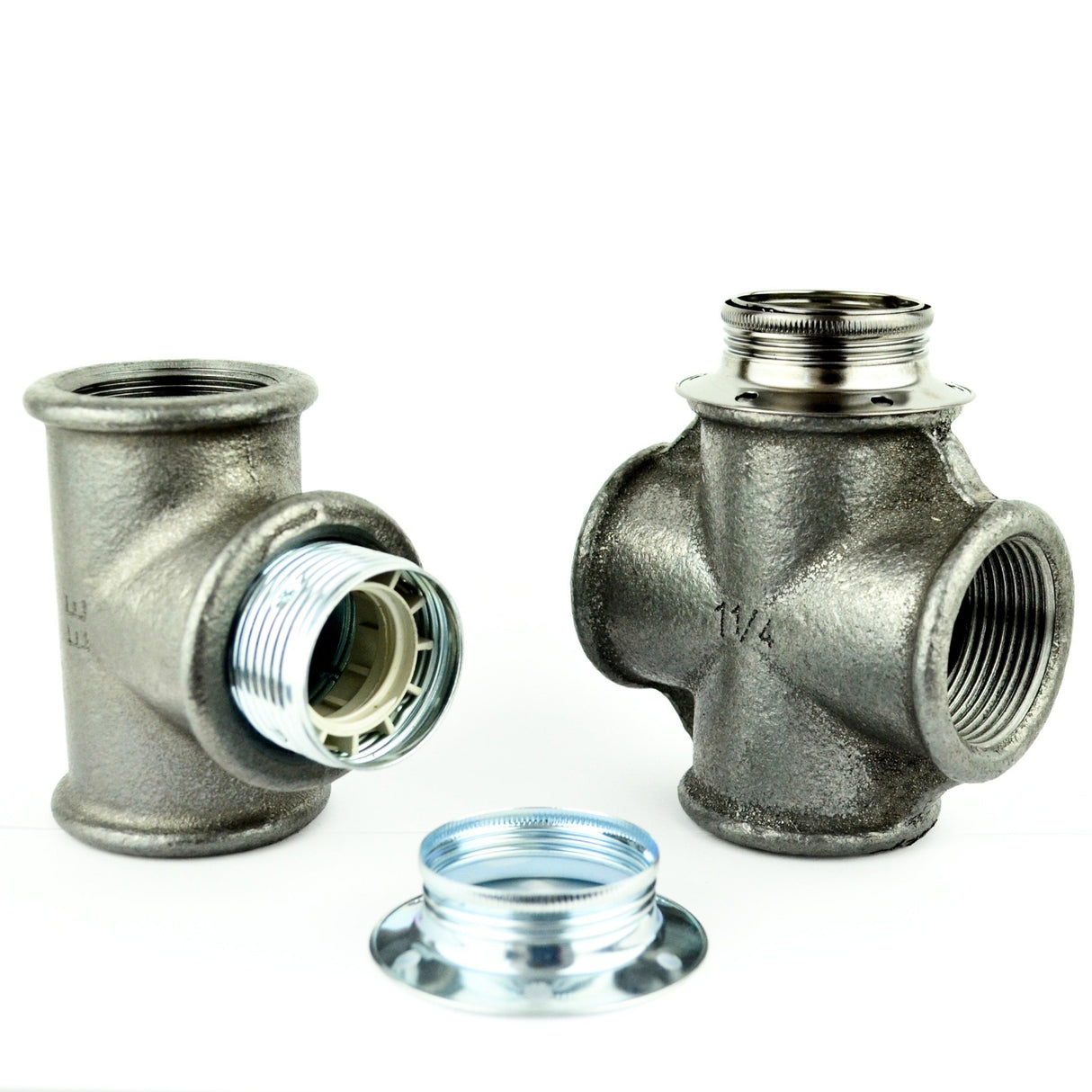

Use with plumbing fittings

This socket is particularly well suited to light fixtures made from plumbing fittings. Thanks to its size and thread, it fits inside the 1''1/4 (33x42 mm) female fittings sold in the shop: it installs directly on a tee or an elbow of this size. Reducing fittings (for example an elbow with 1''1/4 on one side and 1/2'' on the other) allow this assembly to be adapted to lighter structures.

Versions and finishes

Four finishes are available: glossy black, brass, copper and silver, to match the textile cable, the lampshade or the fittings. The fittings and bulbs shown in the photos are not included.

Technical information

• Cap: E27
• Body material: Metal, threaded body
• Electrical insert: T230 thermosetting polyester
• Rated voltage / current: 250 V / 4 A
• Terminals: Screw type, conductors from 0.5 to 2.5 mm²
• Fixing: M10x1 threaded hole
• Dimensions: Ø 40 mm / height 55 mm / ring Ø 60 mm
• Cable grip supplied: Conical thermoplastic, height 43 mm / Ø 14.8 mm
• Available colours: Glossy black, Brass, Copper, Silver
