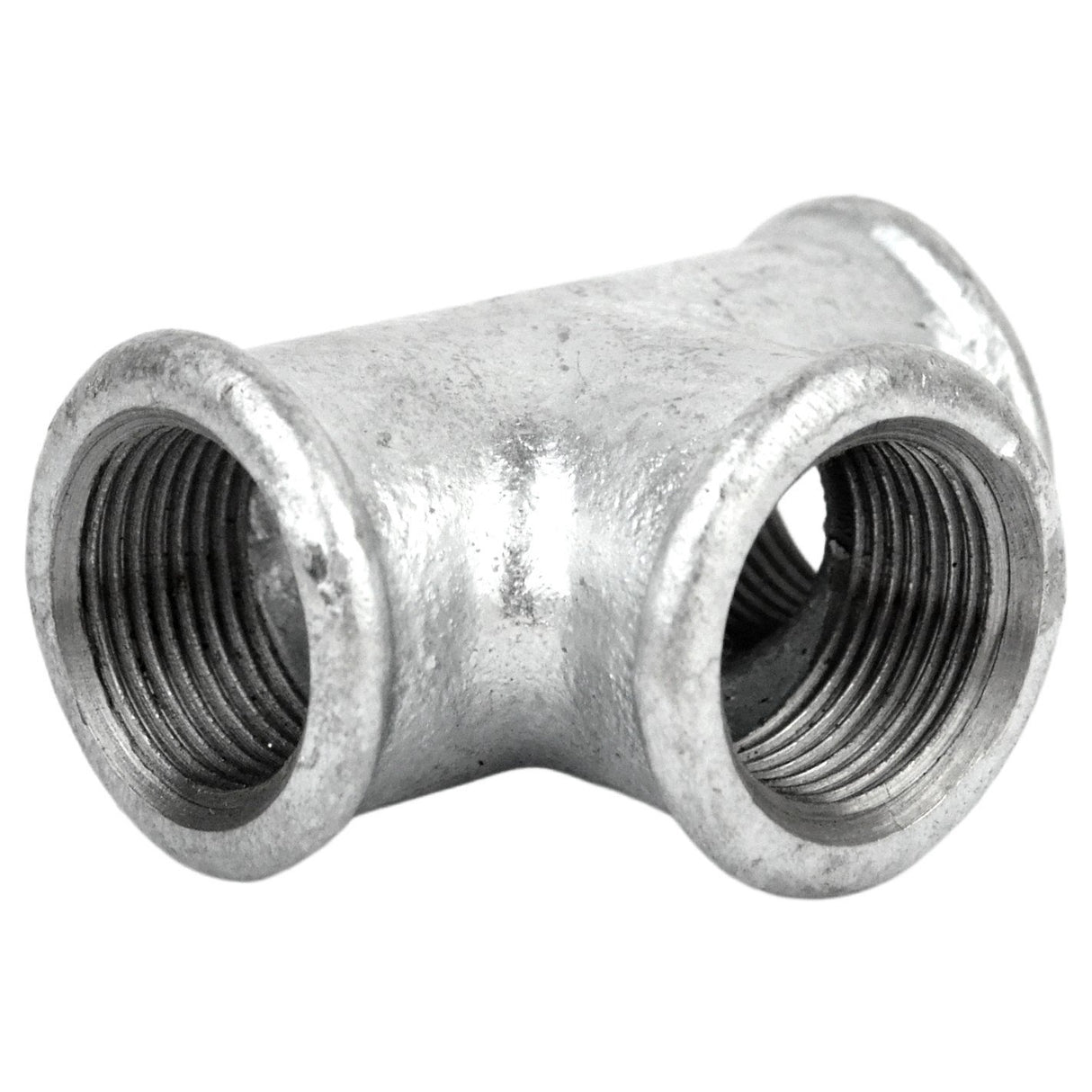

Equal female Tee / T, galvanized cast iron

Equal Female / Female / Female T (Tee) plumbing fitting, galvanized cast iron

This galvanized cast iron Tee is ideal for building structures from cast iron and steel plumbing fittings. It is compatible with all galvanized cast iron fittings or black ones and threaded galvanized steel pipes or black ones of the same size sold in our online shop. The parts simply screw together, without welding, to make strong assemblies easily.

Description of the T fitting (Tee)

The Equal Tee (all inlets are the same size) is a versatile 3-way part for screwing together 3 pipes or fittings of the same size. If you need a part with more outlets, you can turn to our distributors (up to 6 outlets).

Tee features and uses

Although we use our fittings for decoration, this is a genuine plumbing part made of whiteheart malleable cast iron that complies with EN 10242 and ISO49 standards. Superior quality and a guarantee of rock-solid sturdiness!

The female (tapped) threads on this part are parallel gas threads (Rp, ISO 7-1 standard). They accept the tapered male threads (R, known as BSPT) of pipes and fittings of the same size.

• Screw-in depth, depending on the part screwed in and the tightening force:

  Size	Thread engagement (approx.)
  1/4"	10 mm
  3/8"	10 mm
  1/2"	13 mm
  3/4"	15 mm
  1"	17 mm
  1"1/4	19 mm
  1"1/2	19 mm
  2"	24 mm
  2"1/2	27 mm
  3"	30 mm
  4"	36 mm

• Materials: galvanized cast iron
• Colour: galvanized (slightly shiny silver-grey)
• High quality
• Made in Europe

Tee fitting dimensions

Tapping / Threads: 3/8'' | 12x17mm

Dimensions (length x width x height): 48 x 35 x 35 mm

Weight: 0.09 kg

Tapping / Threads: 1/2'' | 15x21mm

Dimensions (length x width x height): 54 x 44 x 30 mm

Weight: 0.14 kg

Tapping / Threads: 3/4'' | 20x27mm

Dimensions (length x width x height): 65 x 52 x 36 mm

Weight: 0.22 kg

Tapping / Threads: 1'' | 26x34mm

Dimensions (length x width x height): 75 x 60 x 44 mm

Weight: 0.3 kg

Tapping / Threads: 1''1/4 | 33x42mm

Dimensions (length x width x height): 90 x 72 x 55 mm

Weight: 0.54 kg

Conversion table of plumbing fitting sizes in inches and mm:
