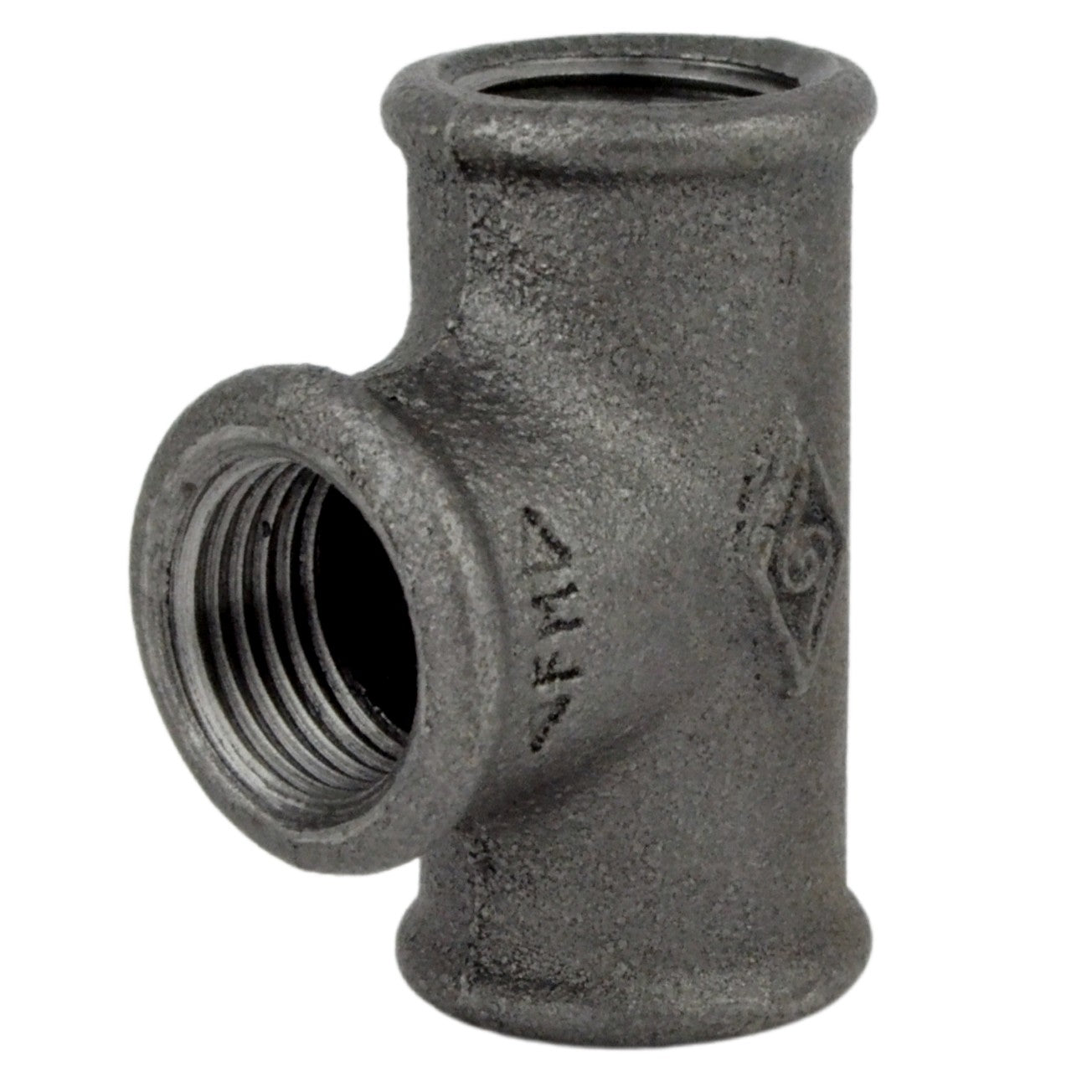

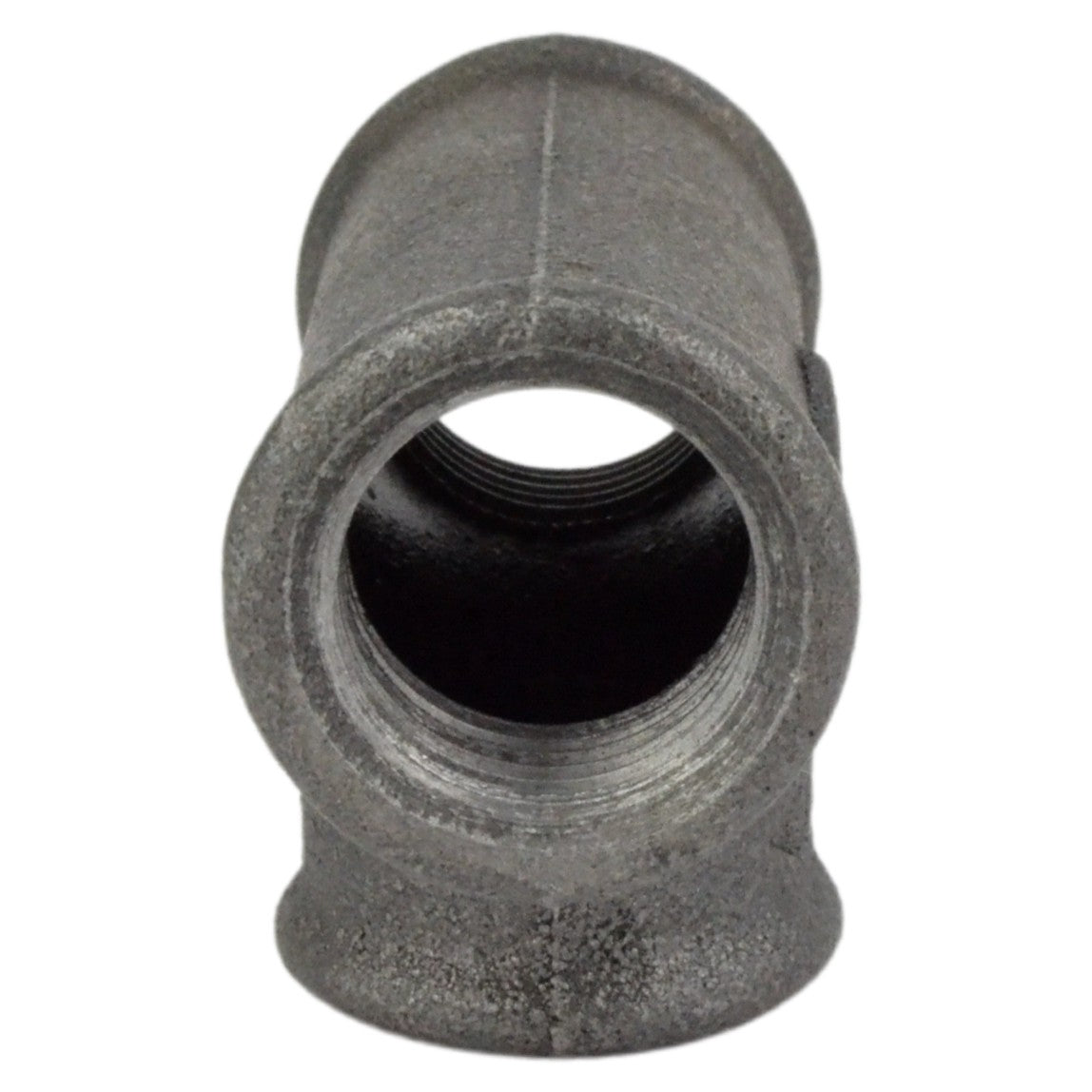

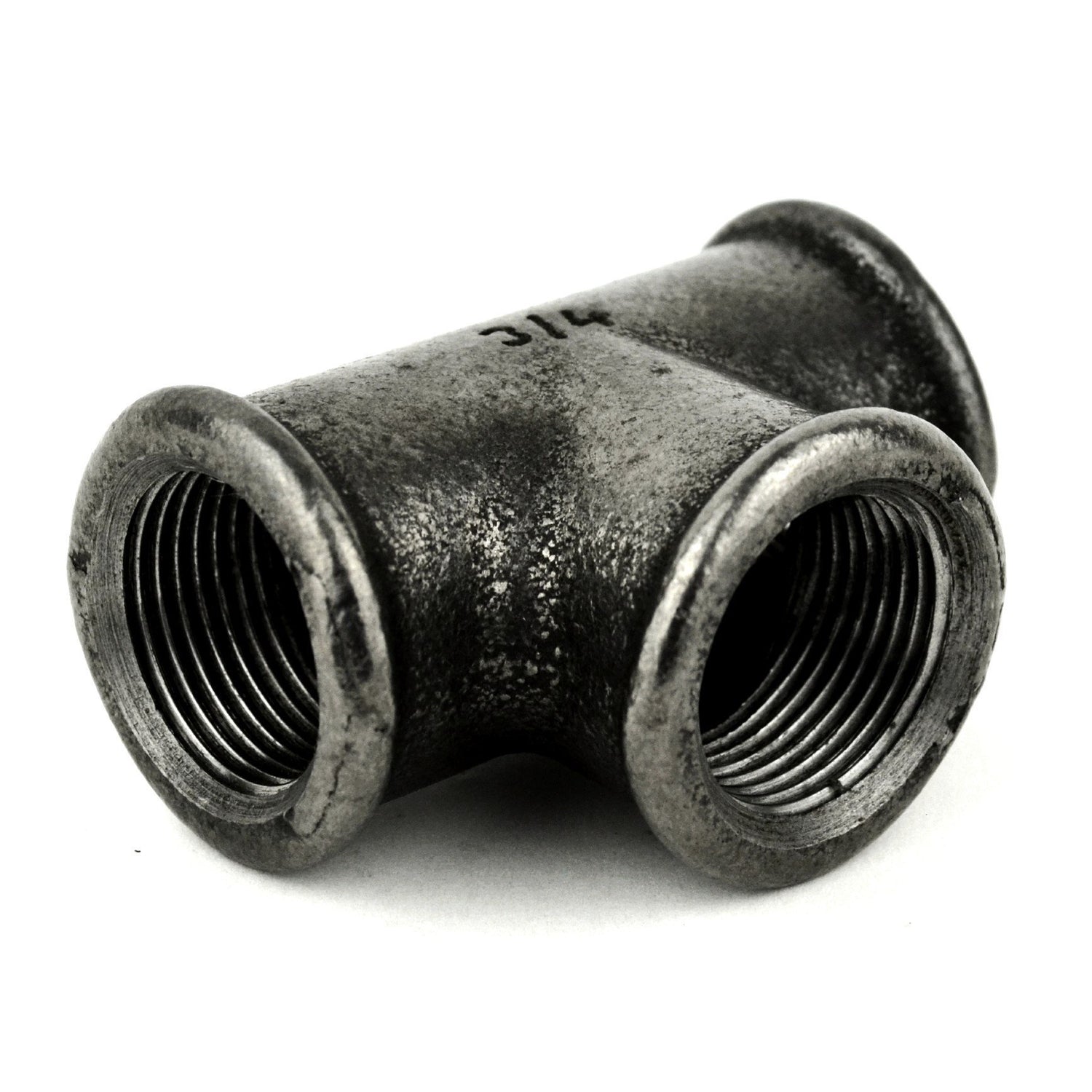

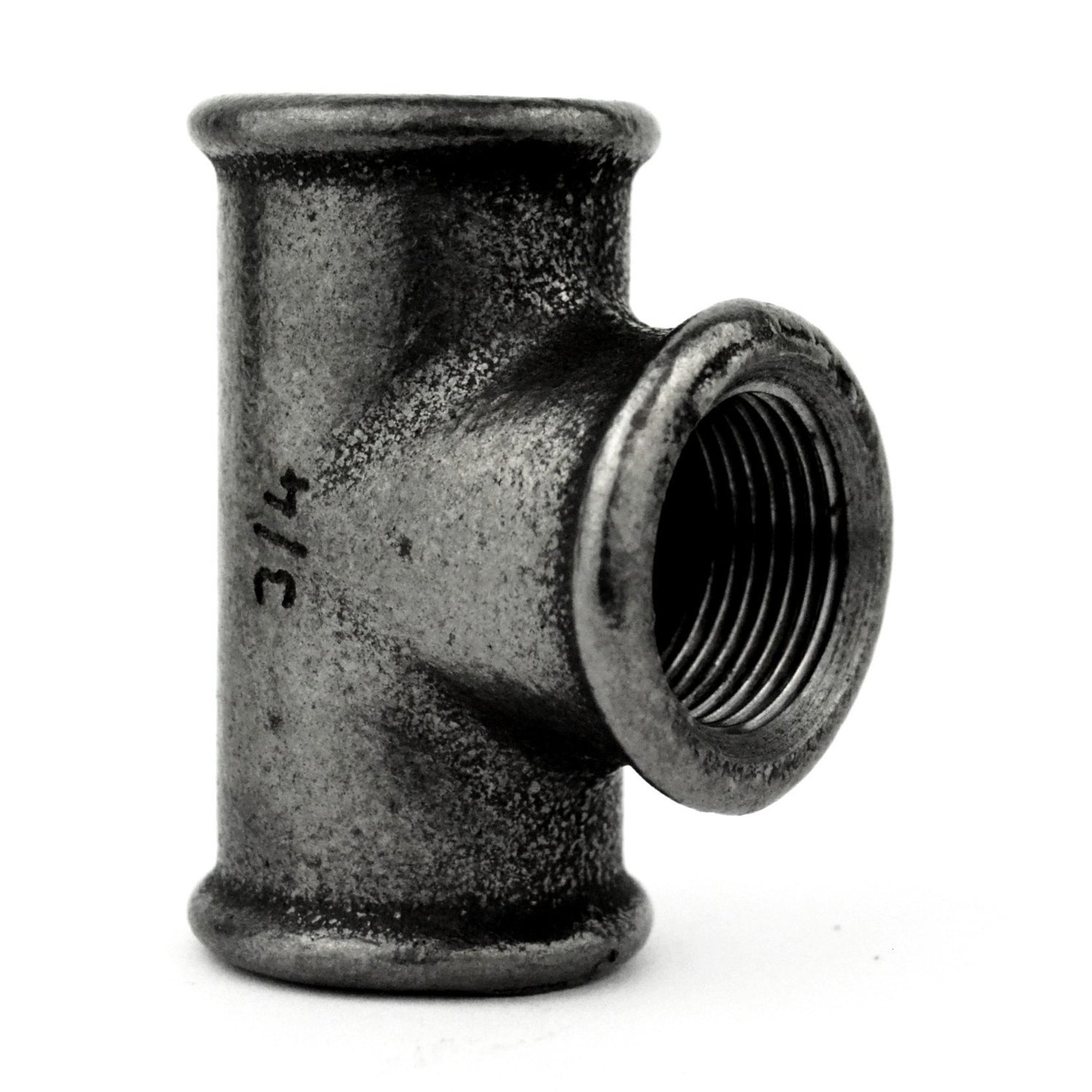

Tee / T equal female black malleable iron

Equal T (Tee) plumbing fitting, Female / Female / Female, black cast iron

This black cast iron Tee is ideal for building structures from cast iron and steel plumbing fittings. It is compatible with all black or galvanized cast iron fittings and threaded black steel pipes or galvanized ones of the same size sold in our online shop. The parts simply screw together, without welding, to make strong assemblies easily.

Description of the T fitting (Tee)

The Equal Tee (all inlets are the same size) is a versatile 3-way part for screwing together 3 pipes or fittings of the same size. If you need a part with more outlets, you can turn to our distributors (up to 6 outlets).

Premium or Eco range?

This part is available in our Premium or Economy ranges. In both cases, these are genuine, fully functional plumbing fittings.

The differences are as follows:

Premium Tee features and uses

Although we use our fittings for decoration, this is a genuine plumbing part made of whiteheart malleable cast iron that complies with EN 10242 and ISO49 standards. Superior quality and a guarantee of rock-solid sturdiness!

The threads on this part are BSPT (ISO 7-1 standard) with cylindrical female (tapped) ends.

• Screws in 10 to 15mm (depending on the part screwed in and the force applied)
• Materials: black cast iron
• Colour: dark grey
• High quality
• Made in Europe (Premium)

Features of the Eco Tee

Although we use our fittings for decoration, this is a real plumbing part made of whiteheart malleable cast iron that complies with the EN 10242 standard. A guarantee of rock-solid sturdiness!

The threads on this part are BSPT with cylindrical female (tapped) ends.

• Screws in 10 to 15mm (depending on the part screwed in and the force applied)
• Materials: black cast iron
• Colour: grey
• Made in Europe

Tee fitting dimensions

Tapping / Threads: 3/8'' | 12x17mm

Dimensions (length x width x height): 48 x 35 x 35 mm

Weight: 0.09 kg

Tapping / Threads: 1/2'' | 15x21mm

Dimensions (length x width x height): 54 x 44 x 30 mm

Weight: 0.14 kg

Tapping / Threads: 3/4'' | 20x27mm

Dimensions (length x width x height): 65 x 52 x 36 mm

Weight: 0.22 kg

Tapping / Threads: 1'' | 26x34mm

Dimensions (length x width x height): 75 x 60 x 44 mm

Weight: 0.3 kg

Tapping / Threads: 1''1/4 | 33x42mm

Dimensions (length x width x height): 90 x 72 x 55 mm

Weight: 0.54 kg

Conversion table of plumbing fitting sizes in inches and mm:

Goes well with

Compatible products: Black steel pipes · Floor flanges

Useful guides:

• How to screw fittings and pipes together
• Diameter chart
