Brass Equal Nipple

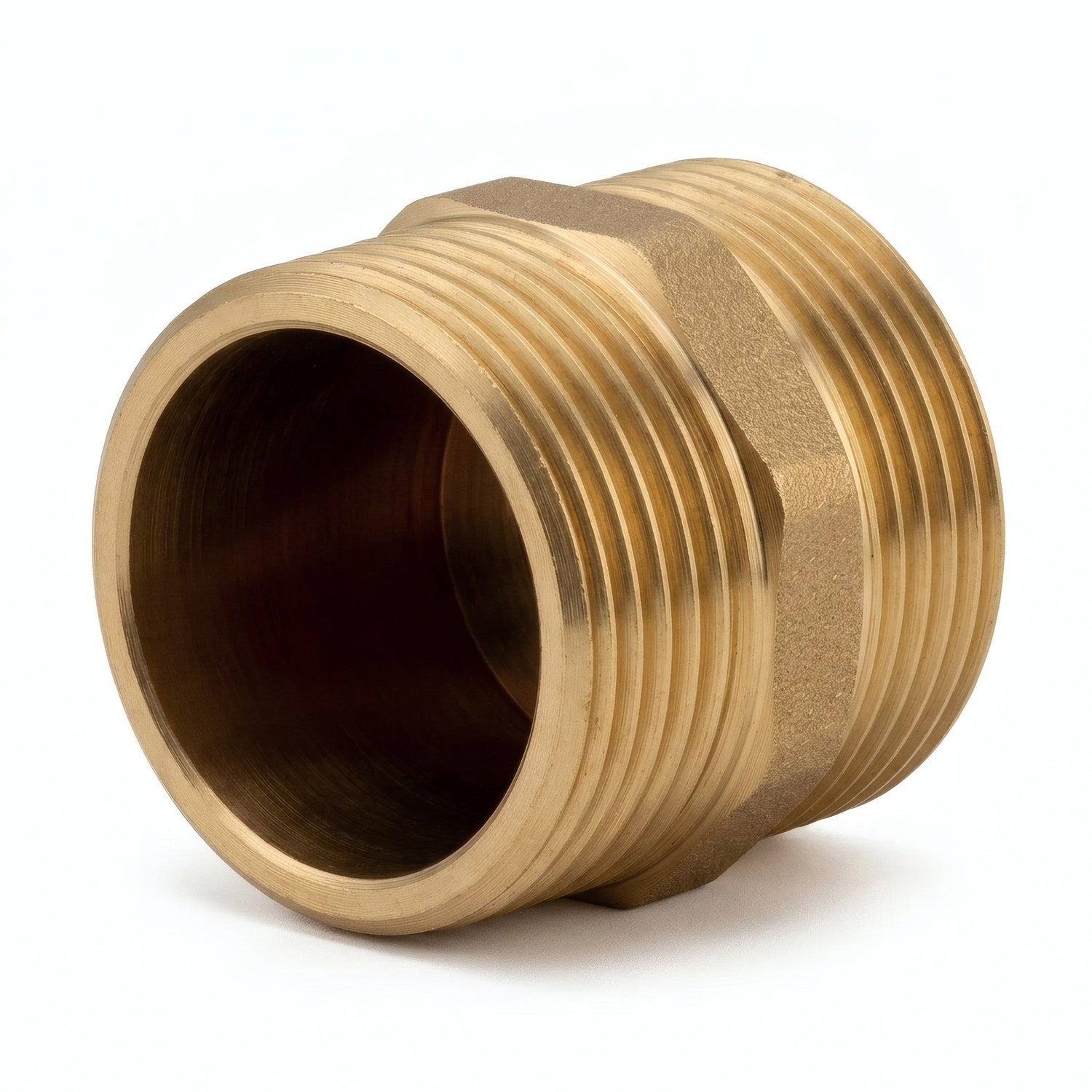

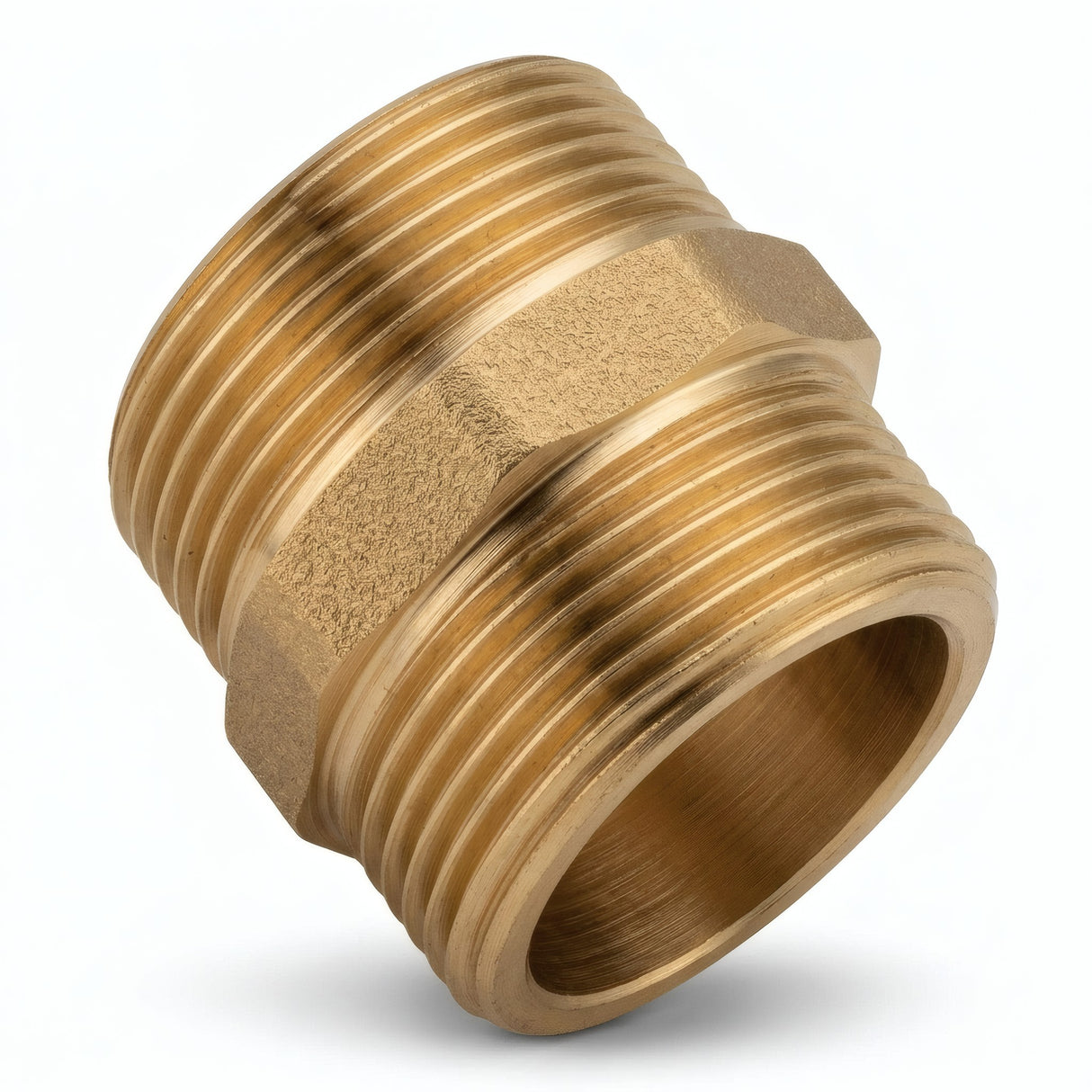

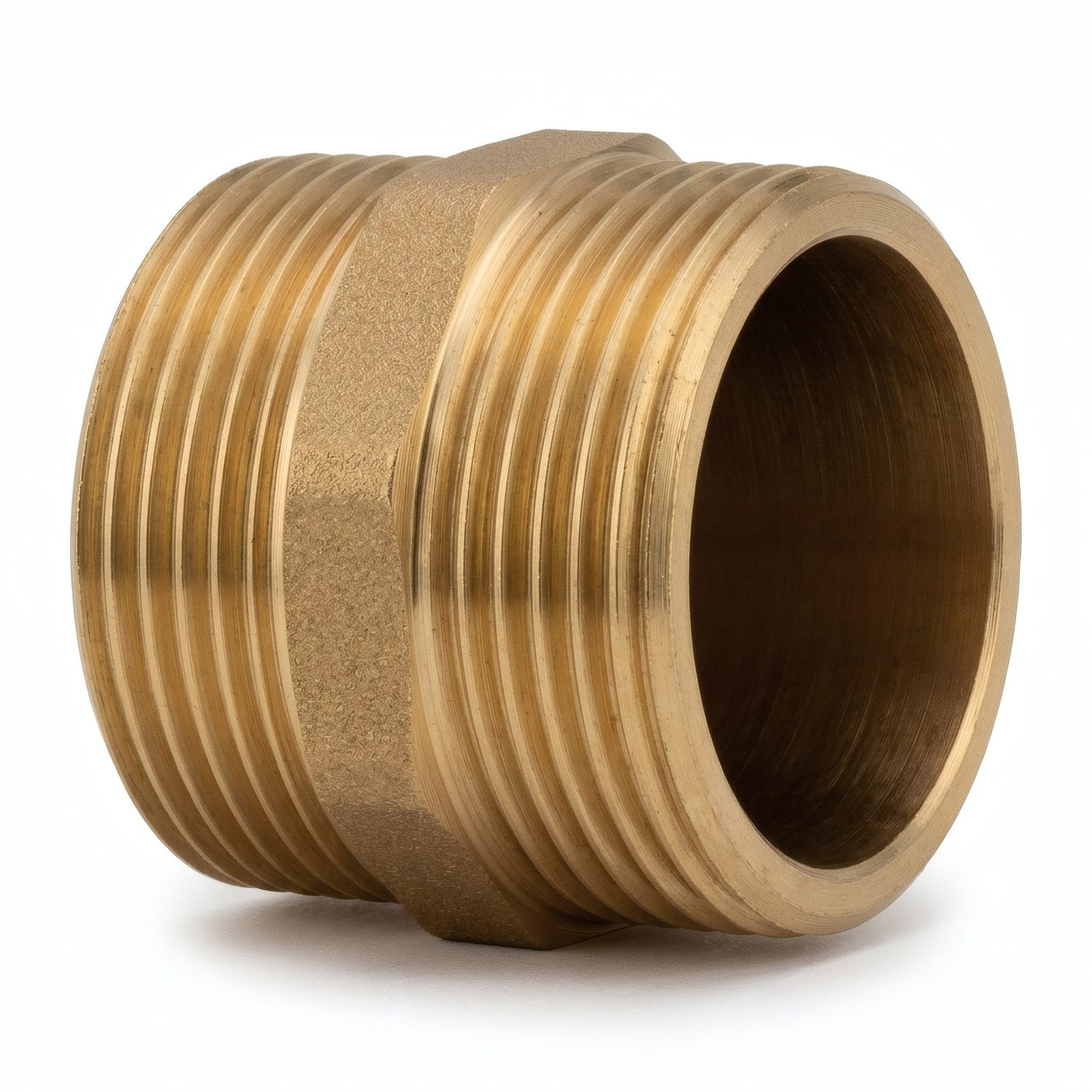

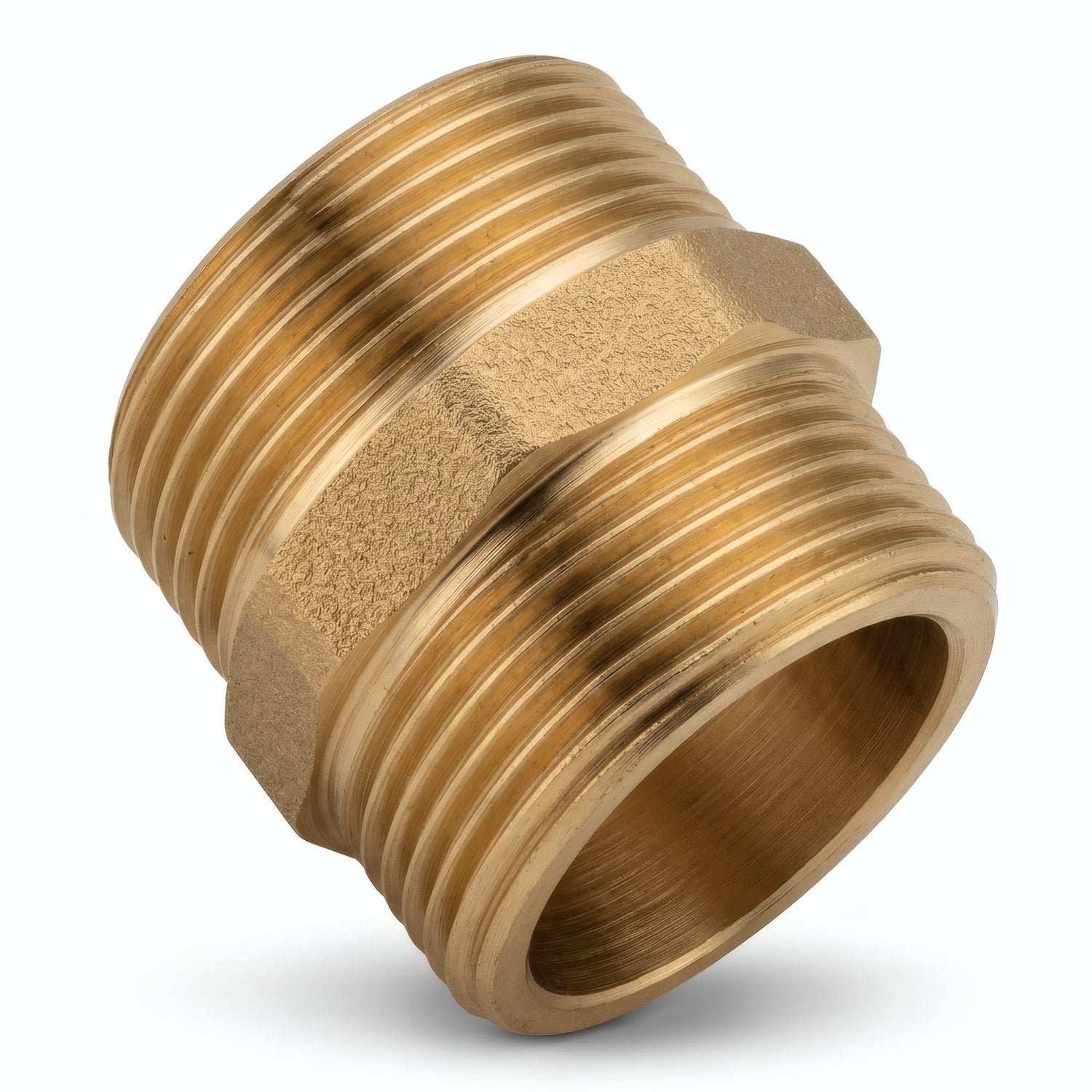

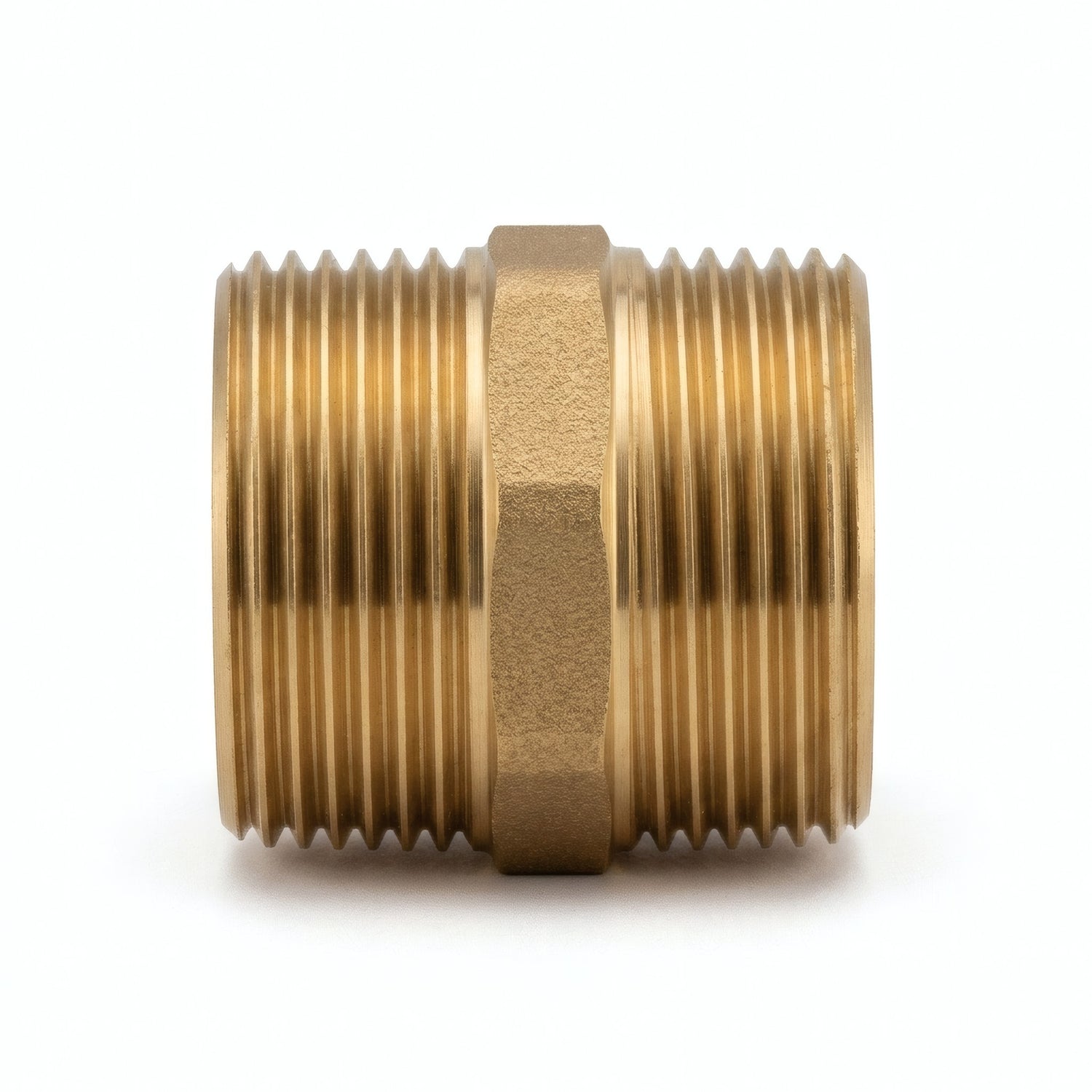

Brass equal nipple, screw-in, male threaded on both sides, for connecting two female tapped components of the same diameter. A fundamental connecting part in plumbing and décor. Thread compliant with ISO 228-1 BSPP.
Description of the Brass Equal Nipple
The equal nipple is a short fitting, threaded male on both sides, used to join two female fittings of the same size. It is one of the most widely used parts in plumbing for making direct connections between couplings, elbows, tees or other tapped fittings.
The compact 6-sided body ensures a good spanner grip. Solder-free installation. In décor, the equal nipple acts as a short connector between two parts, ideal for compact assemblies in exposed brass.
Technical Specifications
| Material | Brass CW617N - 4MS |
| Colour | Gold-coloured brass |
| Nominal pressure | PN 16 bar |
| Thread standard | ISO 228-1 - BSPP Gas (parallel thread) |
| Sealing | Guaranteed flat gasket sealing (thickness from 1 mm) |
| Gasket seats | Flat and wide on the male ends |
| Shape | 6-sided hex (spanner tightening) |
| Type | Male / Male (threaded on both sides) |
| Compatible fluids | Drinking water, glycol water, compatible fluids |
| Temperature | Depending on the type of sealing chosen |
| Application | Drinking water supply, general plumbing, HVAC |
Operating Conditions and Installation
- Operating pressure: PN 16 bar
- Temperature: Depending on the type of sealing chosen
- Fluids: Drinking water, glycol water, compatible fluids
- Installation: Apply moderate tightening torque and choose suitable materials (risk of galvanic corrosion). Wrench flats sized to fit standard spanners.
Certifications and Compliance
- Drinking water: Compliant with the French decree of 25 June 2020 on metallic materials and products intended for installations in contact with water for human consumption.
- 4MS: Compliant with 4MS requirements — Harmonisation of European certification rules for materials and products in contact with drinking water.
Applications and Installation Tips
Uses
- Domestic plumbing: connecting hot and cold water systems
- Industrial plumbing: PN 16 bar compliant installations
- Interior décor: making light fixtures, shelves and towel rails in exposed brass
- DIY and creative projects: custom projects with screw-in fittings
Installation tips
- Use PTFE tape (Teflon) or hemp to ensure sealing on male threads
- For flat gasket seats, use a flat gasket with a minimum thickness of 1 mm
- Tighten with an open-end spanner or an adjustable spanner — do not use slip-joint pliers, to avoid marking the part
- Apply a moderate tightening torque — overtightening can damage the thread
Technical Drawing
Dimensions (mm)
All dimensions are given in millimetres (mm) unless otherwise stated.
| G | G (mm) | OD | L | E |
|---|---|---|---|---|
| 1/8" | 5x10 | 5.5 | 6 | 16 |
| 1/4" | 8x13 | 8.5 | 8 | 20 |
| 3/8" | 12x17 | 11 | 8.5 | 22 |
| 1/2" | 15x21 | 15 | 10 | 25 |
| 3/4" | 20x27 | 20 | 11 | 27.5 |
| 1" | 26x34 | 26 | 13 | 32 |
| 1"1/4 | 33x42 | 34 | 14 | 34.5 |
| 1"1/2 | 40x49 | 40 | 15.5 | 38.5 |
| 2" | 50x60 | 51 | 17 | 43 |
Size Equivalences
This nipple is available in the following sizes. Use this table to find the equivalence between millimetres, inches and DN.
| Size (mm) | 5x10 | 8x13 | 12x17 | 15x21 | 20x27 | 26x34 | 33x42 | 40x49 | 50x60 |
|---|---|---|---|---|---|---|---|---|---|
| Inches | 1/8'' | 1/4'' | 3/8'' | 1/2'' | 3/4'' | 1'' | 1''1/4 | 1''1/2 | 2'' |
| DN | DN5 | DN8 | DN10 | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 |
| Outer pipe dia. | 10 mm | 13 mm | 17 mm | 21 mm | 27 mm | 34 mm | 42 mm | 49 mm | 60 mm |
The appearance of the part may vary depending on the batch in stock (see photos). Contact us for confirmation.
Goes well with
Compatible products: All brass fittings
