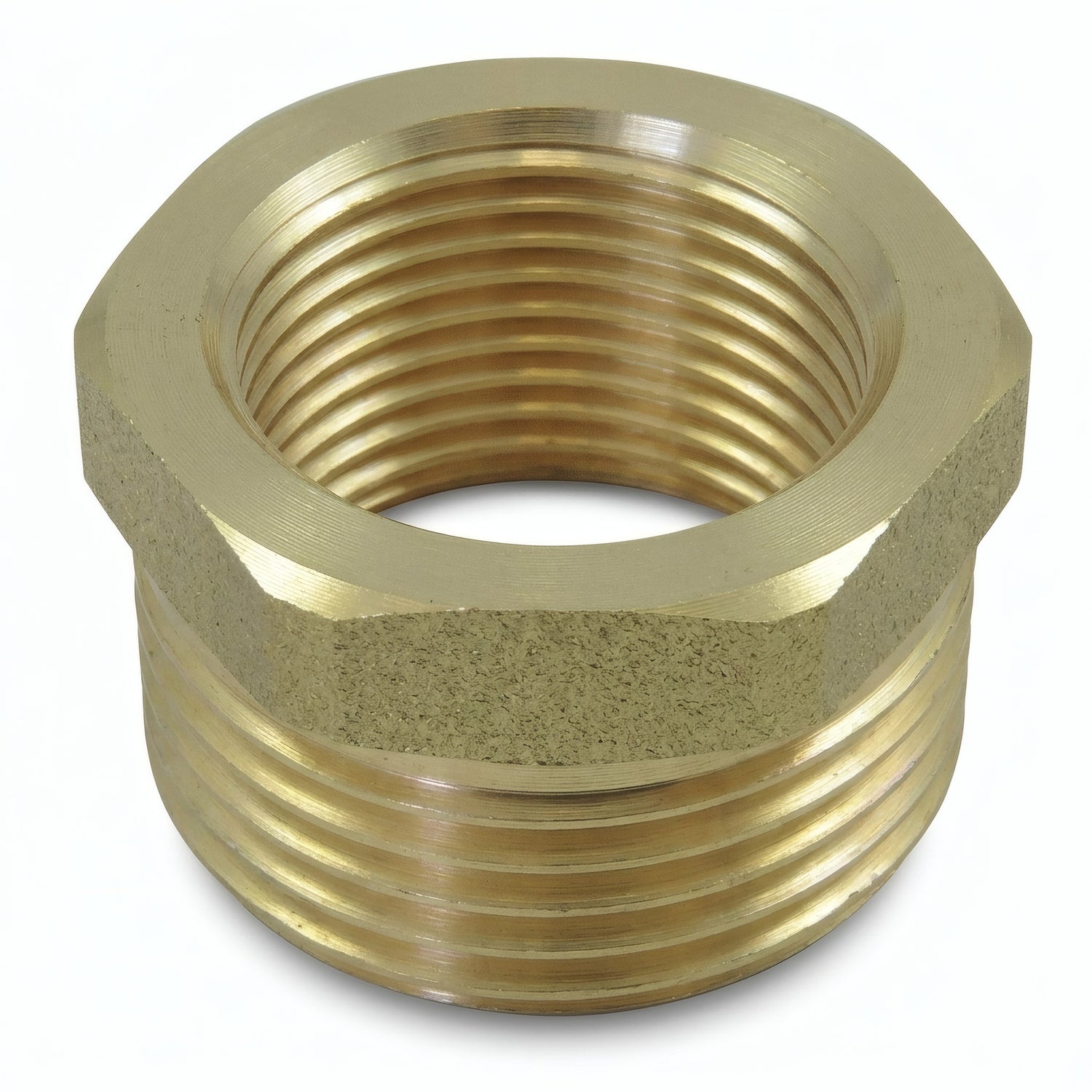

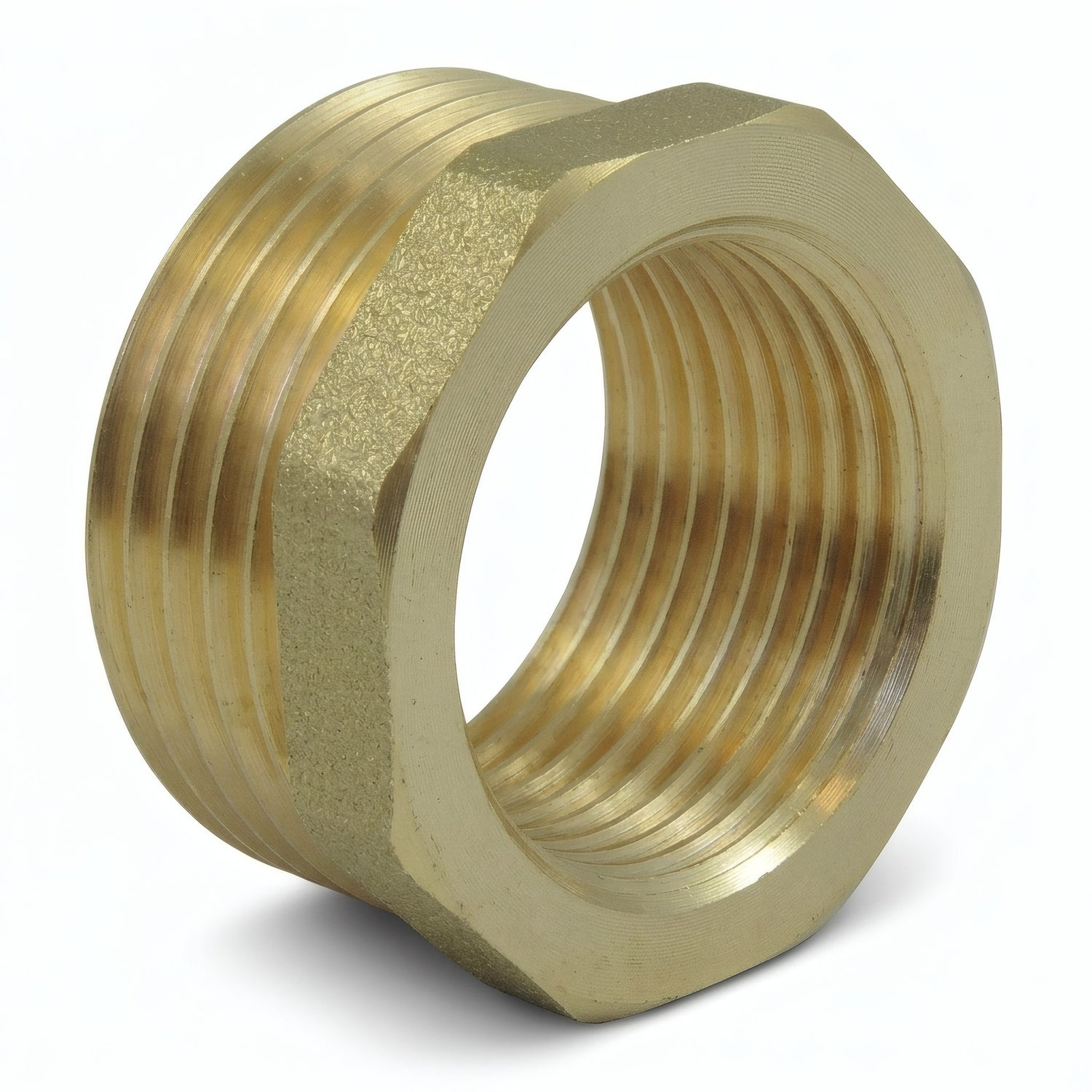

Brass Reducing Bushing M/F

Brass M/F reducing bushing, screw-in, used to reduce the diameter of a connection by going from a male thread to a smaller female thread. A compact, discreet part, ideal for tight spaces. ISO 228-1 BSPP standard.

Description of the Brass M/F Reducing Bushing

This M/F reducing bushing screws into a larger female fitting and provides a smaller-diameter female outlet. It is the simplest and most compact way to adapt a piece of equipment to a network of a different diameter.

Its short profile makes it almost invisible in the assembly, unlike a longer reducing coupling. Solder-free assembly. Available in a very wide choice of diameter combinations to cover every plumbing and décor configuration.

Technical Specifications

Operating Conditions and Installation

• Operating pressure: PN 16 bar
• Temperature: Depending on the type of sealing chosen
• Fluids: Drinking water, glycol water, compatible fluids
• Installation: Apply moderate tightening torque and choose suitable materials (risk of galvanic corrosion). Wrench flats sized to fit standard spanners.

Certifications and Compliance

• Drinking water: Compliant with the French decree of 25 June 2020 on metallic materials and products intended for installations in contact with water for human consumption.
• 4MS: Compliant with 4MS requirements — Harmonisation of European certification rules for materials and products in contact with drinking water.

Applications and Installation Tips

Uses

• Domestic plumbing: connecting hot and cold water systems
• Industrial plumbing: PN 16 bar compliant installations
• Interior décor: making light fixtures, shelves and towel rails in exposed brass
• DIY and creative projects: custom projects with screw-in fittings

Installation tips

• Use PTFE tape (Teflon) or hemp to ensure sealing on male threads
• For flat gasket seats, use a flat gasket with a minimum thickness of 1 mm
• Tighten with an open-end spanner or an adjustable spanner — do not use slip-joint pliers, to avoid marking the part
• Apply a moderate tightening torque — overtightening can damage the thread

Technical Drawing

Dimensions (mm)

All dimensions are given in millimetres (mm) unless otherwise stated.

Available Size Combinations

This reducing bushing lets you change from one diameter to another. The table below shows the available combinations.

The appearance of the part may vary depending on the batch in stock (see photos). Contact us for confirmation.

Goes well with

Compatible products: All brass fittings

Useful guides:

• Plumbing thread guide
