Brass Reducing Nipple

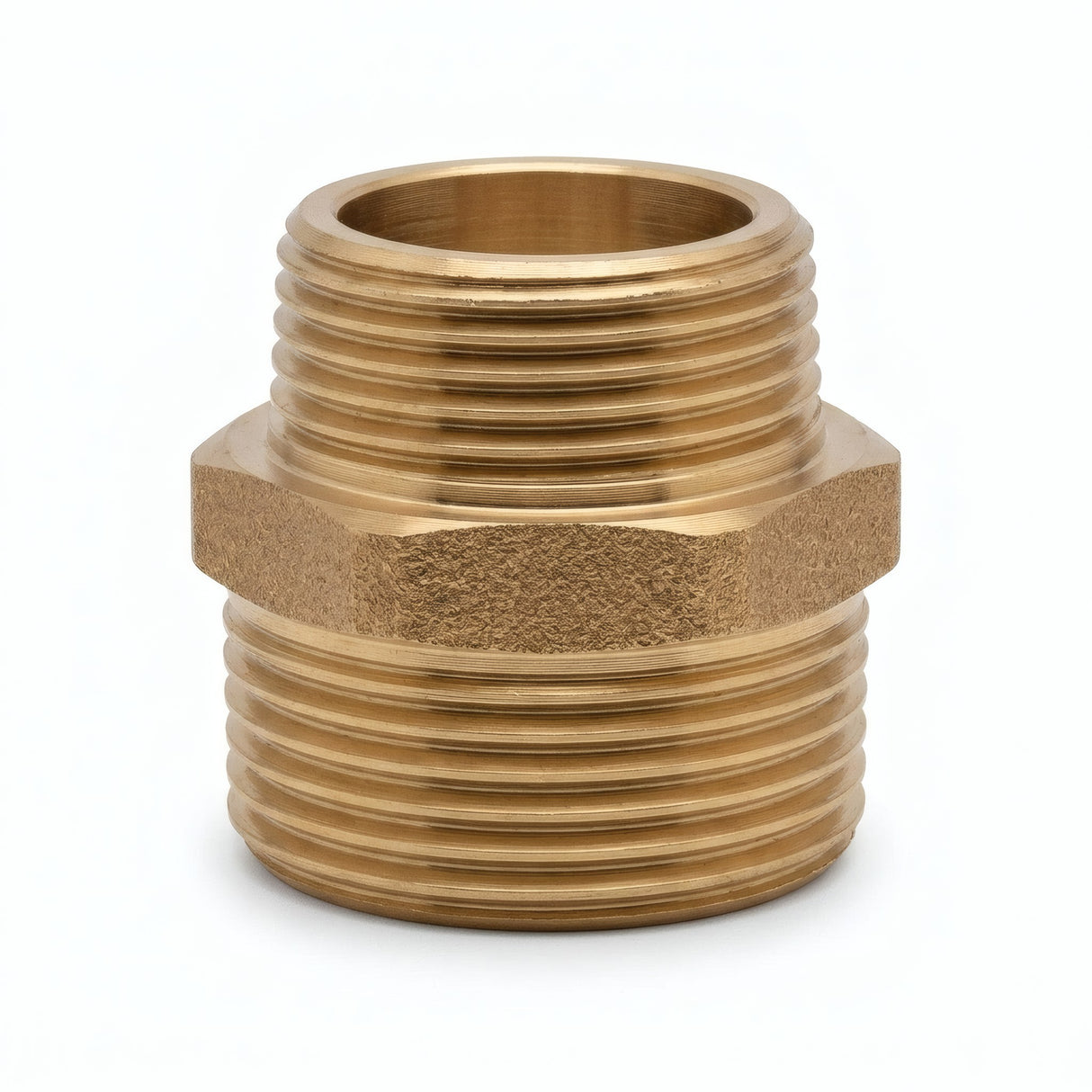

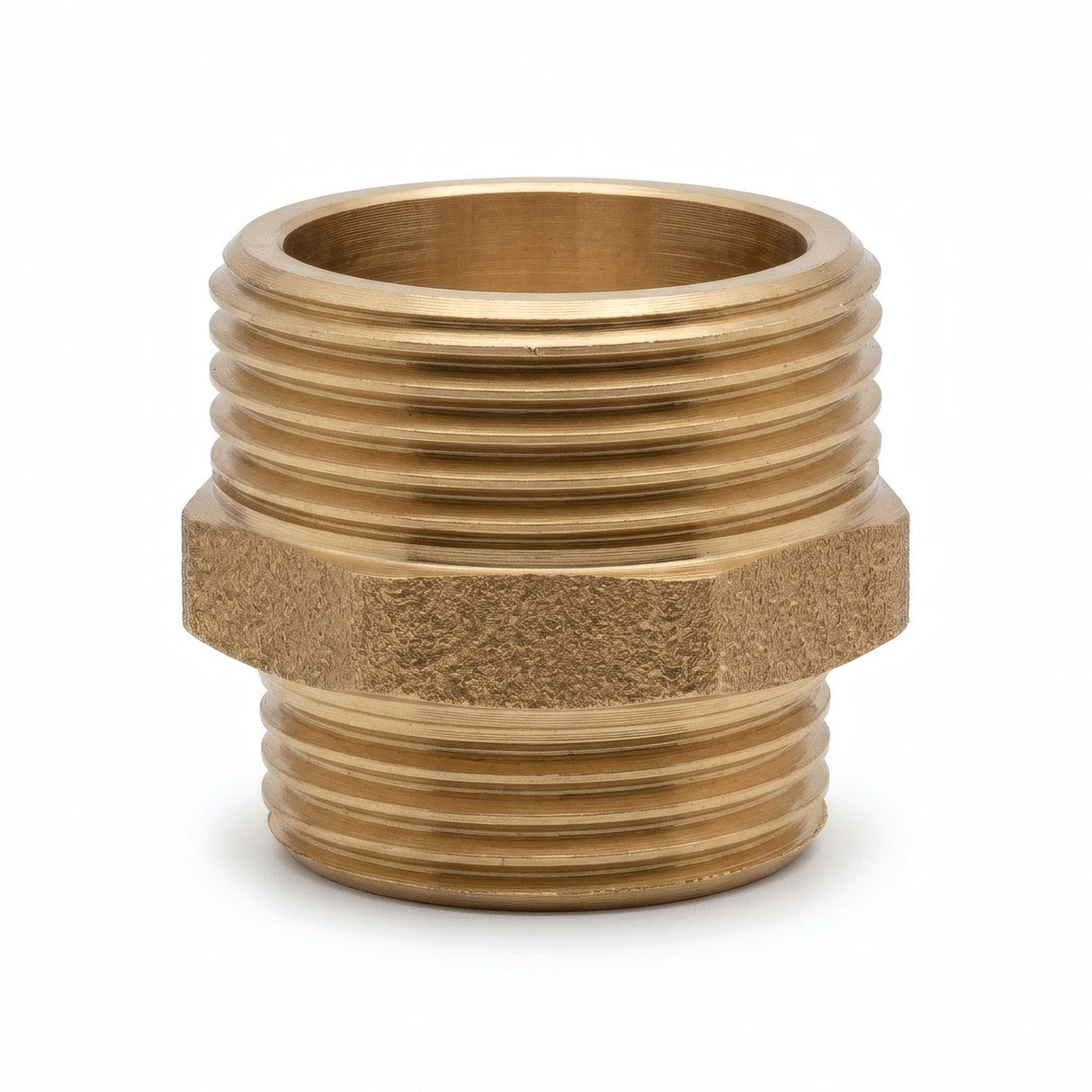

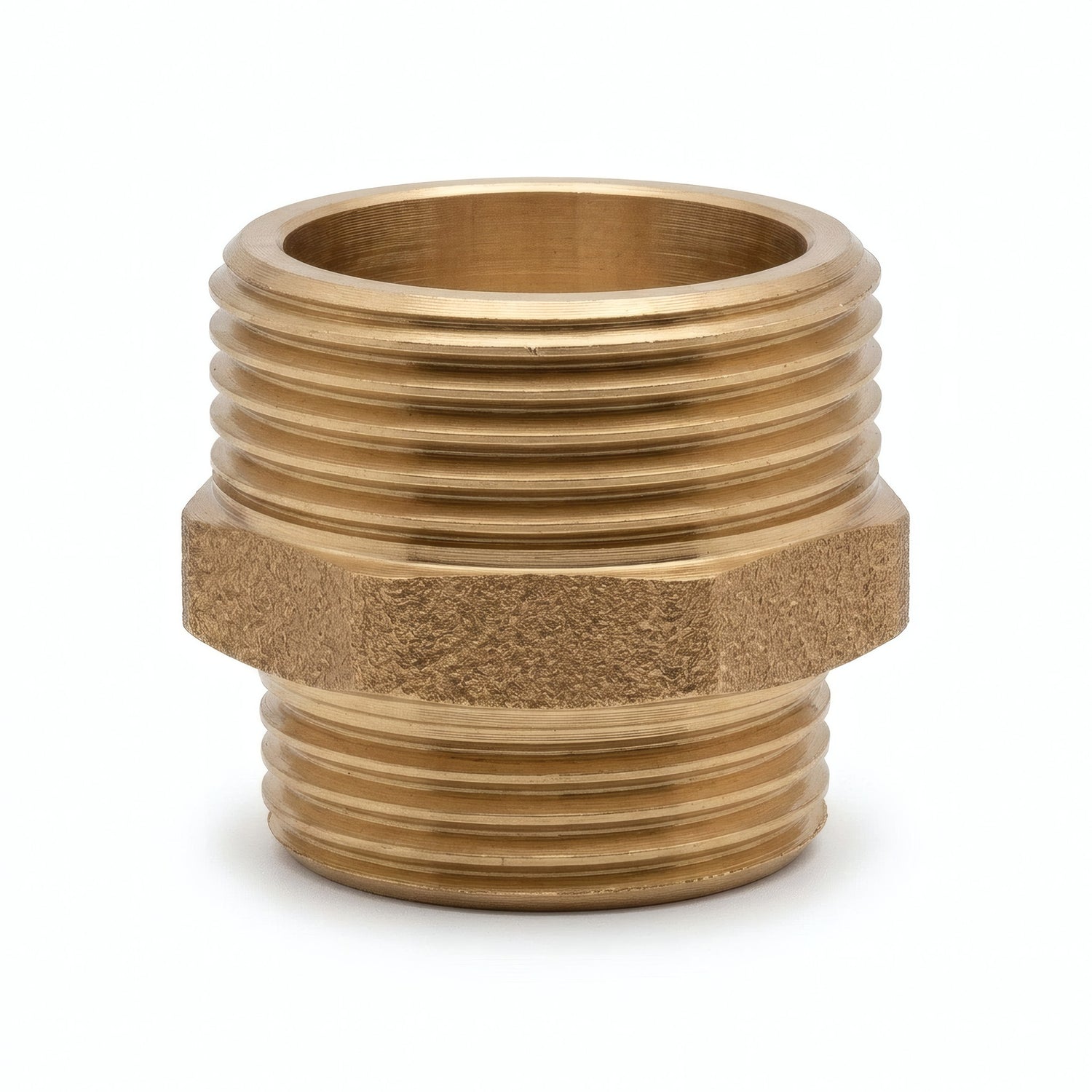

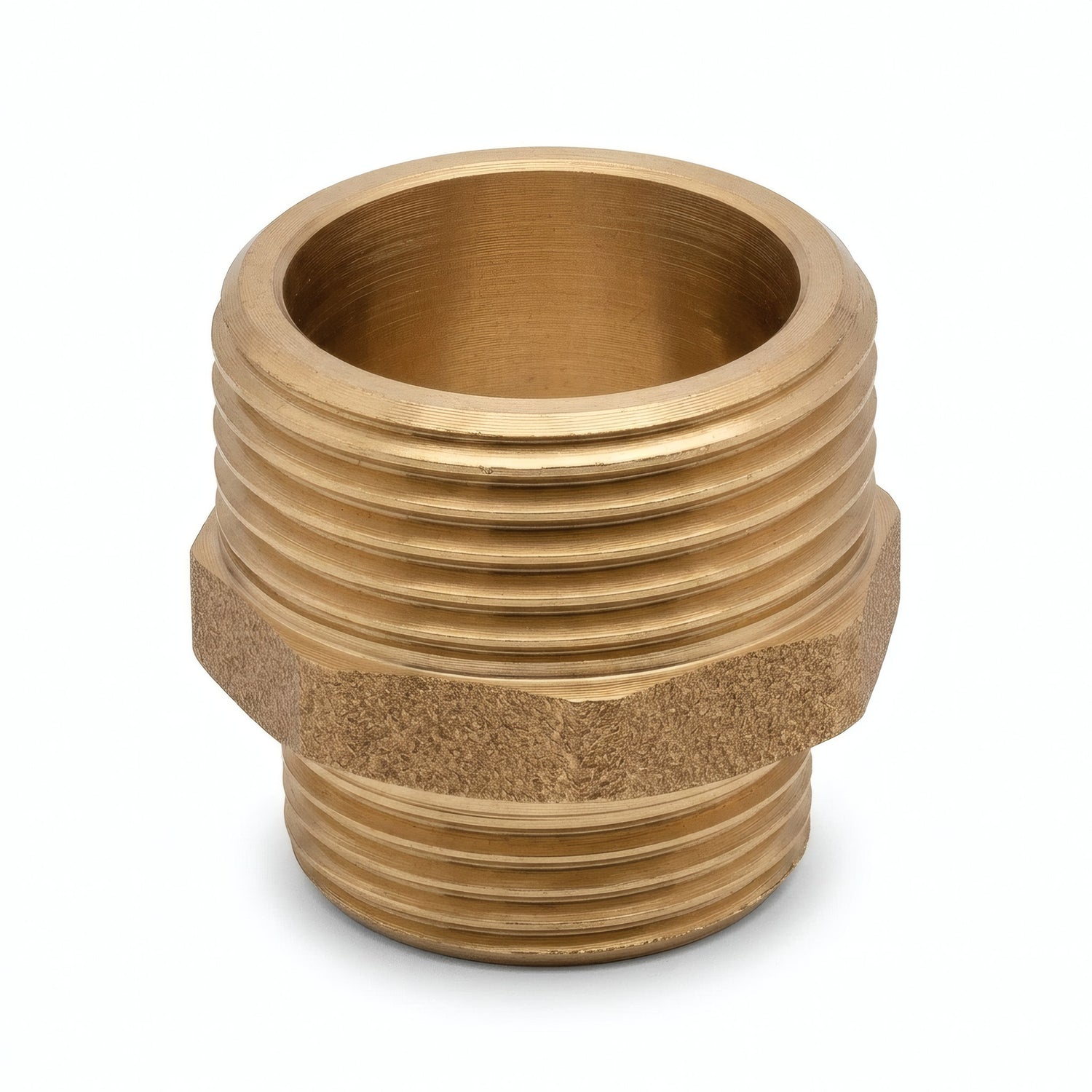

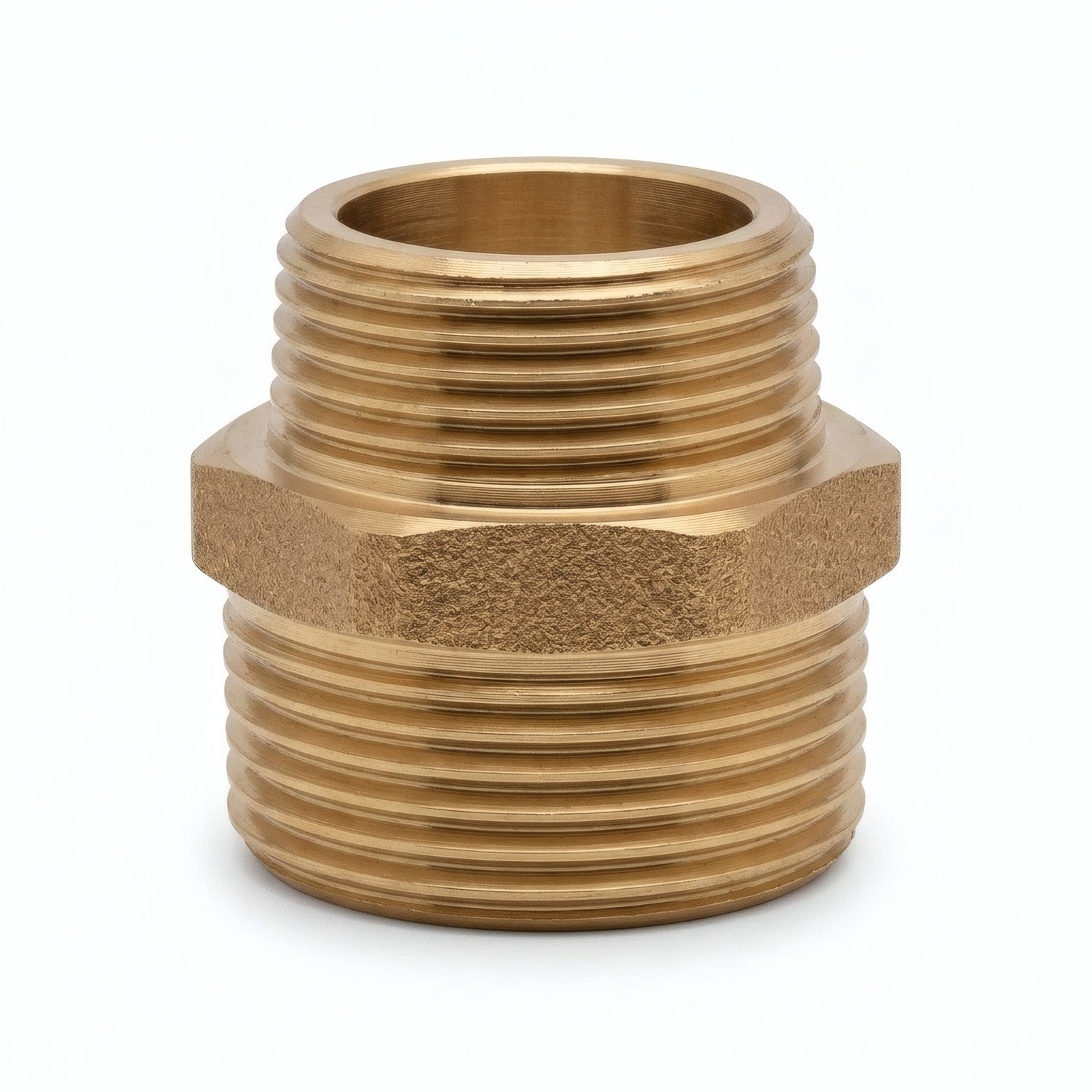

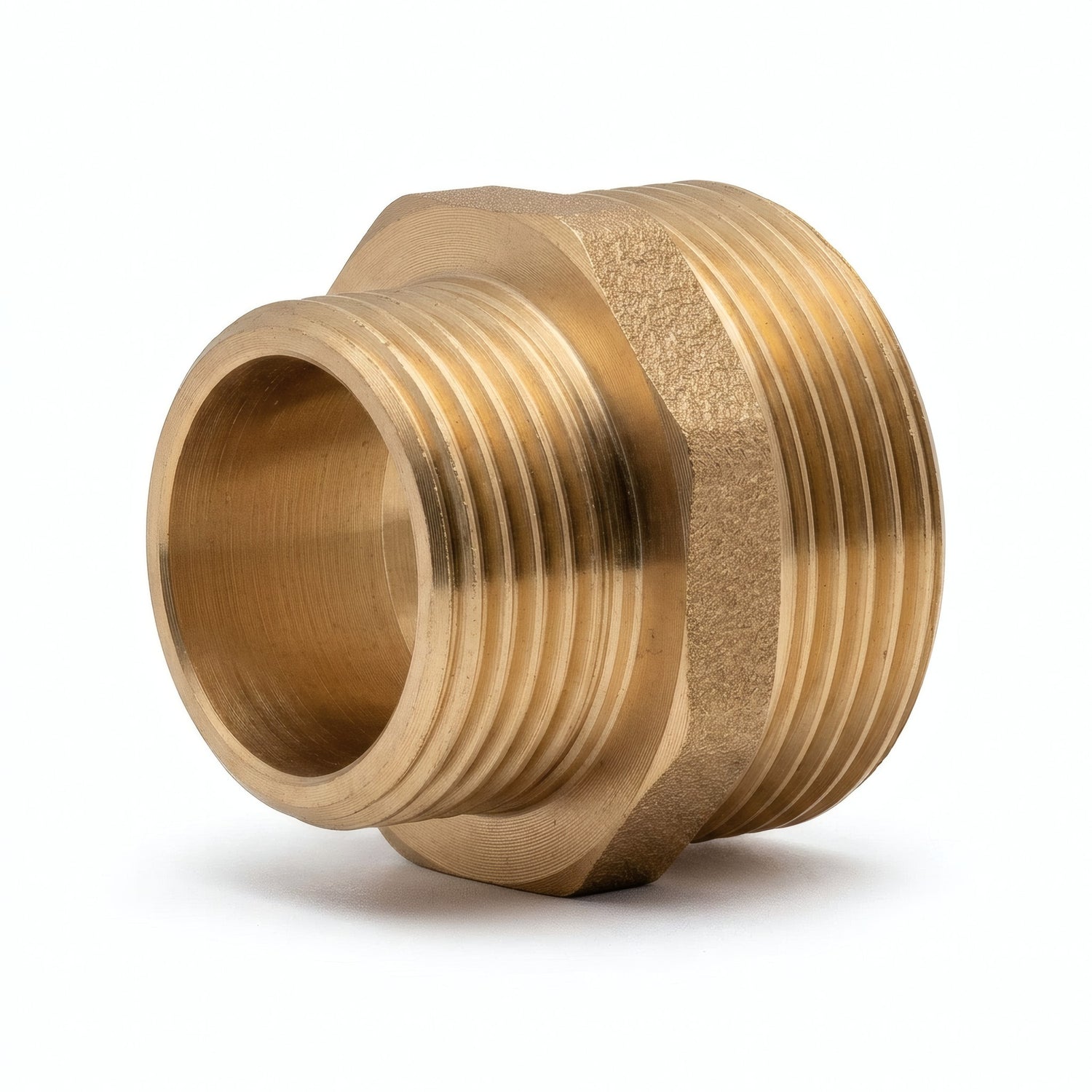

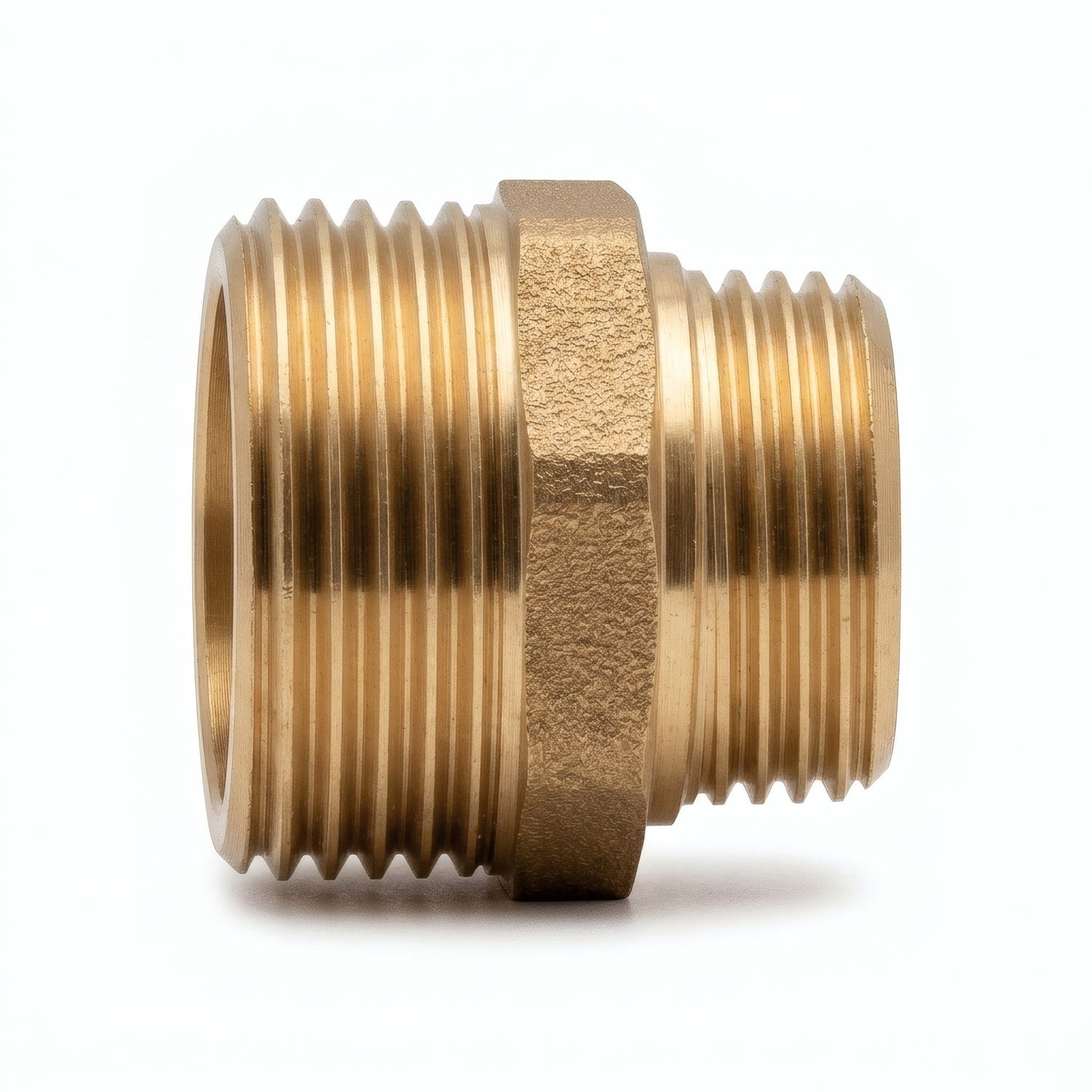

Brass reducing nipple, screw-in, male threaded on both sides with different diameters. Connects two female components of different sizes while providing the diameter transition. ISO 228-1 BSPP standard.
Description of the Brass Reducing Nipple
This reducing nipple is male threaded on both sides, with an inlet diameter larger than the outlet diameter. It screws into two female fittings of different sizes to create a diameter reduction in the circuit.
The hexagonal 6-sided body makes tightening with a spanner easy. Solder-free assembly. Available in a wide range of size combinations, this nipple covers most reduction needs in domestic and industrial plumbing.
Technical Specifications
| Material | Brass CW617N - 4MS |
| Colour | Gold-coloured brass |
| Nominal pressure | PN 16 bar |
| Thread standard | ISO 228-1 - BSPP Gas (parallel thread) |
| Sealing | Guaranteed flat gasket sealing (thickness from 1 mm) |
| Gasket seats | Flat and wide on the male ends |
| Shape | 6-sided hex (spanner tightening) |
| Type | Male / Male (threaded on both sides, different diameters) |
| Compatible fluids | Drinking water, glycol water, compatible fluids |
| Temperature | Depending on the type of sealing chosen |
| Application | Drinking water supply, general plumbing, HVAC |
Operating Conditions and Installation
- Operating pressure: PN 16 bar
- Temperature: Depending on the type of sealing chosen
- Fluids: Drinking water, glycol water, compatible fluids
- Installation: Apply moderate tightening torque and choose suitable materials (risk of galvanic corrosion). Wrench flats sized to fit standard spanners.
Certifications and Compliance
- Drinking water: Compliant with the French decree of 25 June 2020 on metallic materials and products intended for installations in contact with water for human consumption.
- 4MS: Compliant with 4MS requirements — Harmonisation of European certification rules for materials and products in contact with drinking water.
Applications and Installation Tips
Uses
- Domestic plumbing: connecting hot and cold water systems
- Industrial plumbing: PN 16 bar compliant installations
- Interior décor: making light fixtures, shelves and towel rails in exposed brass
- DIY and creative projects: custom projects with screw-in fittings
Installation tips
- Use PTFE tape (Teflon) or hemp to ensure sealing on male threads
- For flat gasket seats, use a flat gasket with a minimum thickness of 1 mm
- Tighten with an open-end spanner or an adjustable spanner — do not use slip-joint pliers, to avoid marking the part
- Apply a moderate tightening torque — overtightening can damage the thread
Technical Drawing
Dimensions (mm)
All dimensions are given in millimetres (mm) unless otherwise stated.
| G1 | G1 (mm) | G2 | G2 (mm) | OD | L1 | L2 | E |
|---|---|---|---|---|---|---|---|
| 1/4" | 8x13 | 1/8" | 5x10 | 5.5 | 8 | 6 | 18 |
| 3/8" | 12x17 | 1/8" | 5x10 | 5.5 | 8.5 | 6 | 19.5 |
| 3/8" | 12x17 | 1/4" | 8x13 | 8.5 | 8.5 | 8 | 21.5 |
| 1/2" | 15x21 | 1/4" | 8x13 | 8.5 | 10 | 8 | 23 |
| 1/2" | 15x21 | 3/8" | 12x17 | 11 | 10 | 8.5 | 23.5 |
| 3/4" | 20x27 | 1/4" | 8x13 | 8.5 | 11 | 8 | 24.5 |
| 3/4" | 20x27 | 3/8" | 12x17 | 11 | 11 | 8.5 | 25 |
| 3/4" | 20x27 | 1/2" | 15x21 | 15 | 11 | 10 | 26.5 |
| 1" | 26x34 | 1/2" | 15x21 | 15 | 13 | 10 | 29 |
| 1" | 26x34 | 3/4" | 20x27 | 20 | 13 | 11 | 30 |
| 1"1/4 | 33x42 | 3/4" | 20x27 | 20 | 14 | 11 | 31.5 |
| 1"1/4 | 33x42 | 1" | 26x34 | 26 | 14 | 13 | 33.5 |
| 1"1/2 | 40x49 | 1" | 26x34 | 26 | 15.5 | 13 | 36 |
| 1"1/2 | 40x49 | 1"1/4 | 33x42 | 34 | 15.5 | 14 | 37 |
| 2" | 50x60 | 1"1/4 | 33x42 | 34 | 17 | 14 | 40 |
| 2" | 50x60 | 1"1/2 | 40x49 | 40 | 17 | 15.5 | 41.5 |
| 2"1/2 | 66x76 | 2" | 50x60 | 51 | 20 | 17 | 47 |
| 3" | 80x90 | 2" | 50x60 | 51 | 22 | 17 | 50 |
| 3" | 80x90 | 2"1/2 | 66x76 | 66.5 | 22 | 20 | 53 |
Available Size Combinations
This reducing nipple lets you change from one diameter to another. The table below shows the available combinations.
| Inlet | Outlet | Notation (mm) |
|---|---|---|
| 1/4'' | 1/8'' | 8x13 > 5x10 |
| 3/8'' | 1/8'' | 12x17 > 5x10 |
| 3/8'' | 1/4'' | 12x17 > 8x13 |
| 1/2'' | 1/4'' | 15x21 > 8x13 |
| 1/2'' | 3/8'' | 15x21 > 12x17 |
| 3/4'' | 1/4'' | 20x27 > 8x13 |
| 3/4'' | 3/8'' | 20x27 > 12x17 |
| 3/4'' | 1/2'' | 20x27 > 15x21 |
| 1'' | 1/2'' | 26x34 > 15x21 |
| 1'' | 3/4'' | 26x34 > 20x27 |
| 1''1/4 | 3/4'' | 33x42 > 20x27 |
| 1''1/4 | 1'' | 33x42 > 26x34 |
| 1''1/2 | 1'' | 40x49 > 26x34 |
| 1''1/2 | 1''1/4 | 40x49 > 33x42 |
| 2'' | 1''1/4 | 50x60 > 33x42 |
| 2'' | 1''1/2 | 50x60 > 40x49 |
| 2''1/2 | 2'' | 66x76 > 50x60 |
| 3'' | 2'' | 80x90 > 50x60 |
| 3'' | 2''1/2 | 80x90 > 66x76 |
The appearance of the part may vary depending on the batch in stock (see photos). Contact us for confirmation.
