Cross - 4-way - black malleable iron

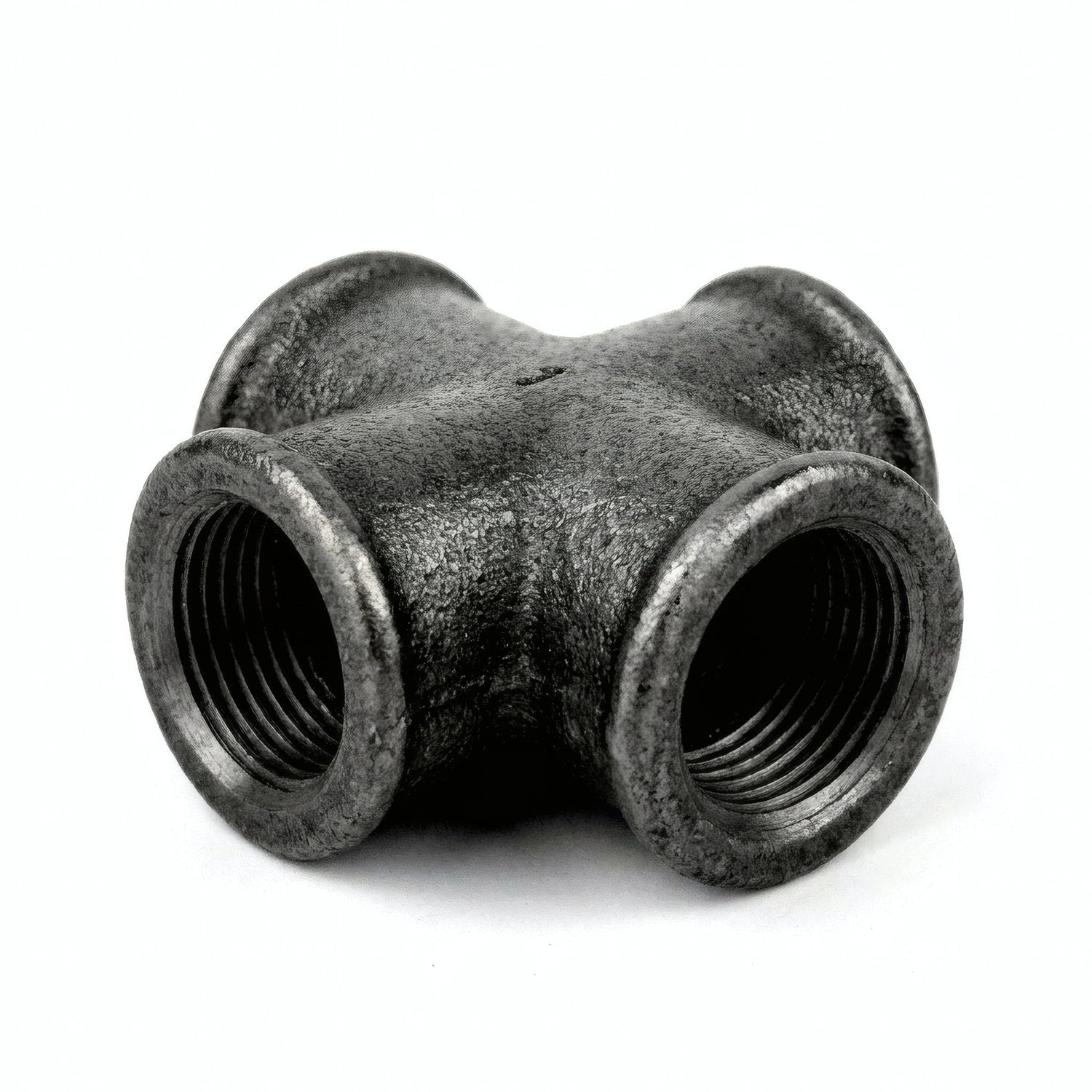

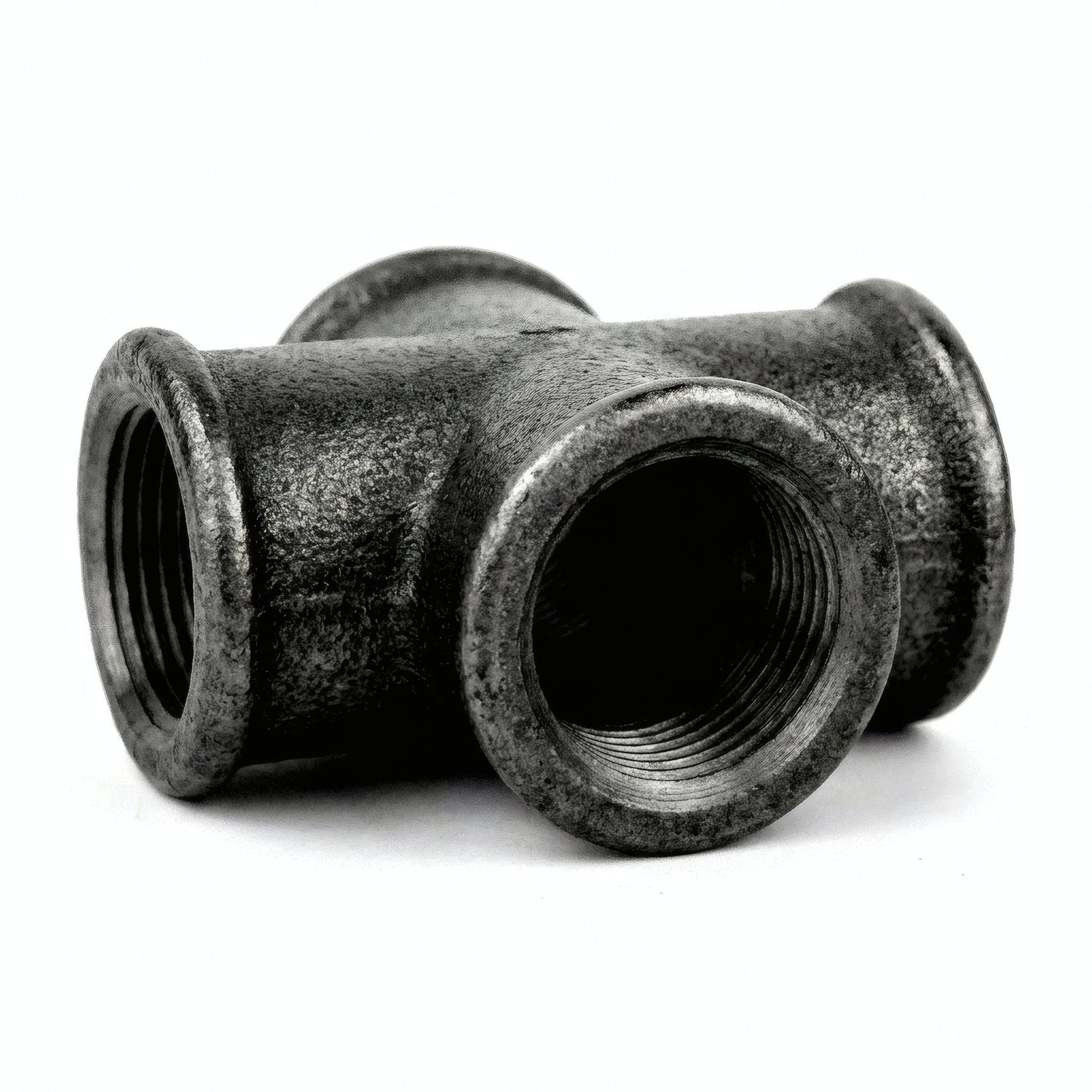

Black cast iron 4-way cross plumbing fitting
This black cast iron cross is ideal for creating complex structures from cast iron and steel plumbing fittings. Compatible with all black cast iron fittings or galvanized ones, and threaded black steel pipes or galvanized ones of the same size available in our online shop. The parts simply screw together, without welding, to make strong assemblies easily.
Description of the cross fitting:
The cross is made up of 4 outlets arranged in a cross, all equal and female (tapped). Simply screw in male or threaded parts or pipes to create the desired shape.
Premium or Economy range?
This part is available in our Premium or Economy ranges. In both cases, these are genuine, fully functional plumbing fittings.
The differences are as follows:
| Premium | Economy | |
| Colour | Dark grey | Grey |
| Finish | Slightly glossy | Matte |
| Feel | Smooth | Slightly grainy |
Premium cross features and uses:
The cross is the same size as the Equal Tee (apart from the extra outlet), making certain assemblies easier. Although we use our fittings for decoration, they are genuine plumbing parts made of whiteheart malleable cast iron, complying with EN 10242 and ISO49 standards. They guarantee superior quality and rock-solid sturdiness.
The threads on this part are BSPT (ISO 7-1 standard) with parallel female (tapped) ends.
- Screws in 10 to 15 mm (depending on the part screwed in and the force applied)
- Material: black cast iron
- Colour: dark grey
- High quality
- Made in Europe
Dimensions of the cross fitting:
Tapping / Threads: 3/8'' | 12x17mm
Dimensions (L x W x H): 48 x 48 x 25 mm
Weight: 0.1 kg
Tapping / Threads: 1/2'' | 15x21mm
Dimensions (L x W x H): 54 x 54 x 30 mm
Weight: 0.16 kg
Tapping / Threads: 3/4'' | 20x27mm
Dimensions (L x W x H): 65 x 62 x 36 mm
Weight: 0.24 kg
Tapping / Threads: 1'' | 26x34mm
Dimensions (L x W x H): 75 x 75 x 44 mm
Weight: 0.44 kg
Tapping / Threads: 1''1/4 | 33x42mm
Dimensions (L x W x H): 90 x 90 x 55 mm
Weight: 0.6 kg
Conversion table of plumbing fitting sizes in inches and mm:
| Size (inches) | Size (mm) | Outside diameter |
| 3/8" | 12/17mm | 17mm |
| 1/2" | 15/21mm | 21mm |
| 3/4" | 20/27mm | 27mm |
| 1" | 26/34mm | 34mm |
| 1"1/4 | 33/42mm | 42mm |
