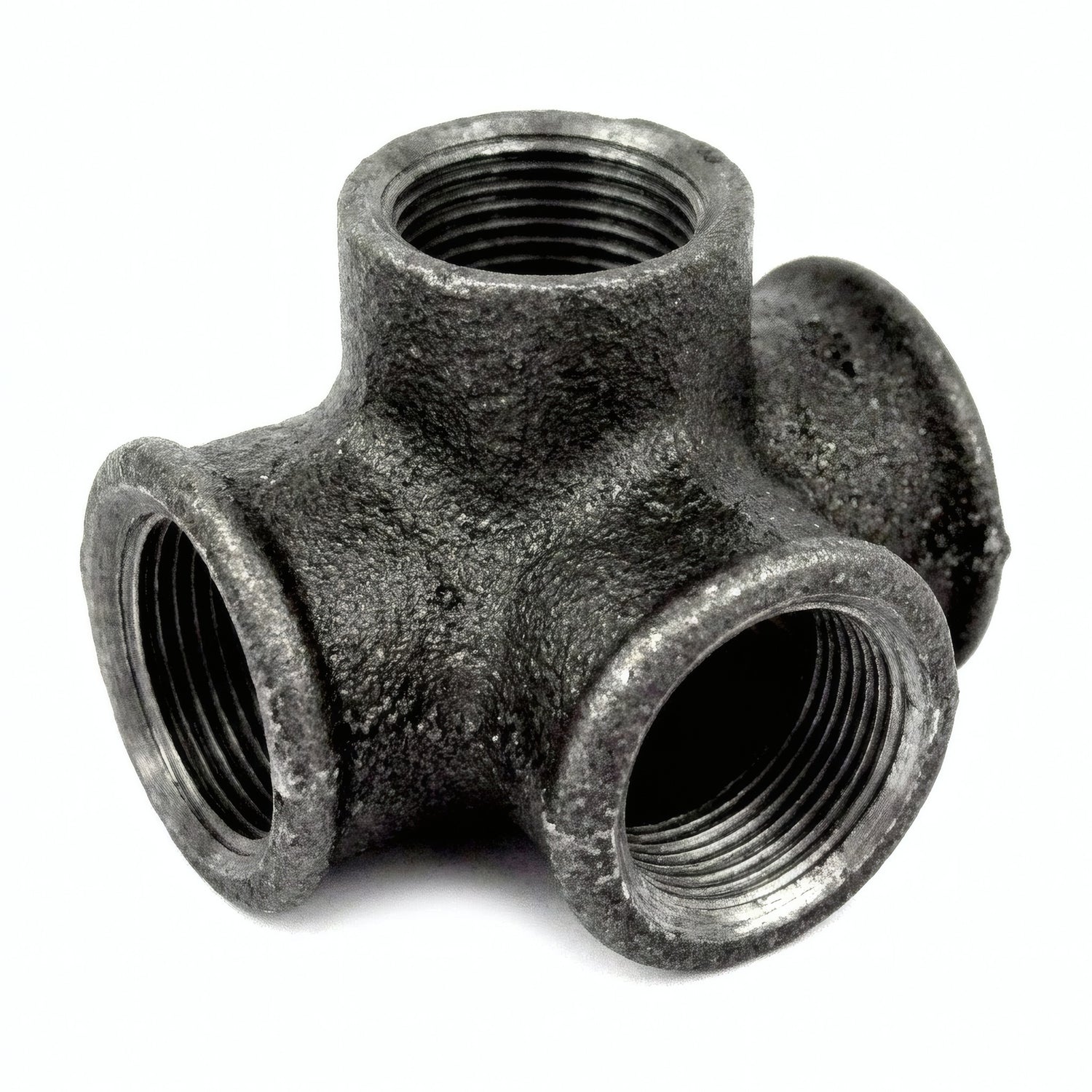

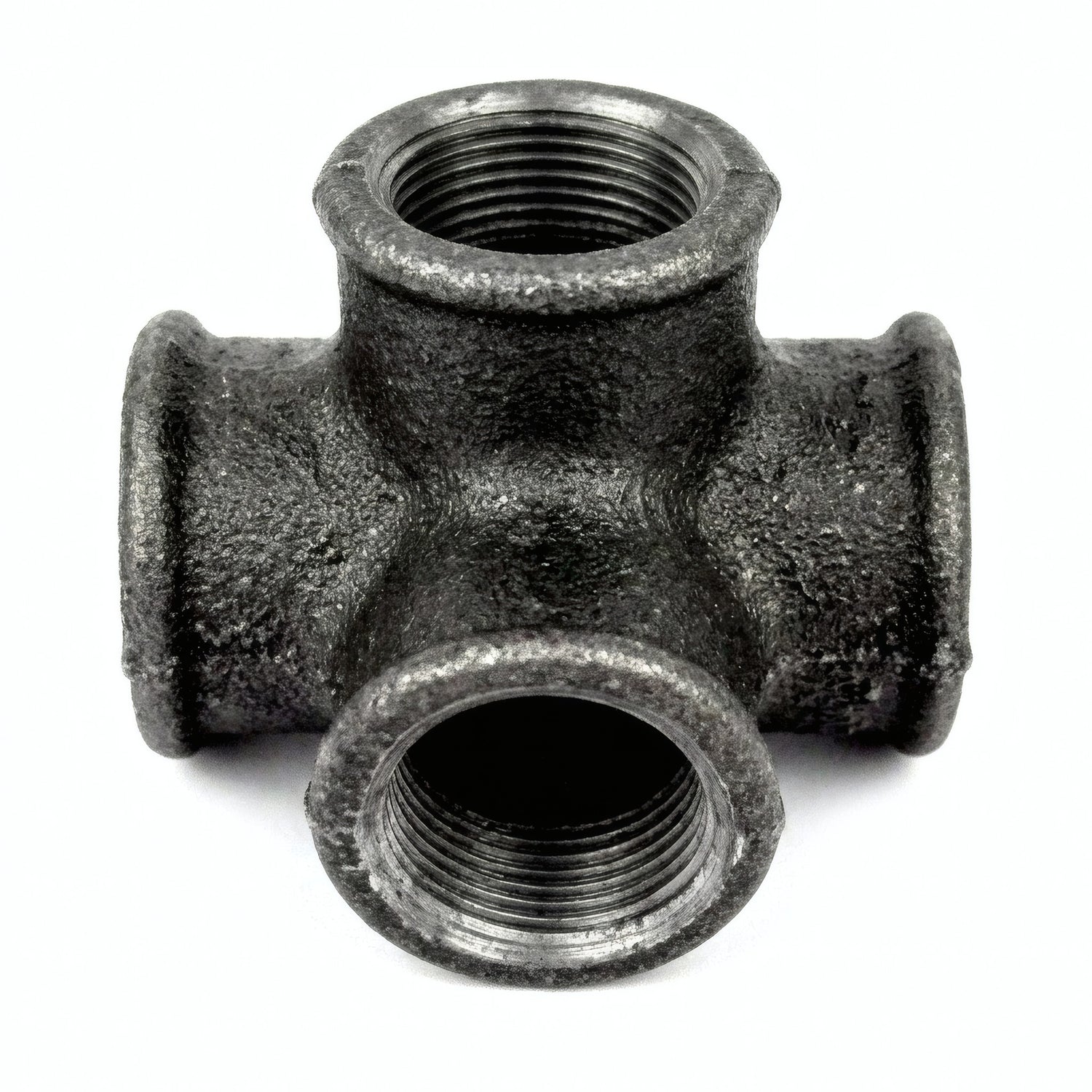

Distributor T / Tee - 4-way - black malleable iron

Black cast iron 4-way T distributor plumbing fitting

This black cast iron 4-way tee distributor is ideal for building complex structures from cast iron and steel plumbing fittings. It is compatible with all black cast iron or galvanized fittings and black steel or galvanized threaded pipes of the same size sold in our online shop. The parts simply screw together, without welding, making it easy to build strong assemblies.

Description of the 4-way T (tee) distributor fitting:

This 4-way black cast iron distributor will allow you to connect 4 pipes or fittings. It is particularly useful for making furniture or home fit-out structures such as clothes racks or table bases. If you need a part with more outlets, you can turn to our distributors (up to 6 outlets).

4-way tee distributor features and uses:

Although we use our fittings for decoration, this is a genuine plumbing part made of malleable cast iron. Superior quality and a guarantee of rock-solid sturdiness!

The threads on this part are BSPT (ISO 7-1 standard) with parallel female (tapped) ends.

• Screws in 10 to 15mm (depending on the part screwed in and the force applied)
• Materials: black cast iron
• Colour: dark grey

4-way distributor fitting size:

Tapping / Threads: 3/8'' | 12x17mm
dimensions mm (length x width x height): - x - x -
weight (kg): 0.09

Tapping / Threads: 1/2'' | 15x21mm
dimensions mm (length x width x height): 54 x 44 x 30
weight (kg): 0.14

Tapping / Threads: 3/4'' | 20x27mm
dimensions mm (length x width x height): 65 x 52 x 36
weight (kg): 0.20

Tapping / Threads: 1'' | 26x34mm
dimensions mm (length x width x height): 75 x 60 x 44
weight (kg): 0.32

Tapping / Threads: 1''1/4 | 33x42mm
dimensions mm (length x width x height): 90 x 72 x 55
weight (kg): 0.51

Conversion table of plumbing fitting sizes in inches and mm:
