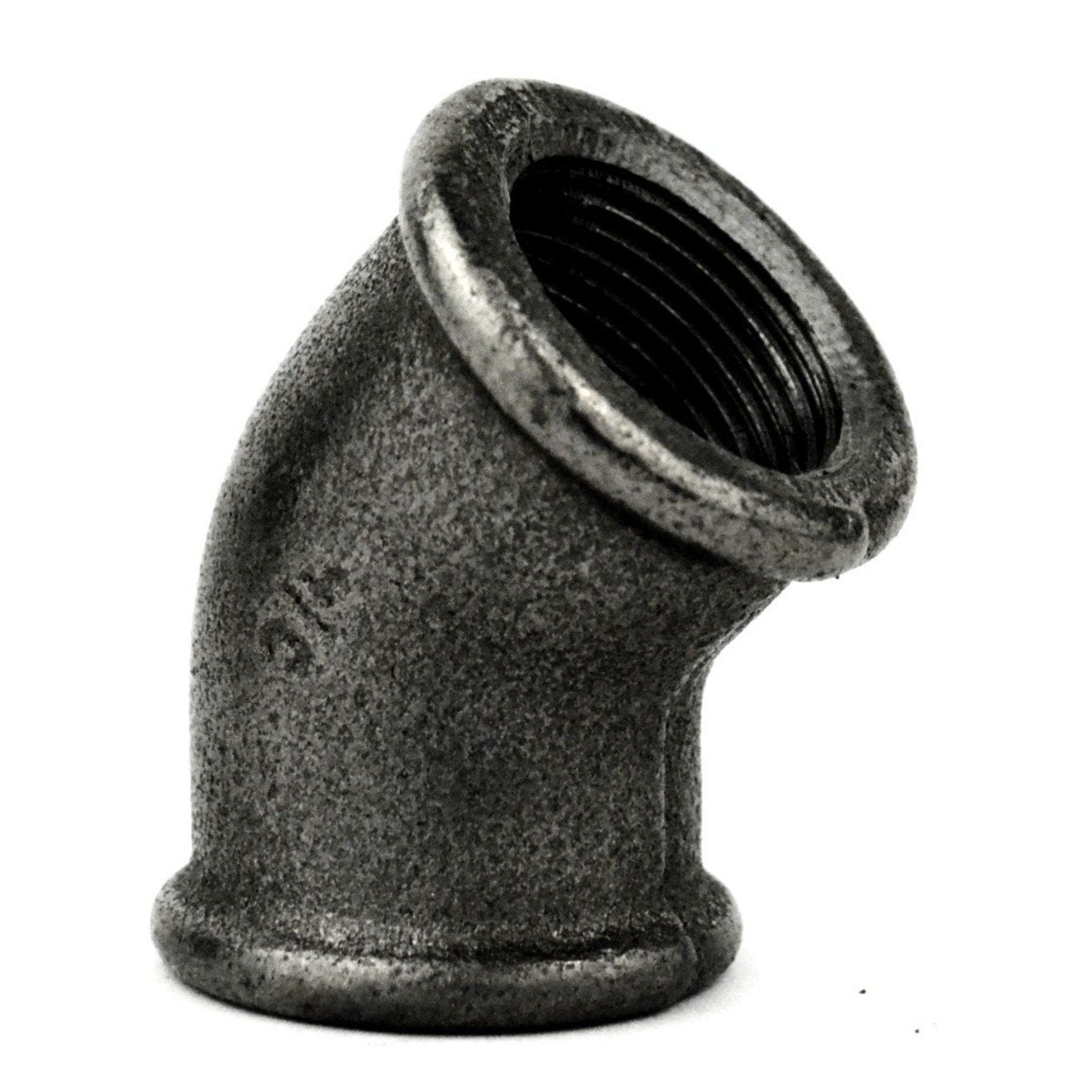

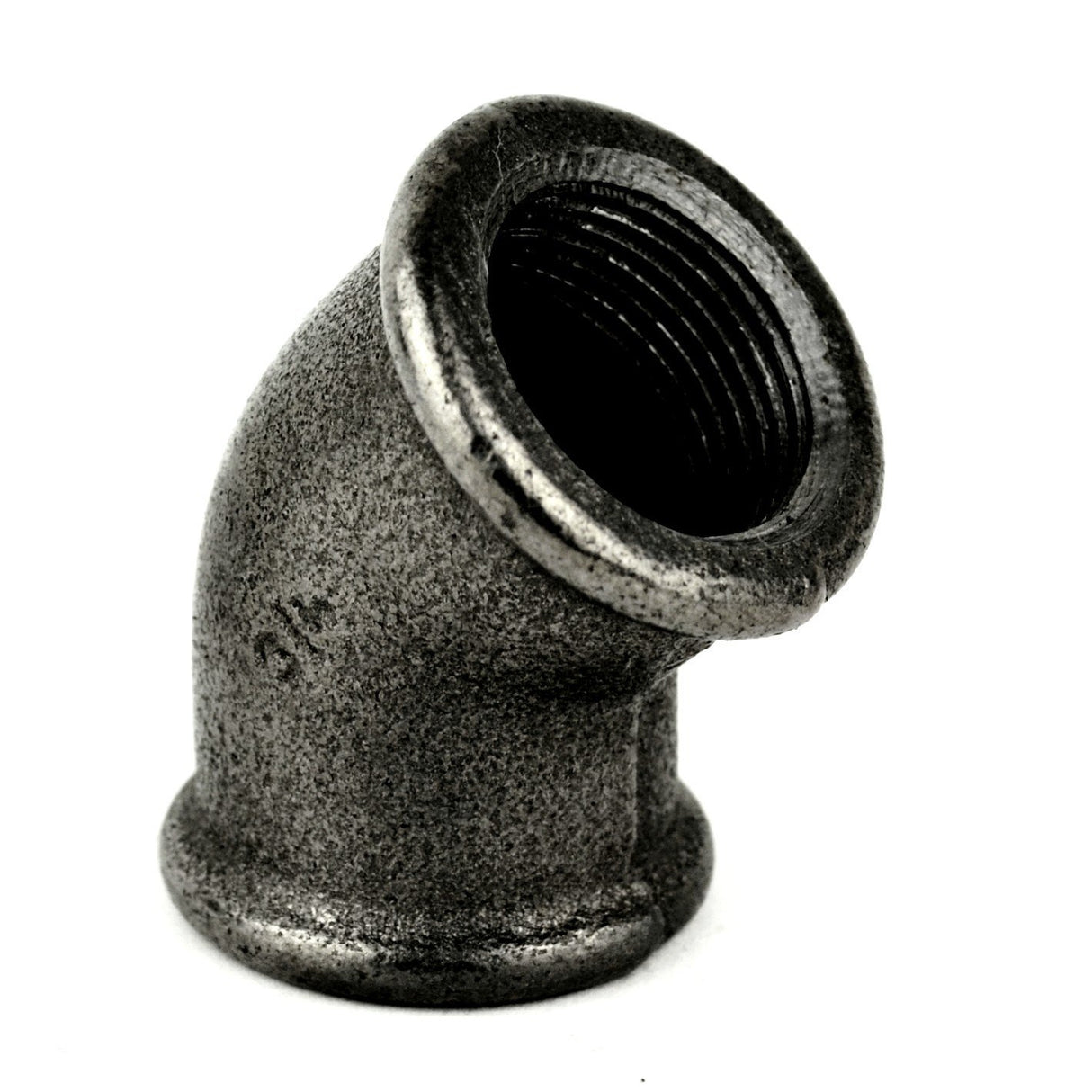

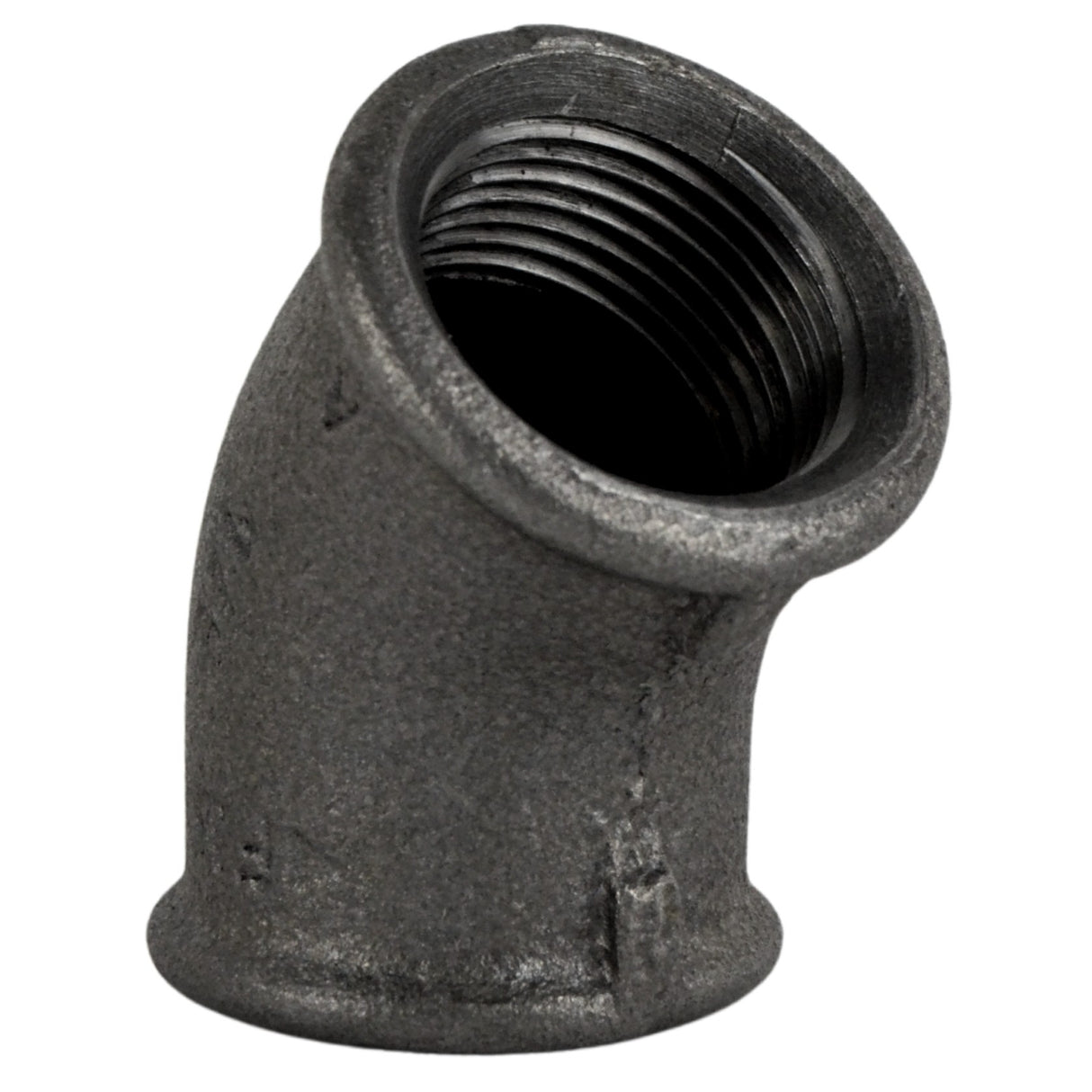

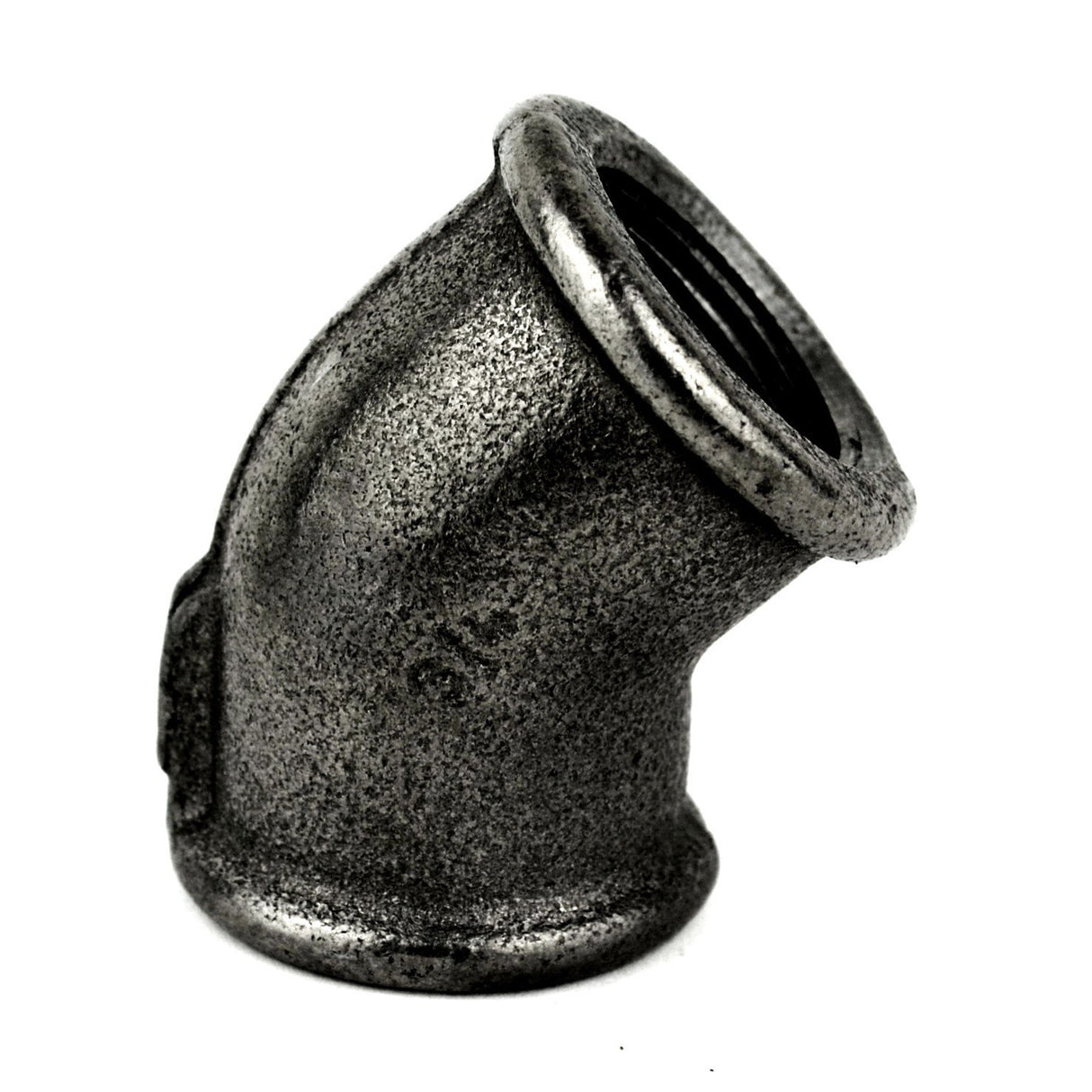

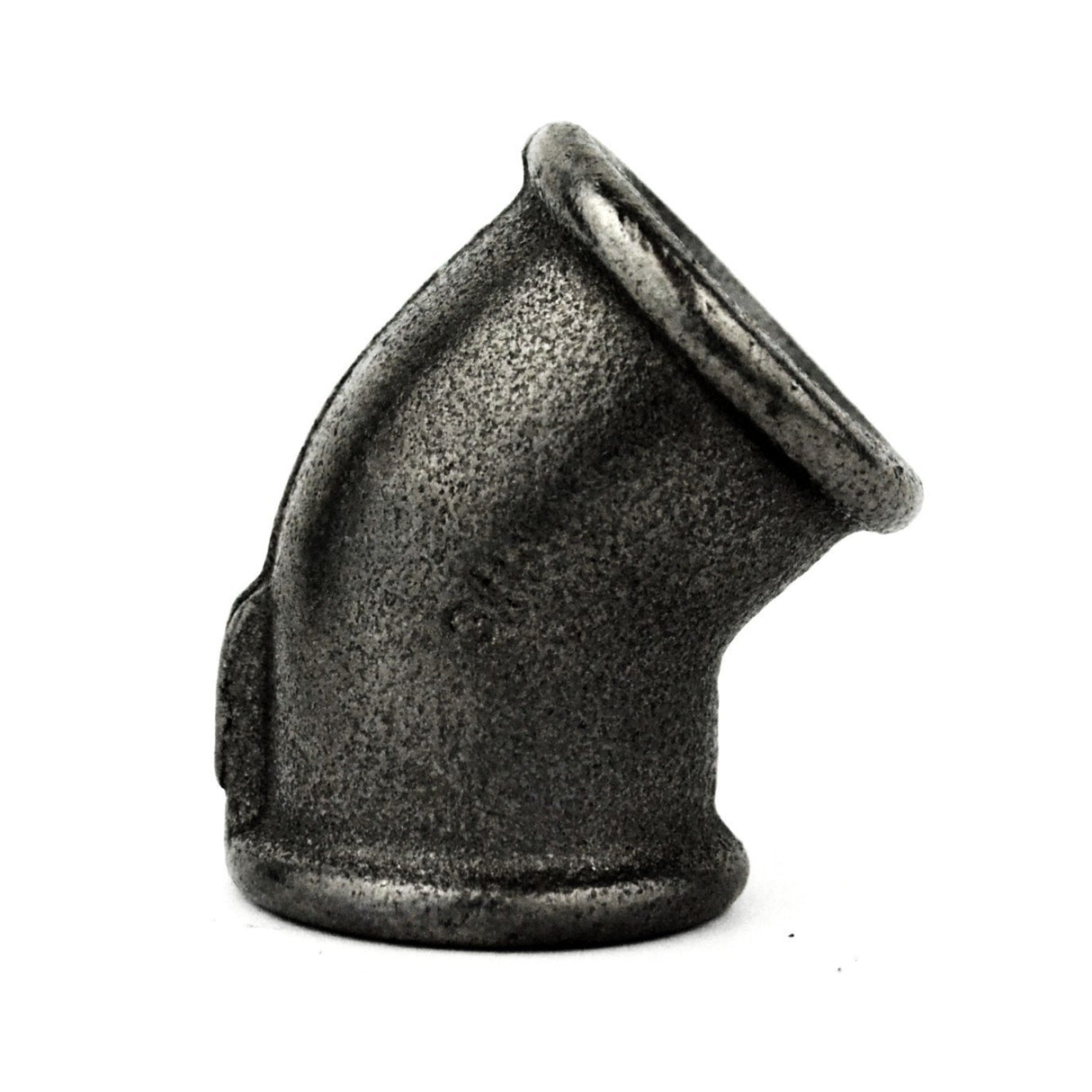

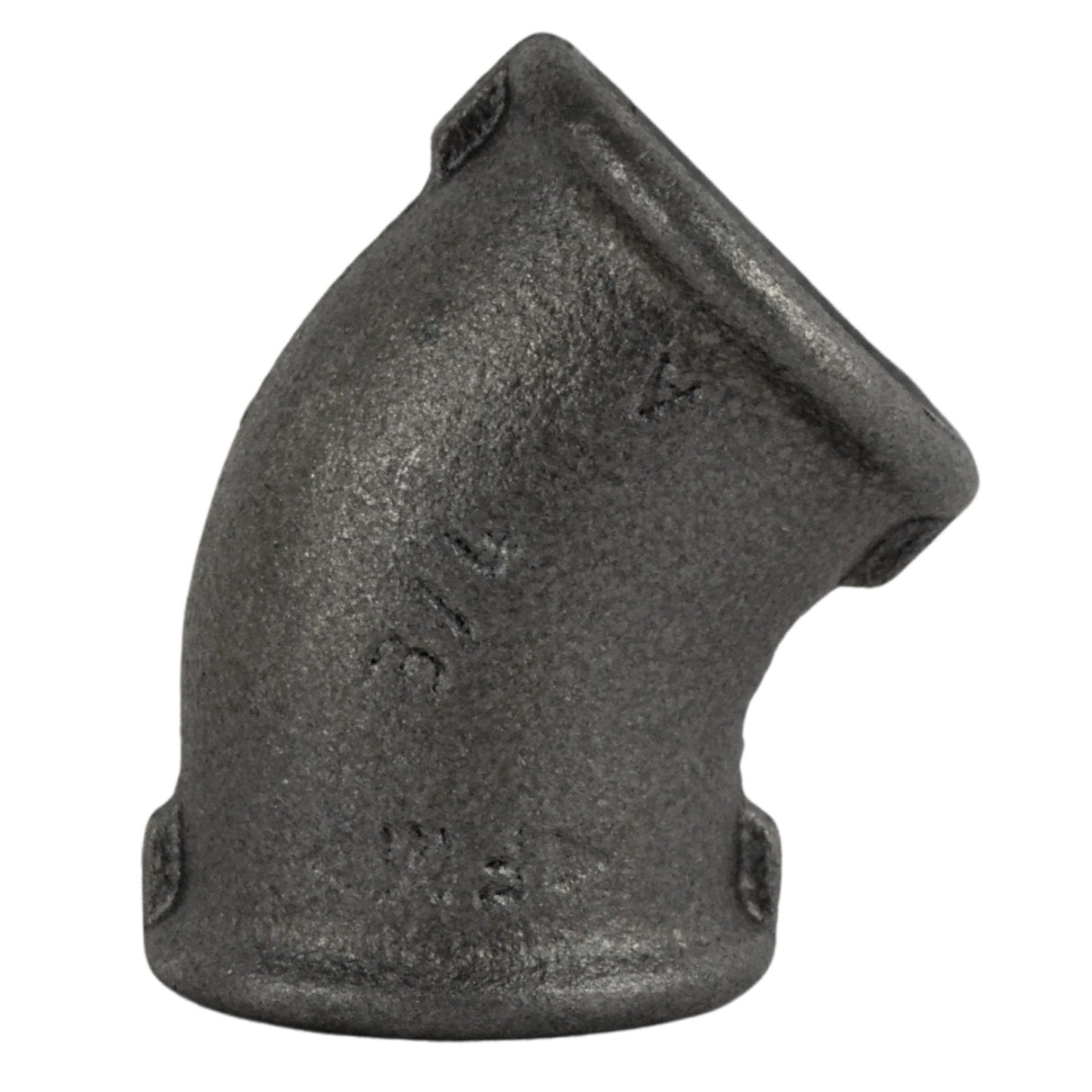

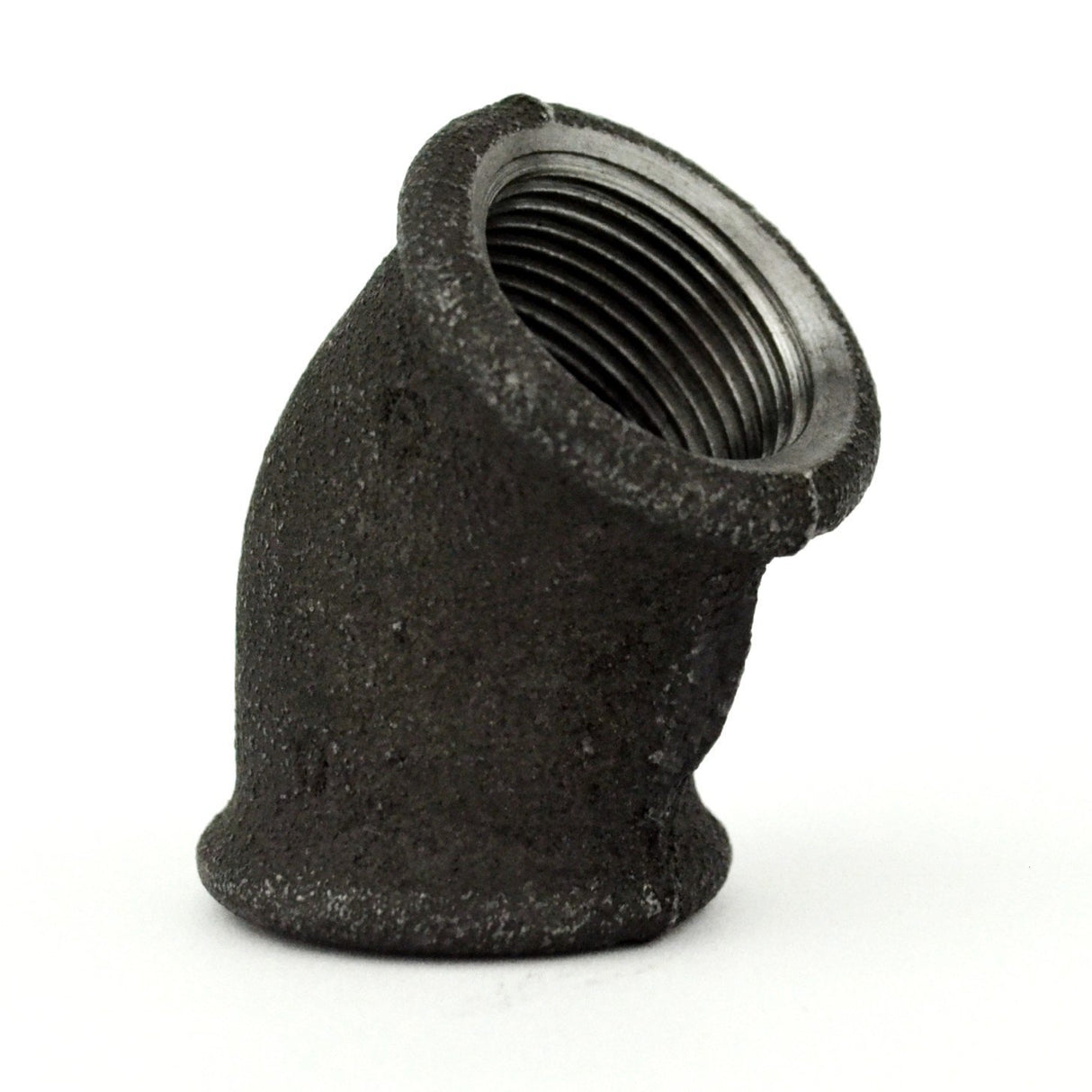

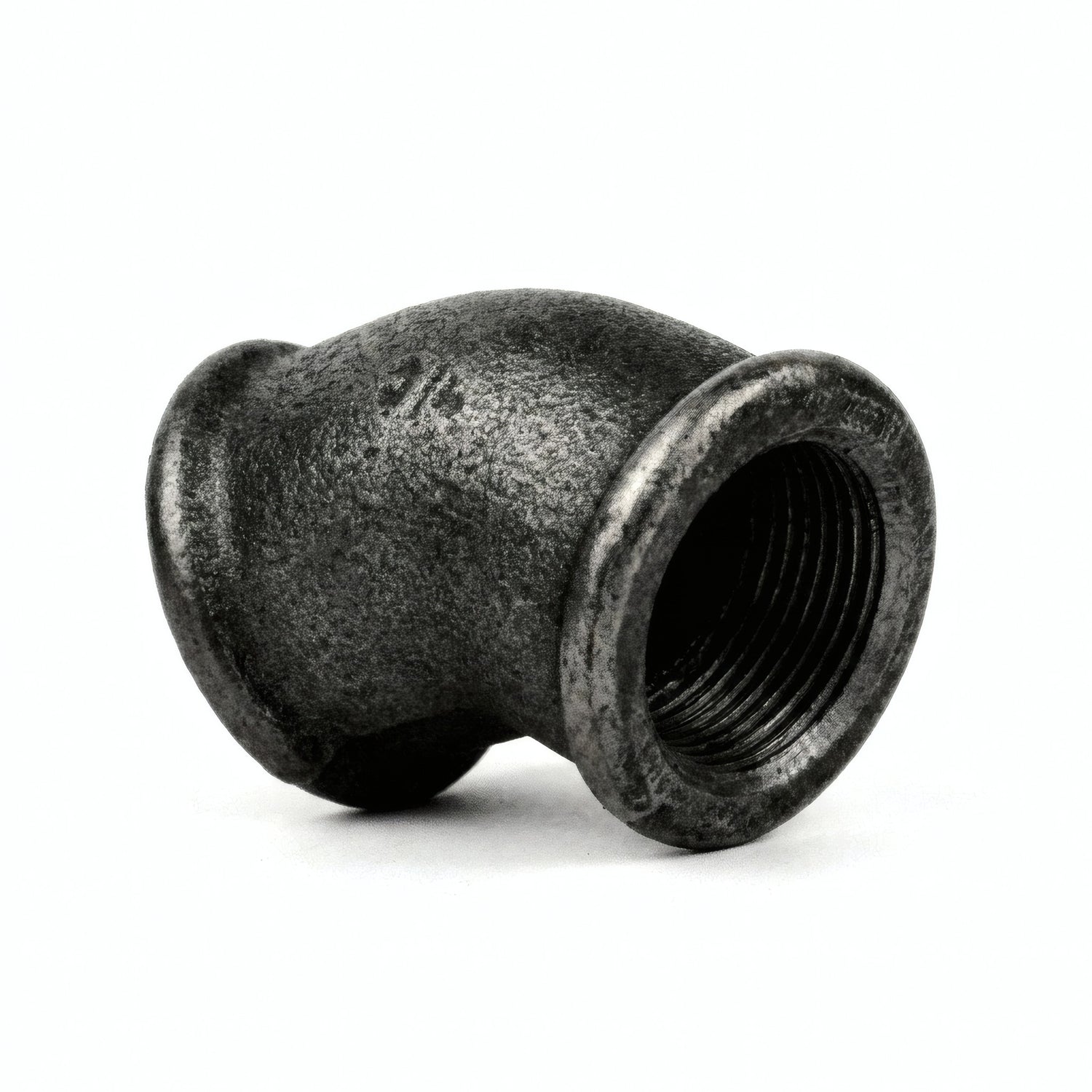

Plumbing fitting 45° elbow small radius Female/Female black cast iron

Description of 45° Elbow:

This black cast iron 45° elbow fitting with a small radius is perfect for making robust plumbing structures. Compatible with all black cast iron or galvanised fittings and black steel or galvanised threaded pipes of the same size, it allows secure screwed assembly.

The 45° female/female Elbow (threaded on both sides) is designed for specific mountings, offering a 135° angle. For similar fittings with a greater bend, you can opt for the female/female large radius bend, or the male/female large radius bend if a male side is required.

The appearance of the part may vary according to arrivals.

Small radius 45° elbow characteristics and uses:

Our fittings, although used for decoration, are genuine malleable cast iron plumbing components, guaranteeing exceptional sturdiness. They comply with EN 10242 and ISO49 standards.

The threads are BSPT (ISO 7-1 standard) with cylindrical (tapped) female ends.

• Screw on 10 to 15 mm depending on the part and the strength of the screw.
• Material: black cast iron
• Colour: dark grey
• High quality
• Made in Europe (Premium range)

Premium or Economy range

This product is available in Premium and Economic versions, both offering functional plumbing fittings.

Differences between the ranges:

Small radius 45° female/female fitting dimensions:

Tapping / Threads : 3/8'' | 12x17mm
Dimensions (L x W x H) : - x - x - mm
Weight : 0.070 kg

Tap / Threads : 1/2'' | 15x21mm
Dimensions (L x W x H) : 40 x 30 x 50 mm
Weight : 0.100 kg

Tap / Threads : 3/4'' | 20x27mm
Dimensions (L x W x H) : 50 x 35 x 60 mm
Weight : 0.150 kg

Tap / Threads : 1'' | 26x34mm
Dimensions (L x W x H) : 55 x 45 x 70 mm
Weight : 0.230 kg

Tap / Threads : 1''1/4 | 33x42mm
Dimensions (L x W x H) : 65 x 55 x 80 mm
Weight : 0.420 kg

Table of plumbing fitting sizes in inches and mm:
