Elbow small radius 90° M/F black malleable iron

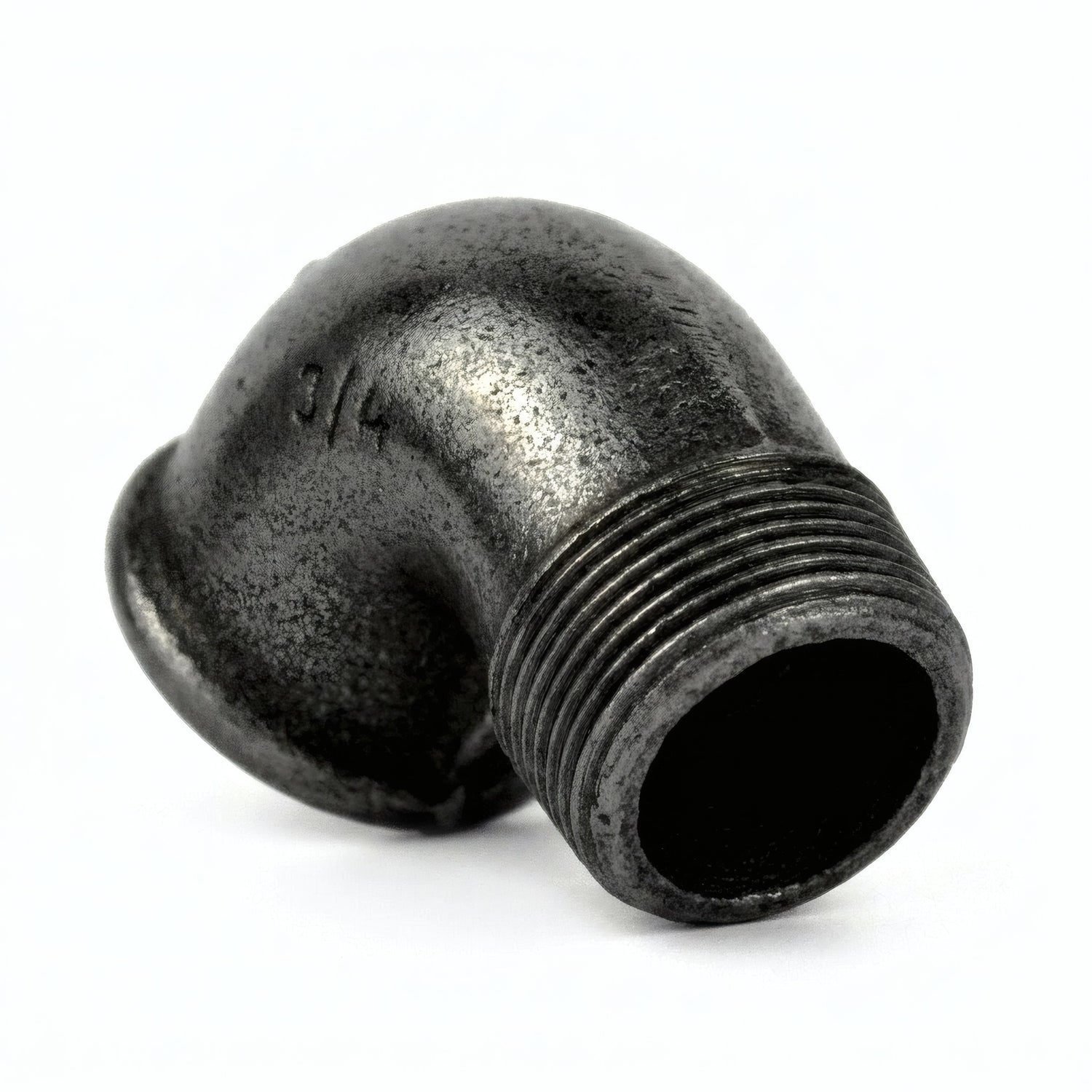

Black cast iron 90° short radius male/female elbow plumbing fitting
This short radius 90° elbow in black cast iron allows threaded or tapped fittings, as well as threaded pipes, to be easily screwed together. It is compatible with all black cast iron fittings or galvanized cast iron fittings and all threaded black steel pipes or threaded galvanized steel pipes of the same size sold in our online shop. The parts simply screw together, without welding, to make strong assemblies easily.
Description of the male/female short radius elbow fitting:
This elbow is perfect for connecting different parts at a 90° angle. One side is tapped (female) to screw in a threaded fitting or pipe (male); the other side is threaded (male) to screw on a female (tapped) fitting. Both sides are the same size.
Need a larger elbow? Alternatively, the long radius elbow M/F has a much wider curve.
Premium male/female short radius elbow features and uses:
Although we use our fittings for decoration, they are genuine plumbing parts made of whiteheart malleable cast iron that comply with EN 10242 and ISO49 standards. They guarantee superior quality and rock-solid sturdiness!
The threads on this part are BSPT (ISO 7-1 standard) with a parallel female (tapped) end and a tapered threaded male end.
- Screws in 10 to 15 mm (depending on the part screwed in and the force applied)
- Materials: black cast iron
- Colour: dark grey
- High quality
- Made in Europe (Premium range)
Premium or Economy range?
This part is available in our Premium or Economy ranges. In both cases, these are genuine, fully functional plumbing fittings.
The differences are as follows:
| Premium | Economy | |
| Colour | Dark grey | Grey |
| Finish | Slightly glossy | Matte |
| Feel | Smooth | Slightly grainy |
Short radius male/female elbow fitting dimensions:
Tapping / Threads: 3/8'' | 12x17mm
Dimensions (L x W x H): 44 x 32 x 25 mm
Weight: 0.06 kg
Tapping / Threads: 1/2'' | 15x21mm
Dimensions (L x W x H): 52 x 38 x 30 mm
Weight: 0.1 kg
Tapping / Threads: 3/4'' | 20x27mm
Dimensions (L x W x H): 62 x 36 x 46 mm
Weight: 0.15 kg
Tapping / Threads: 1'' | 26x34mm
Dimensions (L x W x H): 71 x 44 x 54 mm
Weight: 0.23 kg
Tapping / Threads: 1''1/4 | 33x42mm
Dimensions (L x W x H): 85 x 55 x 75 mm
Weight: 0.4 kg
Conversion table of plumbing fitting sizes in inches and mm (approx.):
| Size (inches) | Size (mm) | Outside diameter |
| 3/8" | 12/17mm | 17mm |
| 1/2" | 15/21mm | 21mm |
| 3/4" | 20/27mm | 27mm |
| 1" | 26/34mm | 34mm |
| 1"1/4 | 33/42mm | 42mm |
