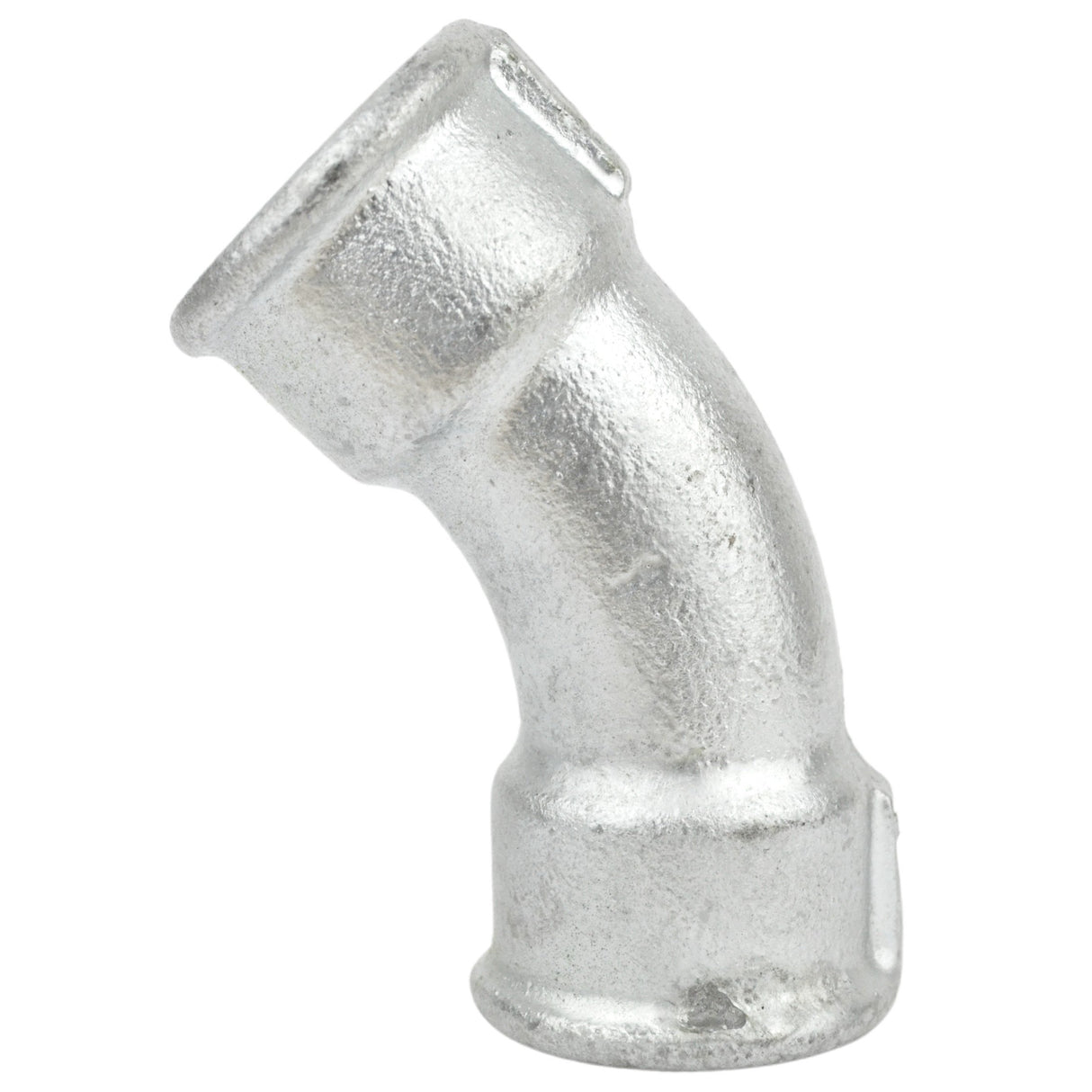

Plumbing Fittings 45° Curved Elbow (Degrees) Large radius bend Female / Female in Galvanised Cast Iron

This Large radius bend 45° Female/Female (F/F) in galvanised cast iron allows threaded fittings or threaded pipes to be easily connected by screwing. It is compatible with all galvanised cast iron or black fittings and galvanised steel or black threaded pipes of the same size sold in our online shop. The parts simply screw together, without welding, to make strong assemblies easily.

Description of the Large radius bend 45 Degree Galva Female/Female Elbow fitting

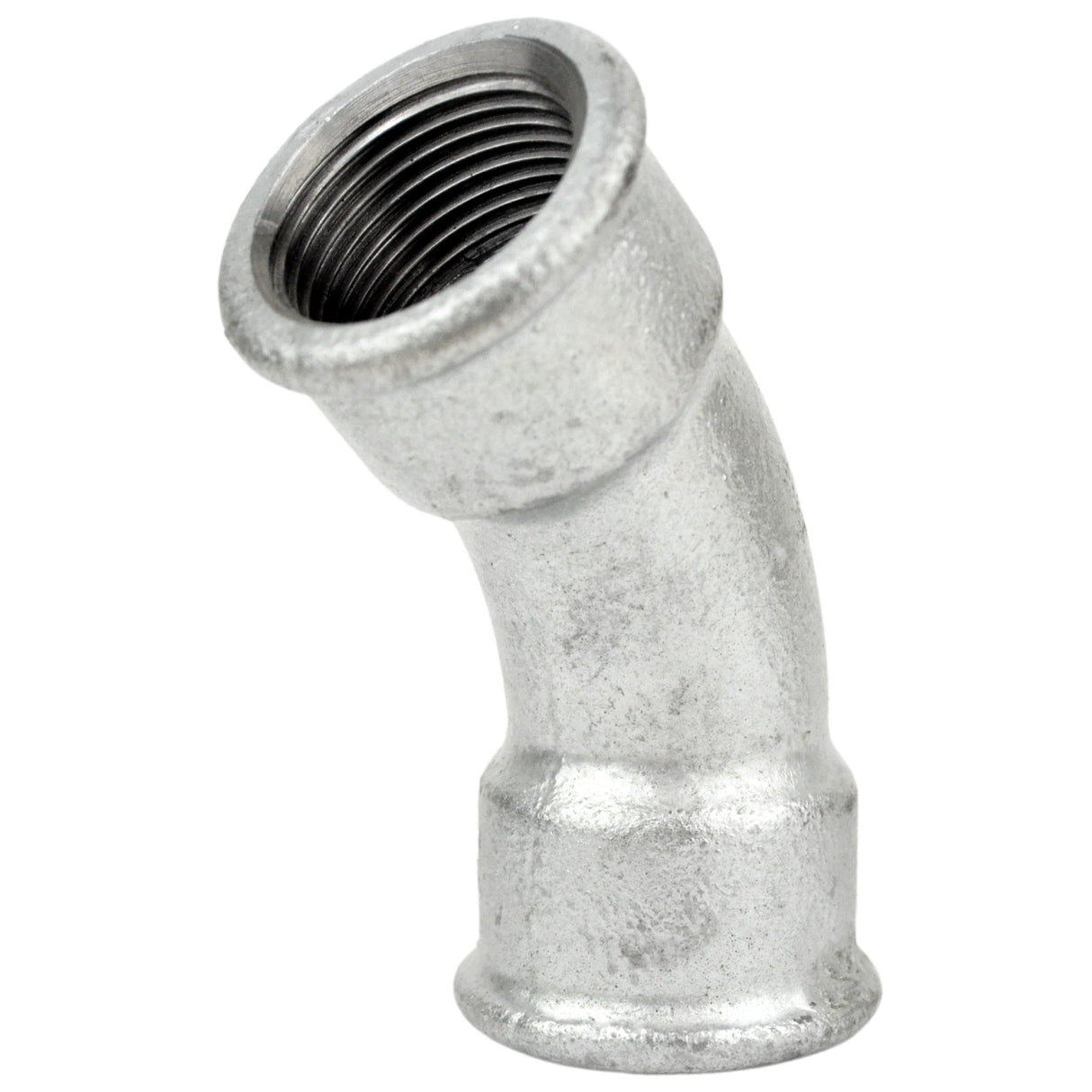

This 45° curved elbow is perfect for joining parts at an angle of 135° (135 degrees), i.e. 45° more than a 90° elbow. Both sides are threaded (female) and are the same size.

Large radius bend female/female 45° elbow features and uses

Although we use our fittings for decoration, this is a genuine piece of white-core malleable iron plumbing that complies with EN 10242 and ISO49 standards. Superior quality and a guarantee of foolproof sturdiness!

The threads on this part are BSPT (ISO 7-1 standard) with a cylindrical (threaded) female end.

• Vissage over 10 to 15 mm (depending on the nature of the part being screwed and the strength of the screwing)
• Materials: galvanised cast iron
• Colour: galva (slightly shiny silver-grey)
• High quality
• Made in Europe (Premium)

Dimensions of the Fitting Elbow Galvanised Large radius bend 45° Female/Female

Tapping / Threads : 3/8'' | 12x17 mm
Dimensions mm (length x width x height) : 58 x 25 x 42
Weight (kg) : 0.08

Tap / Thread : 1/2'' | 15x21 mm
Dimensions mm (length x width x height) : 74 x 30 x 50
Weight (kg) : 0.13

Tap / Threads : 3/4'' | 20x27 mm
Dimensions mm (length x width x height) : 82 x 38 x 60
Weight (kg) : 0.22

Tap / Thread : 1'' | 26x34 mm
Dimensions mm (length x width x height): - x - x -
Weight (kg) : 0.35

Tapping / Threads : 1''1/4 | 33x42 mm
Dimensions mm (length x width x height) : 125 x 55 x 90
Weight (kg) : 0.57
