Porcelain wall socket

Porcelain wall socket

This porcelain socket is surface-mounted, straight onto the wall: it is the typical accessory for installations with exposed wiring. The body is 65 mm across and 50 mm high, connection is by screw terminal, and the fixing screws and wall plugs are supplied.

Why choose this product?

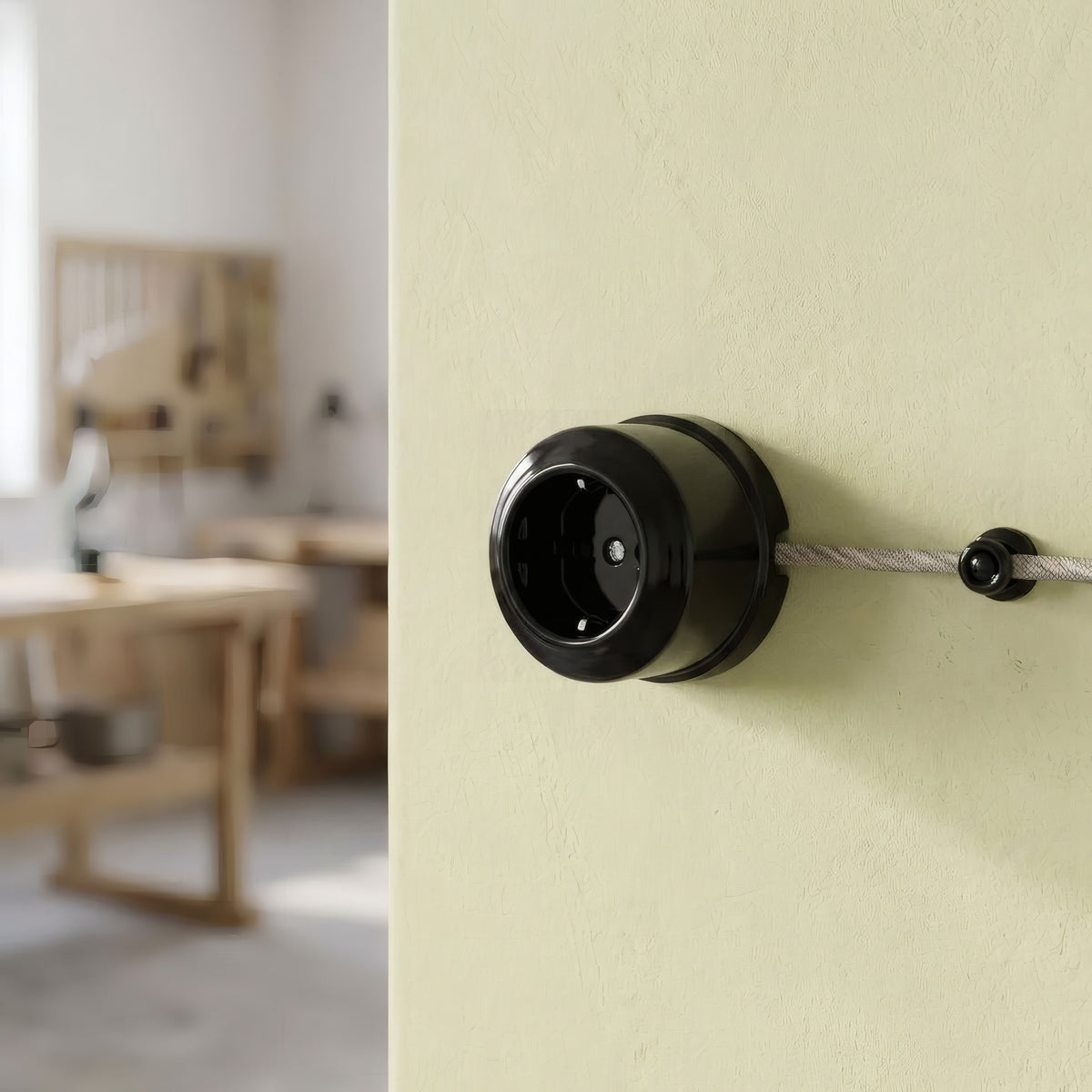

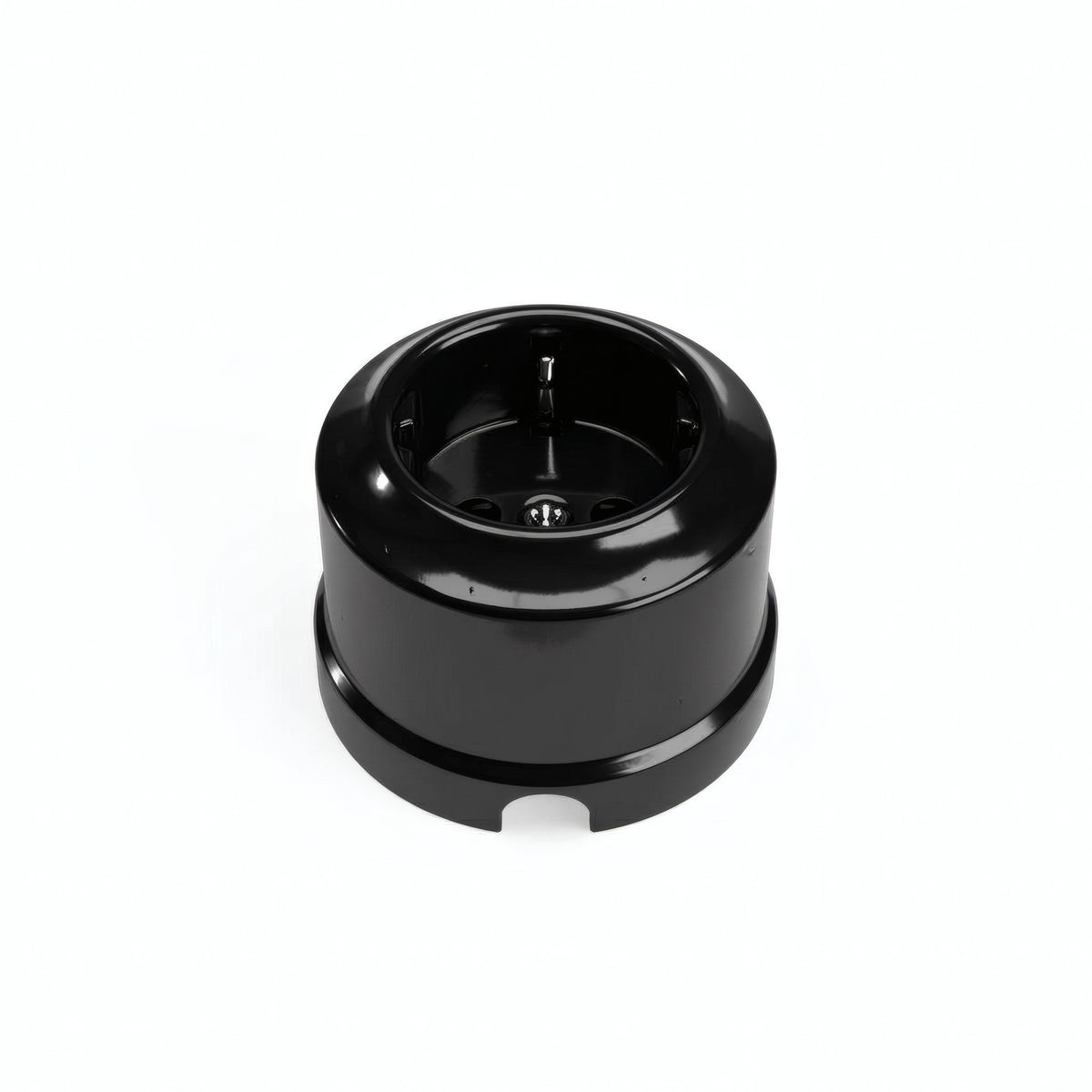

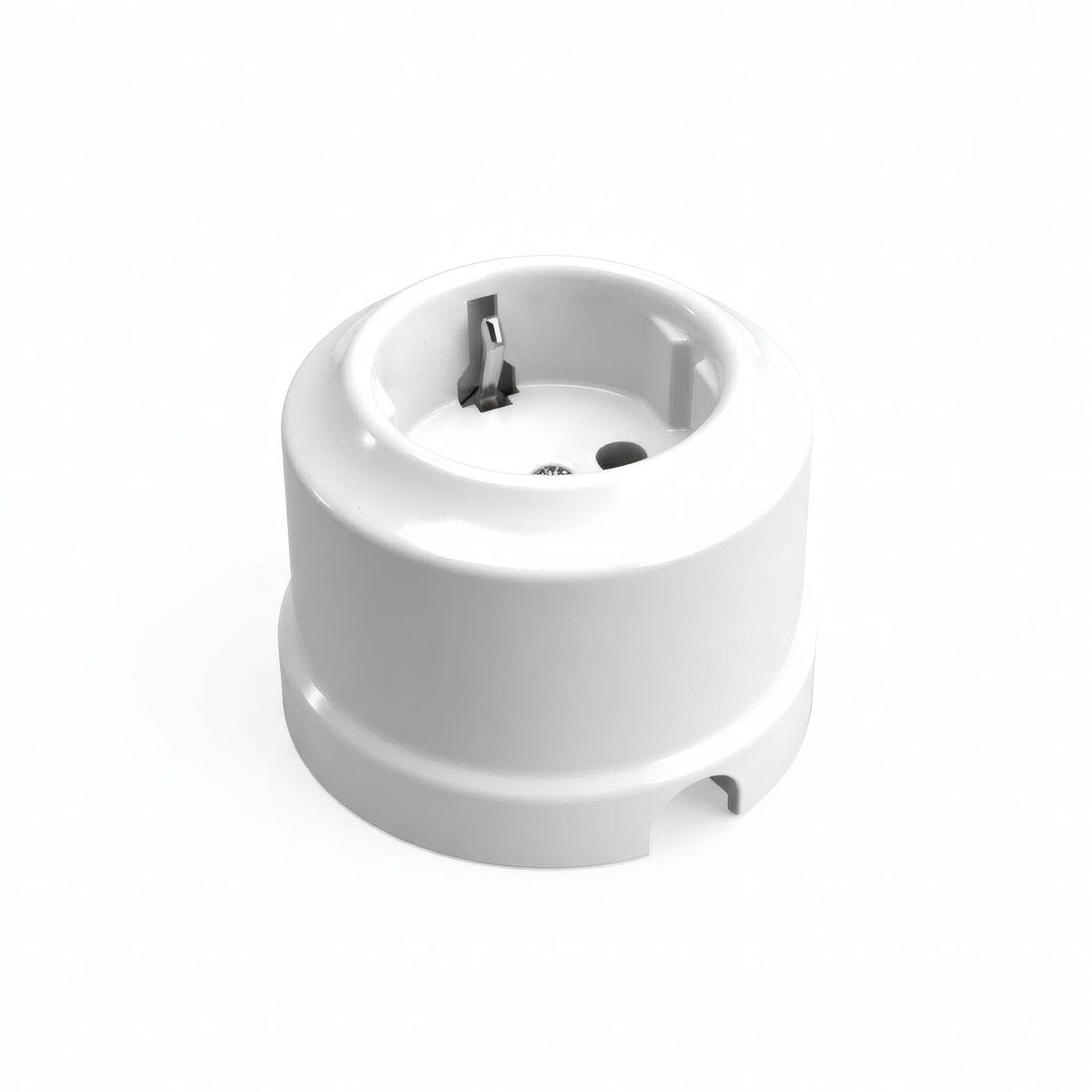

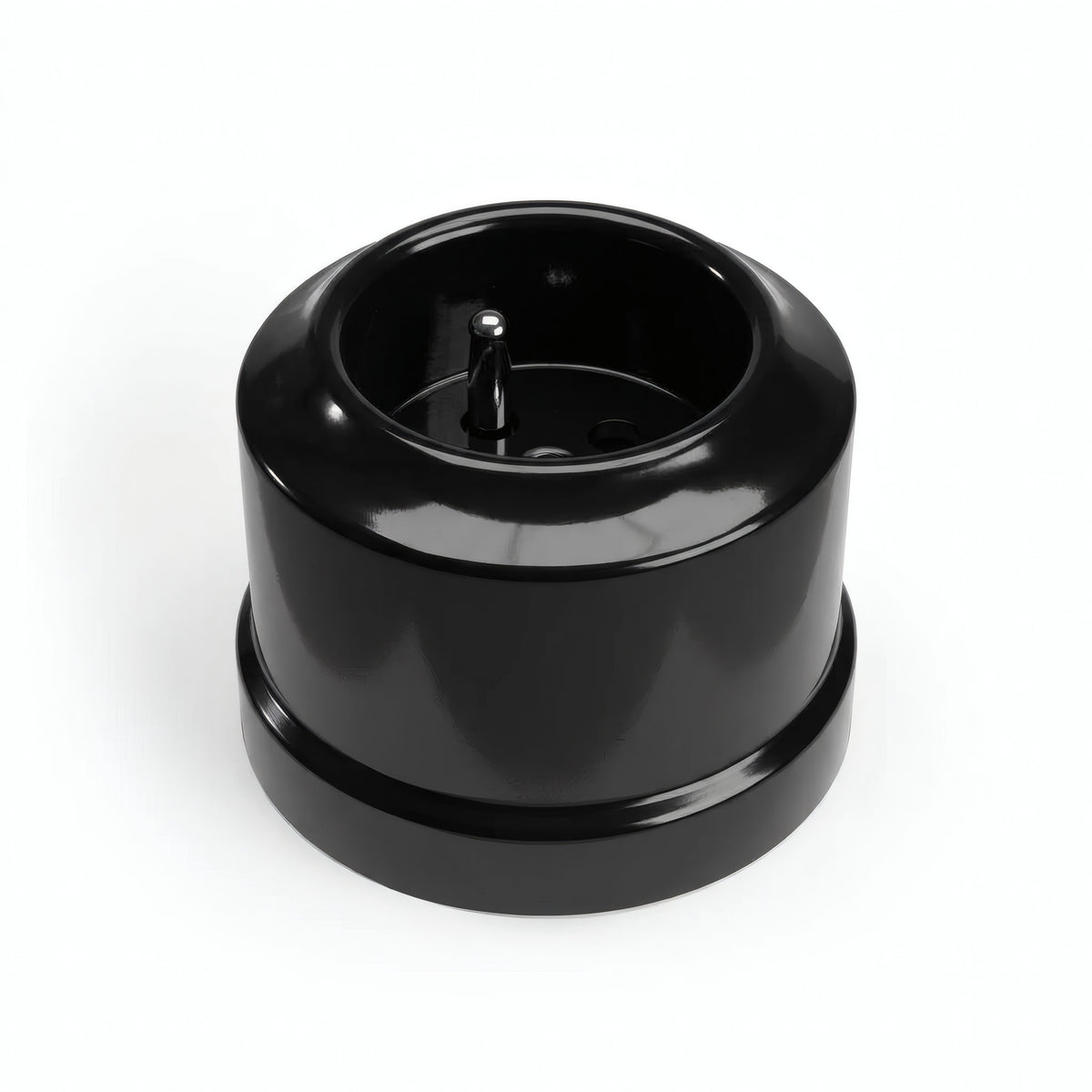

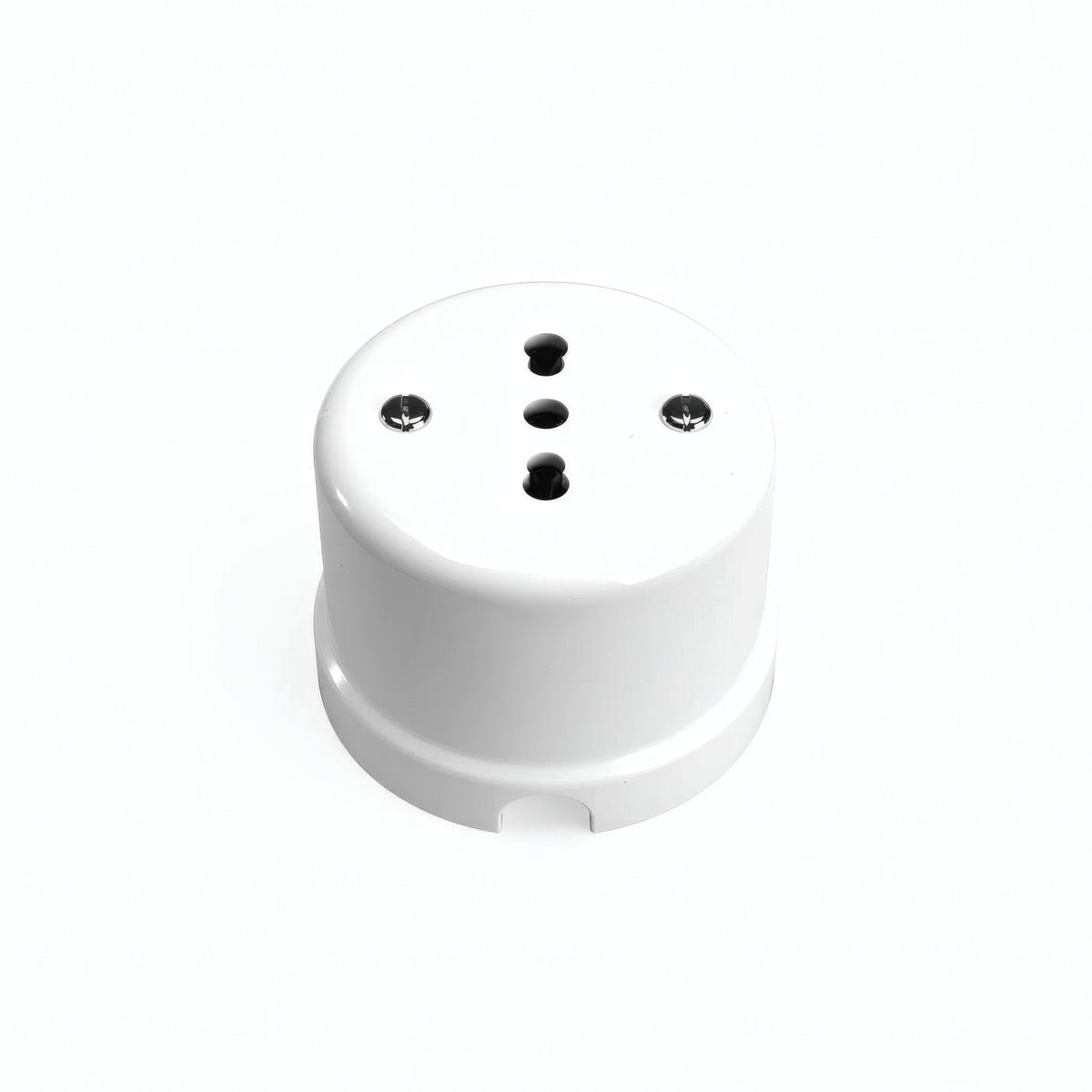

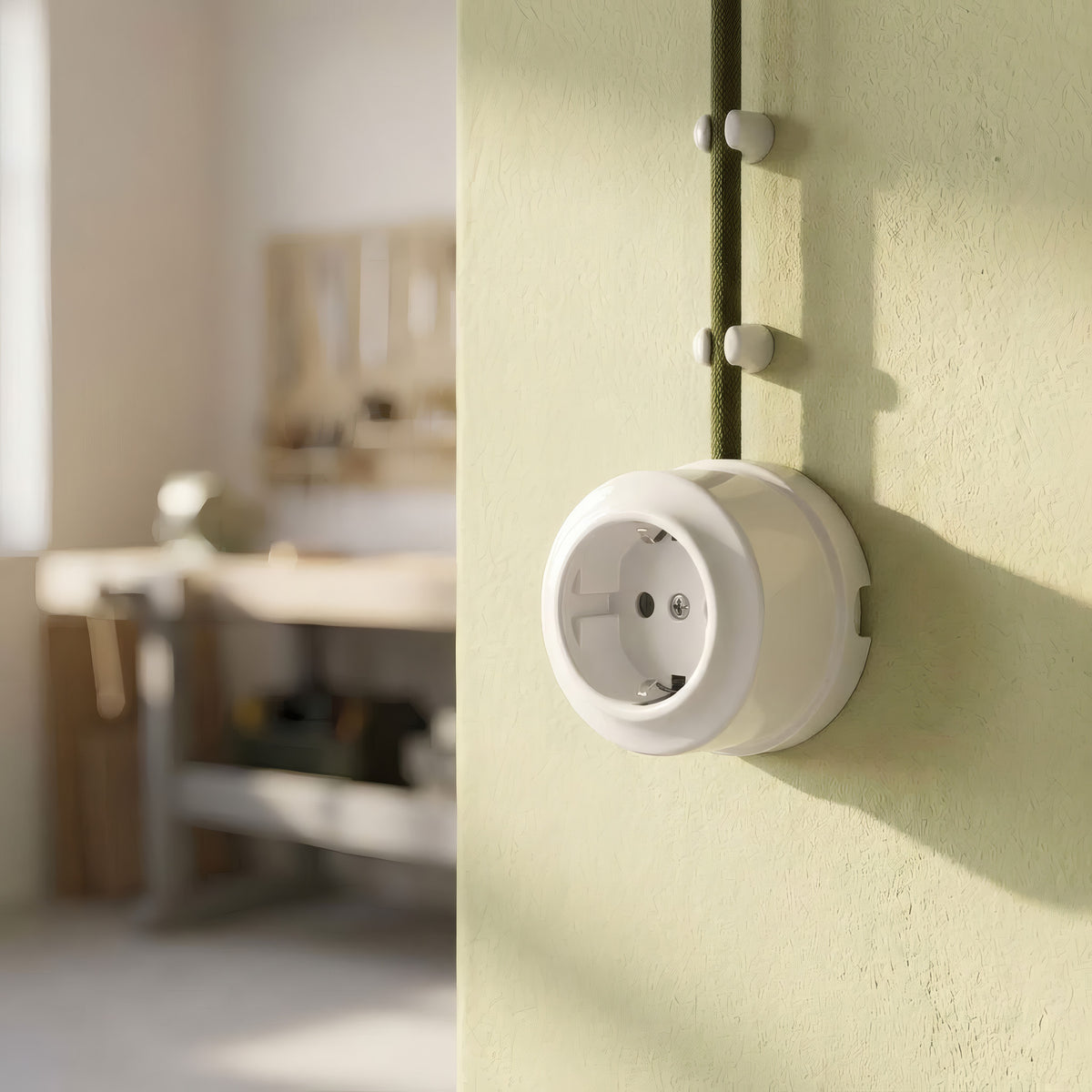

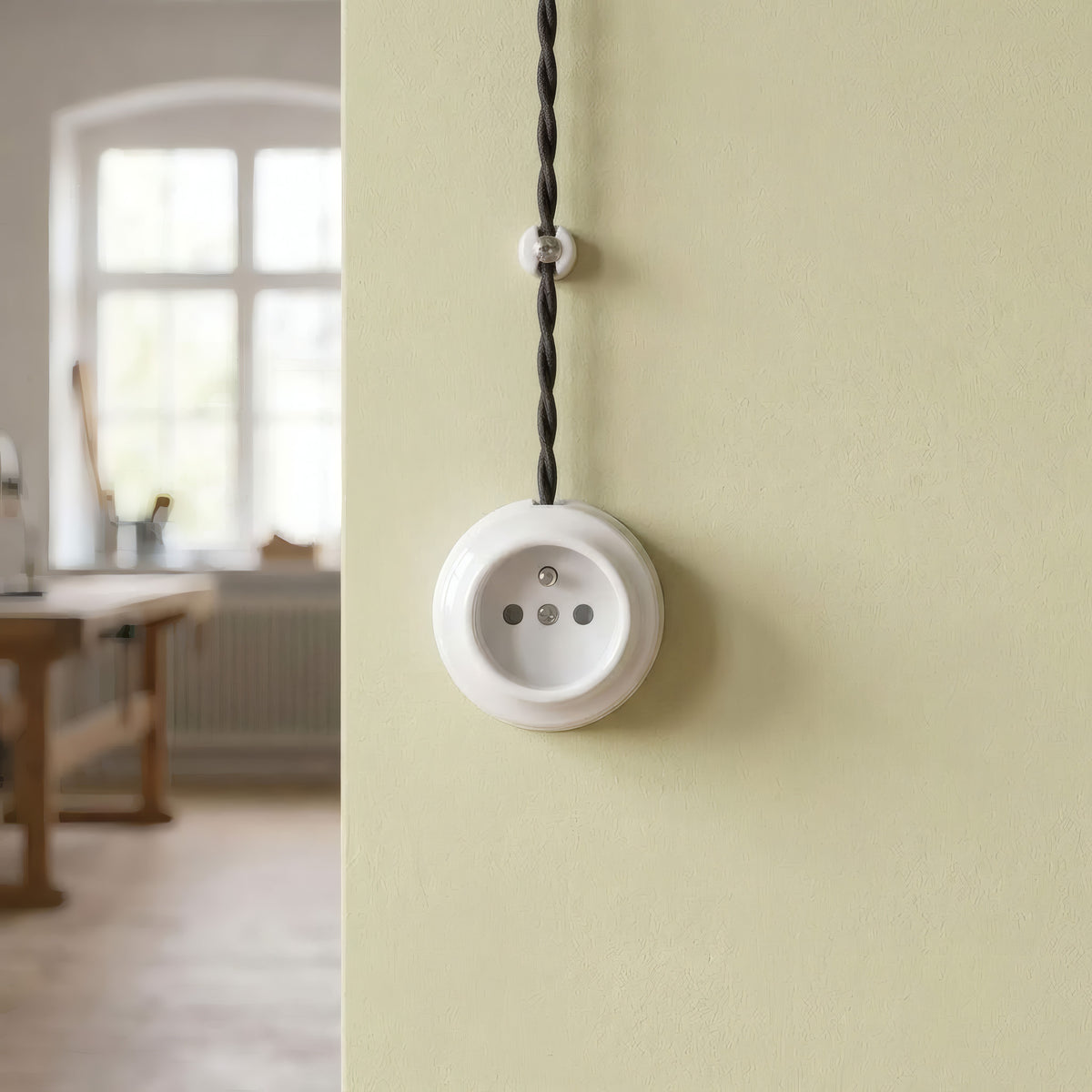

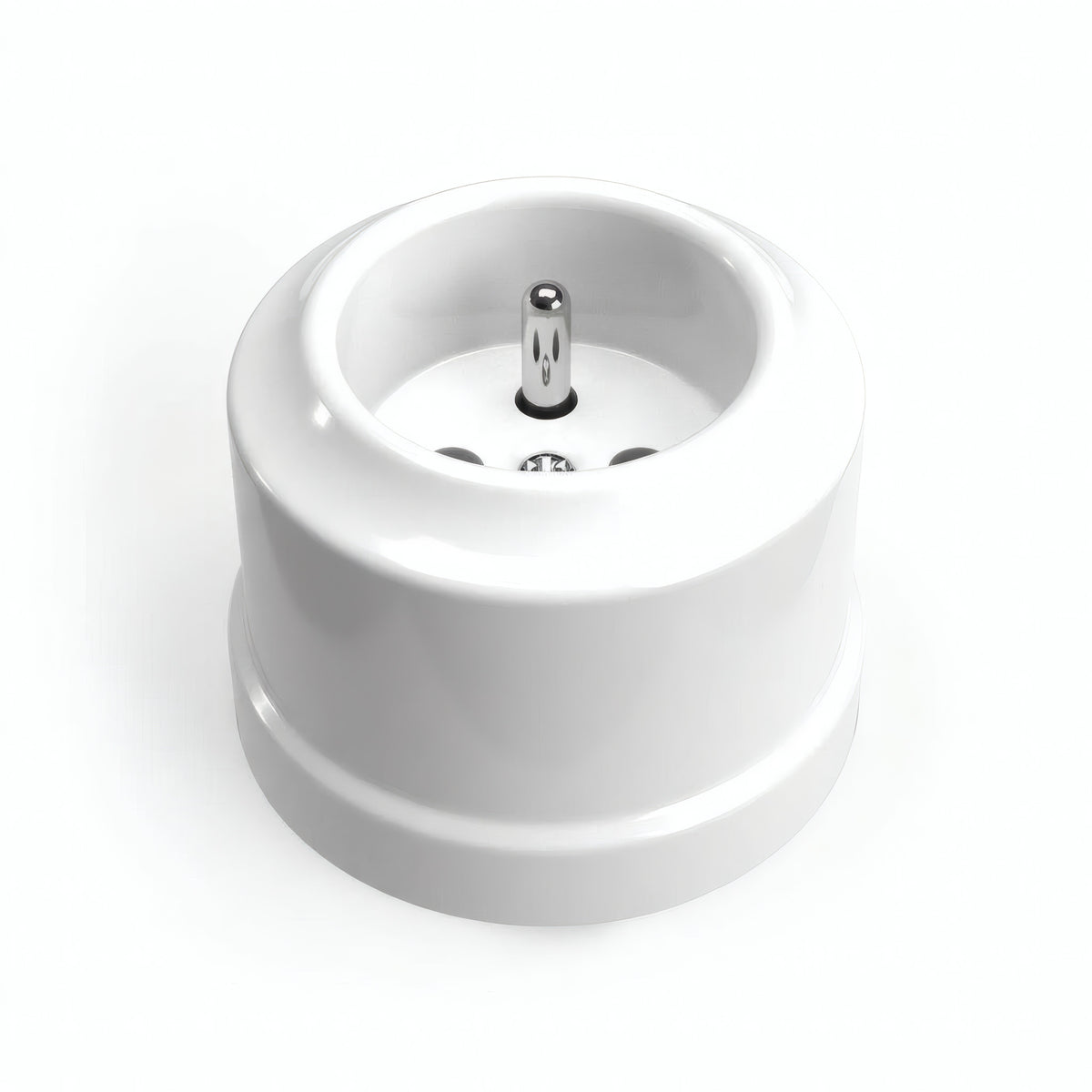

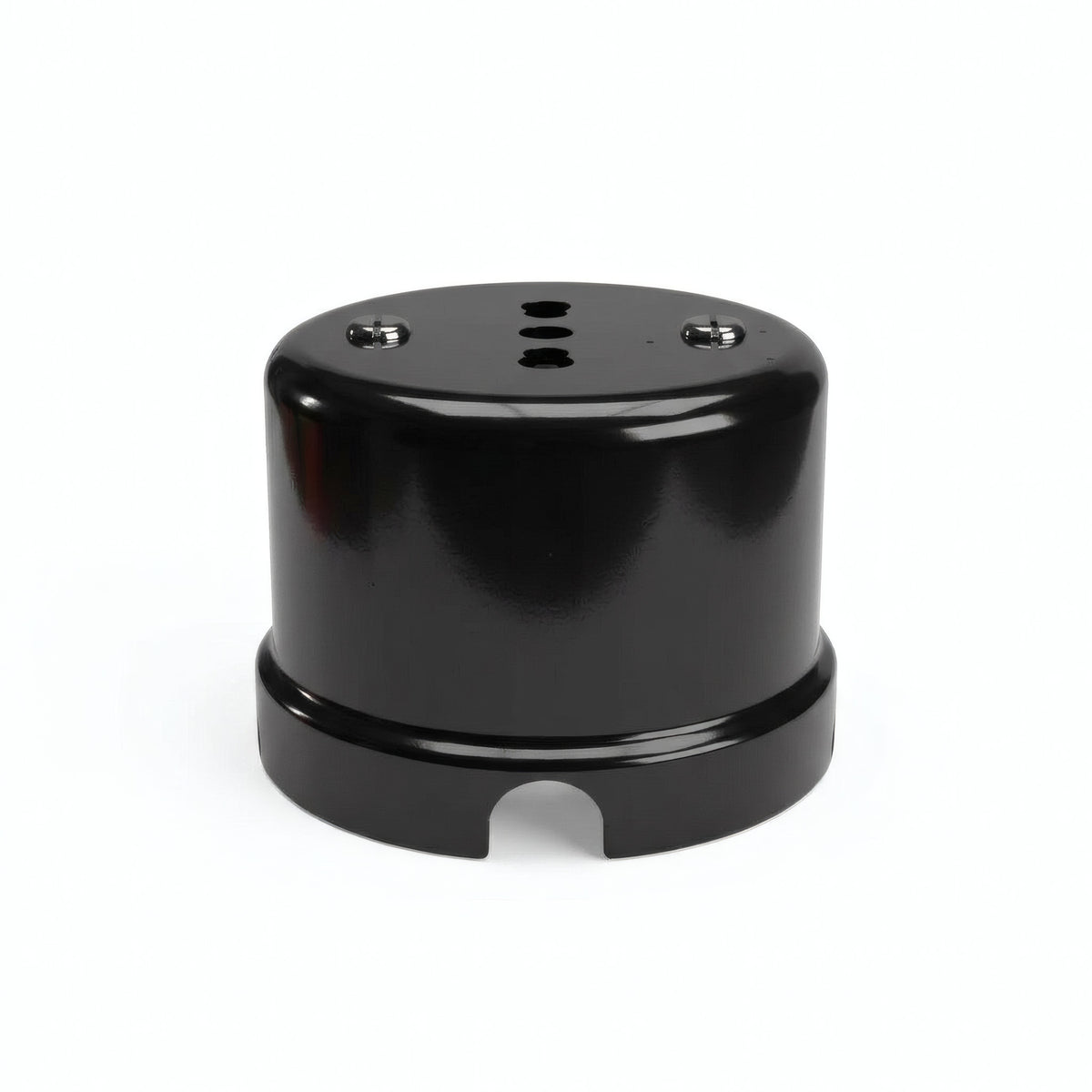

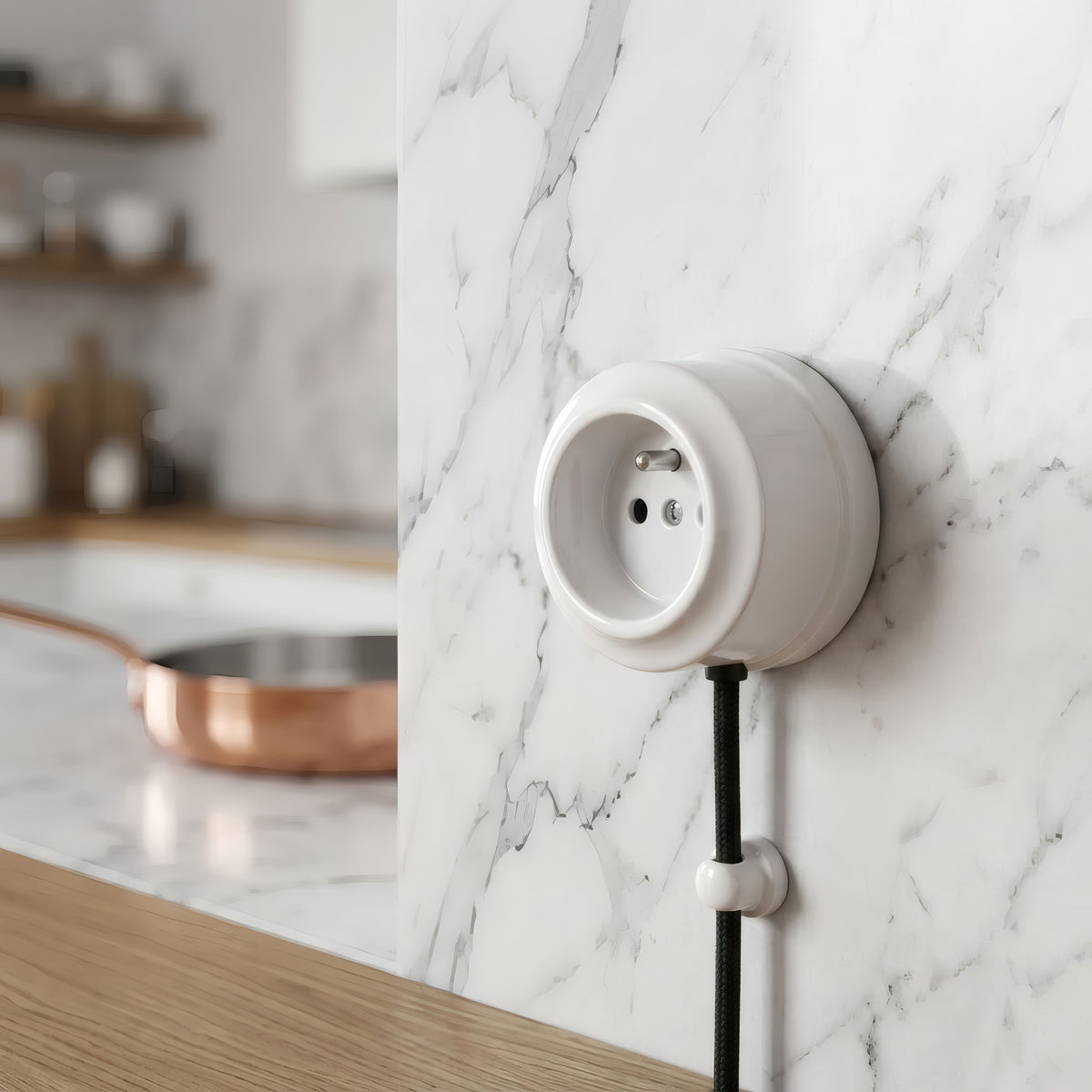

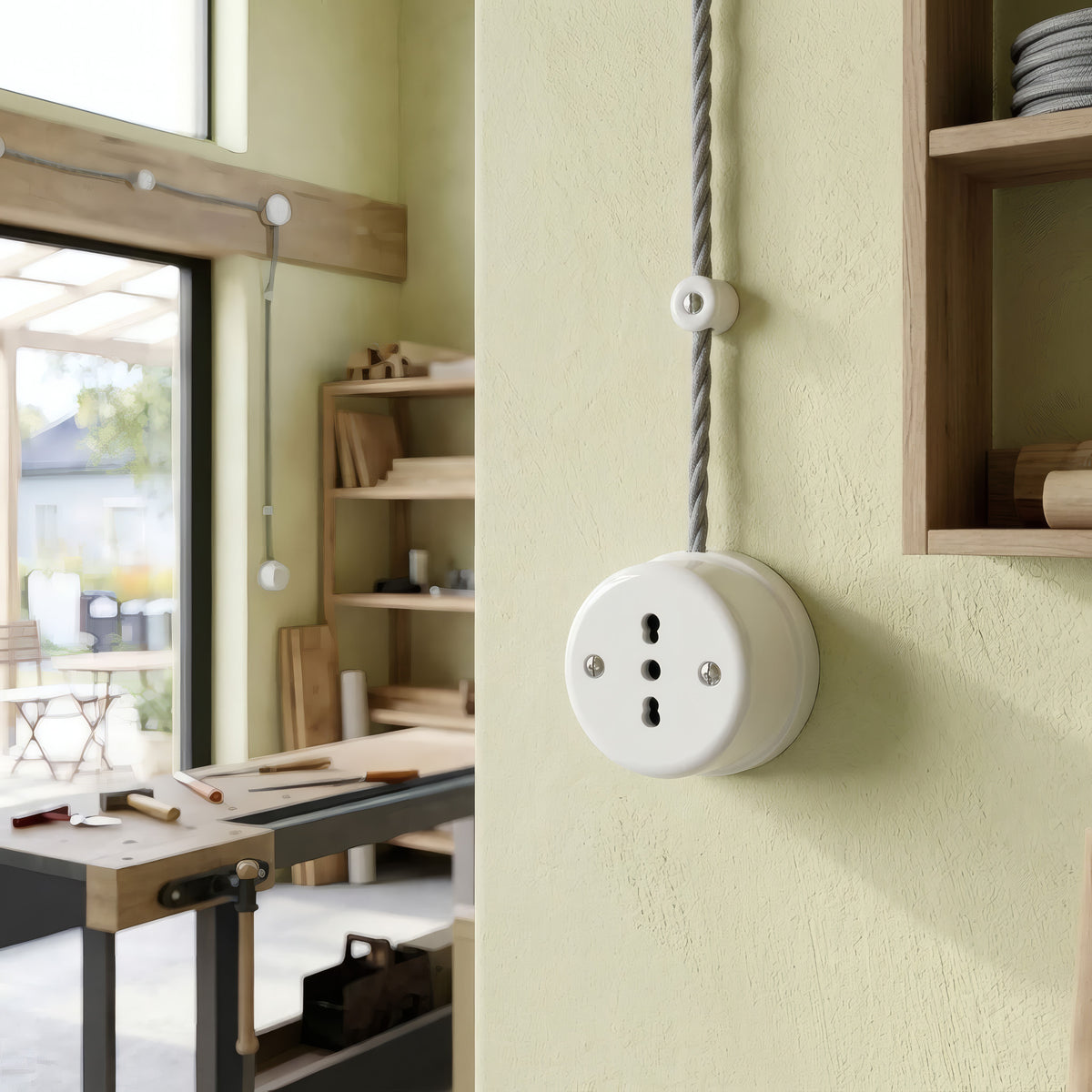

• Three formats to choose from: French 2P+T 16 A, Italian bipasso 2P+T 10/16 A (Italian 10 A and 16 A plugs), or Schuko 2P+T 16 A.
• Porcelain body, white or black, to match the porcelain lamp holders and ceiling roses.
• Screw terminal connection, 250 V AC and 50-60 Hz.
• Wall fixing: screws and wall plugs included.
• Protective shutters against access to live parts.

Technical information

• Material: porcelain
• Dimensions: Ø 65 mm, 50 mm high
• Rated voltage: 250 V AC
• Frequency: 50-60 Hz
• Connection type: screw terminal
• Rated current: 16 A
• CE marking
• Wall fixing: screws and wall plugs included
• Supply through a Ø 20 mm cable conduit: add the porcelain base with conduit entries (sold separately or as a kit with the socket)
• Application: lighting installations and installations with traditional sockets
• Cables: double-insulated fabric cables only, large-section for a socket: 3 × 1.5 mm² minimum (live, neutral and earth), cross-section to match the circuit protection under local wiring rules
• Installation: place the first insulator or wall fixing no more than 5 cm from the socket, the switch or the junction box; the rest every 80 to 100 cm
• Use: indoors only; installation to be carried out by a qualified electrician
• Small imperfections come from the craft process and are not defects

Available in French, Italian and Schuko format, in White and Black.
