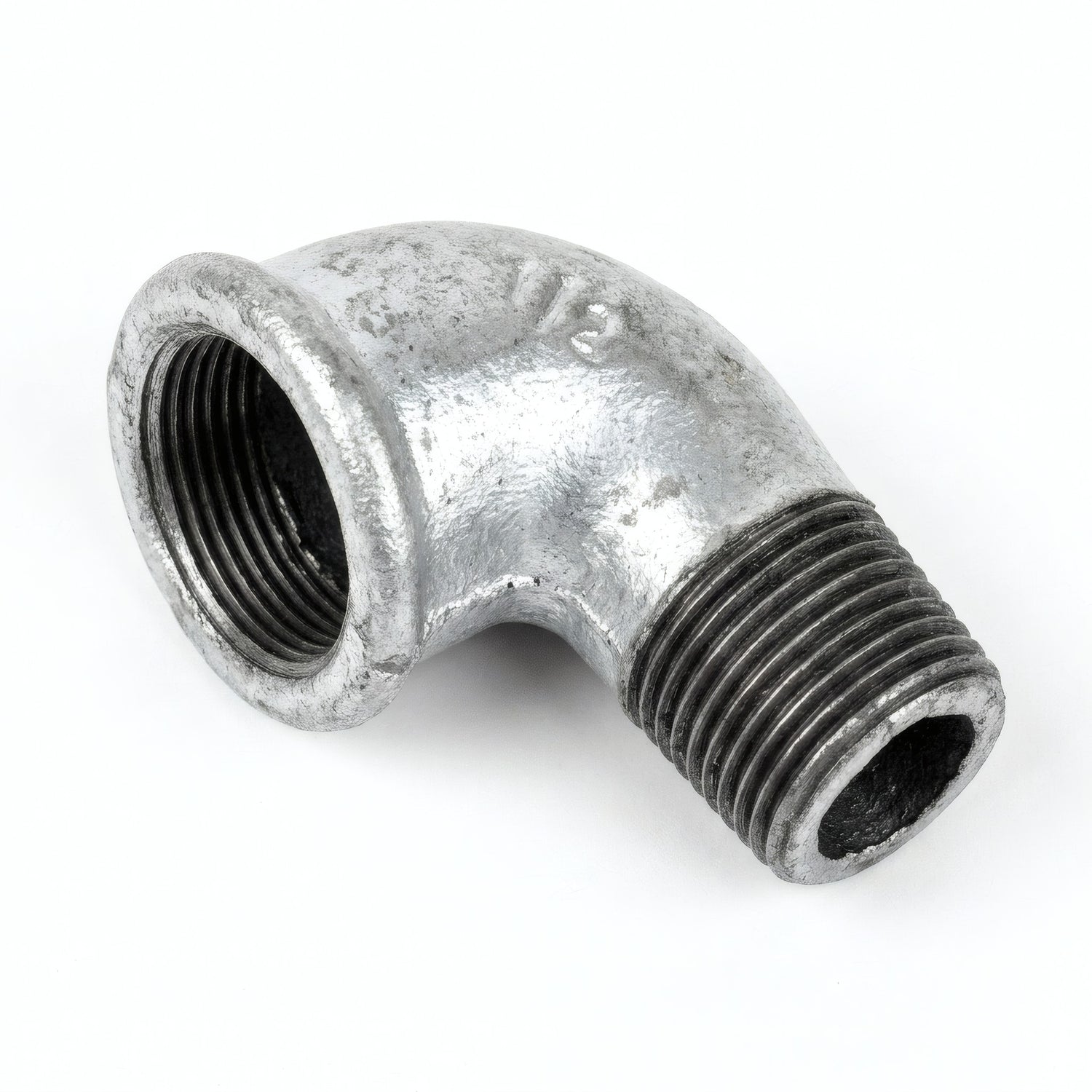

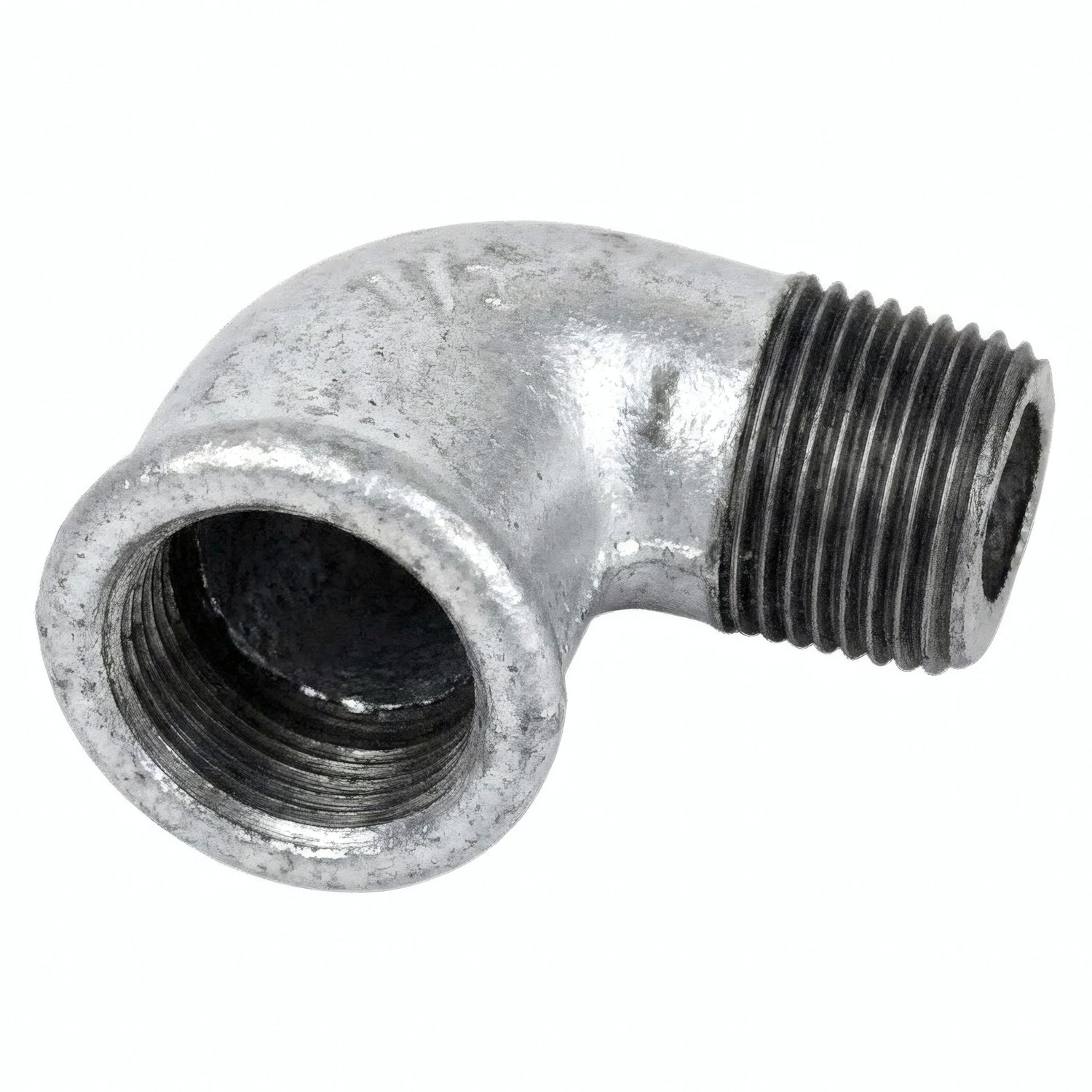

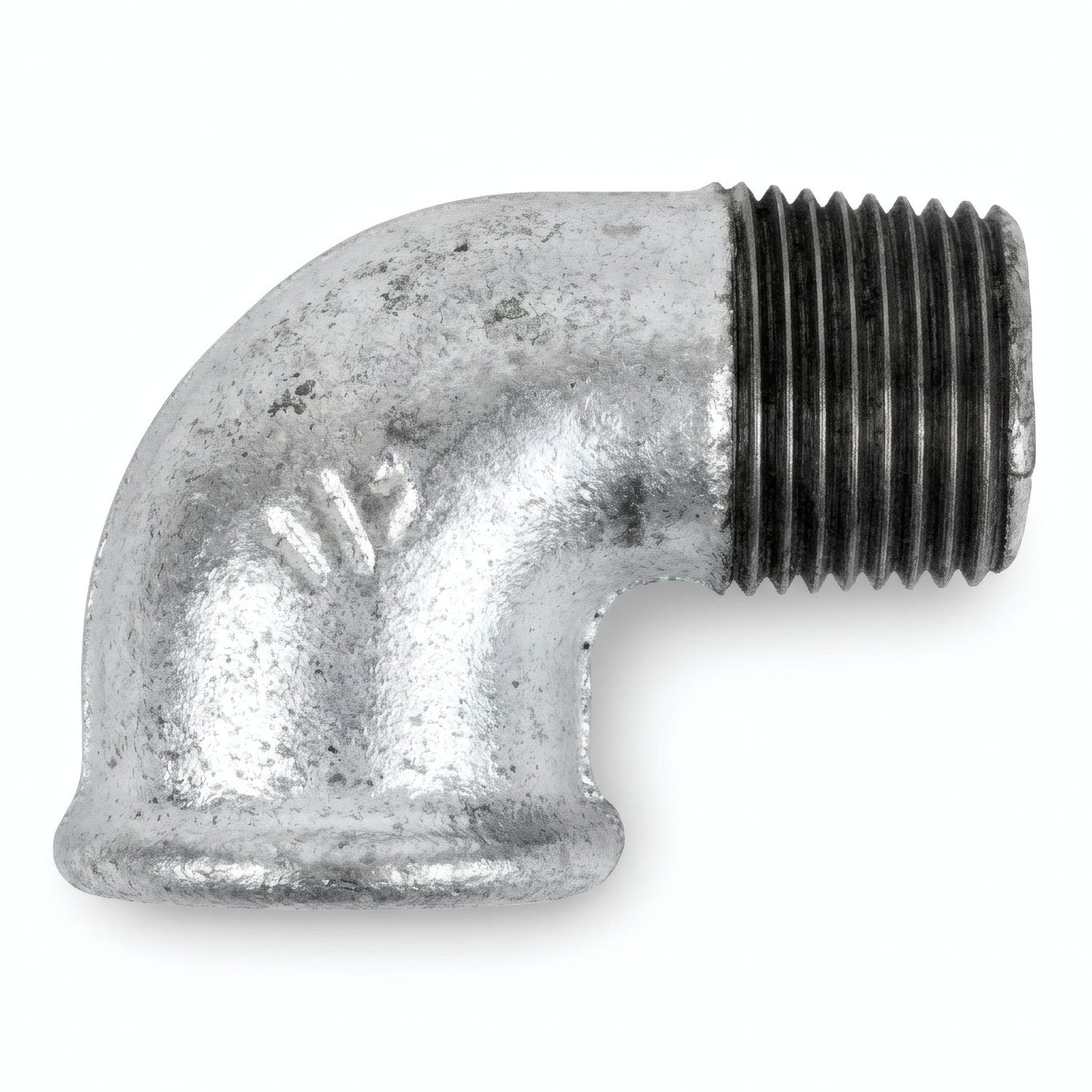

Elbow small radius 90° M/F galvanised cast iron
Plumbing fitting elbow 90° small radius Male/female in galvanised cast iron
This 90° small radius galvanised cast iron elbow makes it easy to connect threaded or tapped fittings, as well as threaded pipes. Compatible with all galvanised cast iron or black fittings, as well as galvanised steel or black threaded pipes of the same size available in our online shop. The parts simply screw together, without welding, for strong assemblies.
Description of the small radius male/female galva elbow fitting:
This elbow is ideal for connecting different parts at a 90° angle. One side is threaded (female) to accommodate a threaded fitting or pipe (male), while the other side is threaded (male) to screw into a female fitting (threaded). Both sides are the same size.
For a larger elbow, the Large radius bend M/F offers a curve with a much wider amplitude.
Small radius male/female galvanised elbow characteristics and uses:
Although we use our fittings for decoration, they are genuine malleable cast iron plumbing components with a white core, complying with EN 10242 and ISO49 standards. They guarantee superior quality and rugged sturdiness.
The threads on this part are BSPT (ISO 7-1 standard) with a cylindrical threaded female end and a tapered threaded male end.
- Screwing on 10 to 15 mm (depending on the nature of the part and the strength of the screwing)
- Material: galvanised cast iron
- Colour: galva (slightly shiny silver-grey)
- High quality
- Manufactured in Europe
Dimensions of the fitting elbow small radius male/female galva:
Tapping / Threads : 3/8'' | 12x17mm
Dimensions (L x W x H) : 44 x 32 x 25 mm
Weight : 0.06 kg
Tap / Threads : 1/2'' | 15x21mm
Dimensions (L x W x H) : 52 x 38 x 30 mm
Weight : 0.1 kg
Tap / Threads : 3/4'' | 20x27mm
Dimensions (L x W x H) : 62 x 36 x 46 mm
Weight : 0.15 kg
Tap / Threads : 1'' | 26x34mm
Dimensions (L x W x H) : 71 x 44 x 54 mm
Weight : 0.23 kg
Tap / Threads : 1''1/4 | 33x42mm
Dimensions (L x W x H) : 85 x 55 x 75 mm
Weight : 0.4 kg
Table of plumbing fitting sizes in inches and mm:
| Size (inch) | Size (mm) | Outer diameter |
| 3/8" | 12/17mm | 17mm |
| 1/2" | 15/21mm | 21mm |
| 3/4" | 20/27mm | 27mm |
| 1" | 26/34mm | 34mm |
| 1"1/4 | 33/42mm | 42mm |
