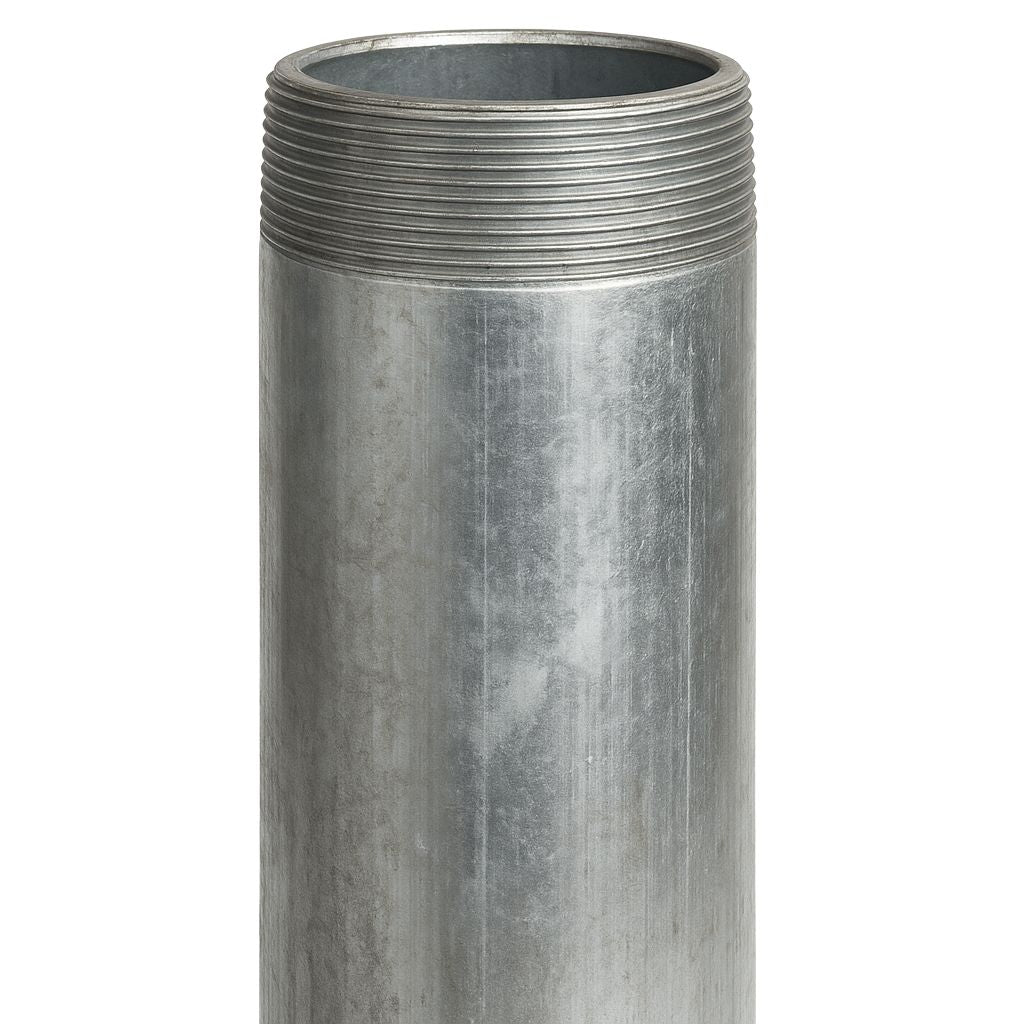

Pipe 3" - 80x90mm galvanized steel
$14.00
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.
Shipping and Delivery
Shipping and Delivery
| Product Type | Delivery Method | Preparation Time | Transport Time | Delivery Time |
|---|---|---|---|---|
| All Parts | Pickup Point | 0 to 3 days | 3 to 6 days | 3 to 9 days |
| All Parts | Home Delivery | 0 to 3 days | 3 to 5 days | 3 to 8 days |
| Tubes > 90cm | Home Delivery | 0 to 3 days | 3 to 5 days | 3 to 8 days |
| Tubes < 200cm | Home Delivery | 0 to 3 days | 3 to 5 days | 3 to 8 days |
| Tubes > 200cm | Home Delivery | 0 to 6 days | 6 to 10 days | 6 to 16 days |
| Assembled Products | Home Delivery & Pickup Point | 0 to 5 days | (see methods) | 3 to 11 days |
* Tubes longer than 90cm cannot be delivered to a pickup point
For confirmation of delivery times on specific items, please send us a message
Pipe 3" - 80x90mm galvanized steel
From
$13.00
Unit price
/
Unavailable
Overview
Designed for water, compressed-air or low-pressure steam lines, this PN 50 pipe can also be used in your industrial decor structures.
Technical specifications
- 2 threaded ends
- Diameter: 3″ • DN 80 • 80×90 mm • OD 88.9 mm • ID ≈ 80.9 mm
- Min. wall thickness: 4.0 mm (S195T steel – EN 10241)
- Thread: BSP-T R 3″ 55° – L2 36.5 mm (engagement ≈ 27 mm)
- Galvanization ≥ 55 µm – cathodic protection
- Rated pressure: 50 bar @ 20 °C
- Length tolerance: −0/+2 mm ≤ 300 mm • −0/+3 mm > 300 mm
- Temperature range: −10 °C → +120 °C
Available lengths
80 | 100 | 120 | 150 | 180 | 200 | 250 | 300 | 400 | 500 | 600 | 800 | 1 000 | 1 500 | 2 000 mm
Hydraulic performance – guide values
- Cold water: up to 100 L/min over 20 m (v ≤ 3 m/s)
- Air 8 bar: up to 60 m³/h with ΔP < 10% of upstream pressure
Installation
Clean the threads, apply hemp+paste or PTFE, tighten ¼–½ turn with a wrench (~250 N·m). A hydrostatic test at 1.5 × PN is recommended.
