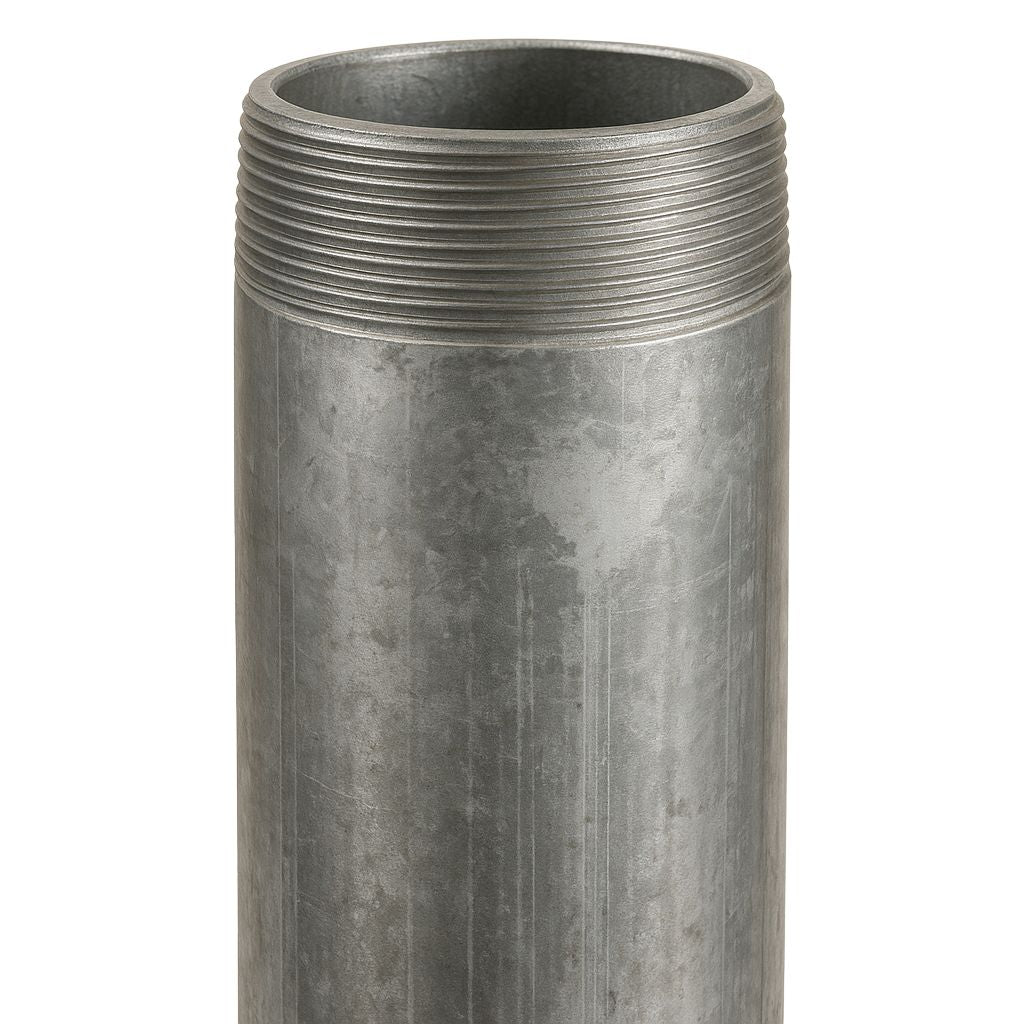

Tube 4" - 102 × 114 mm Galvanized Steel
Overview
Built for high-capacity water, air or low-pressure steam lines (PN 50), this 4″ pipe also suits XXL industrial décor such as stair rails or columns.
Technical specifications
- Threaded both ends
- Diameter: 4″ • DN 100 • 102×114 mm — OD 114.3 mm • ID ≈ 102 mm
- Min. wall: 4.0 mm (steel S195T — EN 10241)
- Thread: BSP-T R 4″ (1:16), L2 41.1 mm (engaged ≈ 31 mm)
- Hot-dip galvanised ≥ 55 µm — cathodic protection
- Rated pressure: PN 50 (20 °C)
- Length tolerance: −0/+2 mm ≤ 300 mm • −0/+3 mm > 300 mm
- Temperature: −10 °C → +120 °C
Available lengths
80 | 100 | 120 | 150 | 180 | 200 | 250 | 300 | 400 | 500 | 600 | 800 | 1 000 | 1 500 | 2 000 mm
Typical uses
- Main header up to ~100 m³/h
- Low-pressure steam, indoor fire loops
- Heavy decorative supports, railings
Installation
Degrease, seal 2-3 threads (hemp+paste or 0.2 mm PTFE) and tighten ≈ 300 N·m. Hydro-test at 1.5 × PN.
