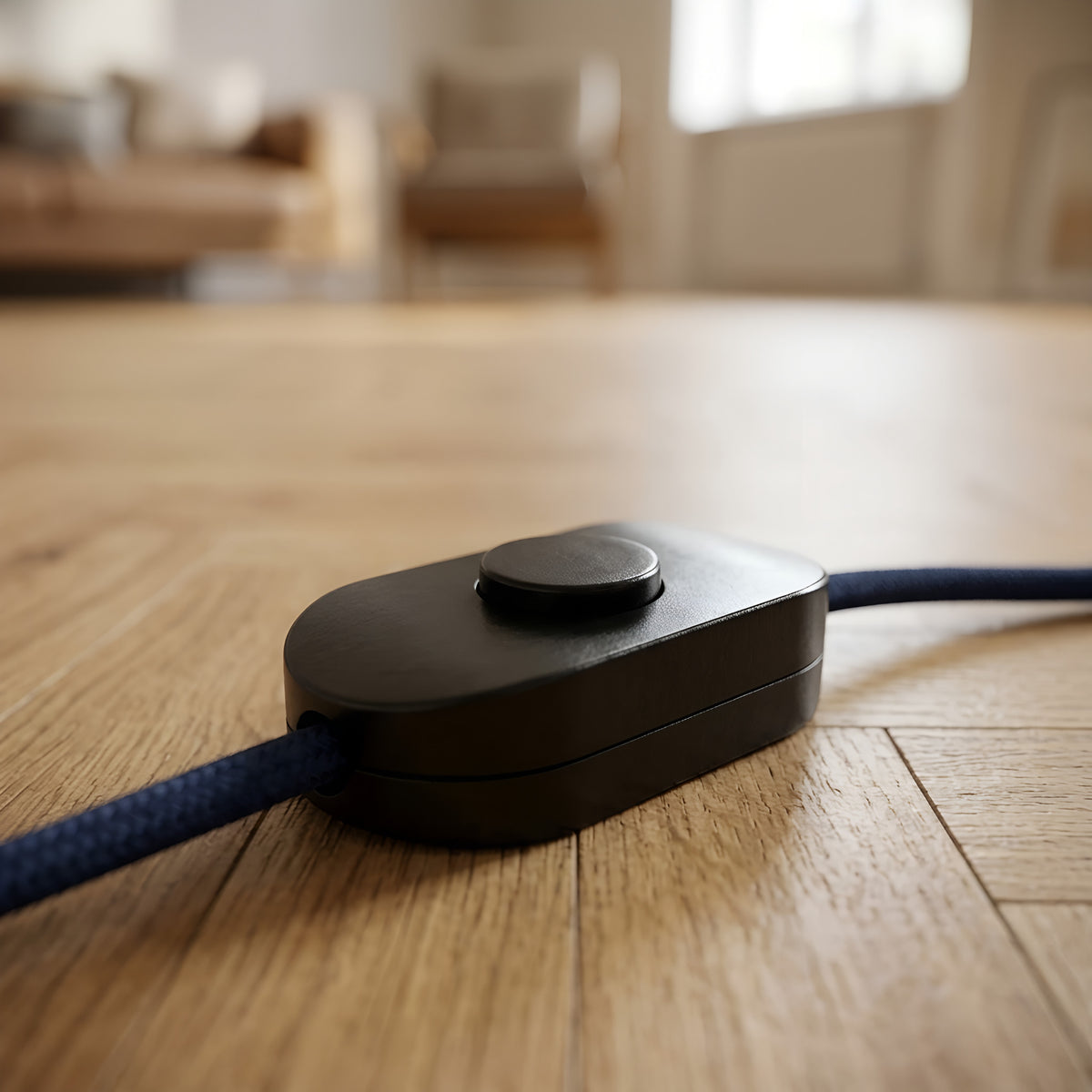

Single-pole black foot switch for floor lamps

Single-pole black foot switch for floor lamps

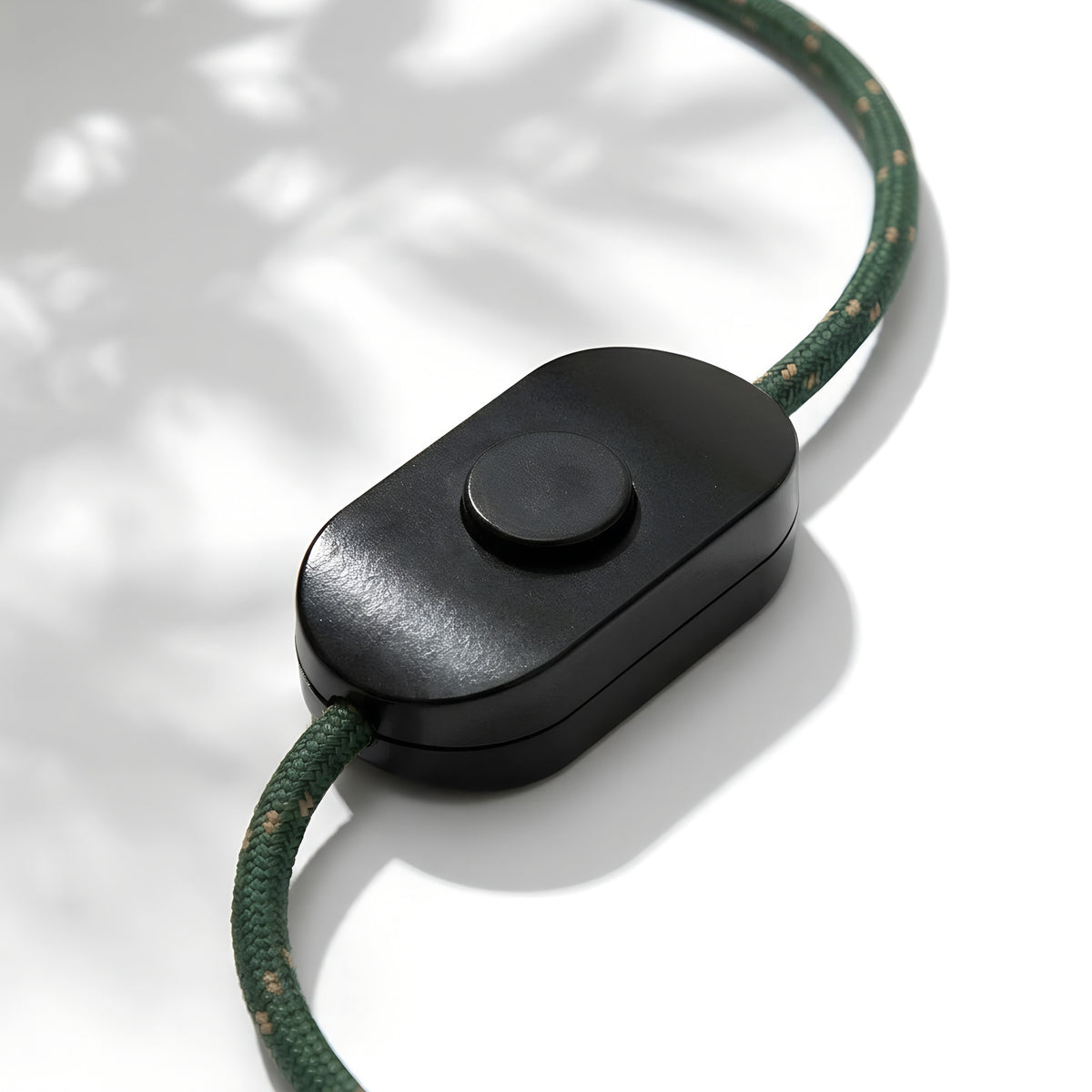

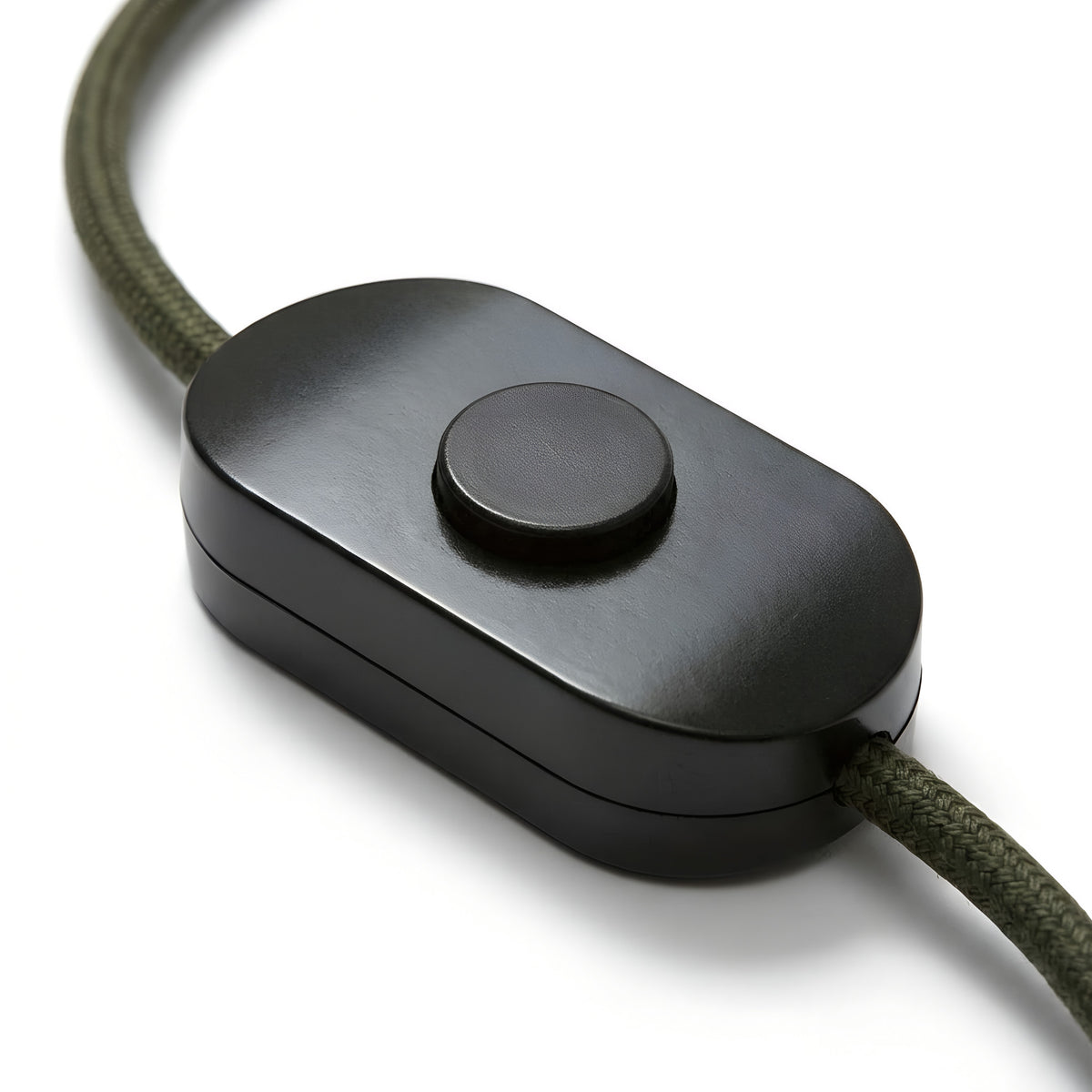

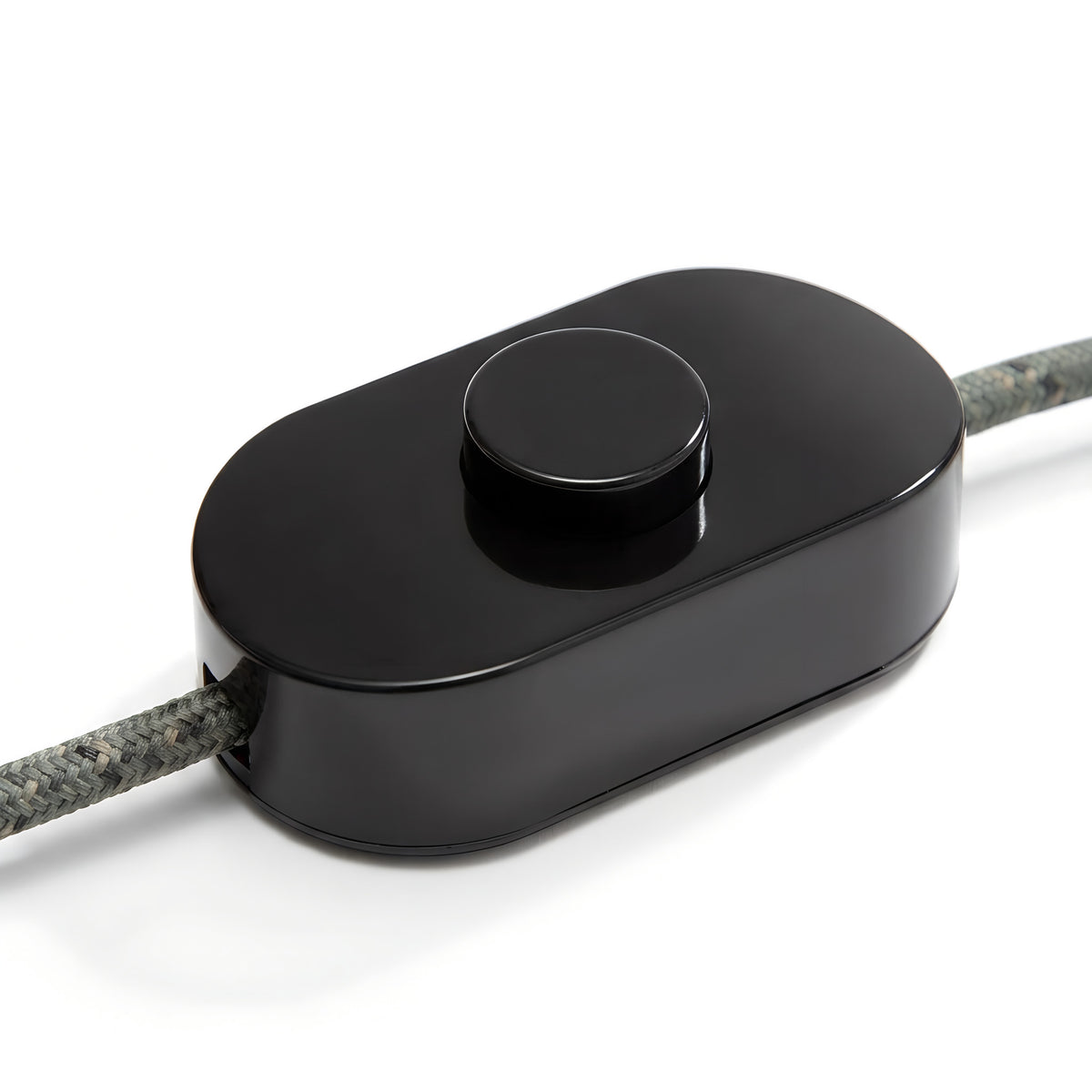

This single-pole foot switch is fitted on the cord of a lamp or floor lamp to turn it on and off with a simple press of the foot. It connects via screw terminals, with two feed-through terminals: the switch breaks the live conductor only, the neutral and earth are not interrupted. Compact, it is easy to fit into a DIY wiring project. Designed by Achille Castiglioni (model 661), it is suitable for new lamp projects as well as for like-for-like replacement of the same model on a design lamp or floor lamp.

Why choose this product?

• Handy foot control to switch on a floor lamp without bending down.
• Connection via screw terminals, easy to wire for any careful DIYer.

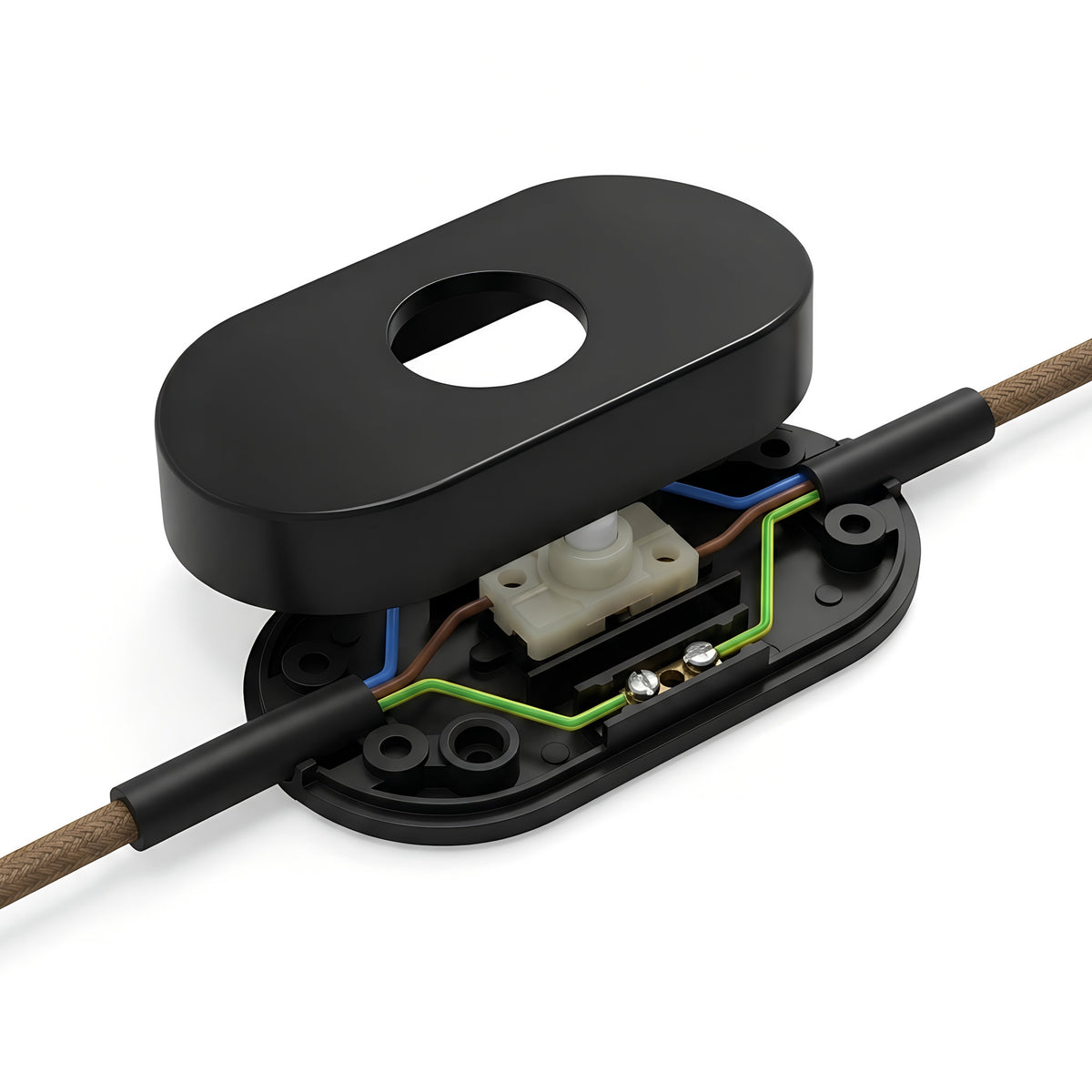

• Two feed-through terminals; only the live conductor is switched, the neutral and earth are not interrupted.
• Compact format (85 x 45 x 25 mm), discreet on the floor.
• Compatible with round and twisted fabric cables 2 and 3 x 0.75 mm².

Technical information

• Type: single-pole foot switch
• Rated voltage / lamp load: 250 V / 2 A
• Material: bakelite

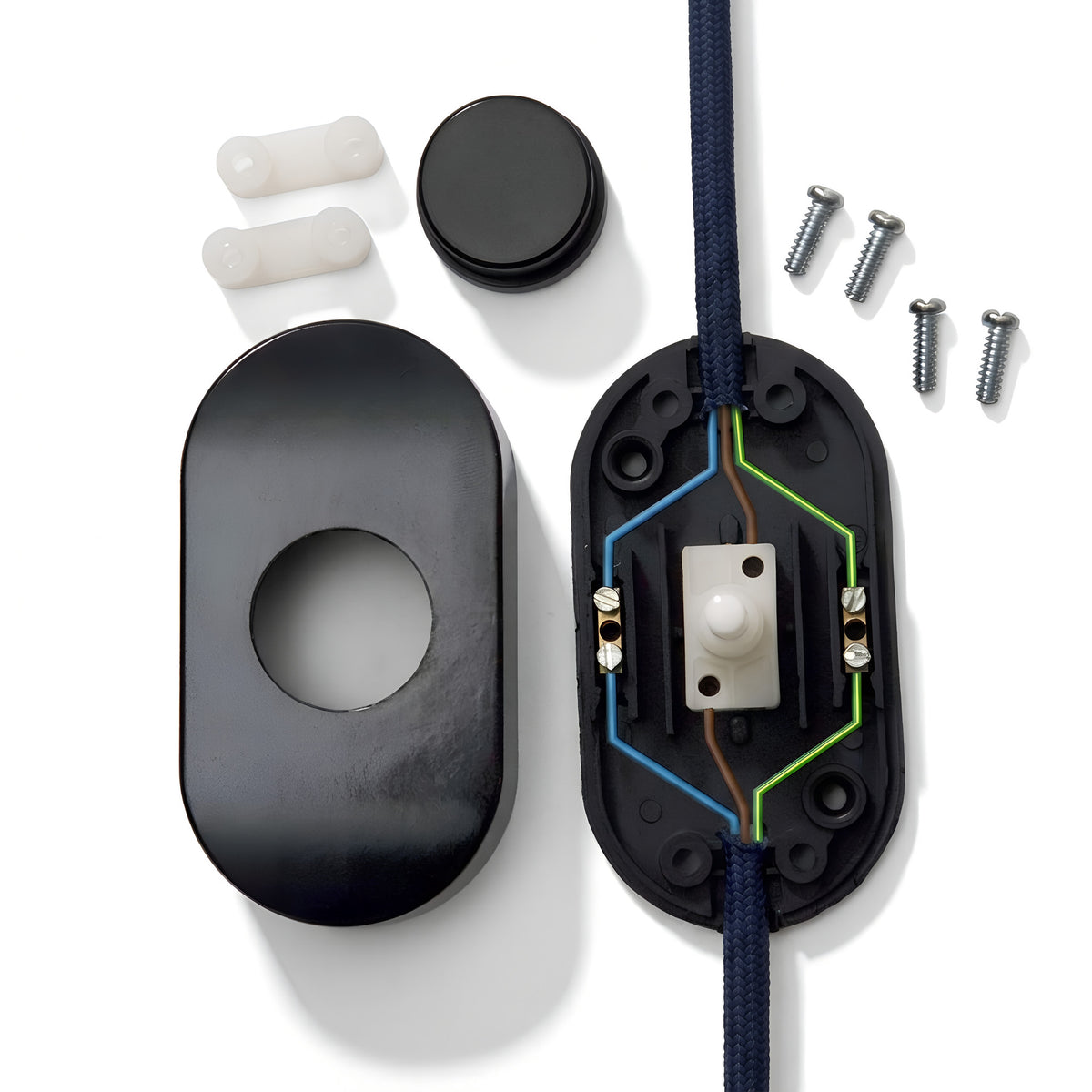

• Connection: screw terminals, screw closure, two feed-through terminals
• Compatible cables: H03VVH2-F, H03VV-F 2 and 3 x 0.75 mm² and H05VVH2-F, H05VV-F 2 and 3 x 0.75 mm²

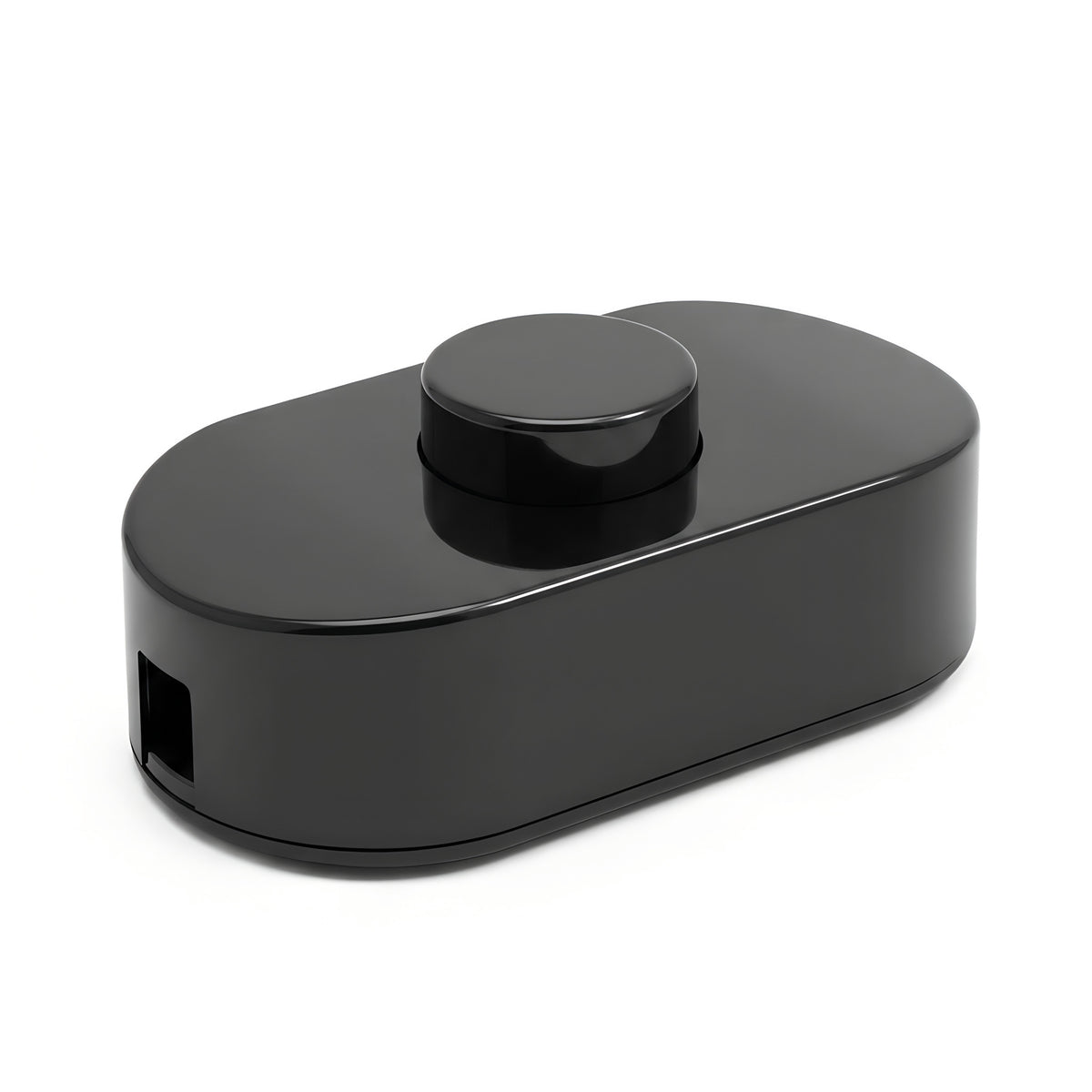

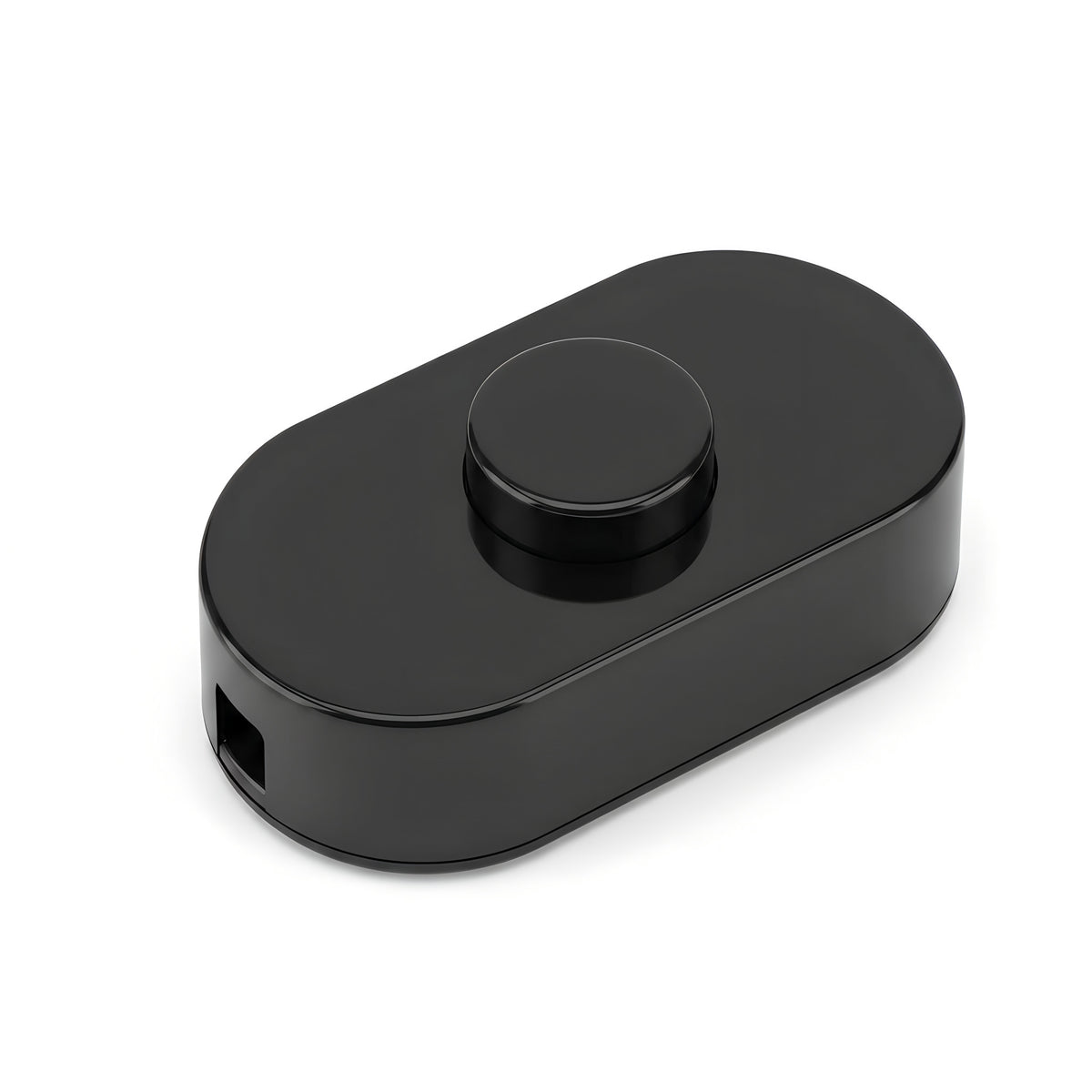

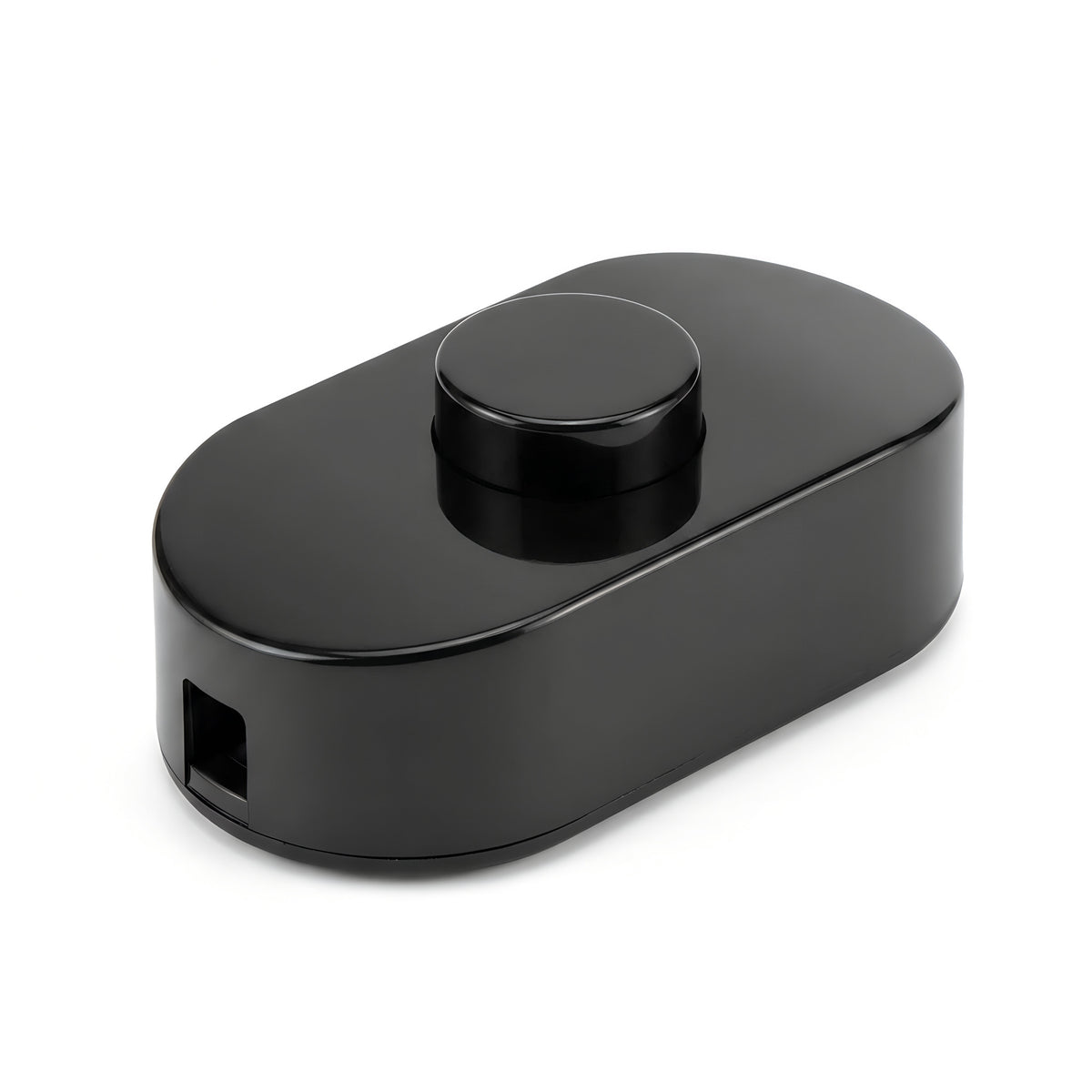

• Dimensions: length (L) 85 mm; depth (D) 45 mm; height (H) 25 mm
• Protection rating: IP20
• Endurance: 1E4 (10,000 operations)

For wiring lamps and floor lamps. Available in black.
