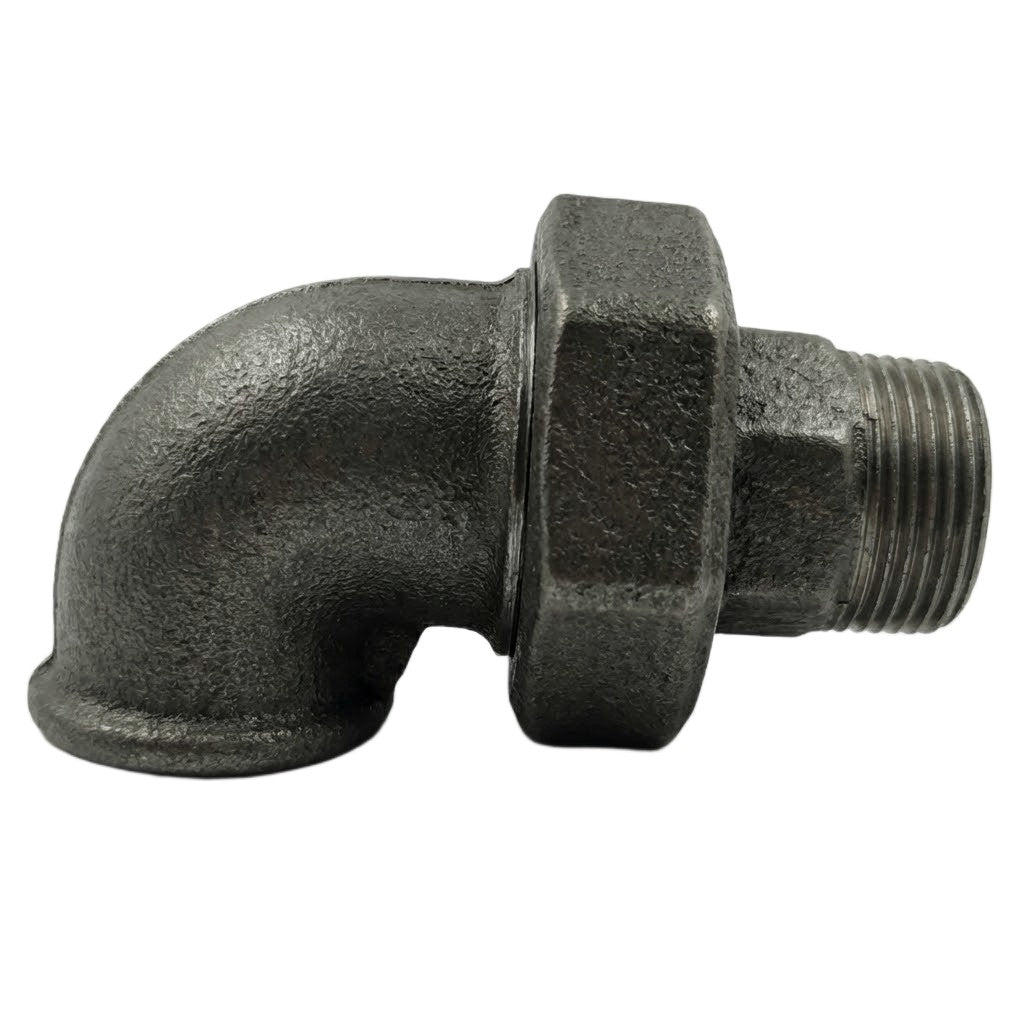

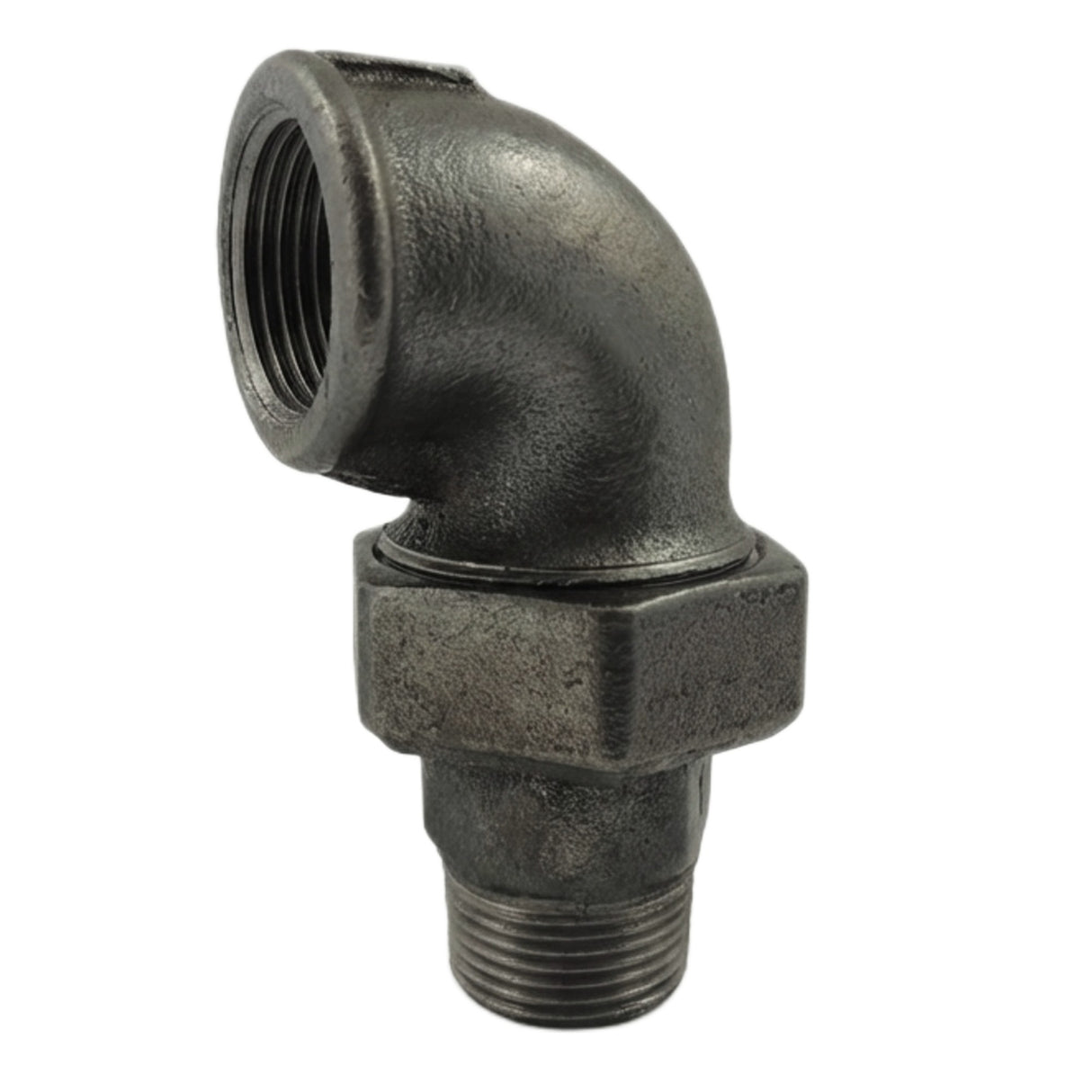

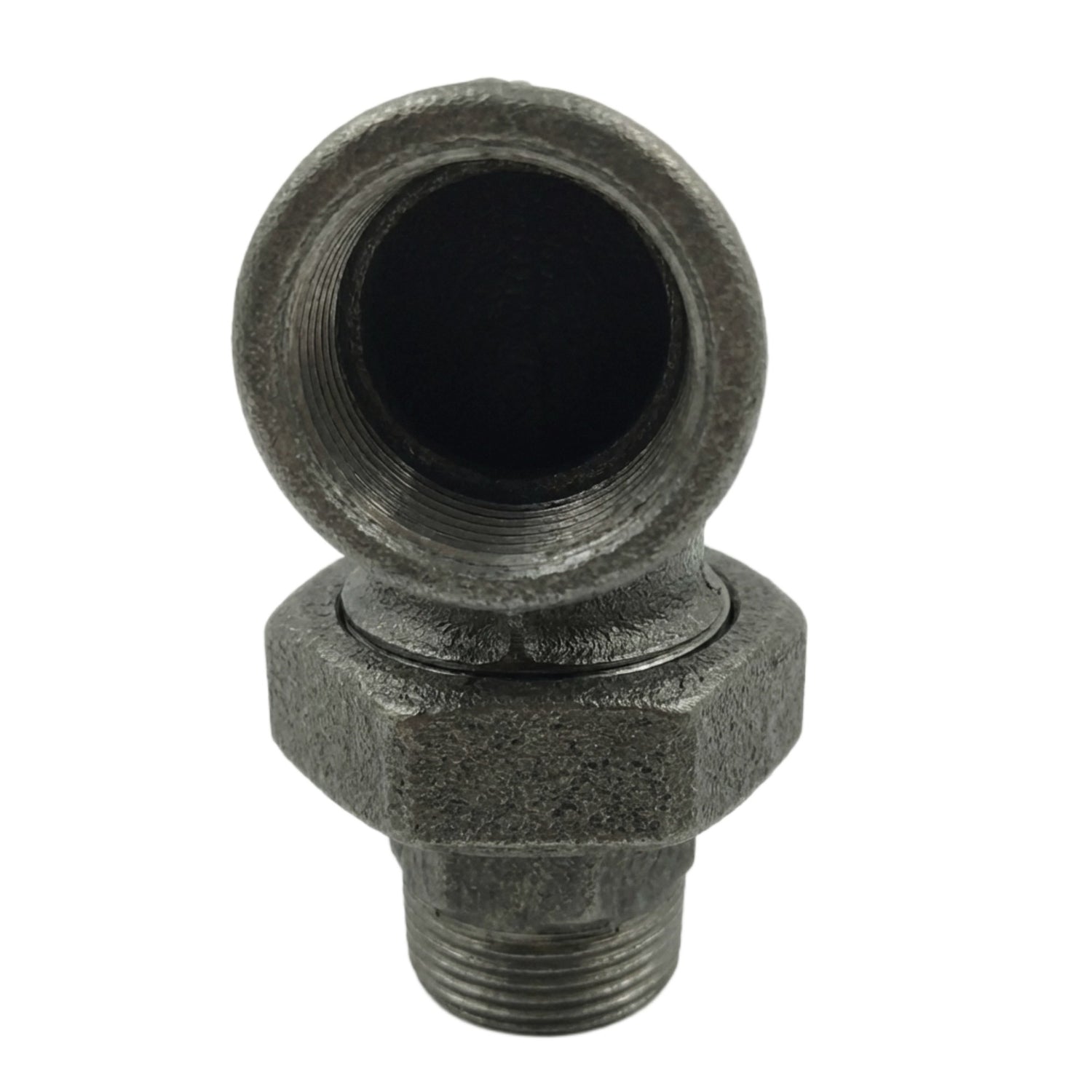

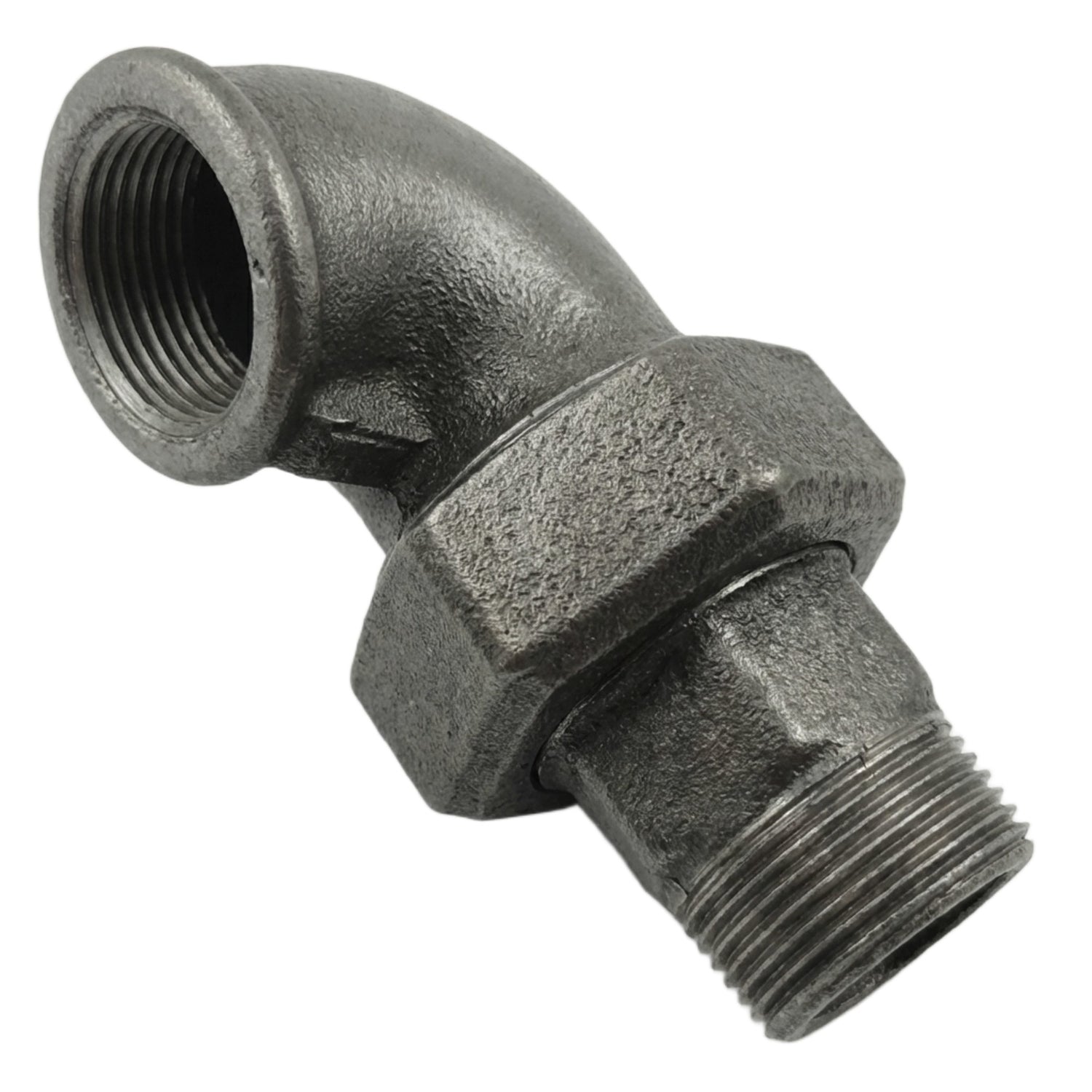

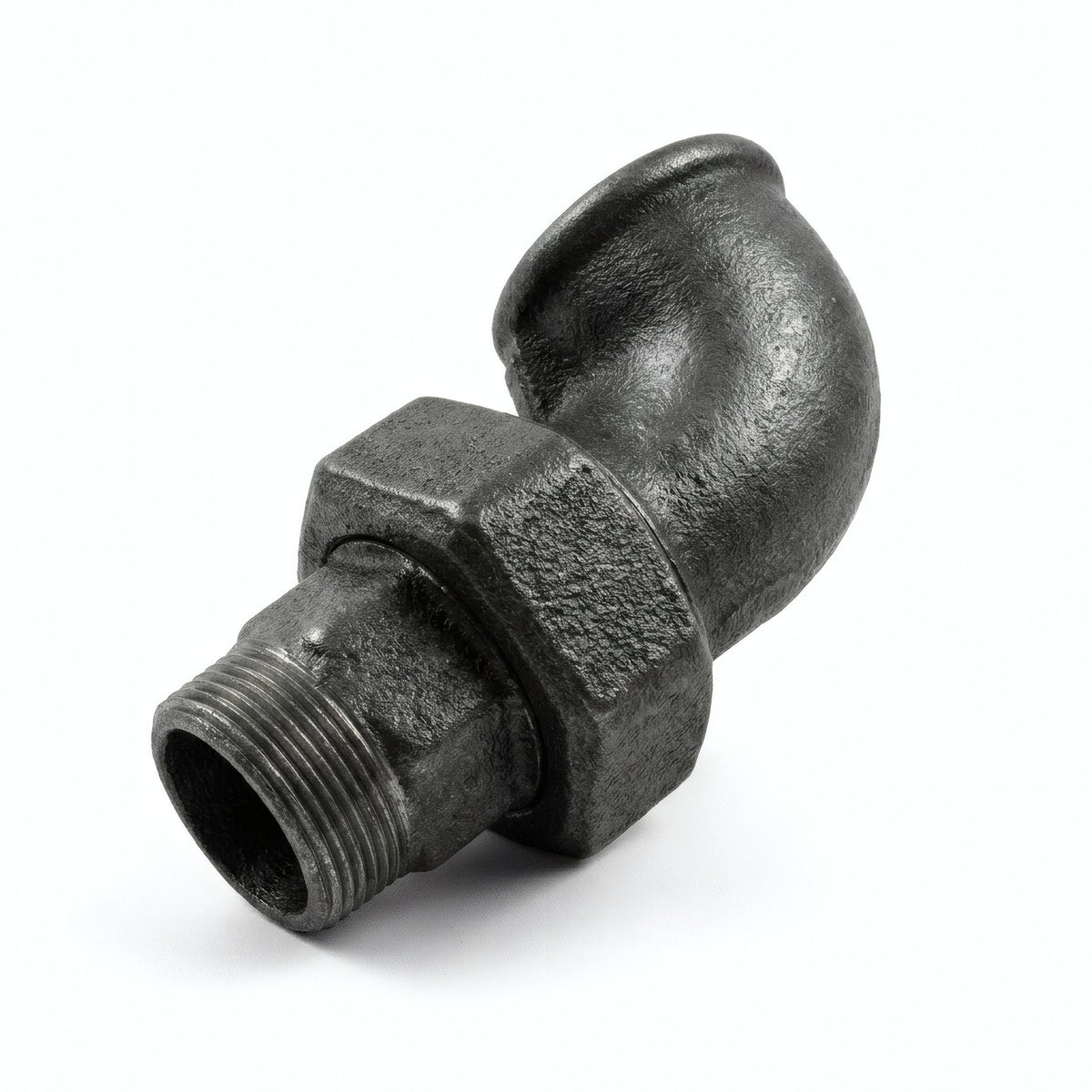

Black Iron 90° M/F Union Elbow
- Material: Black Iron
- Color: Grey / Dark Grey
The 90° Male/Female black iron union elbow is a key element for designing reliable and modular plumbing networks. It combines the function of a change of direction with that of a 3-piece demountable fitting, offering a technical solution for fixed installations requiring easy maintenance.
Why use this black iron union elbow?
Unlike a simple elbow, this "union" model integrates a free nut allowing the two parts of the fitting to be separated. This Male/Female configuration is particularly suitable for:
- Intervening without cutting: It allows you to dismantle a section of piping or replace a device (pump, valve) without having to saw the tubes or dismantle the entire network.
- Adjusting alignment: It facilitates the connection between two fixed pipes or equipment whose threads are not perfectly synchronized for direct screwing.
The essential tip for your Deco & DIY projects
In the creation of industrial furniture (shelves, frames, or table legs), creating a closed structure (square or rectangle) is often impossible with standard fittings: by screwing one side, you unscrew the other.
The union elbow is the technical solution to this problem. Thanks to its three-part system and free nut, it allows you to connect the last corner of your structure without having to turn the pipes. It is the ideal fitting to "loop" your creations cleanly and securely.
Technical Specifications and Standards
- Standardized Design: Manufactured in accordance with EN 10242 and ISO 49 standards. Malleable iron grade EN-GJMW-400-5 (according to EN 1562).
- Standardized Threads:
- Piping connection: ISO 7-1 (BSPT) with Taper Male (R) and Cylindrical Female (Rp) ends.
- Union nut: Gas type conforming to ISO 228-1 (BSPP) standard.
- Reliability: 100% of fittings tested for leak tightness.
Service Conditions
- Max Temperature: 155°C (Water).
- Compatibility: Potable water, wastewater, gas, steam, non-corrosive liquids.

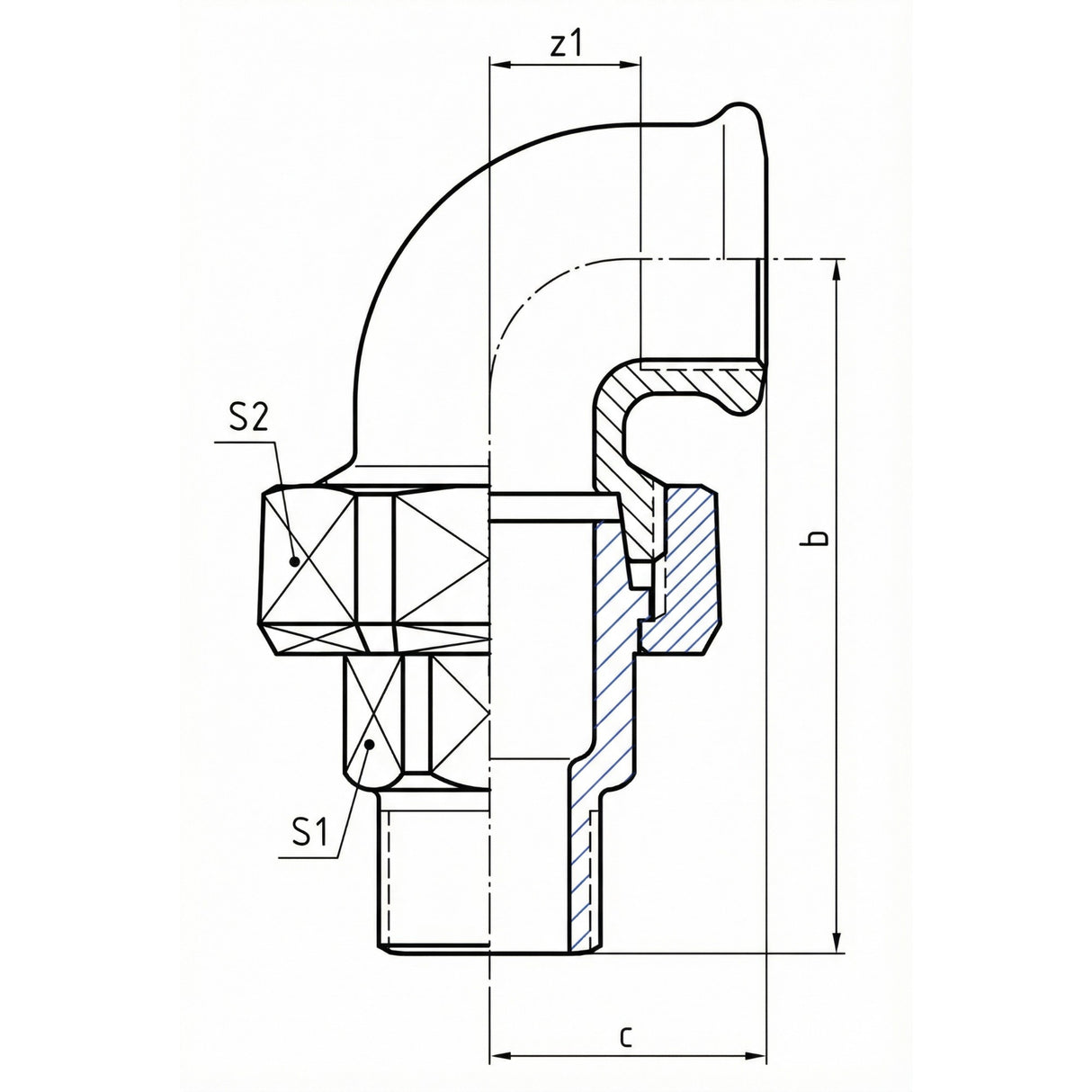

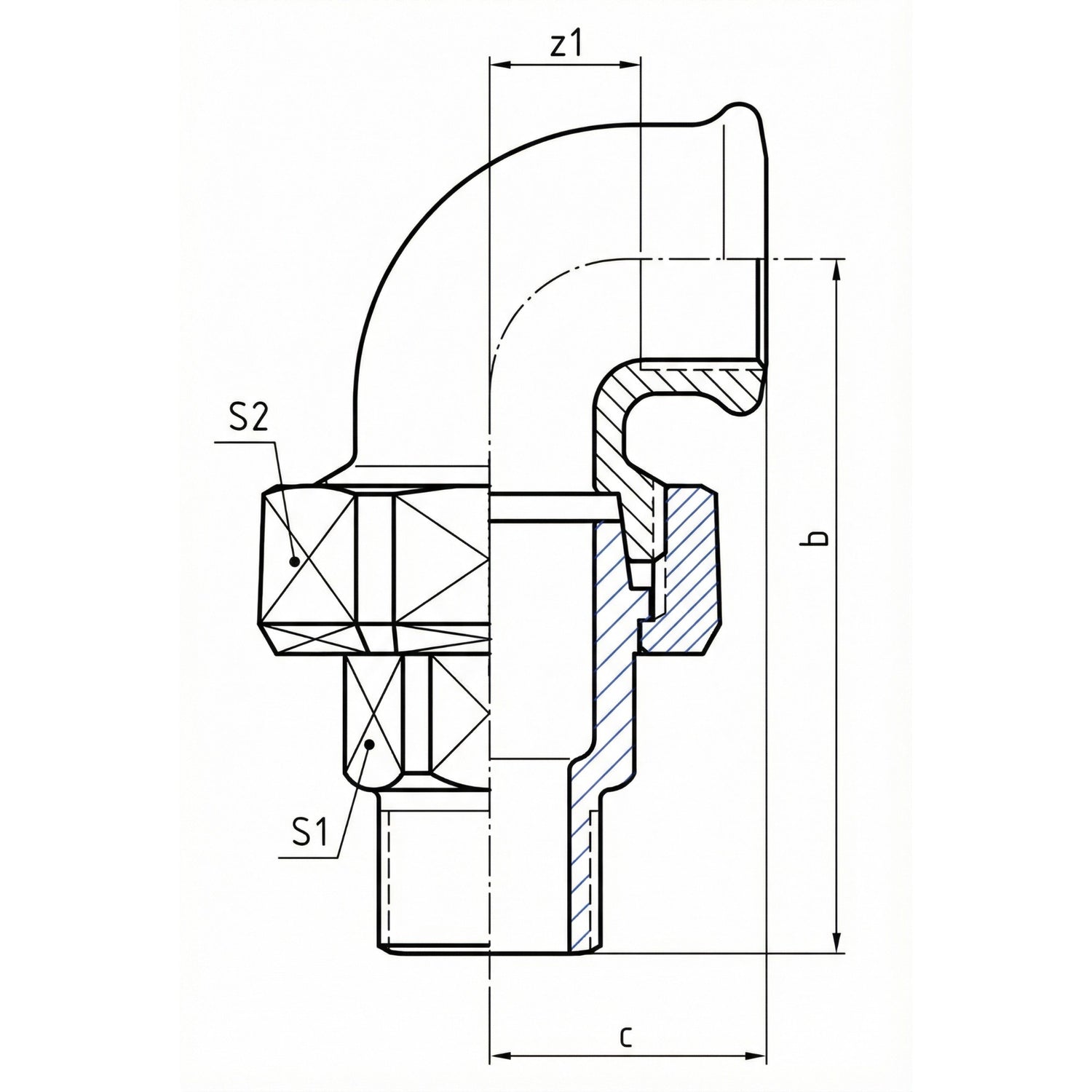

Dimensions and Footprint
Scroll the table horizontally to see all measurements.
| Size | DN | Fitting Ø | b (mm) | c (mm) | z1 (mm) | s1 / s2 (Keys mm) | Est. W (Width O.A.) | Est. H (Height O.A.) |
|---|---|---|---|---|---|---|---|---|
| 1/4" | DN8 | 8×13 | 61 | 21 | 11 | 15 / 28 | 21 | 61 |
| 3/8" | DN10 | 12×17 | 65 | 25 | 15 | 22 / 35 | 25 | 65 |
| 1/2" | DN15 | 15×21 | 76 | 28 | 15 | 26 / 44 | 28 | 76 |
| 3/4" | DN20 | 20×27 | 82 | 33 | 18 | 32 / 48 | 33 | 82 |
| 1" | DN25 | 26×34 | 94 | 38 | 21 | 38 / 54 | 38 | 94 |
| 1"1/4 | DN32 | 33×42 | 107 | 45 | 26 | 48 / 68 | 45 | 107 |
| 1"1/2 | DN40 | 40×49 | 115 | 50 | 31 | 54 / 74 | 50 | 115 |
| 2" | DN50 | 50×60 | 128 | 58 | 34 | 66 / 89 | 58 | 128 |
| 2"1/2 | DN65 | 65×76 | 145 | 70 | 43 | 86 / 110 | 70 | 145 |
| 3" | DN80 | 80×90 | 160 | 78 | 48 | 98 / 130 | 78 | 160 |
Est. H = Dimension b | Est. W = Dimension c. | z1 = Offset
