Brass 90° Elbow F/F

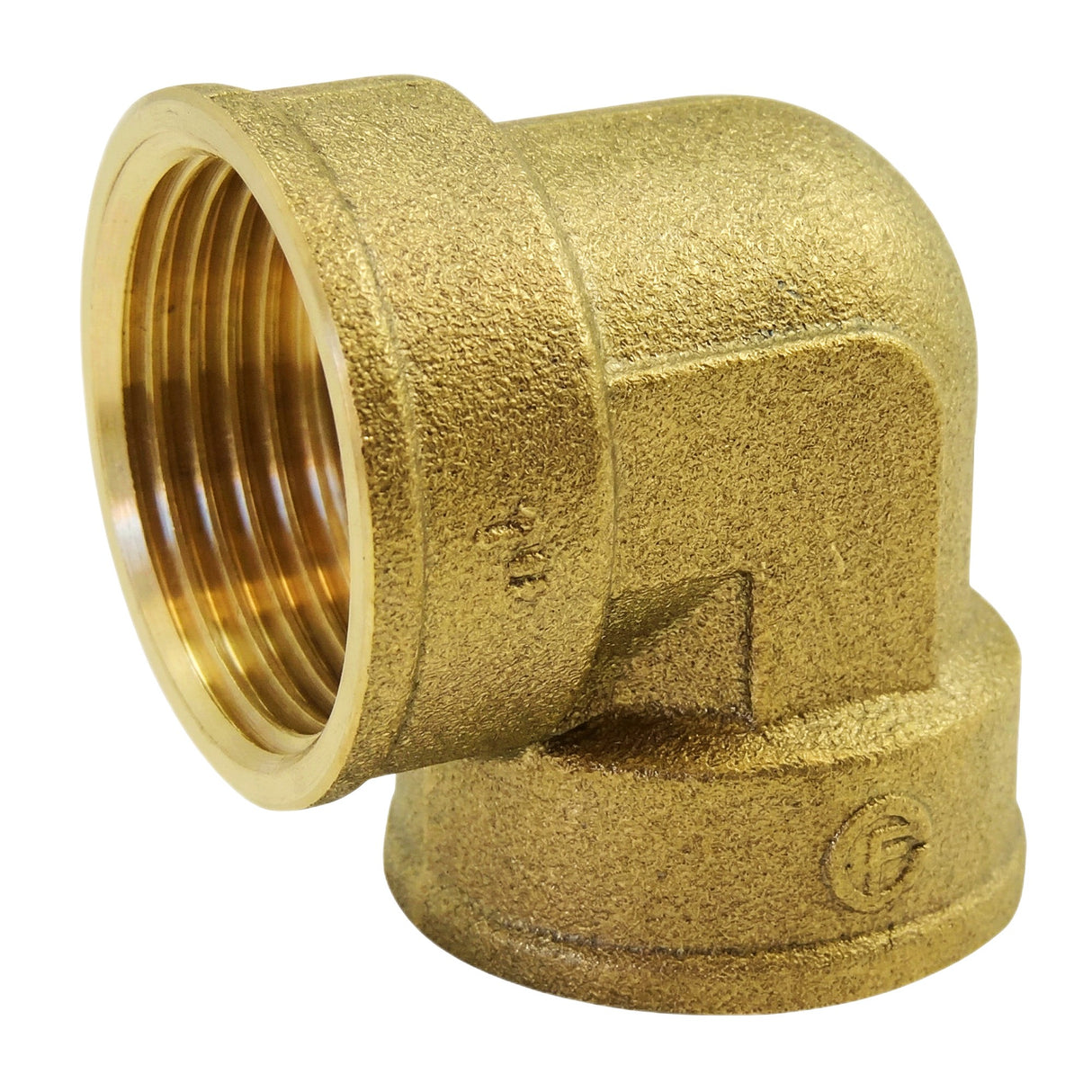

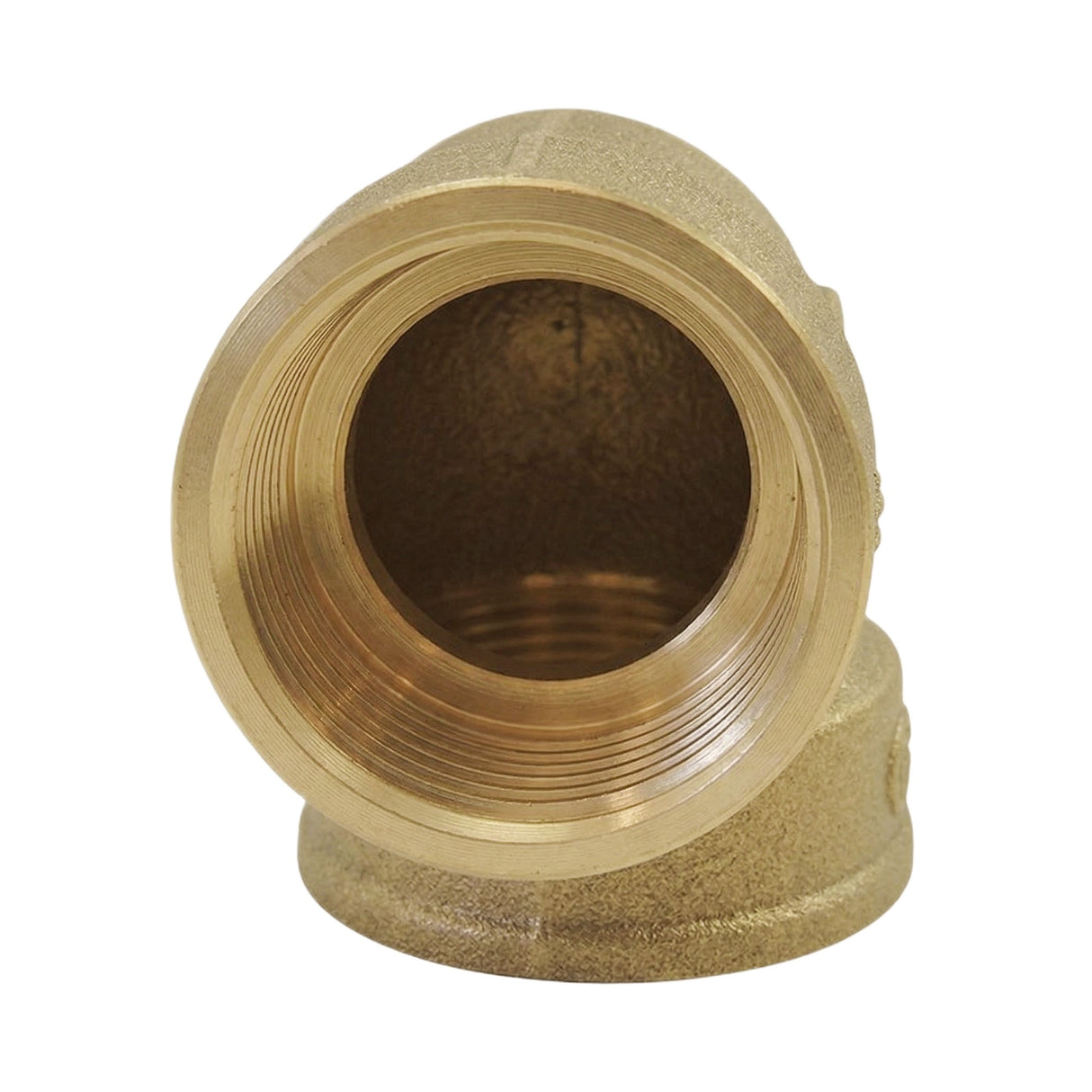

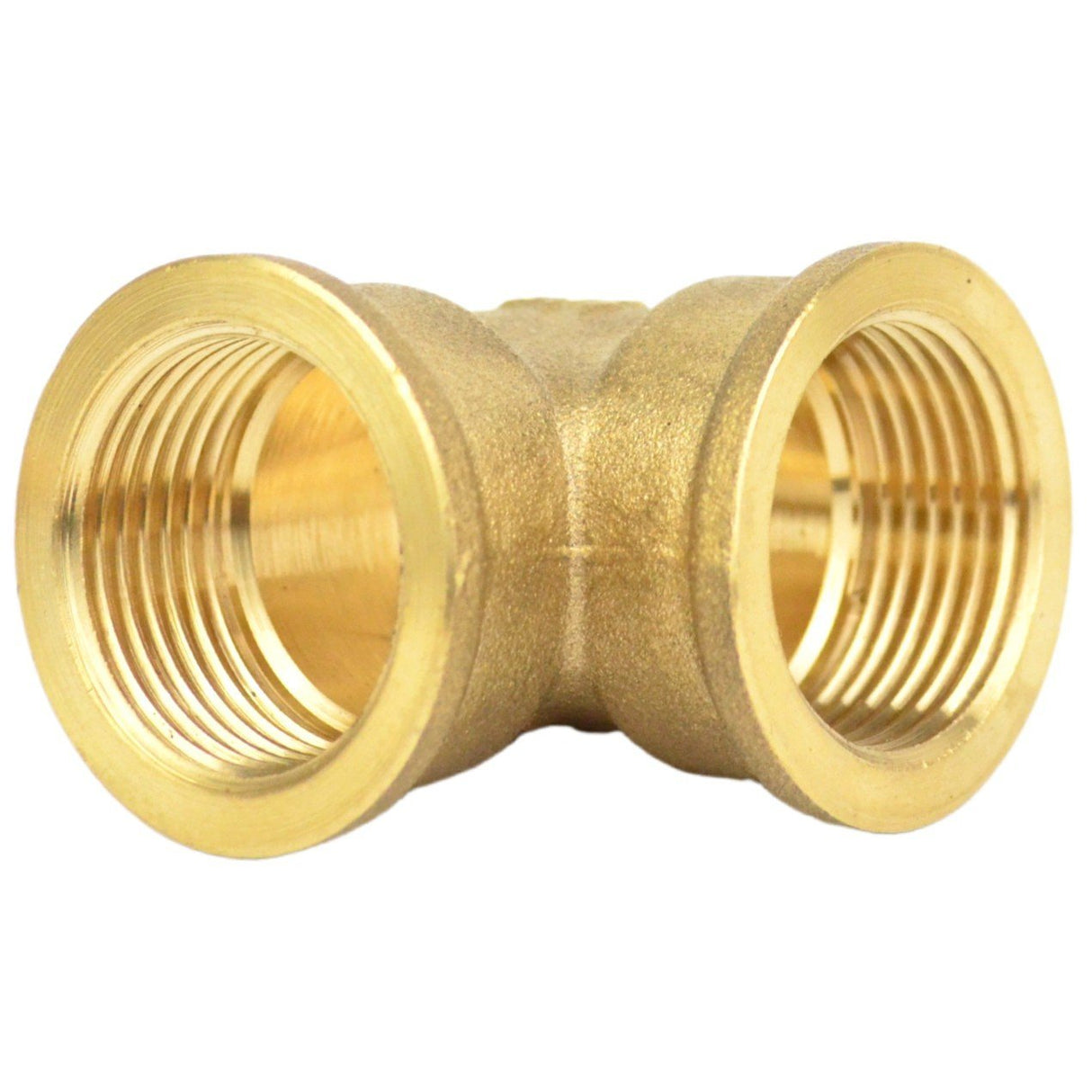

90° female/female brass elbow, screw-in, designed to create a right-angle change of direction in your plumbing or décor installations. Its two tapped inlets connect two threaded (male) components at a 90° angle. Thread compliant with ISO 228-1 BSPP.
Description of the 90° F/F Brass Elbow
This female/female elbow creates a 90° angle between two male threaded pipes or fittings. It is compatible with all the fittings sold on the site, provided they are the same size and have a male (threaded) side. Ideal for getting around an obstacle or changing the direction of a pipe run.
This brass fitting simply screws on, without soldering. Its 6-sided shape makes it easy to tighten with an open-end or adjustable spanner. A part compliant with current standards, suited to technical installations and interior décor projects alike.
Technical Specifications
| Material | Brass CW617N - 4MS |
| Colour | Gold-coloured brass |
| Nominal pressure | PN 16 bar |
| Thread standard | ISO 228-1 - BSPP Gas (parallel thread) |
| Sealing | Guaranteed flat gasket sealing (thickness from 1 mm) |
| Gasket seats | Flat and wide on the female ends |
| Shape | 6-sided hex (spanner tightening) |
| Type | Female / Female (tapped on both sides) |
| Angle | 90° |
| Compatible fluids | Drinking water, glycol water, compatible fluids |
| Temperature | Depending on the type of sealing chosen |
| Application | Drinking water supply, general plumbing, HVAC |
Operating Conditions and Installation
- Operating pressure: PN 16 bar
- Temperature: Depending on the type of sealing chosen
- Fluids: Drinking water, glycol water, compatible fluids
- Installation: Apply moderate tightening torque and choose suitable materials (risk of galvanic corrosion). Wrench flats sized to fit standard spanners.
Certifications and Compliance
- Drinking water: Compliant with the French decree of 25 June 2020 on metallic materials and products intended for installations in contact with water for human consumption.
- 4MS: Compliant with 4MS requirements — Harmonisation of European certification rules for materials and products in contact with drinking water.
Applications and Installation Tips
Uses
- Domestic plumbing: connecting hot and cold water systems
- Industrial plumbing: PN 16 bar compliant installations
- Interior décor: making light fixtures, shelves and towel rails in exposed brass
- DIY and creative projects: custom projects with screw-in fittings
Installation tips
- Use PTFE tape (Teflon) or hemp to ensure sealing on male threads
- For flat gasket seats, use a flat gasket with a minimum thickness of 1 mm
- Tighten with an open-end spanner or an adjustable spanner — do not use slip-joint pliers, to avoid marking the part
- Apply a moderate tightening torque — overtightening can damage the thread
Technical Drawing
Dimensions (mm)
All dimensions are given in millimetres (mm) unless otherwise stated.
| G | G (mm) | OD | L | H | E |
|---|---|---|---|---|---|
| 3/8" | 12x17 | 11 | 8.5 | 18 | 25.5 |
| 1/2" | 15x21 | 14.5 | 10 | 21.5 | 31 |
| 3/4" | 20x27 | 19.5 | 11 | 25 | 37 |
| 1" | 26x34 | 25 | 13 | 30.5 | 45.5 |
| 1"1/4 | 33x42 | 33 | 14 | 36 | 55 |
| 1"1/2 | 40x49 | 39 | 15.5 | 40.75 | 63 |
| 2" | 50x60 | 50 | 17 | 48.5 | 76.5 |
Size Equivalences
This elbow is available in the following sizes. Use this table to find the equivalence between millimetres, inches and DN.
| Size (mm) | 12x17 | 15x21 | 20x27 | 26x34 | 33x42 | 40x49 | 50x60 |
|---|---|---|---|---|---|---|---|
| Inches | 3/8'' | 1/2'' | 3/4'' | 1'' | 1''1/4 | 1''1/2 | 2'' |
| DN | DN10 | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 |
| Outer pipe dia. | 17 mm | 21 mm | 27 mm | 34 mm | 42 mm | 49 mm | 60 mm |

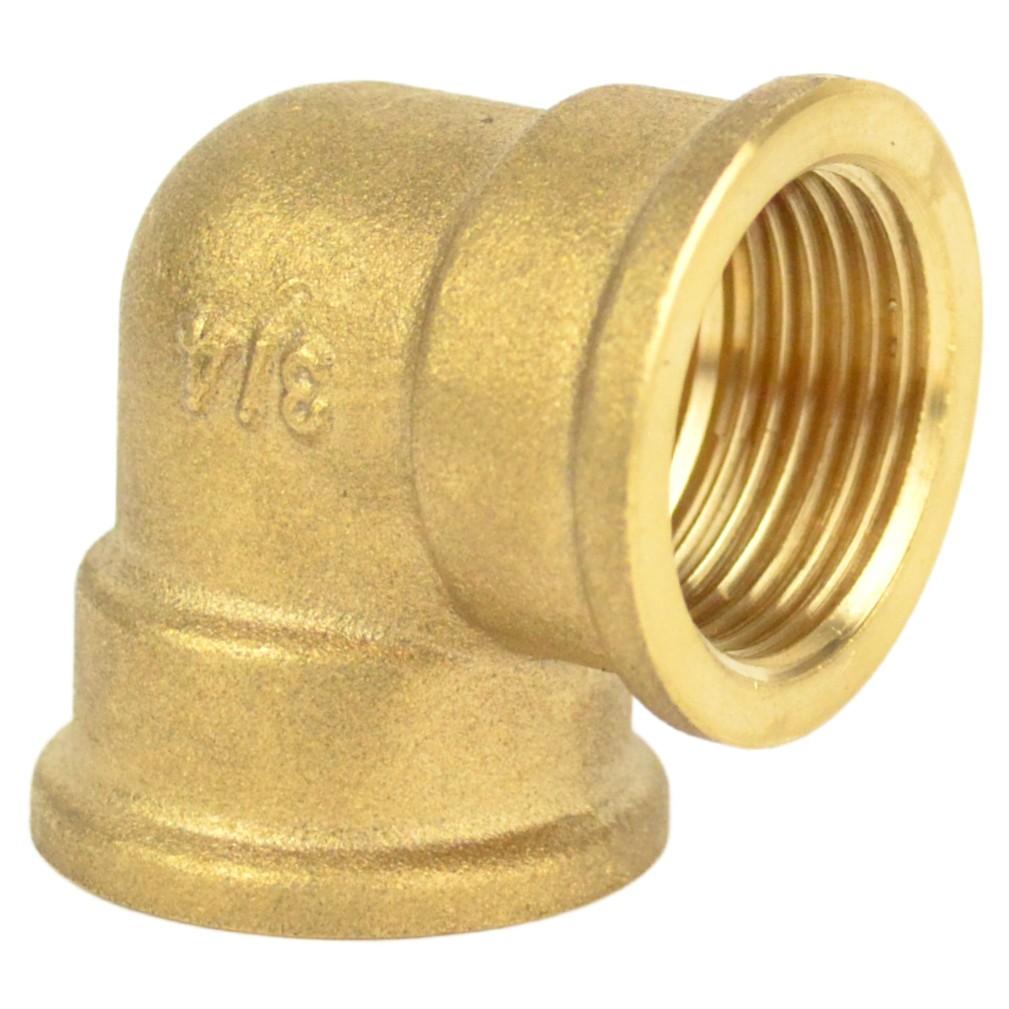

The appearance of the part may vary depending on the batch in stock (see photos). Contact us for confirmation.
