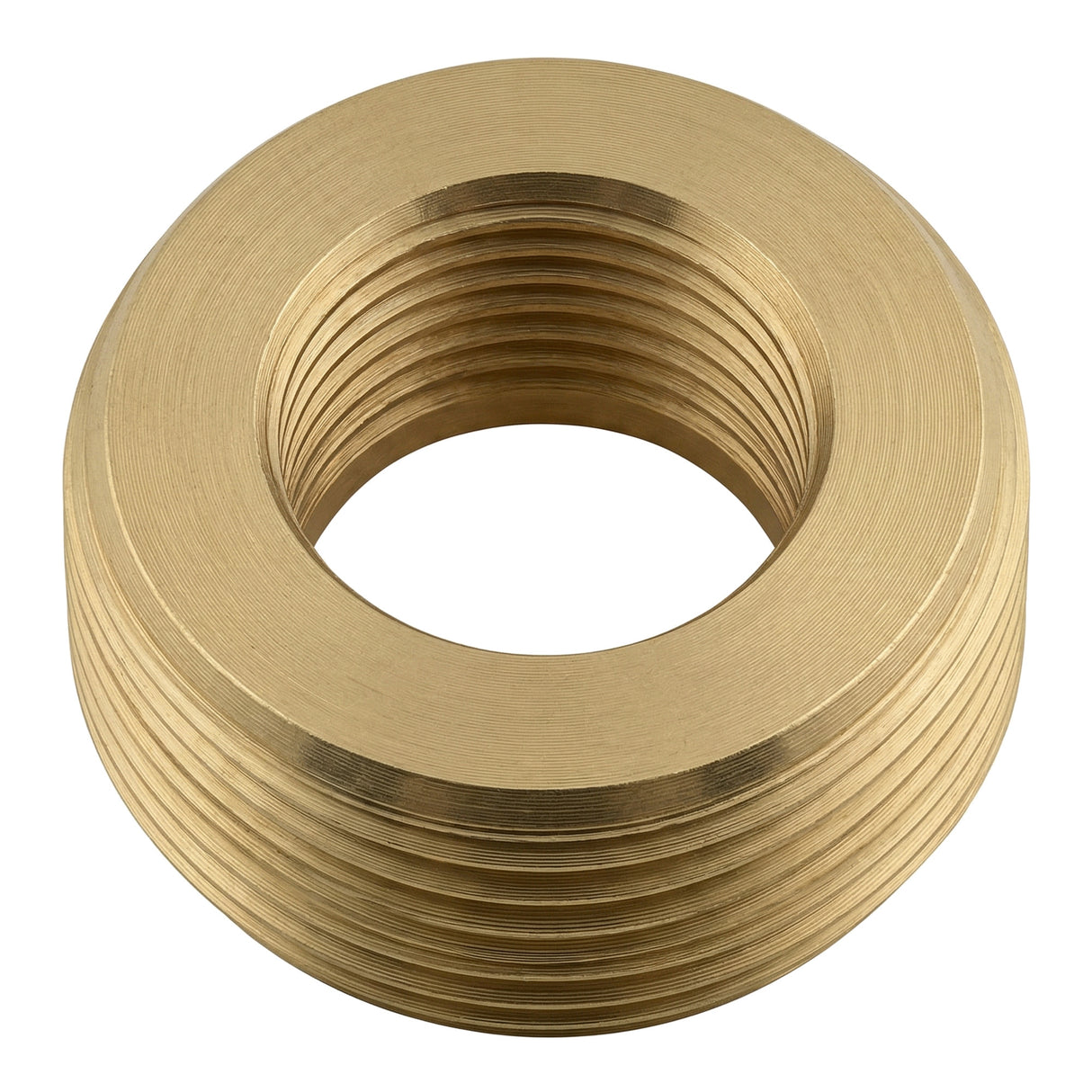

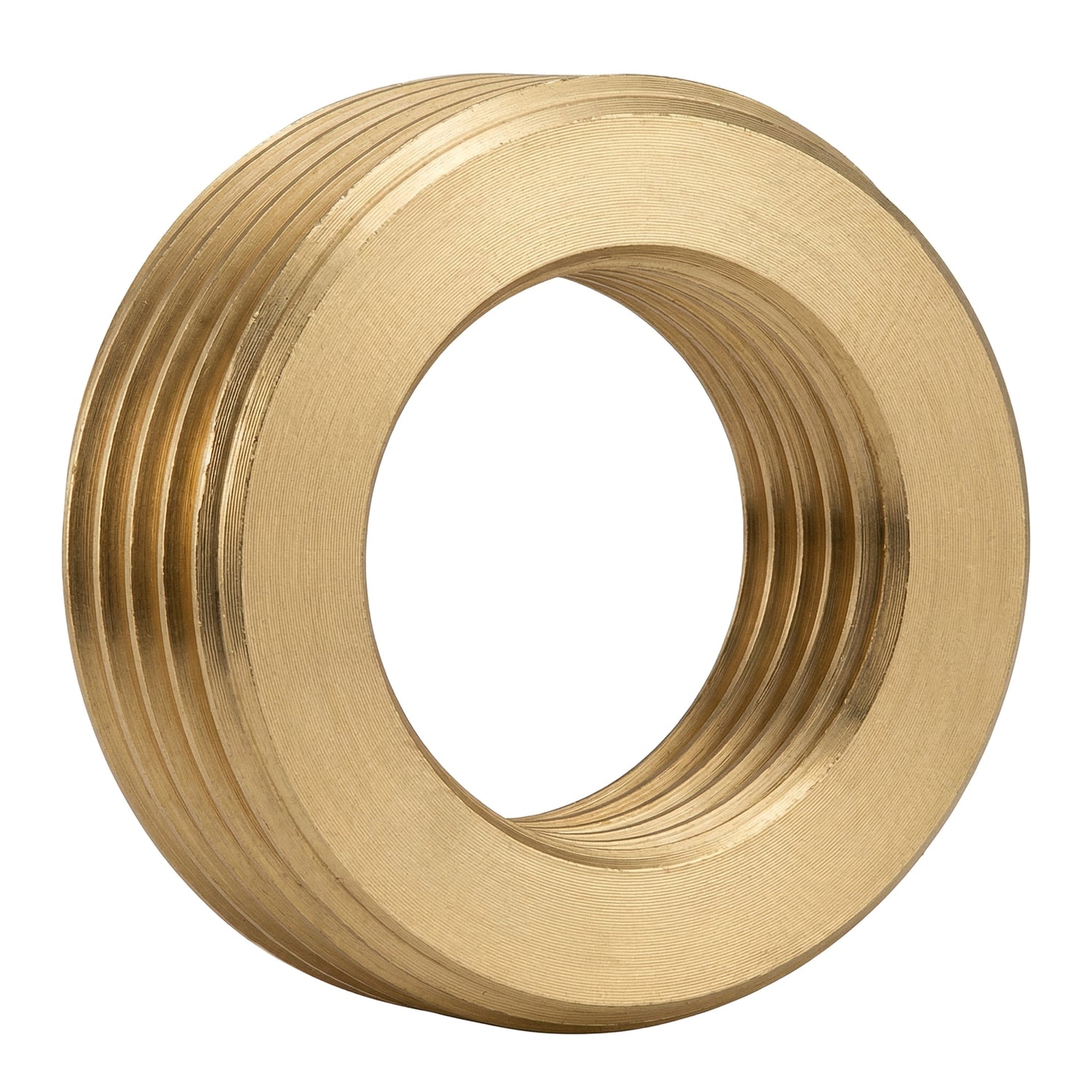

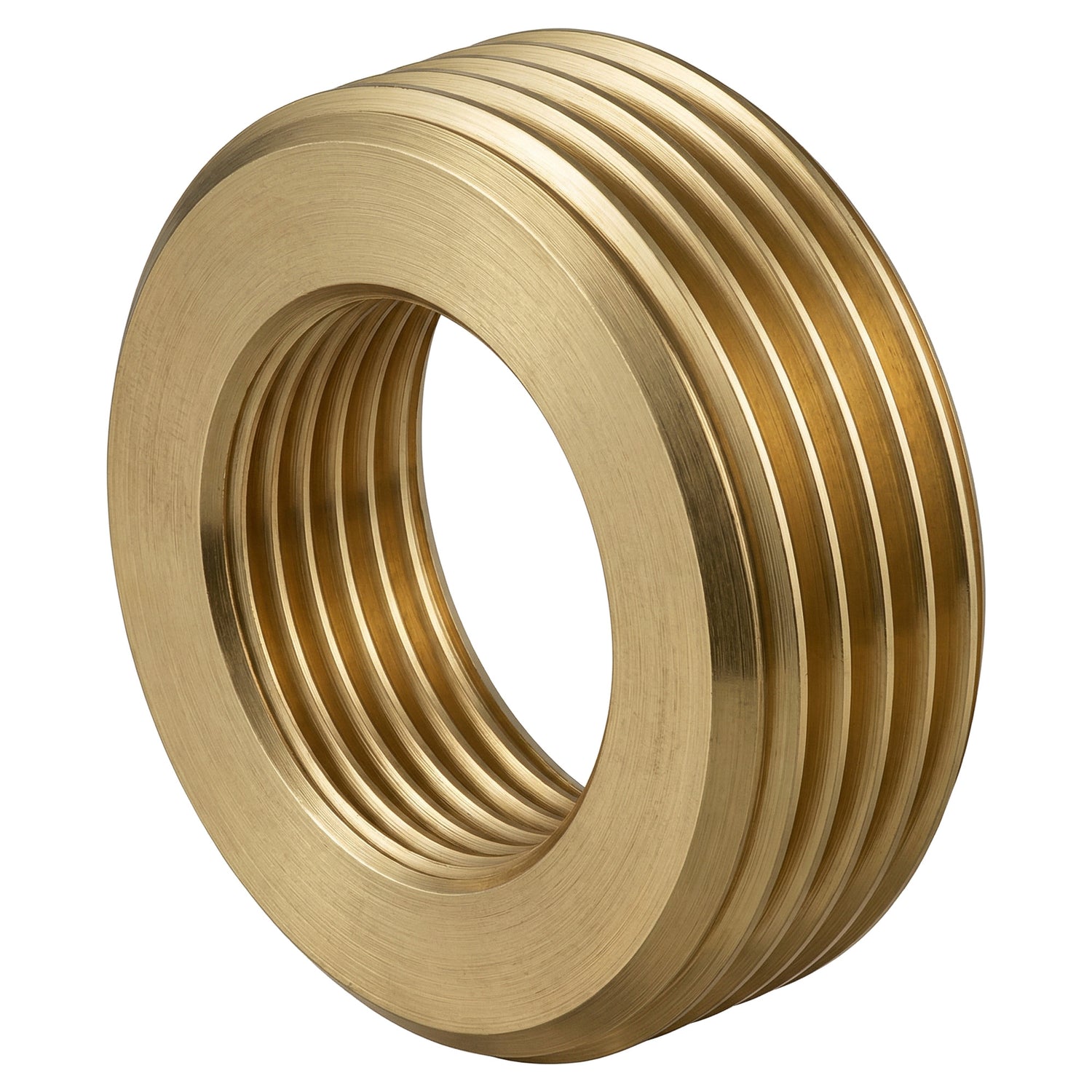

Brass Reducing Bush M/F
Fourrure (bague de reduction) M/F brass screw-in, ultra-compacte, pour réduire ou augmenter le diameter d'un connection. Le male side de petit diameter se screws dans un female fitting, tandis que le female side de plus grand diameter accueille un male fitting. ISO 228-1 BSPP standard.
Description of the Brass Reducing Bush M/F
Cette reducing bush (ou bague de reduction) est un fitting ultra-court qui permet de passer d'un diameter à un autre dans un encombrement minimal. Le male side se screws dans un female fitting existant, et le female side accueille un male fitting de taille différente.
Sa compacité en fait la solution privilégiée lorsque l'espace est limité ou lorsque la discrétion est souhaitée. Contrairement à un manchon réduit ou une reduction classique, la reducing bush n'ajoute quasiment pas de longueur au assembly. Idéale pour les adaptations de diameter en espace restreint.
Technical Characteristics
| Material | Laiton CW617N - 4MS |
| Colour | Golden brass |
| Nominal pressure | PN 16 bar |
| Thread standard | ISO 228-1 - BSPP Gaz (thread cylindrique) |
| Sealing | By flat gasket (thickness from 1 mm) |
| Gasket seats | Flat and wide on male and female ends |
| Shape | 6-sided (wrench tightening) |
| Type | Male (threaded) / Female (threaded) — different diameters |
| Compatible fluids | Drinking water, glycol water, compatible fluids |
| Temperature | Depending on the type of sealing chosen |
| Use | Drinking water supply, general plumbing, HVAC |
Conditions of Use and Installation
- Working pressure : PN 16 bar
- Temperature : Depending on the type of sealing chosen
- Fluids : Drinking water, glycol water, compatible fluids
- Installation : Appliquer un moderate tightening torque et choisir des matériaux adaptés (risque de corrosion galvanique). Plats de maintien adaptés aux clés du marché.
Certifications and Compliance
- Drinking water : Compliant with the decree of 25 June 2020 relating to metallic materials and products intended for installations en contact avec l'eau destinée à la consommation humaine.
- 4MS : Compliant with 4MS requirements — Harmonisation des règles de certification européennes pour les matériaux et produits en contact avec l'eau potable.
Applications and Installation Tips
Uses
- Domestic plumbing : connection d'installations eau chaude et froide
- Industrial plumbing : installations conformes PN 16 bar
- Interior decoration : création de luminaires, étagères, porte-serviettes en exposed brass
- DIY and creative home improvement : projets sur mesure avec fittings à screw
Installation tips
- Utilisez du PTFE tape (téflon) ou de la filasse pour assurer l'sealing sur les threads male
- Pour les portées de flat gasketes, utilisez un flat gasket d'épaisseur minimale 1 mm
- Serrez à la open-end wrench ou adjustable wrench — ne pas utiliser de pince multiprise pour éviter de marquer la pièce
- Appliquer un moderate tightening torque — un tightening excessif peut endommager le thread
Technical Drawing
Dimensions (mm)
All dimensions are expressed in millimetres (mm), unless otherwise stated.
| G1 | G1 (mm) | G2 | G2 (mm) | L1 | L2 | S |
|---|---|---|---|---|---|---|
| 1/8" | 5x10 | 1/4" | 8x13 | 8.5 | 2 | 5 |
| 1/4" | 8x13 | 3/8" | 12x17 | 9.5 | 2.5 | 8 |
| 1/4" | 8x13 | 1/2" | 15x21 | 8.5 | 1.8 | 7 |
| 3/8" | 12x17 | 1/2" | 15x21 | 10 | 1.7 | 10 |
| 3/8" | 12x17 | 3/4" | 20x27 | 10.5 | 2 | 12 |
| 1/2" | 15x21 | 3/4" | 20x27 | 11 | 1.7 | 13 |
| 1/2" | 15x21 | 1" | 26x34 | 11 | 2.6 | 13 |
| 3/4" | 20x27 | 1" | 26x34 | 13 | 2 | 17 |
| 1" | 26x34 | 1"1/4 | 33x42 | 15 | 3 | 23 |
| 1"1/4 | 33x42 | 1"1/2 | 40x49 | 16 | 3 | 23 |
Available Size Combinations
Cette reducing bush de reduction permet de passer d'un diameter à un autre. Le tableau ci-dessous indique les combinaisons disponibles.
| Entrée | Sortie | Notation (mm) |
|---|---|---|
| 1/8'' | 1/4'' | 5x10 > 8x13 |
| 1/4'' | 3/8'' | 8x13 > 12x17 |
| 1/4'' | 1/2'' | 8x13 > 15x21 |
| 3/8'' | 1/2'' | 12x17 > 15x21 |
| 3/8'' | 3/4'' | 12x17 > 20x27 |
| 1/2'' | 3/4'' | 15x21 > 20x27 |
| 1/2'' | 1'' | 15x21 > 26x34 |
| 3/4'' | 1'' | 20x27 > 26x34 |
| 1'' | 1''1/4 | 26x34 > 33x42 |
| 1''1/4 | 1''1/2 | 33x42 > 40x49 |
The appearance of the part may vary depending on the batch in stock (see photos). Contact us for confirmation.
