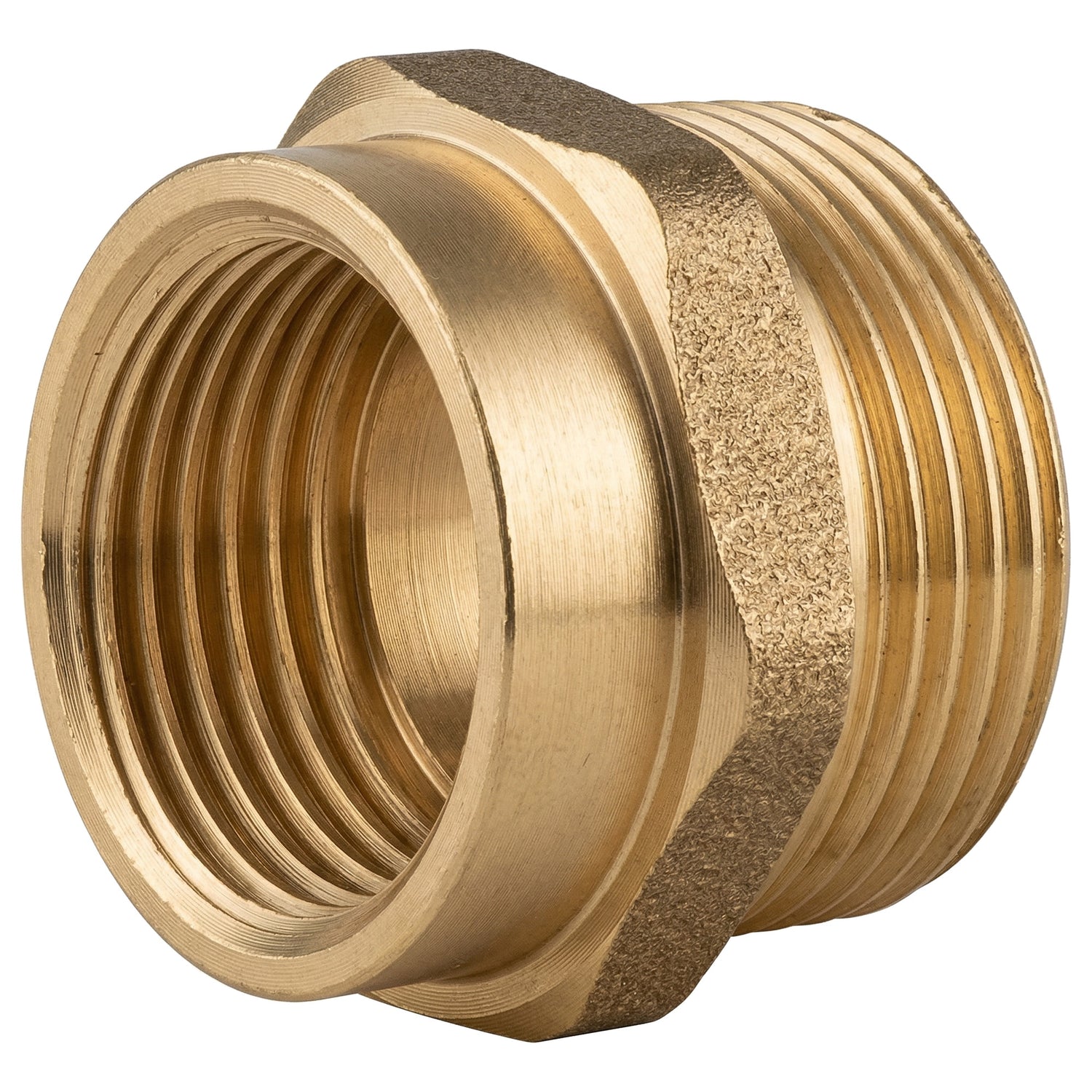

Brass Reducing Nipple M/F
Brass M/F reducing nipple threaded fitting with a small diameter male (externally threaded) end and a larger diameter female (internally threaded) end. This fitting provides diameter increase while changing the connection gender. ISO 228-1 BSPP standard.
Description of the Brass M/F Reducing Nipple
This M/F reducing nipple combines a small diameter male thread and a female thread of larger diameter. It allows connecting a small female element to a large male element, performing a diameter increase.
This fitting is the reverse of the standard F/M reducing nipple and provides a complementary solution for assemblies requiring upward size transitions. Assembly without soldering, body with hexagonal shape.
Technical Specifications
| Material | Brass CW617N - 4MS |
| Colour | Golden brass |
| Nominal pressure | PN 16 bar |
| Thread standard | ISO 228-1 - BSPP Gas (parallel thread) |
| Sealing | Guaranteed by flat gasket (thickness from 1 mm) |
| Gasket seats | Flat and wide on male and female ends |
| Shape | Hexagonal (wrench tightening) |
| Gender | Male (threaded) / Female (tapped) — different diameters |
| Compatible fluids | Drinking water, glycol water, compatible fluids |
| Temperature | Depends on the type of sealing chosen |
| Application | Drinking water supply, general plumbing, HVAC |
Operating Conditions and Installation
- Operating pressure: PN 16 bar
- Temperature : Depending on the type of seal chosen
- Fluids: Drinking water, glycol water, compatible fluids
- Installation: Apply moderate tightening torque and choose suitable materials (risk of galvanic corrosion). Flats sized for standard wrenches.
Certifications and Compliance
- Drinking water: Compliant with the French decree of 25 June 2020 on metallic materials and products intended for installations in contact with water for human consumption.
- 4MS: Compliant with 4MS requirements — Harmonisation of European certification rules for materials and products in contact with drinking water.
Applications and Installation Tips
Applications
- Domestic plumbing: connecting hot and cold water installations
- Industrial plumbing: PN 16 bar compliant installations
- Interior design: creation of light fixtures, shelves, towel racks in exposed brass
- DIY and creative projects: custom projects with threaded fittings
Installation tips
- Use PTFE tape (Teflon) or hemp to ensure sealing on male threads
- For flat gasket seats, use a flat gasket with a minimum thickness of 1 mm
- Tighten with an open-end wrench or adjustable wrench — do not use pliers to avoid marking the fitting
- Apply moderate tightening torque — overtightening may damage the thread
Technical Drawing
Dimensions (mm)
All dimensions are expressed in millimetres (mm), unless otherwise stated.
| G1 | G1 (mm) | G2 | G2 (mm) | OD | L1 | L2 | E |
|---|---|---|---|---|---|---|---|
| 1/4" | 8x13 | 1/8" | 5x10 | 5.5 | 8 | 6 | 15.5 |
| 3/8" | 12x17 | 1/8" | 5x10 | 5.5 | 8.5 | 6 | 16 |
| 3/8" | 12x17 | 1/4" | 8x13 | 8.5 | 8.5 | 8 | 18.5 |
| 1/2" | 15x21 | 1/4" | 8x13 | 8.5 | 10 | 8 | 20 |
| 1/2" | 15x21 | 3/8" | 12x17 | 11 | 10 | 8.5 | 20.5 |
| 3/4" | 20x27 | 1/4" | 8x13 | 8.5 | 11 | 8 | 21 |
| 3/4" | 20x27 | 3/8" | 12x17 | 11 | 11 | 8.5 | 21.5 |
| 3/4" | 20x27 | 1/2" | 15x21 | 14.5 | 11 | 10 | 23 |
| 1" | 26x34 | 1/2" | 15x21 | 14.5 | 13 | 10 | 25 |
| 1" | 26x34 | 3/4" | 20x27 | 19.5 | 13 | 11 | 26 |
| 1"1/4 | 33x42 | 3/4" | 20x27 | 19.5 | 14 | 11 | 27 |
| 1"1/4 | 33x42 | 1" | 26x34 | 25 | 14 | 13 | 29.5 |
| 1"1/2 | 40x49 | 1" | 26x34 | 25 | 15.5 | 13 | 31 |
| 1"1/2 | 40x49 | 1"1/4 | 33x42 | 33 | 15.5 | 14 | 32 |
| 2" | 50x60 | 1"1/4 | 33x42 | 33 | 17 | 14 | 33.5 |
| 2" | 50x60 | 1"1/2 | 40x49 | 39 | 17 | 15.5 | 35.5 |
Available Size Combinations
This reducing nipple allows transition from one diameter to another. The table below shows the available combinations.
| Inlet | Outlet | Notation (mm) |
|---|---|---|
| 1/8'' | 1/4'' | 5x10 > 8x13 |
| 1/8'' | 3/8'' | 5x10 > 12x17 |
| 1/4'' | 3/8'' | 8x13 > 12x17 |
| 1/2'' | 1/4'' | 15x21 > 8x13 |
| 3/8'' | 1/2'' | 12x17 > 15x21 |
| 1/4'' | 3/4'' | 8x13 > 20x27 |
| 3/8'' | 3/4'' | 12x17 > 20x27 |
| 1/2'' | 3/4'' | 15x21 > 20x27 |
| 1/2'' | 1'' | 15x21 > 26x34 |
| 3/4'' | 1'' | 20x27 > 26x34 |
| 3/4'' | 1''1/4 | 20x27 > 33x42 |
| 1'' | 1''1/4 | 26x34 > 33x42 |
| 1'' | 1''1/2 | 26x34 > 40x49 |
| 1''1/4 | 1''1/2 | 33x42 > 40x49 |
| 1''1/4 | 2'' | 33x42 > 50x60 |
| 1''1/2 | 2'' | 40x49 > 50x60 |
The appearance of the fitting may vary depending on the batch in stock (see photos). Contact us for confirmation.
