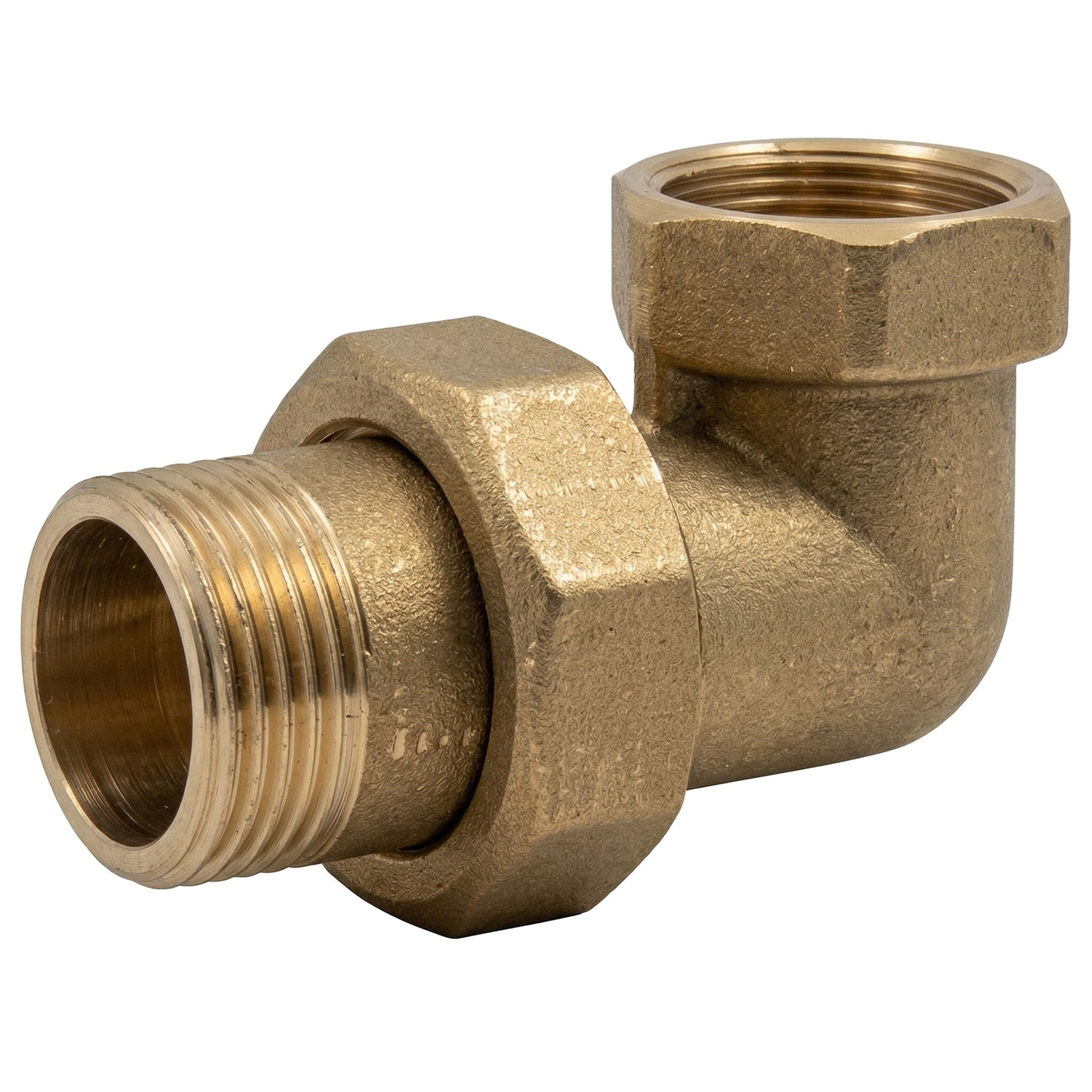

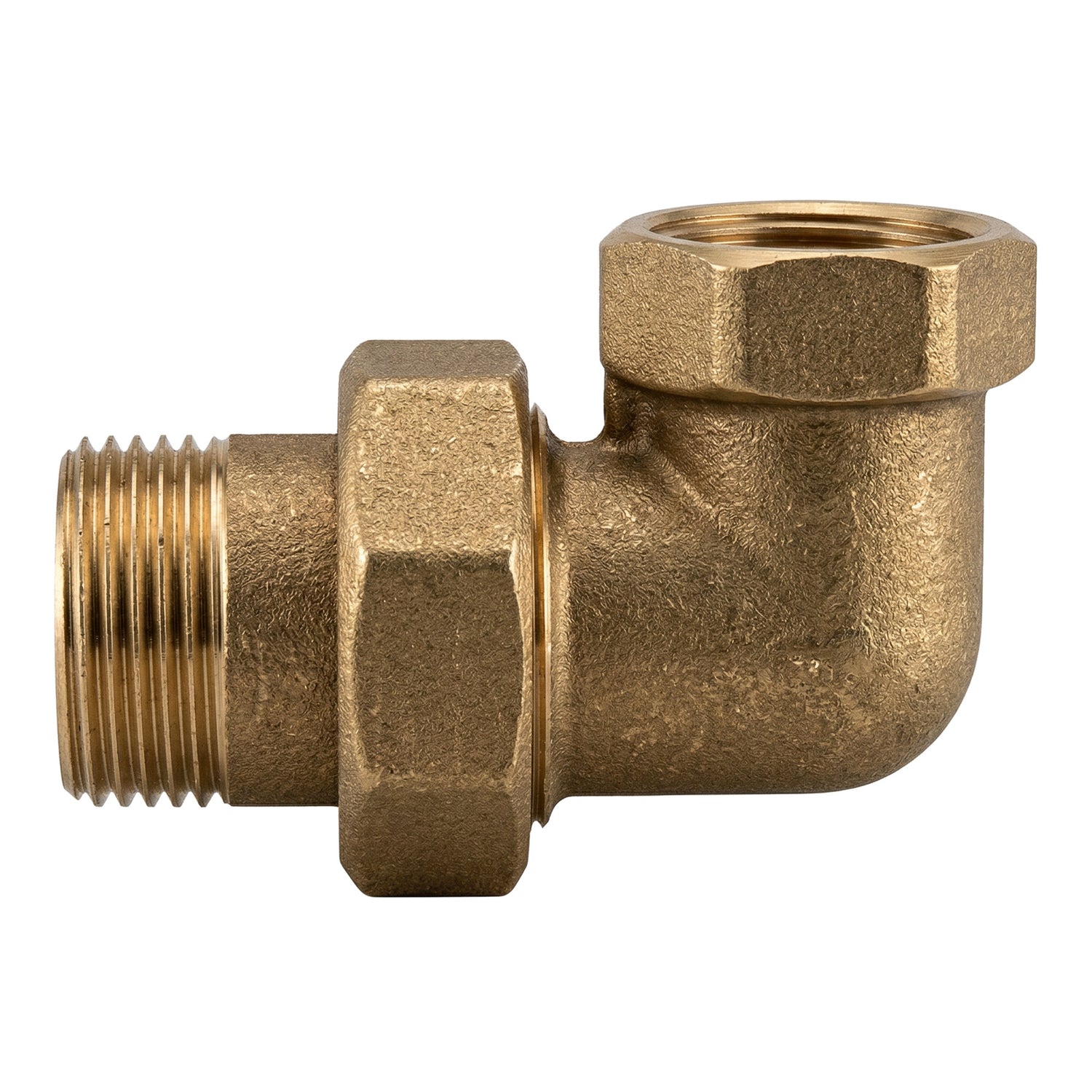

Brass Union Elbow M/F
Raccord union coude M/F brass, combinant un coude à 90° et un fitting union detachable en une seule pièce. Permet un changement de direction avec possibilité de disassembly rapide. ISO 228-1 BSPP standard.
Description of the Brass Union Elbow M/F
Ce fitting deux-en-un associe la fonction de coude 90° et celle de fitting union detachable. L'swivel nut intégré permet de déconnecter facilement la section coudée sans déplacer les pipe runs adjacentes.
Particulièrement utile pour le connection de robinetterie murale, de radiateurs ou d'appareils sanitaires nécessitant un changement de direction et un accès pour l'maintenance. Le male side se screws dans un female fitting, le female side accueille un male fitting.
Technical Characteristics
| Material | Laiton CW617N - 4MS |
| Colour | Golden brass |
| Nominal pressure | PN 16 bar |
| Thread standard | ISO 228-1 - BSPP Gaz (thread cylindrique) |
| Sealing | By conical metal-to-metal seat (without gasket) |
| Shape | 6-sided (wrench tightening) |
| Type | Male (threaded) / Female (threaded) with swivel nut |
| Angle | 90° |
| Type | Detachable elbow union with conical seat |
| Compatible fluids | Drinking water, glycol water, compatible fluids |
| Temperature | Depending on the type of sealing chosen |
| Use | Drinking water supply, general plumbing, HVAC |
Conditions of Use and Installation
- Working pressure : PN 16 bar
- Temperature : Depending on the type of sealing chosen
- Fluids : Drinking water, glycol water, compatible fluids
- Installation : Appliquer un moderate tightening torque et choisir des matériaux adaptés (risque de corrosion galvanique). Plats de maintien adaptés aux clés du marché.
Certifications and Compliance
- Drinking water : Compliant with the decree of 25 June 2020 relating to metallic materials and products intended for installations en contact avec l'eau destinée à la consommation humaine.
- 4MS : Compliant with 4MS requirements — Harmonisation des règles de certification européennes pour les matériaux et produits en contact avec l'eau potable.
Applications and Installation Tips
Uses
- Domestic plumbing : connection d'installations eau chaude et froide
- Industrial plumbing : installations conformes PN 16 bar
- Interior decoration : création de luminaires, étagères, porte-serviettes en exposed brass
- DIY and creative home improvement : projets sur mesure avec fittings à screw
Installation tips
- L'sealing est assurée par conical seat métal sur métal — aucun joint n'est nécessaire
- Serrez à la open-end wrench ou adjustable wrench — ne pas utiliser de pince multiprise pour éviter de marquer la pièce
- Appliquer un moderate tightening torque — un tightening excessif peut endommager la conical seat
Technical Drawing
Dimensions (mm)
All dimensions are expressed in millimetres (mm), unless otherwise stated.
| O | O (mm) | G1 | G2 | E1 | E2 | L1 | L2 | L3 | H | S1 | S2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3/8" | 12x17 | 16 | 15 | 46 | 18 | 11 | 9 | 9 | 55 | 25 | 21 |
| 1/2" | 15x21 | 20 | 19 | 51 | 22 | 12 | 10 | 11 | 63 | 30 | 25 |
| 3/4" | 20x27 | 26 | 25 | 61 | 26 | 13 | 12 | 11 | 74 | 37 | 31 |
| 1" | 26x34 | 33 | 30 | 68 | 34 | 14 | 13 | 17 | 83 | 46 | 37 |
| 1"1/4 | 33x42 | 42 | 39 | 82 | 40 | 17 | 15 | 21 | 100 | 52 | 48 |
Size Correspondence
Ce fitting union coude est available in the following sizes. Utilisez ce tableau pour trouver la correspondance entre millimètres, pouces et DN.
| Size (mm) | 12x17 | 15x21 | 20x27 | 26x34 | 33x42 |
|---|---|---|---|---|---|
| Inches | 3/8'' | 1/2'' | 3/4'' | 1'' | 1''1/4 |
| DN | DN10 | DN15 | DN20 | DN25 | DN32 |
| Tube O.D. | 17 mm | 21 mm | 27 mm | 34 mm | 42 mm |
The appearance of the part may vary depending on the batch in stock (see photos). Contact us for confirmation.
