Flange 1'' | 26x34mm small diameter black malleable iron 3 holes

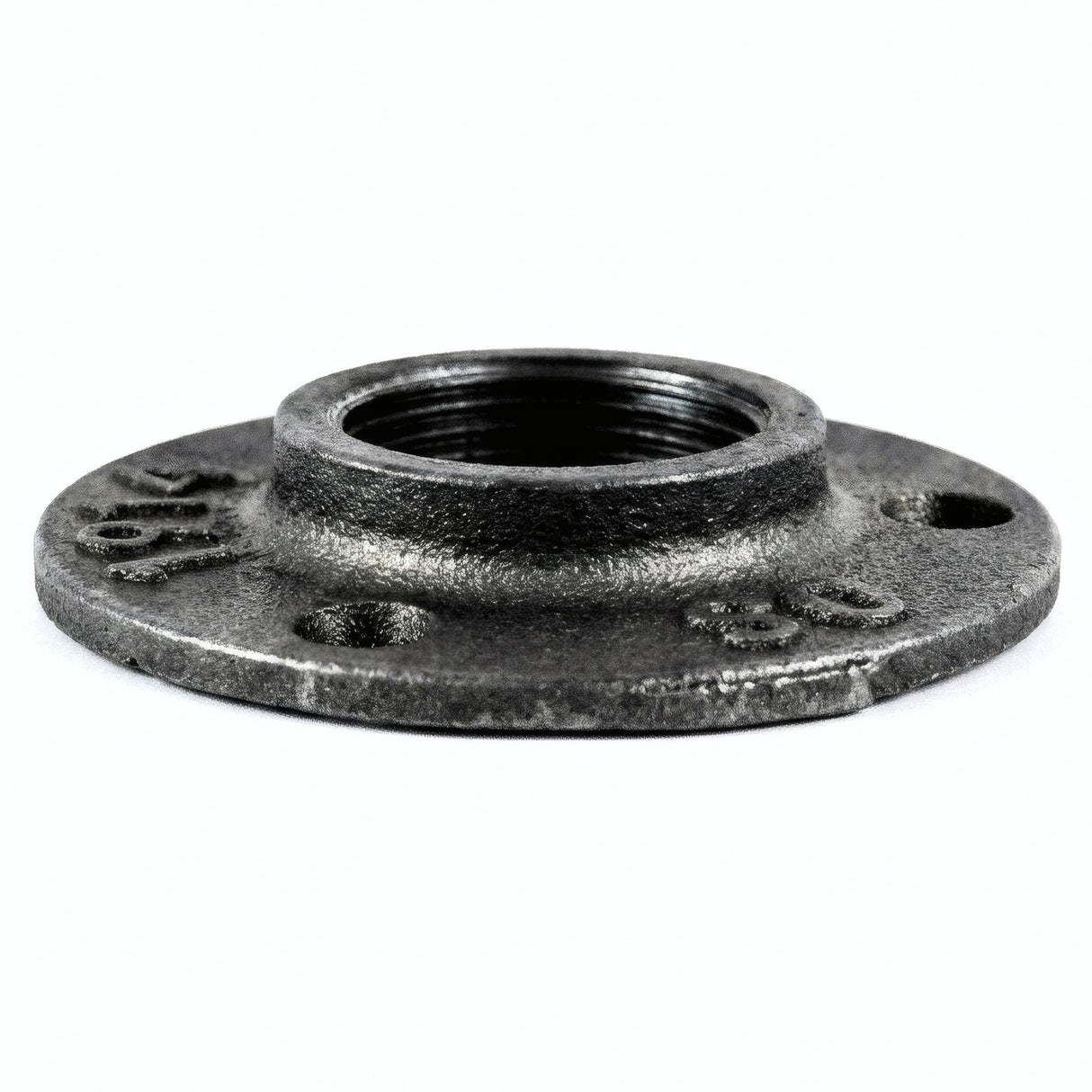

Black Cast Iron Small-Diameter Floor Flange 1''

This 26x34 mm "featherweight" small-diameter floor flange, or wall flange, is ideal for mounting on a wall or ceiling. The reduced diameter allows for better aesthetic integration and a reasonable weight for final assembly.

This is our smallest 1'' flange.

Description of the 26x34 mm Cast Iron Floor Flange Fitting

The floor flange is a round part, drilled with 3 fixing holes, in black cast iron (actual colour: grey). The central part is tapped to accommodate a black cast iron fitting or a galvanized one, or a threaded black steel pipe with a diameter of 34 mm, i.e. a plumbing size of 26x34 mm.

This flange is also available in a large-diameter 4-hole version or a small-diameter 4-hole version.

Features and Uses of the 1'' Round Cast Iron Flange

This plumbing flange is an essential accessory for mounting your project on the wall or ceiling, or simply placing it stably on the floor or on a piece of furniture.

The central hole is tapped (female).

• Screws in 10 to 15 mm (depending on the part screwed in and the force applied)
• Materials: black cast iron
• Colour: dark grey

1'' Floor Flange Fitting Dimensions

• Outside diameter: 75 mm (7.5 cm)
• Centre hole diameter: 34 mm (for a 26x34 mm or 1'' fitting or pipe)
• Height: 15 mm (1.5 cm)
• 3 fixing holes
• Fixing hole diameter (approx.):
• Weight (approx.): 170 g
