Brass Reducing Nipple M/F
Shipping and Delivery
Shipping and Delivery
| Product Type | Delivery Method | Preparation Time | Transport Time | Delivery Time |
|---|---|---|---|---|
| All Parts | Pickup Point | 0 to 3 days | 3 to 6 days | 3 to 9 days |
| All Parts | Home Delivery | 0 to 3 days | 3 to 5 days | 3 to 8 days |
| Tubes > 90cm | Home Delivery | 0 to 3 days | 3 to 5 days | 3 to 8 days |
| Tubes < 200cm | Home Delivery | 0 to 3 days | 3 to 5 days | 3 to 8 days |
| Tubes > 200cm | Home Delivery | 0 to 6 days | 6 to 10 days | 6 to 16 days |
| Assembled Products | Home Delivery & Pickup Point | 0 to 5 days | (see methods) | 3 to 11 days |
* Tubes longer than 90cm cannot be delivered to a pickup point
For orders of more than 50 units of the same item or more than 100 kg, restocking may exceptionally extend the delivery time by up to 10 working days.
For confirmation of delivery times on specific items, please send us a message
Brass M/F reducing nipple threaded fitting with a small diameter male (externally threaded) end and a larger diameter female (internally threaded) end. This fitting provides diameter increase while changing the connection gender. ISO 228-1 BSPP standard.
Description of the Brass M/F Reducing Nipple
This M/F reducing nipple combines a small diameter male thread and a female thread of larger diameter. It allows connecting a small female element to a large male element, performing a diameter increase.
This fitting is the reverse of the standard F/M reducing nipple and provides a complementary solution for assemblies requiring upward size transitions. Assembly without soldering, body with hexagonal shape.
Technical Specifications
| Material | Brass CW617N - 4MS |
| Colour | Golden brass |
| Nominal pressure | PN 16 bar |
| Thread standard | ISO 228-1 - BSPP Gas (parallel thread) |
| Sealing | Guaranteed by flat gasket (thickness from 1 mm) |
| Gasket seats | Flat and wide on male and female ends |
| Shape | Hexagonal (wrench tightening) |
| Gender | Male (threaded) / Female (tapped) — different diameters |
| Compatible fluids | Drinking water, glycol water, compatible fluids |
| Temperature | Depends on the type of sealing chosen |
| Application | Drinking water supply, general plumbing, HVAC |
Operating Conditions and Installation
- Operating pressure: PN 16 bar
- Temperature: Depending on the type of seal chosen
- Fluids: Drinking water, glycol water, compatible fluids
- Installation: Apply moderate tightening torque and choose suitable materials (risk of galvanic corrosion). Flats sized for standard wrenches.
Certifications and Compliance
- Drinking water: Compliant with the French decree of 25 June 2020 on metallic materials and products intended for installations in contact with water for human consumption.
- 4MS: Compliant with 4MS requirements — Harmonisation of European certification rules for materials and products in contact with drinking water.
Applications and Installation Tips
Applications
- Domestic plumbing: connecting hot and cold water installations
- Industrial plumbing: PN 16 bar compliant installations
- Interior design: creation of light fixtures, shelves, towel racks in exposed brass
- DIY and creative projects: custom projects with threaded fittings
Installation tips
- Use PTFE tape (Teflon) or hemp to ensure sealing on male threads
- For flat gasket seats, use a flat gasket with a minimum thickness of 1 mm
- Tighten with an open-end wrench or adjustable wrench — do not use pliers to avoid marking the fitting
- Apply moderate tightening torque — overtightening may damage the thread
Technical Drawing
Dimensions (mm)
All dimensions are expressed in millimetres (mm), unless otherwise stated.
| G1 | G1 (mm) | G2 | G2 (mm) | OD | L1 | L2 | E |
|---|---|---|---|---|---|---|---|
| 1/4" | 8x13 | 1/8" | 5x10 | 5.5 | 8 | 6 | 15.5 |
| 3/8" | 12x17 | 1/8" | 5x10 | 5.5 | 8.5 | 6 | 16 |
| 3/8" | 12x17 | 1/4" | 8x13 | 8.5 | 8.5 | 8 | 18.5 |
| 1/2" | 15x21 | 1/4" | 8x13 | 8.5 | 10 | 8 | 20 |
| 1/2" | 15x21 | 3/8" | 12x17 | 11 | 10 | 8.5 | 20.5 |
| 3/4" | 20x27 | 1/4" | 8x13 | 8.5 | 11 | 8 | 21 |
| 3/4" | 20x27 | 3/8" | 12x17 | 11 | 11 | 8.5 | 21.5 |
| 3/4" | 20x27 | 1/2" | 15x21 | 14.5 | 11 | 10 | 23 |
| 1" | 26x34 | 1/2" | 15x21 | 14.5 | 13 | 10 | 25 |
| 1" | 26x34 | 3/4" | 20x27 | 19.5 | 13 | 11 | 26 |
| 1"1/4 | 33x42 | 3/4" | 20x27 | 19.5 | 14 | 11 | 27 |
| 1"1/4 | 33x42 | 1" | 26x34 | 25 | 14 | 13 | 29.5 |
| 1"1/2 | 40x49 | 1" | 26x34 | 25 | 15.5 | 13 | 31 |
| 1"1/2 | 40x49 | 1"1/4 | 33x42 | 33 | 15.5 | 14 | 32 |
| 2" | 50x60 | 1"1/4 | 33x42 | 33 | 17 | 14 | 33.5 |
| 2" | 50x60 | 1"1/2 | 40x49 | 39 | 17 | 15.5 | 35.5 |
Available Size Combinations
This reducing nipple allows transition from one diameter to another. The table below shows the available combinations.
| Inlet | Outlet | Notation (mm) |
|---|---|---|
| 1/8'' | 1/4'' | 5x10 > 8x13 |
| 1/8'' | 3/8'' | 5x10 > 12x17 |
| 1/4'' | 3/8'' | 8x13 > 12x17 |
| 1/2'' | 1/4'' | 15x21 > 8x13 |
| 3/8'' | 1/2'' | 12x17 > 15x21 |
| 1/4'' | 3/4'' | 8x13 > 20x27 |
| 3/8'' | 3/4'' | 12x17 > 20x27 |
| 1/2'' | 3/4'' | 15x21 > 20x27 |
| 1/2'' | 1'' | 15x21 > 26x34 |
| 3/4'' | 1'' | 20x27 > 26x34 |
| 3/4'' | 1''1/4 | 20x27 > 33x42 |
| 1'' | 1''1/4 | 26x34 > 33x42 |
| 1'' | 1''1/2 | 26x34 > 40x49 |
| 1''1/4 | 1''1/2 | 33x42 > 40x49 |
| 1''1/4 | 2'' | 33x42 > 50x60 |
| 1''1/2 | 2'' | 40x49 > 50x60 |

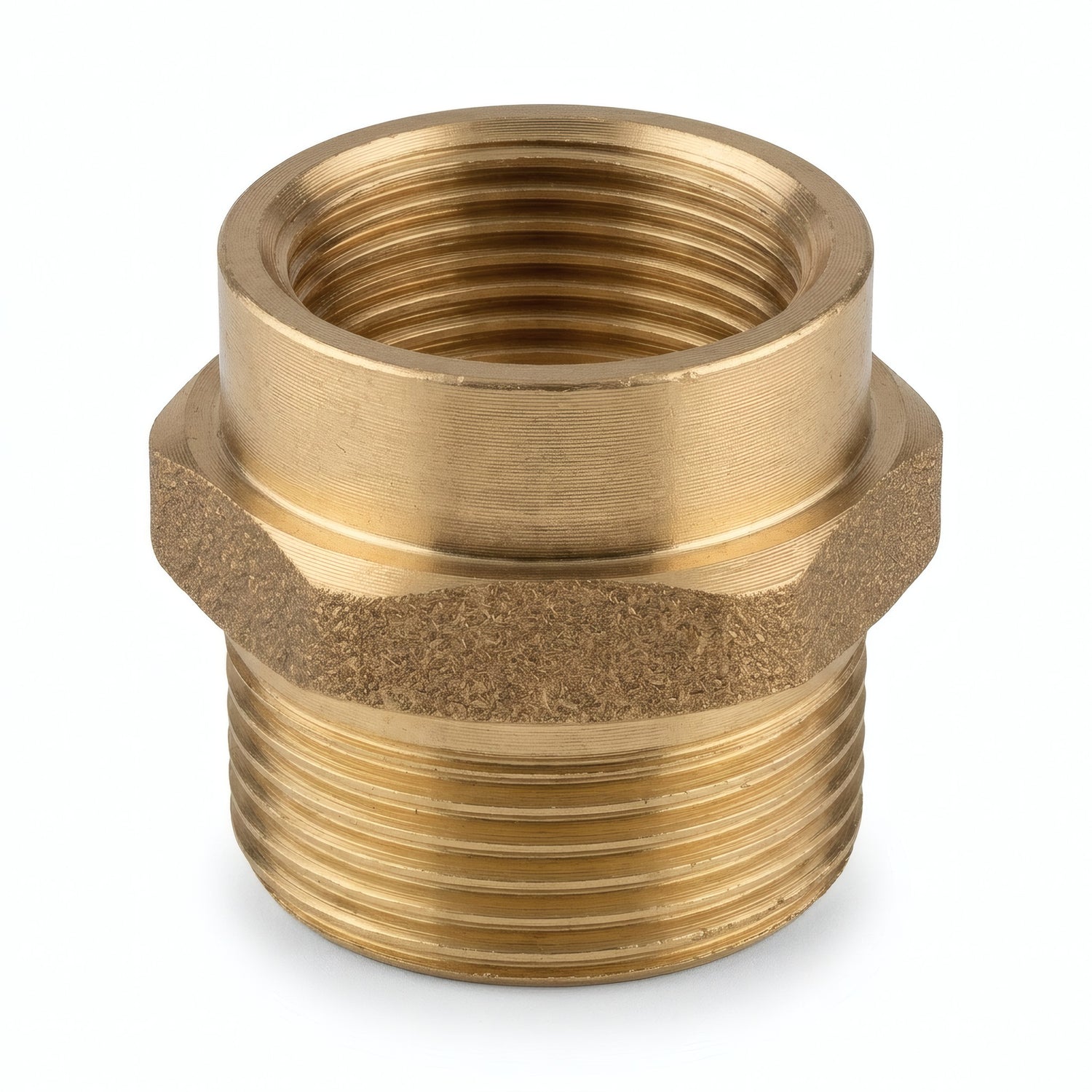

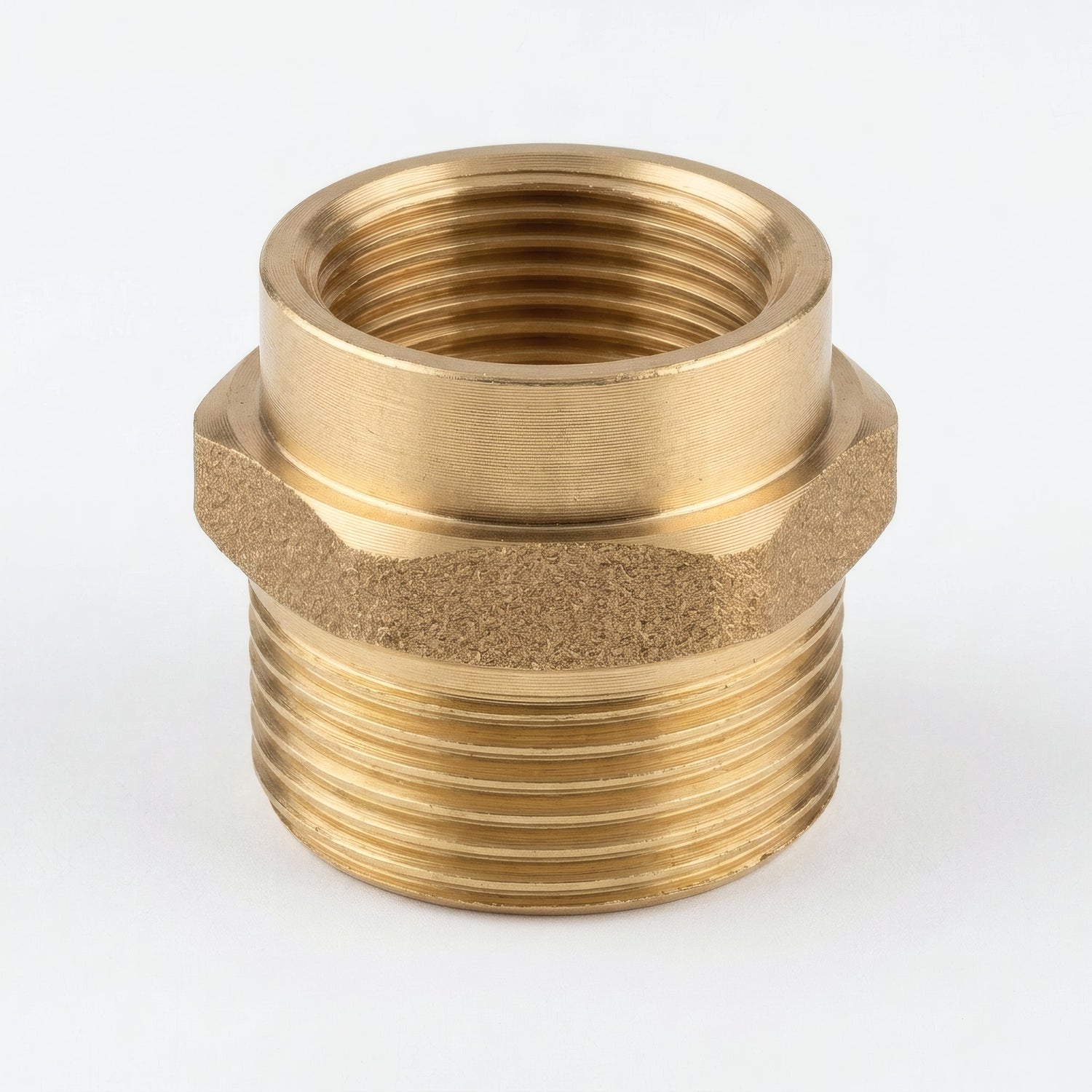

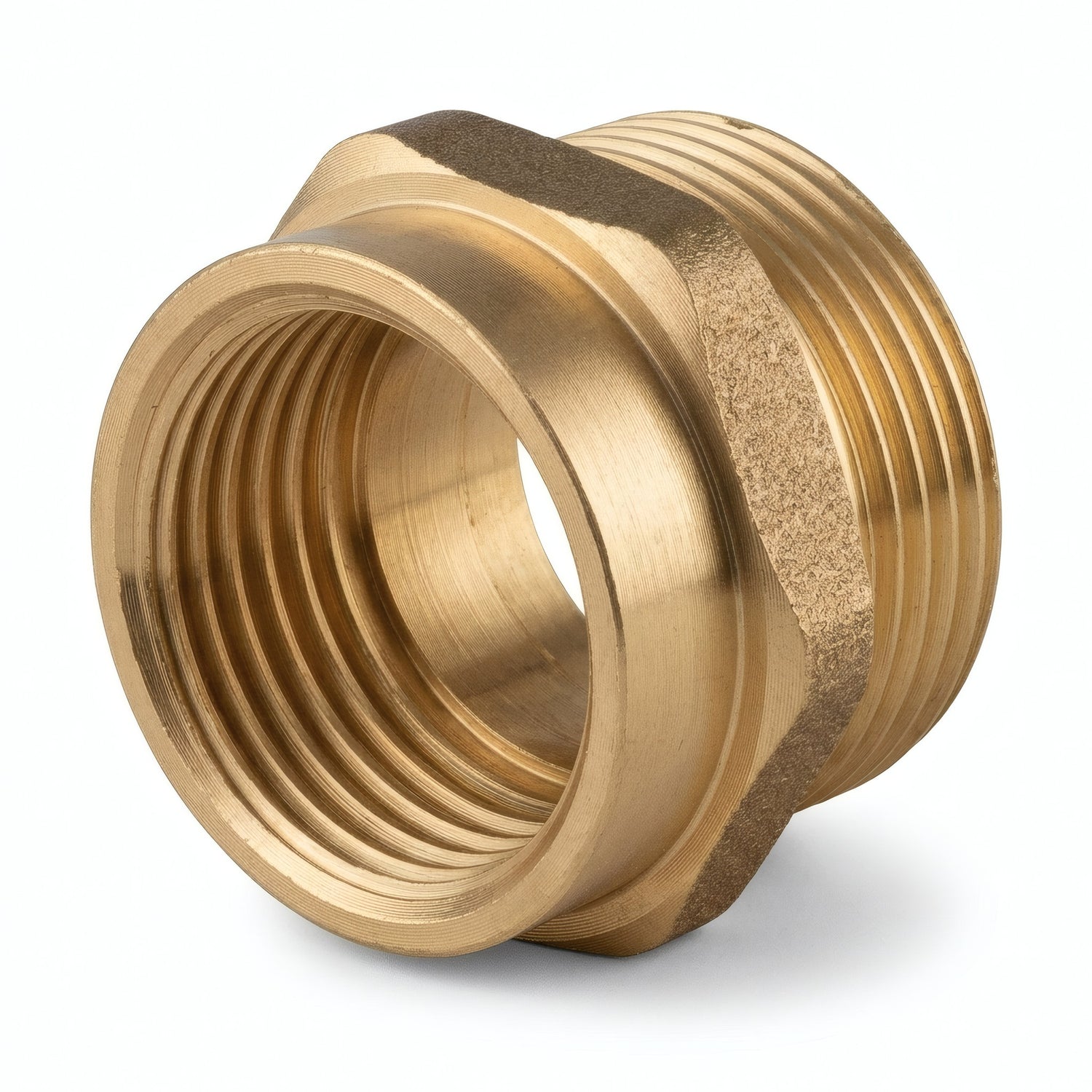

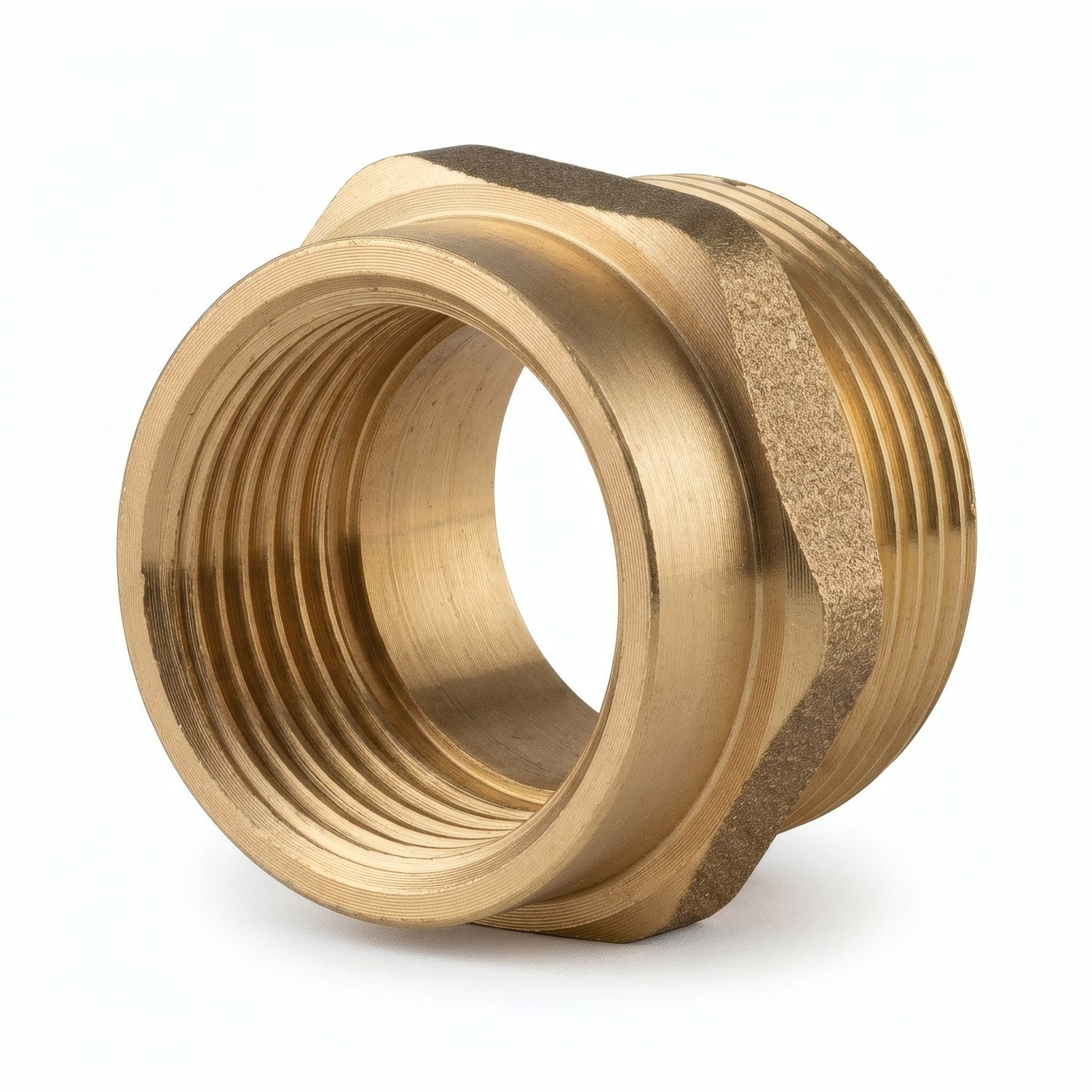

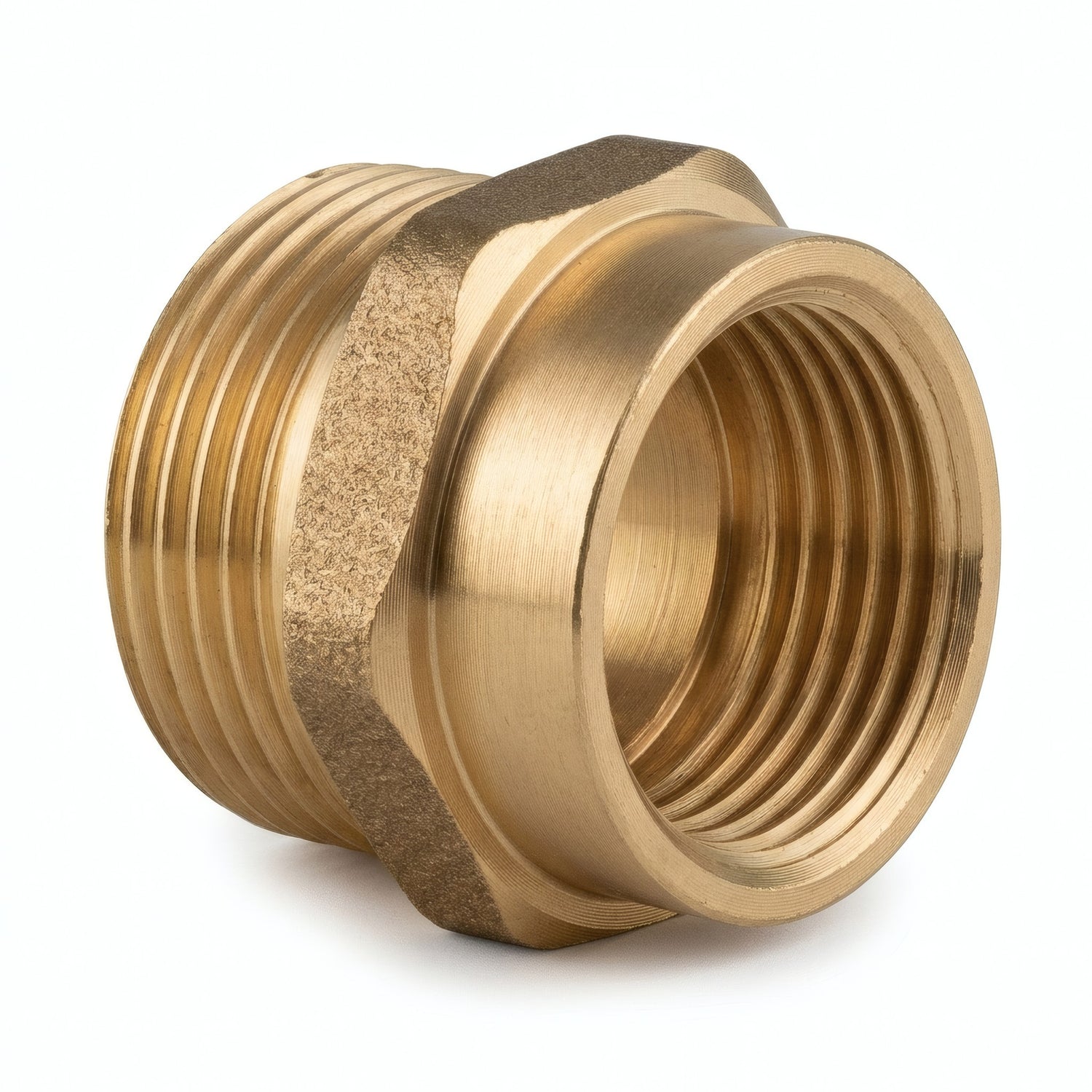

The appearance of the fitting may vary depending on the batch in stock (see photos). Contact us for confirmation.
