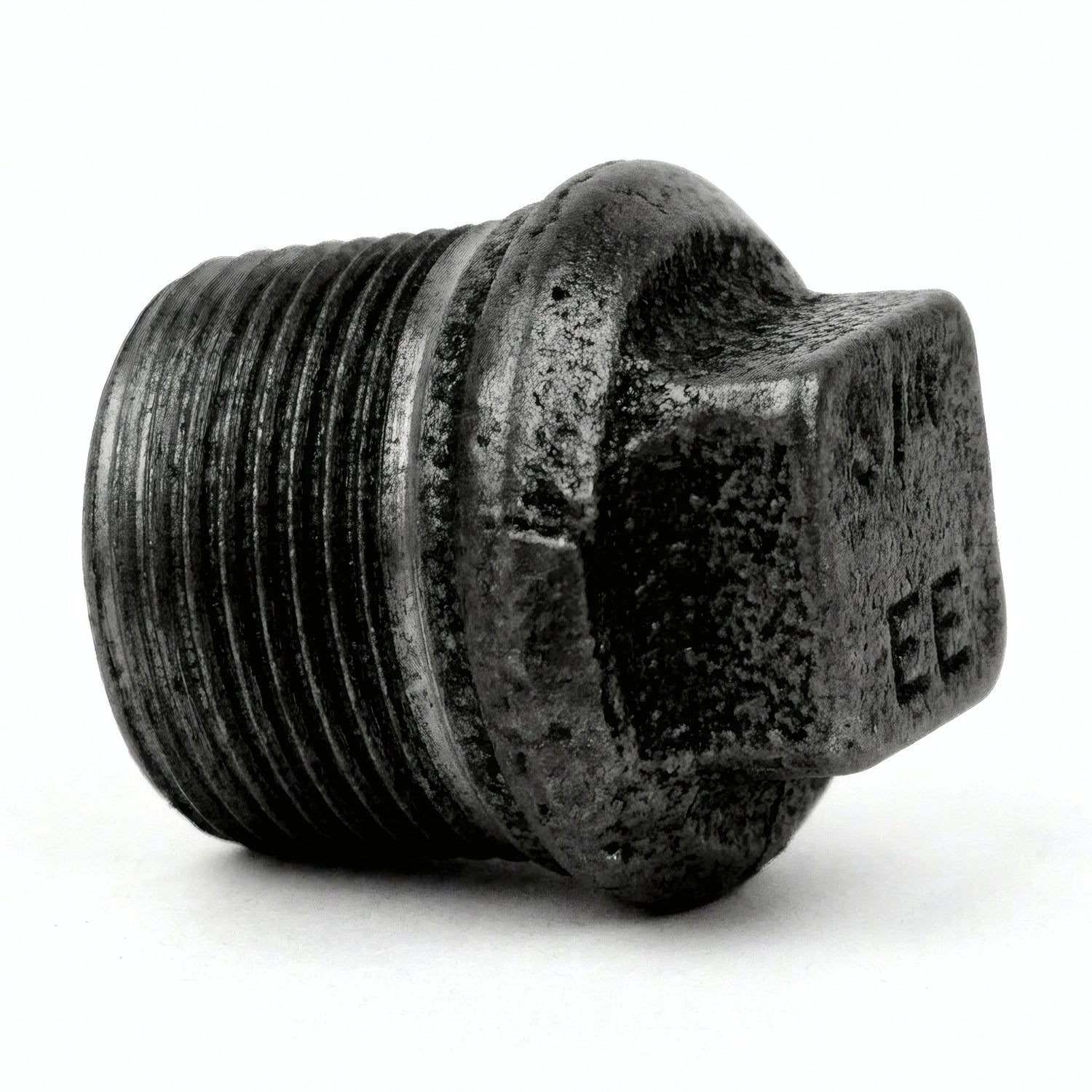

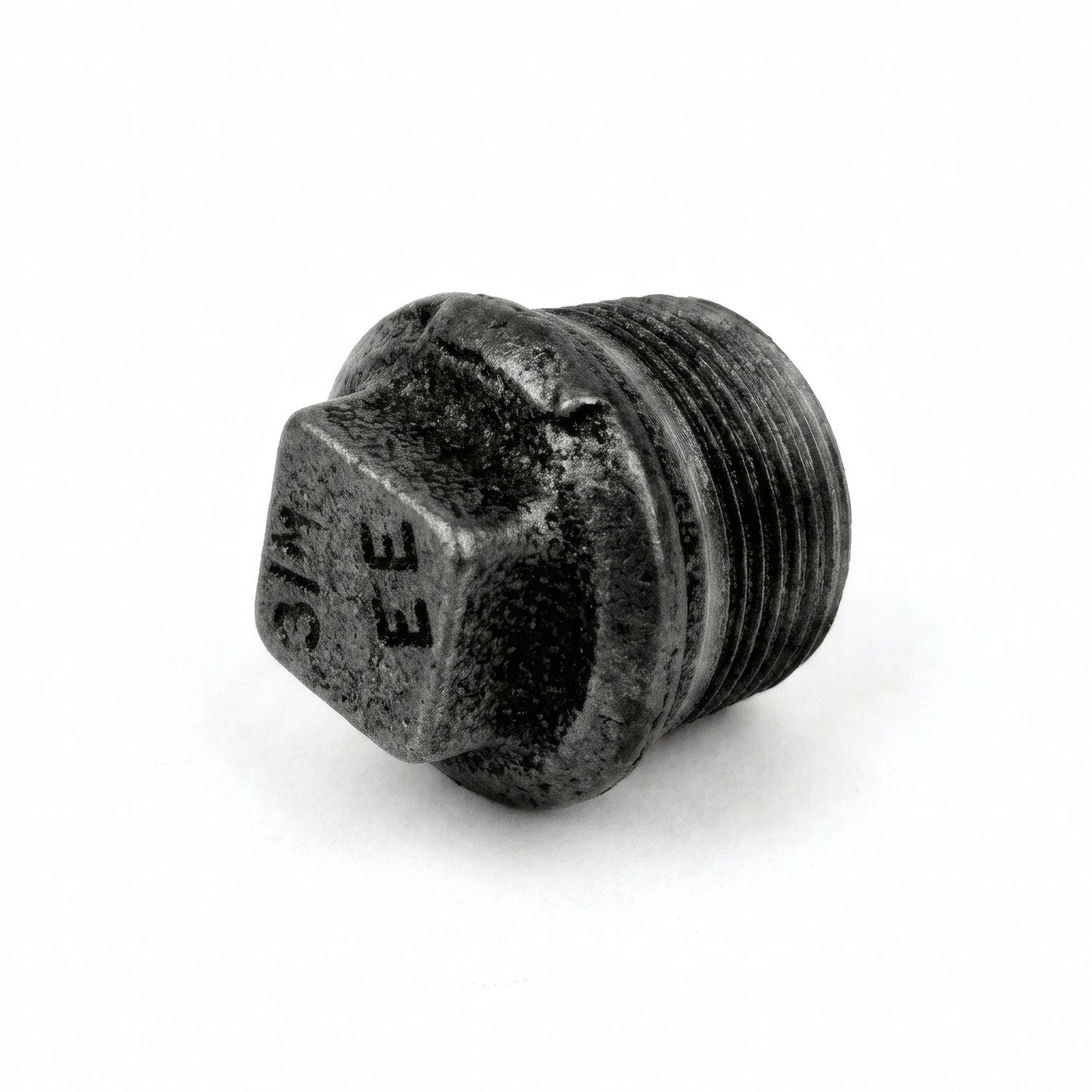

Male plug, black malleable iron

Black Cast Iron Male Plug Plumbing Fitting with Stop Collar

This black cast iron male plug will allow you to add the finishing touch to your creation. It screws into a female (tapped) fitting. It is compatible with all black cast iron fittings or galvanized ones and threaded black steel pipes or galvanized ones of the same size sold in our online shop. The parts simply screw together, without welding, to make strong assemblies easily.

Description of the Black Cast Iron Male Plug Fitting

This plug is the essential part to complete your project. The male plug is topped with a square head, so the fitting can easily be screwed in with a spanner.

Plugs are also available in a female version.

Premium or Economy range?

This part is available in our Premium or Economy ranges. In both cases, these are genuine, fully functional plumbing fittings.

The differences are as follows:

Male Plug Features and Uses

Although we use our fittings for decoration, this is a genuine plumbing part made of whiteheart malleable cast iron that complies with EN 10242 and ISO49 standards. Superior quality and a guarantee of rock-solid sturdiness!

The threads on this part are BSPT (ISO 7-1 standard) with a tapered male (threaded) end.

• Screws in 10 to 15 mm (depending on the part screwed in and the force applied)
• Materials: black cast iron
• Colour: dark grey
• High quality
• Made in Europe (Premium)

Dimensions of the Black Cast Iron Male Plug Fitting

Tapping / Threads: 3/8'' | 12x17mm
Dimensions mm (length x width x height): 25 x 20
Weight (kg): 0.040

Tapping / Threads: 1/2'' | 15x21mm
Dimensions mm (length x width x height): 30 x 25
Weight (kg): 0.060

Tapping / Threads: 3/4'' | 20x27mm
Dimensions mm (length x width x height): 33 x 32
Weight (kg): 0.080

Tapping / Threads: 1'' | 26x34mm
Dimensions mm (length x width x height): 35 x 40
Weight (kg): 0.140

Tapping / Threads: 1''1/4 | 33x42mm
Dimensions mm (length x width x height): 37 x 50
Weight (kg): 0.200

Conversion table of plumbing fitting sizes in inches and mm (approx.):
