4-Hole Floor Flange 3/4'' 20x27mm Black Cast Iron

• Material: Black Malleable Iron
• Color: Grey / Dark Grey

This 4-hole floor flange in black cast iron is ideal for securely mounting your creations to a wall, ceiling or floor. Its 4 fixing points offer enhanced stability compared to 3-hole models.

Description of the 4-Hole Floor Flange Fitting 20x27 mm

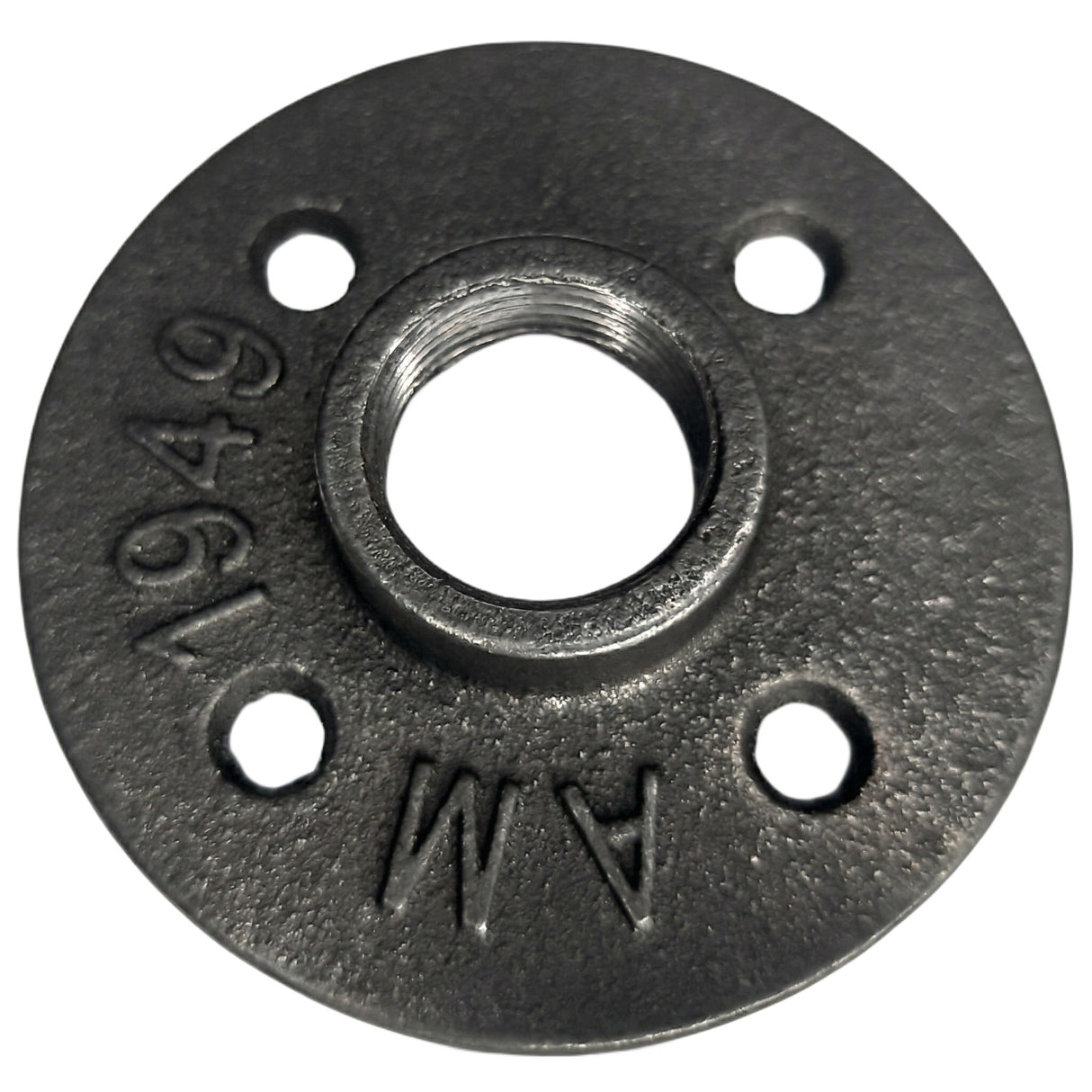

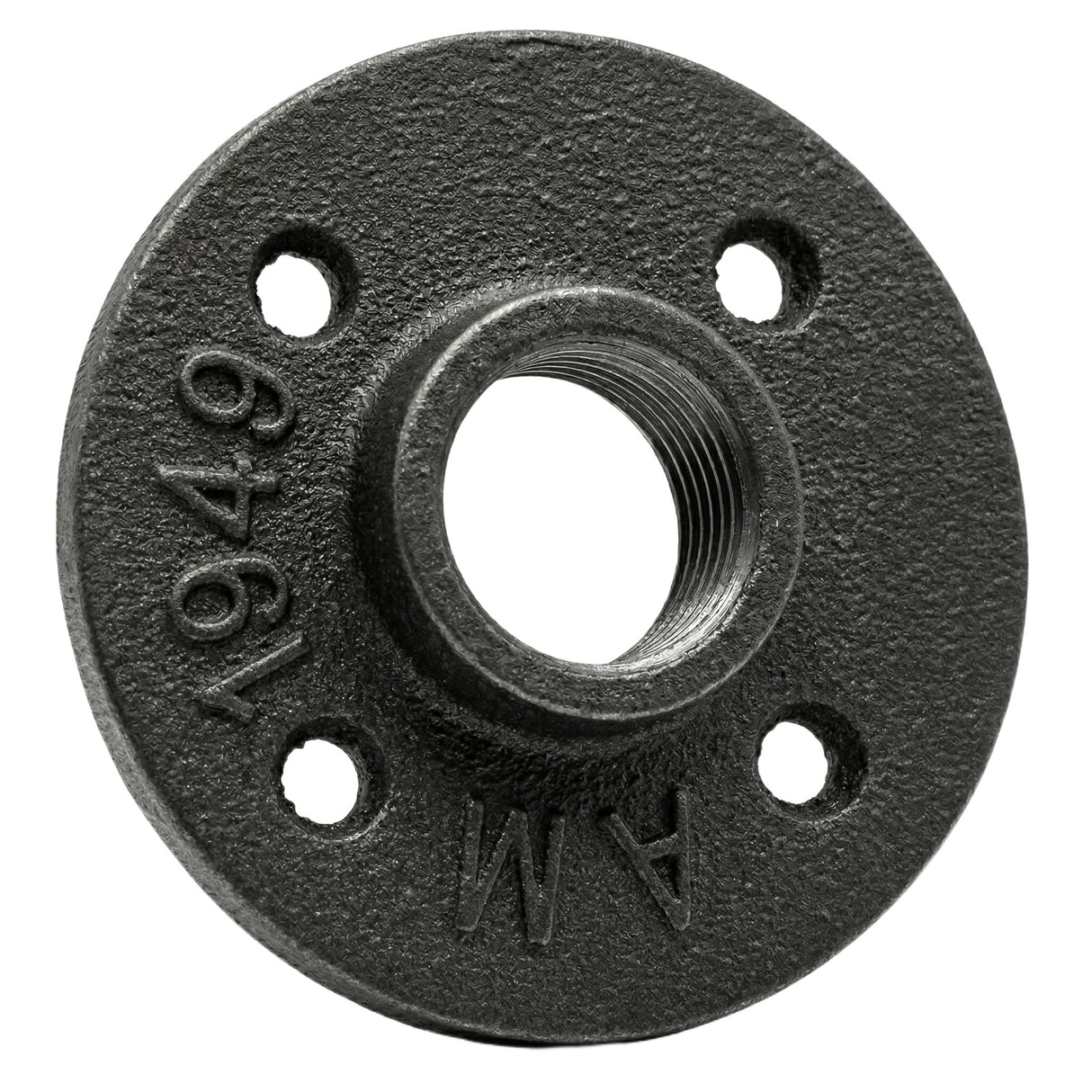

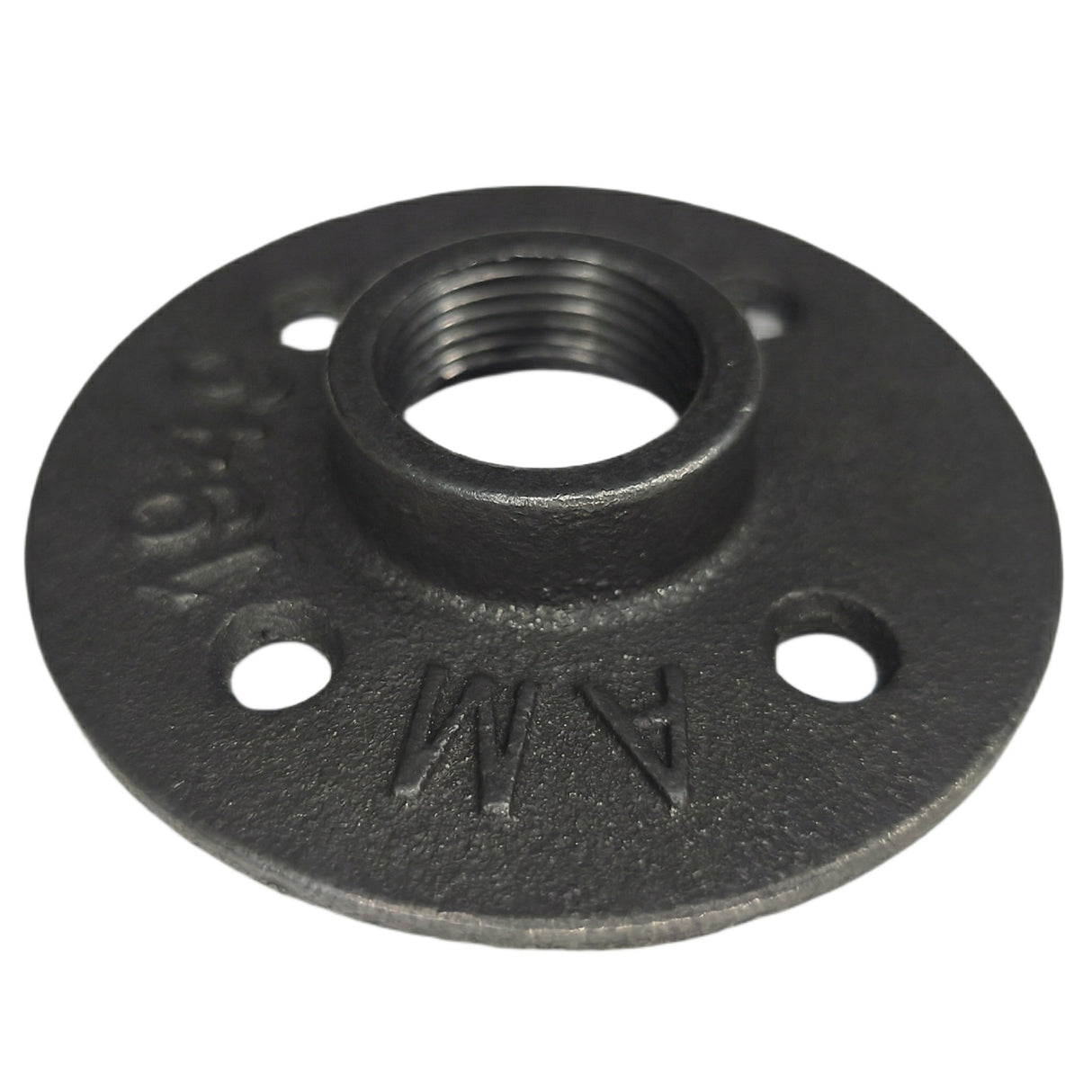

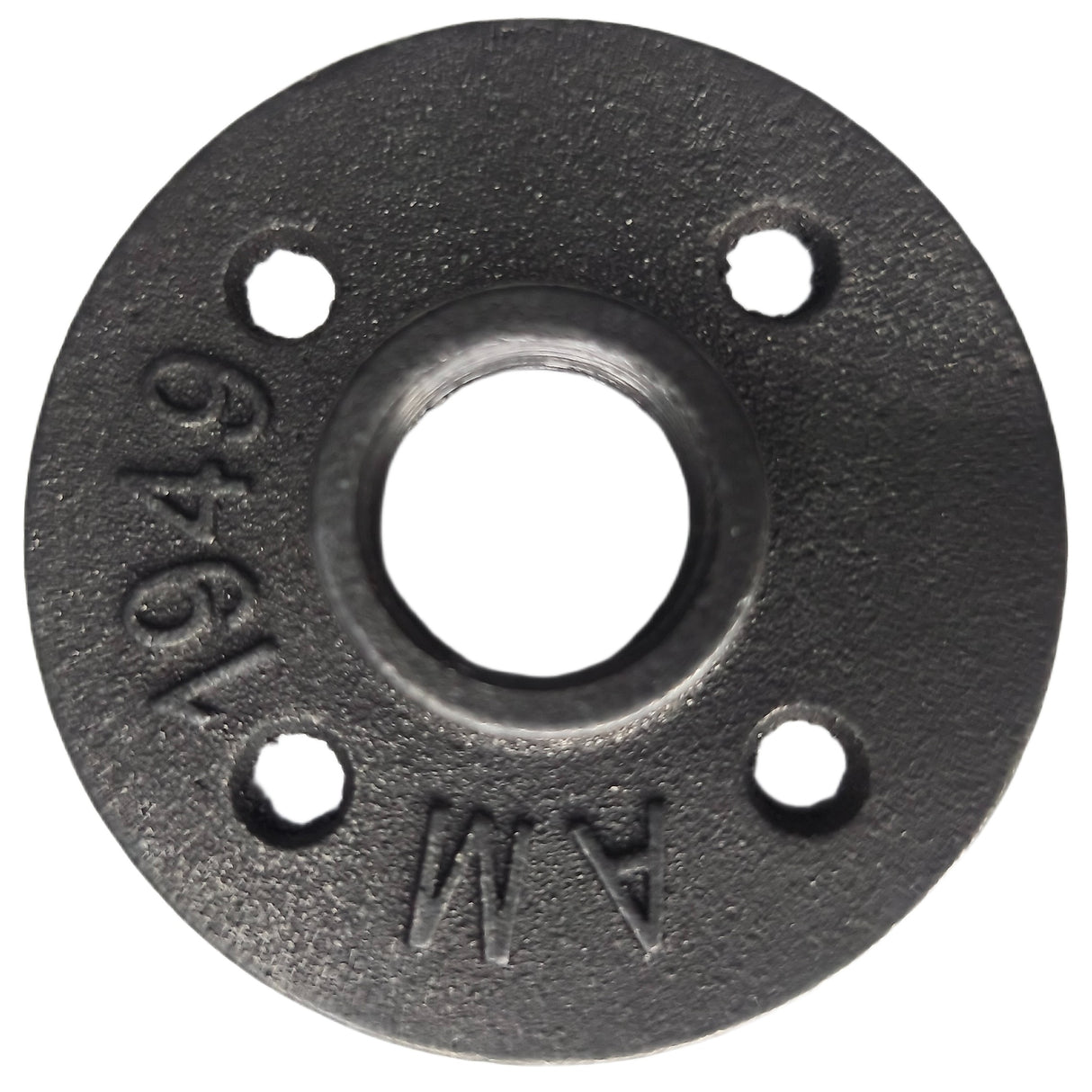

The floor flange is a round piece with 4 oblong fixing holes, in black cast iron (actual colour grey). The central part is tapped to accommodate a black cast iron fitting or galvanised fitting, or a threaded black steel pipe with a diameter of 27 mm, i.e. a plumbing size of 20x27 mm = 3/4''.

Features and Uses

This plumbing flange is essential for fixing your creation to a wall, ceiling or simply placing it stably on the floor or furniture. The 4 oblong holes allow fine adjustment of position when tightening screws.

The central hole is tapped (female) with a tapered thread type.

• Thread engagement: 10 to 15 mm (depending on the screwed piece and tightening force)
• Material: black cast iron
• Colour: dark grey

Dimensions

• Outer diameter: 85 mm (8.5 cm)
• Flange thickness: 4 mm
• Total height: 35 mm
• Thread height: 23 mm
• 4 oblong fixing holes (7 × 10 mm)
• Weight (approx.): 160 g
