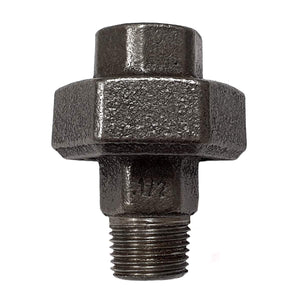

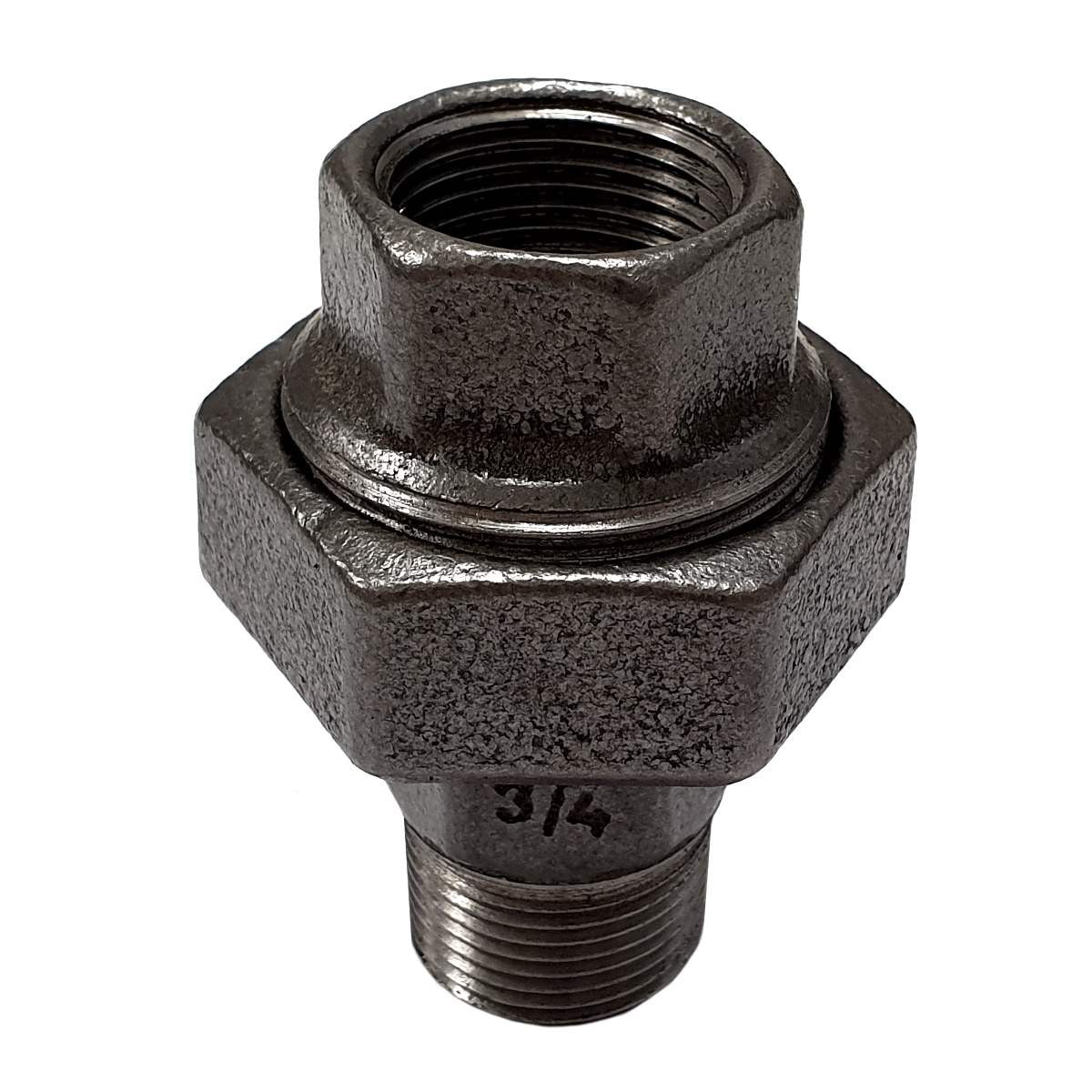

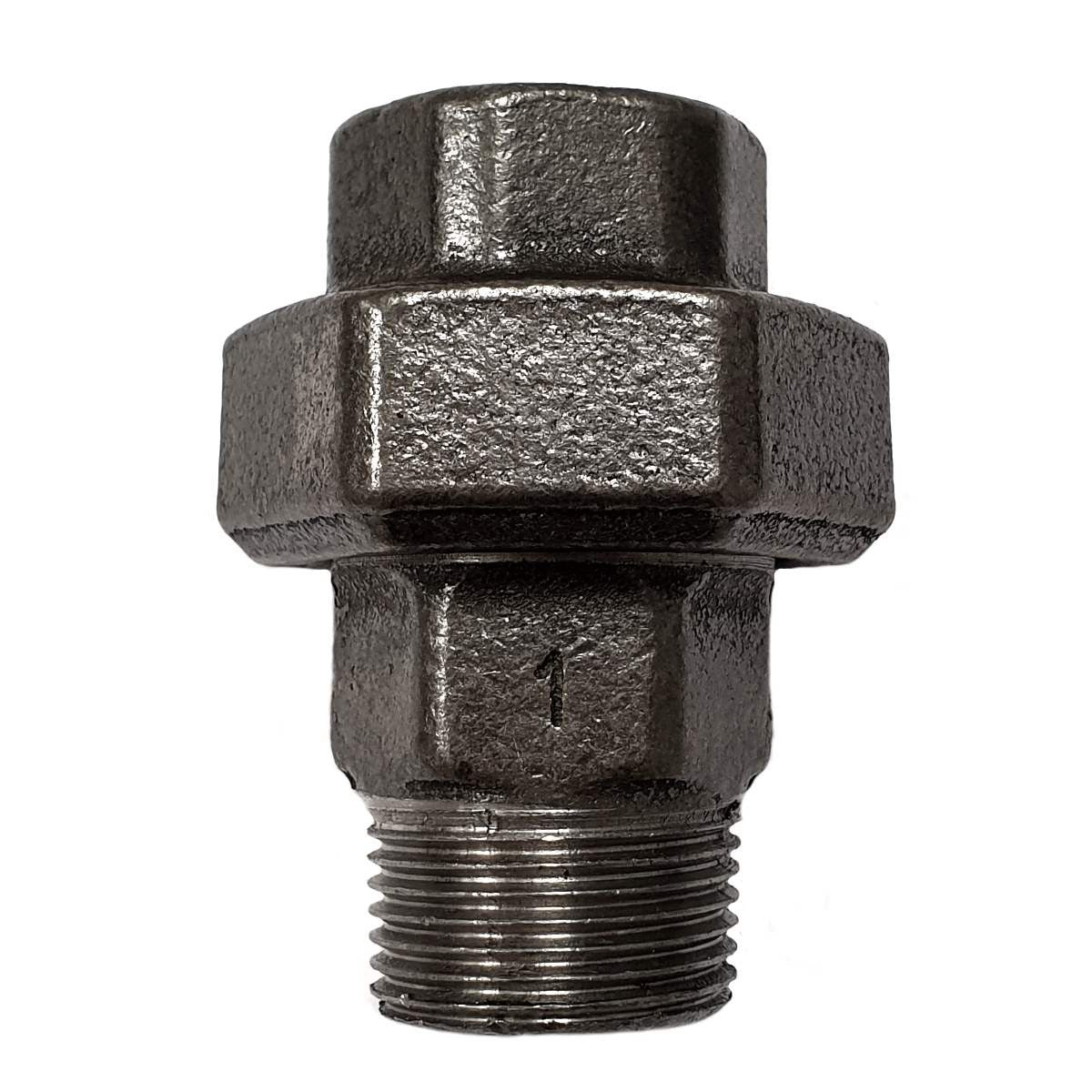

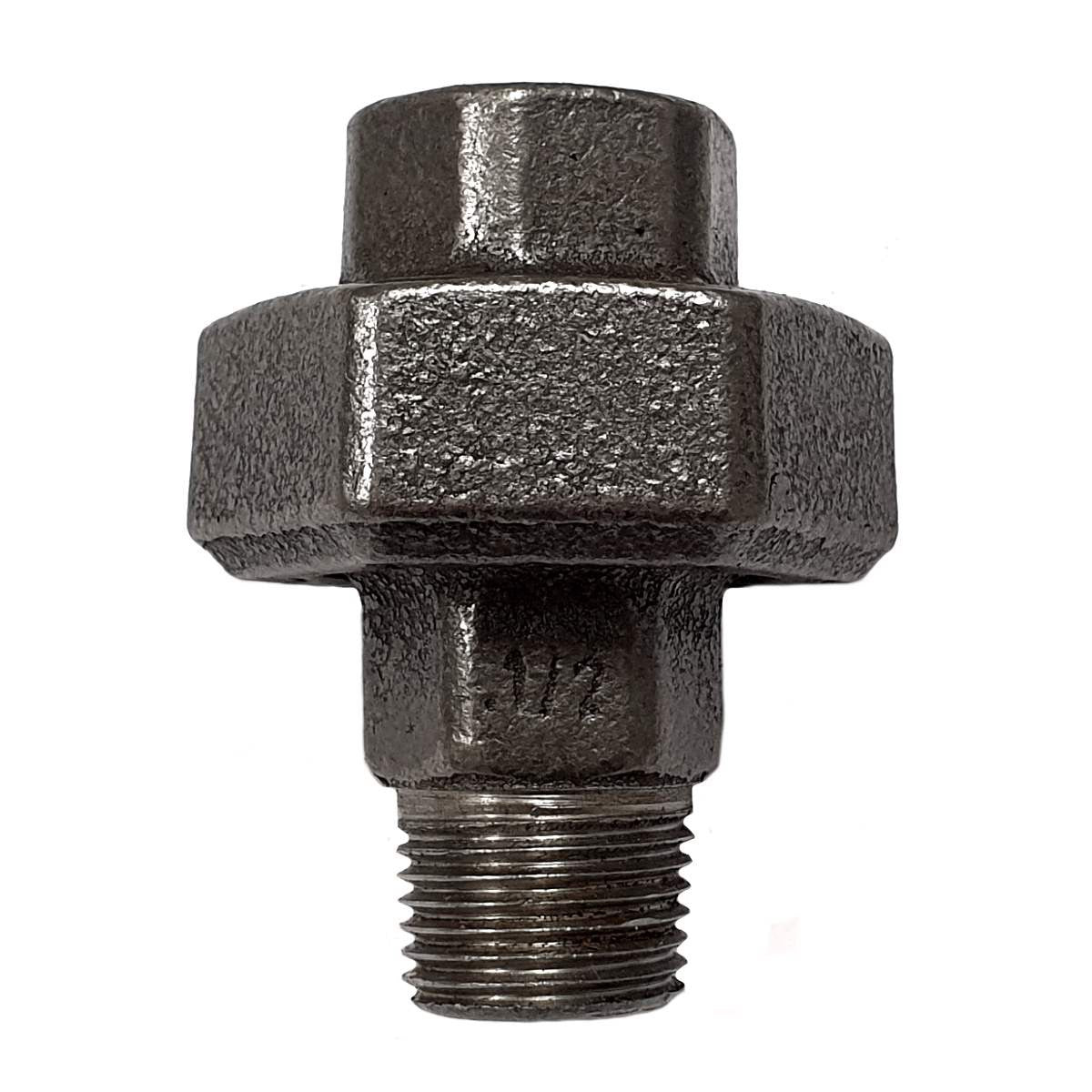

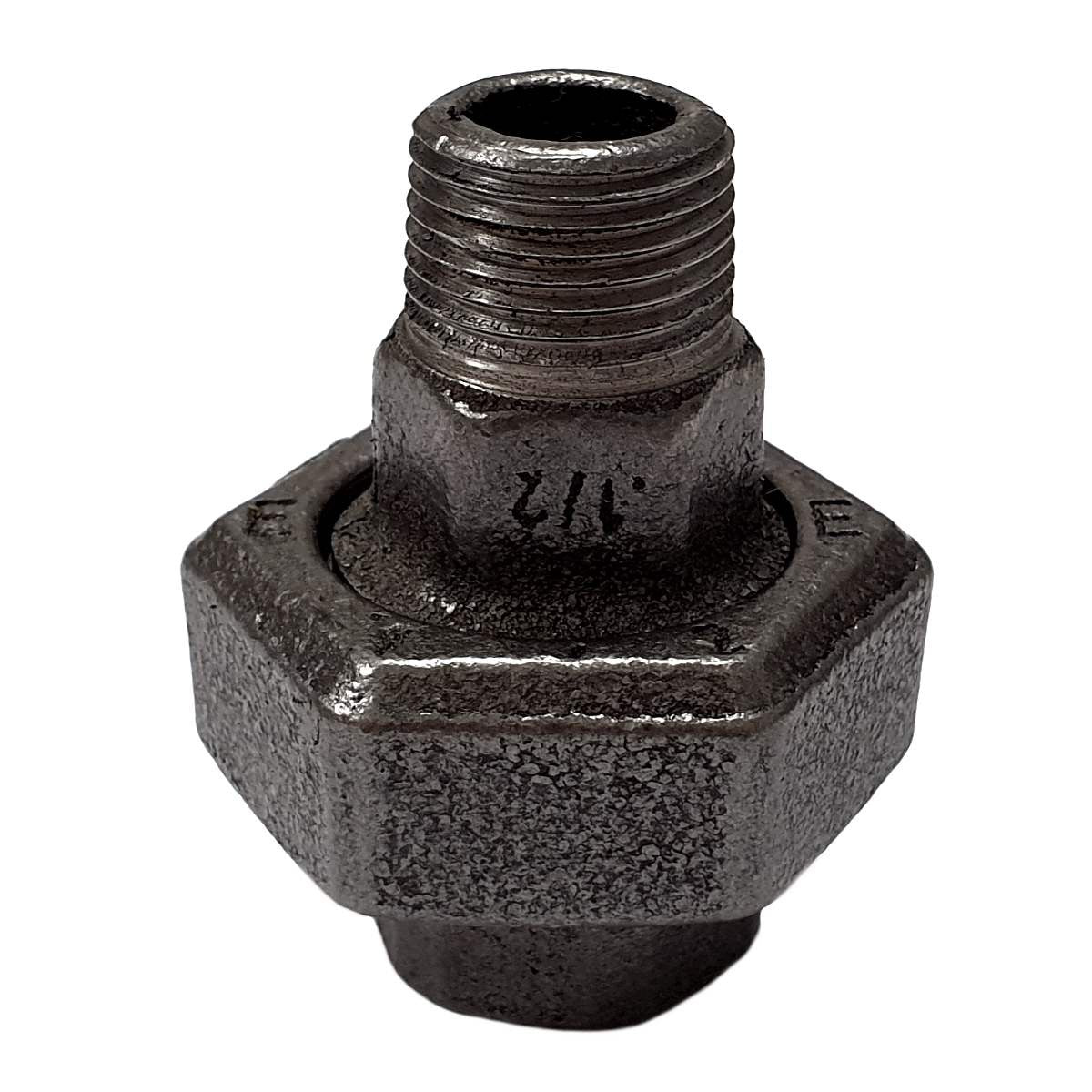

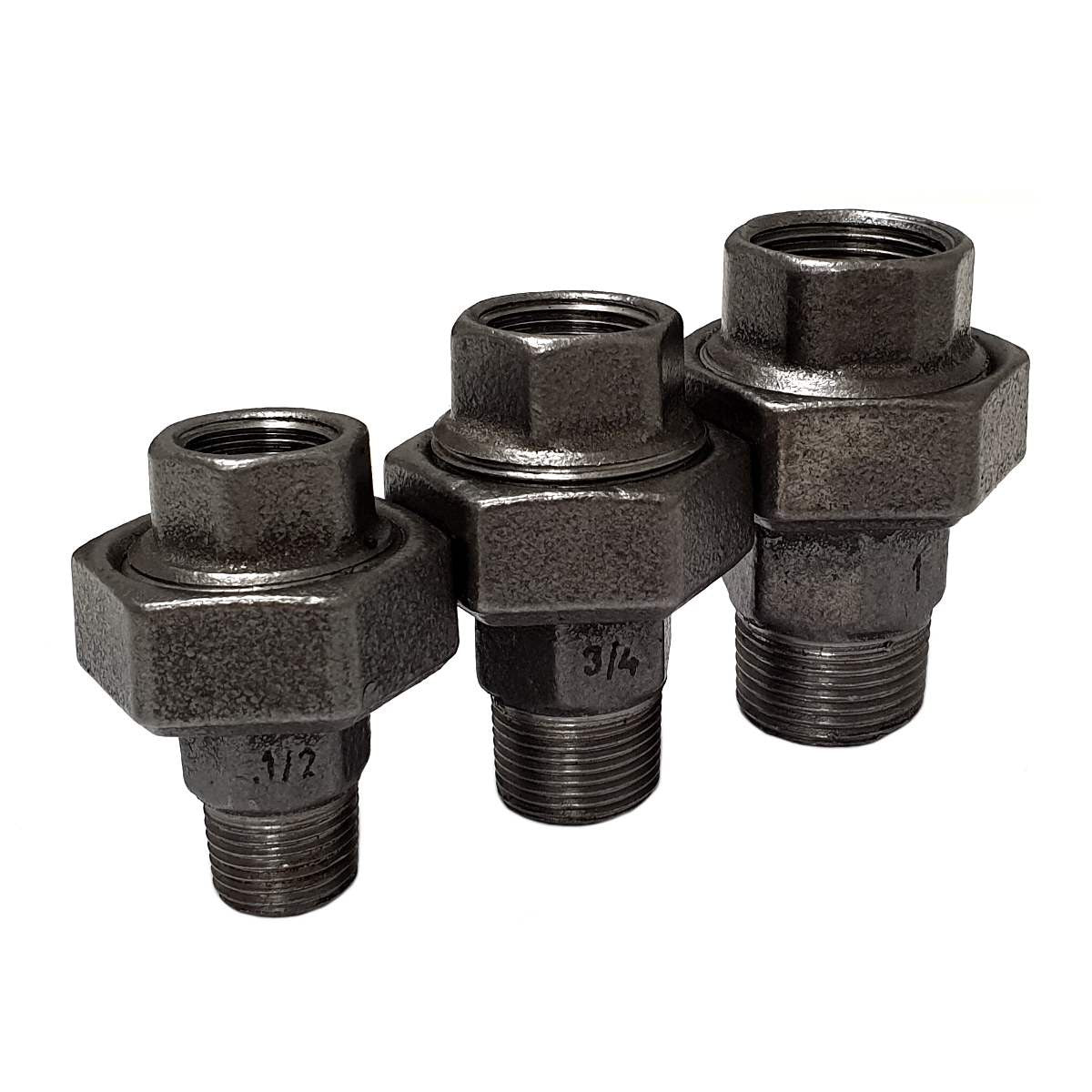

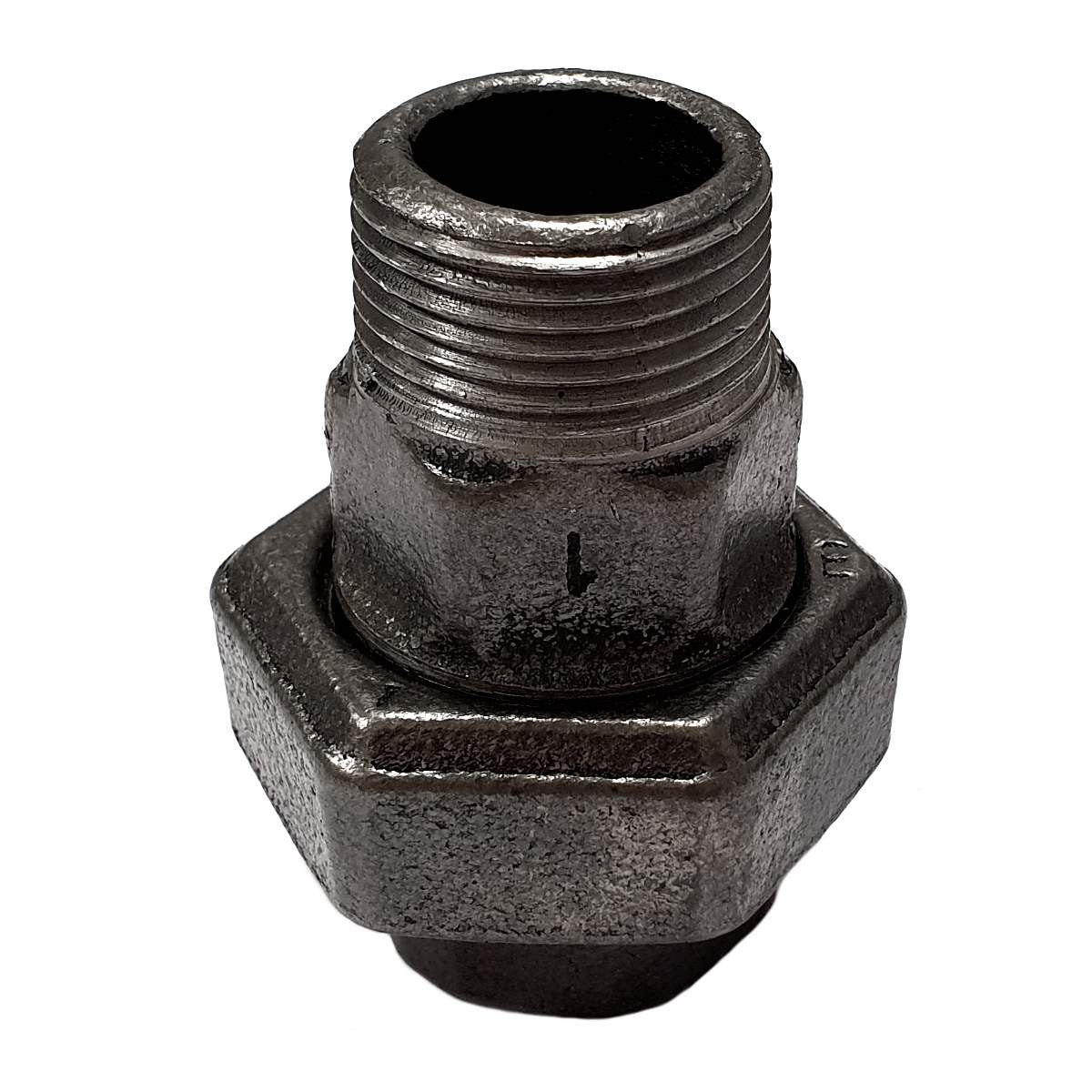

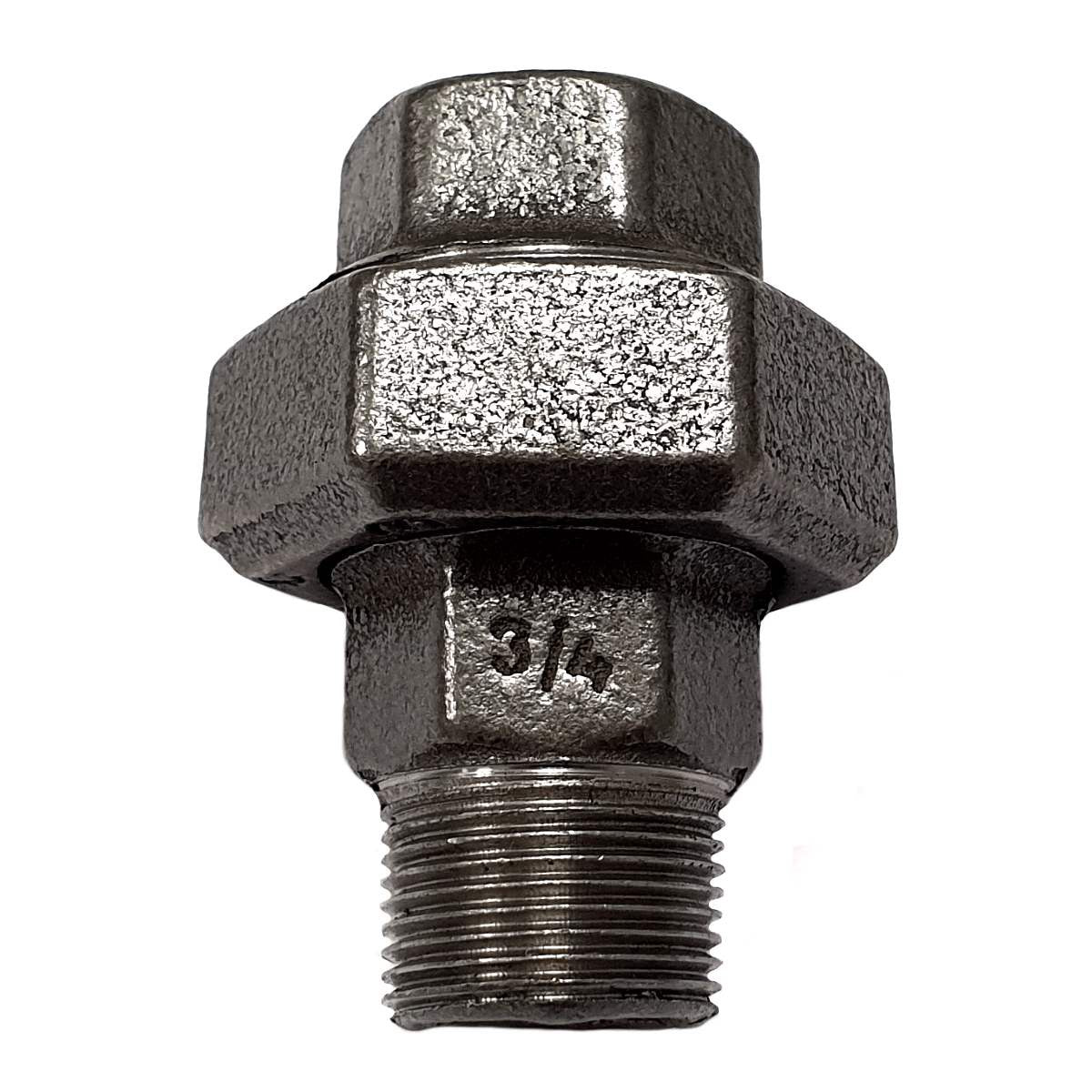

Black cast iron tapered union Mal/Fem

$9.00
Tax included Shipping calculated at checkout.

range
Thread size

Shipping and Delivery

Product Type Delivery Method Preparation Time Transport Time Delivery Time
All Parts Pickup Point 0 to 3 days 3 to 6 days 3 to 9 days
All Parts Home Delivery 0 to 3 days 3 to 5 days 3 to 8 days
Tubes > 90cm Home Delivery 0 to 3 days 3 to 5 days 3 to 8 days
Tubes > 200cm Home Delivery 0 to 3 days 3 to 5 days 3 to 8 days
Assembled Products Home Delivery & Pickup Point 0 to 5 days (see methods) 3 to 11 days

* Tubes longer than 90cm cannot be delivered to a pickup point

For confirmation of delivery times on specific items, please send us a message

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

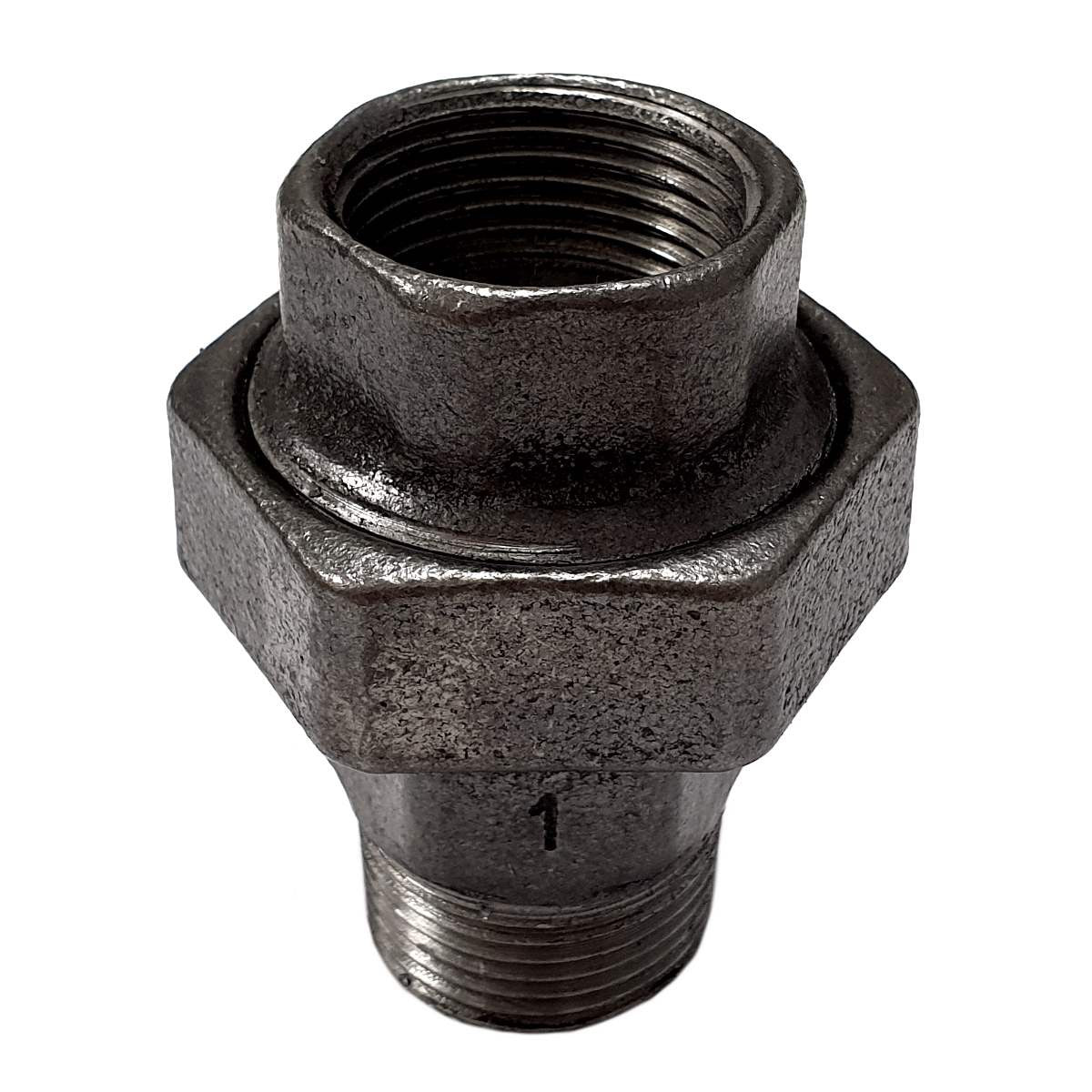

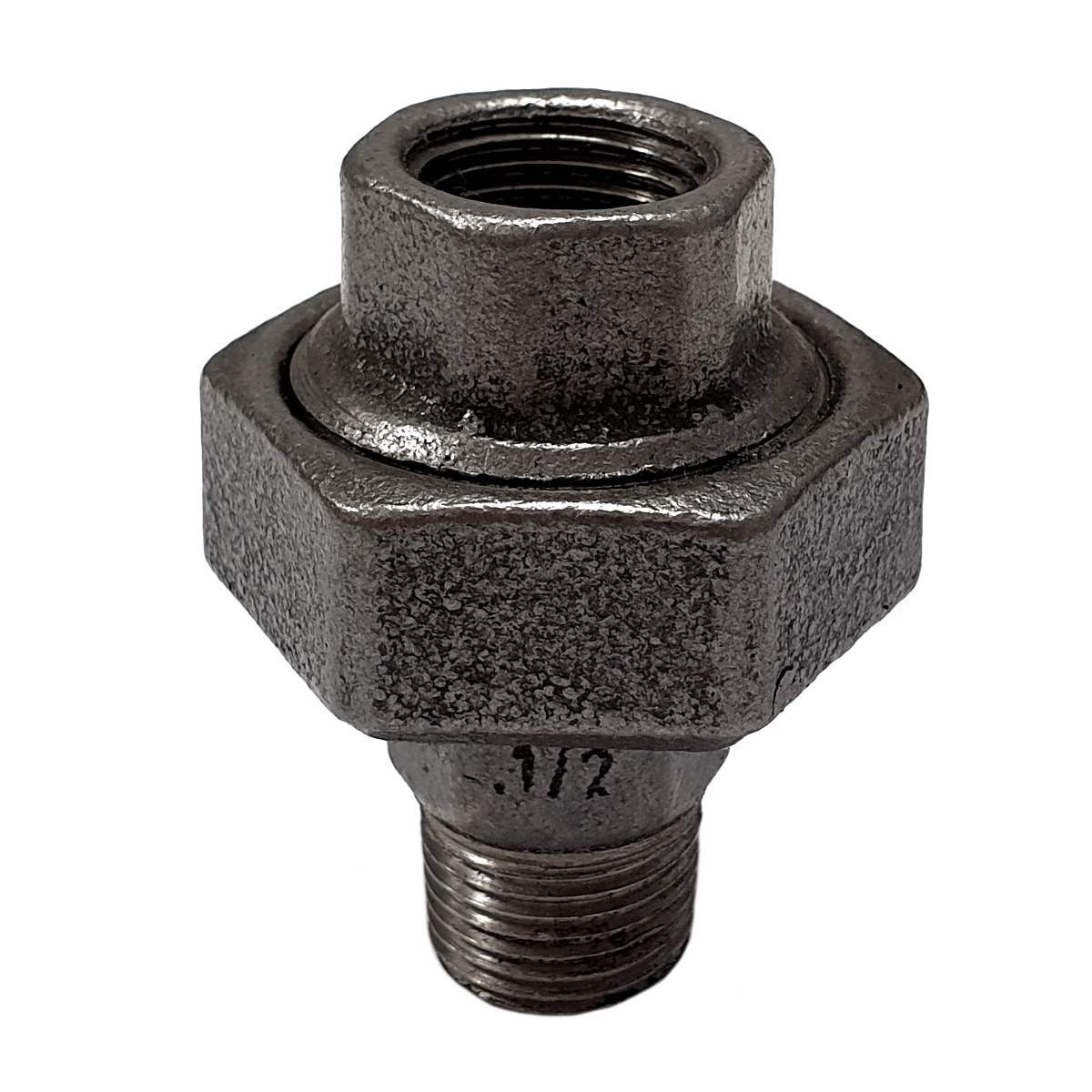

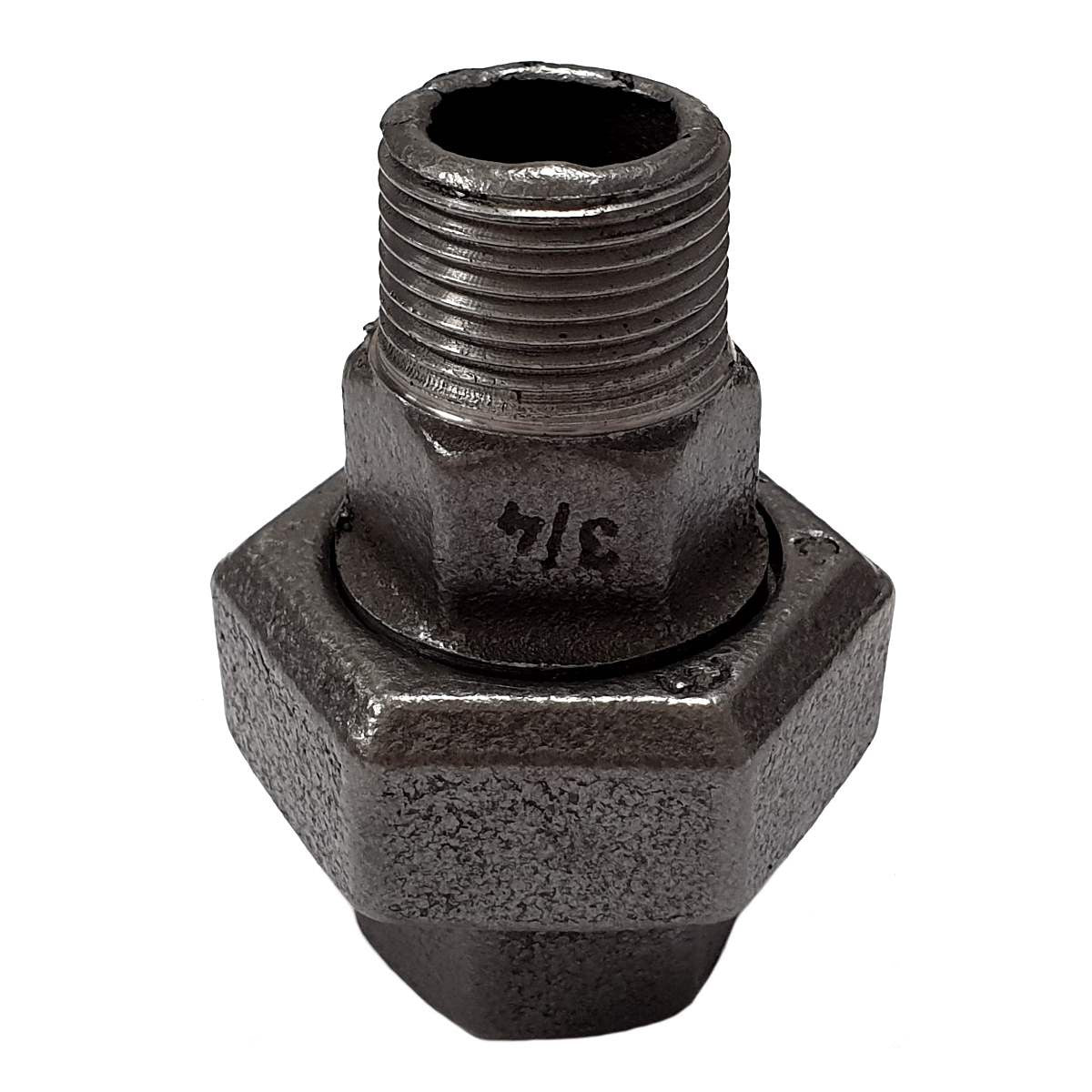

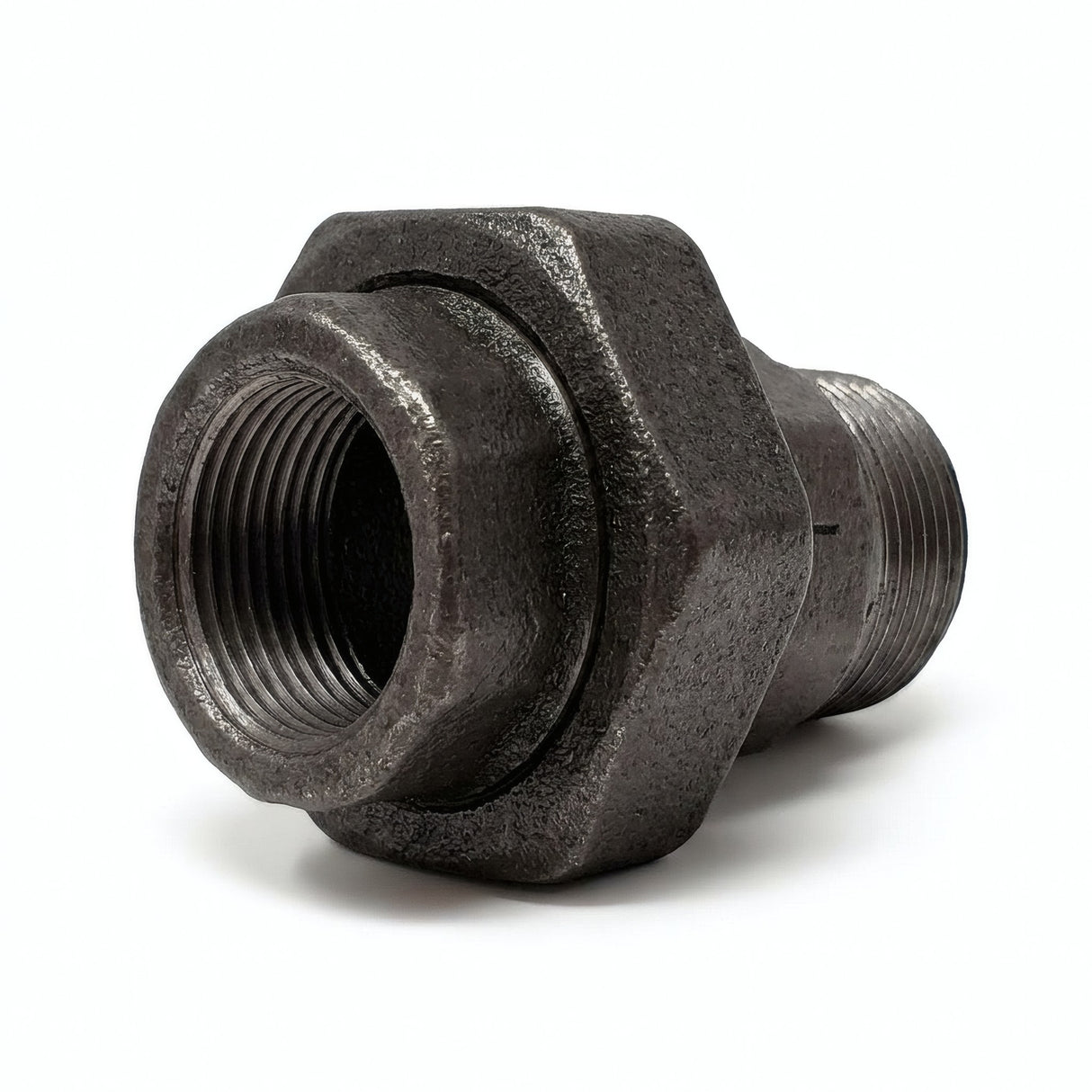

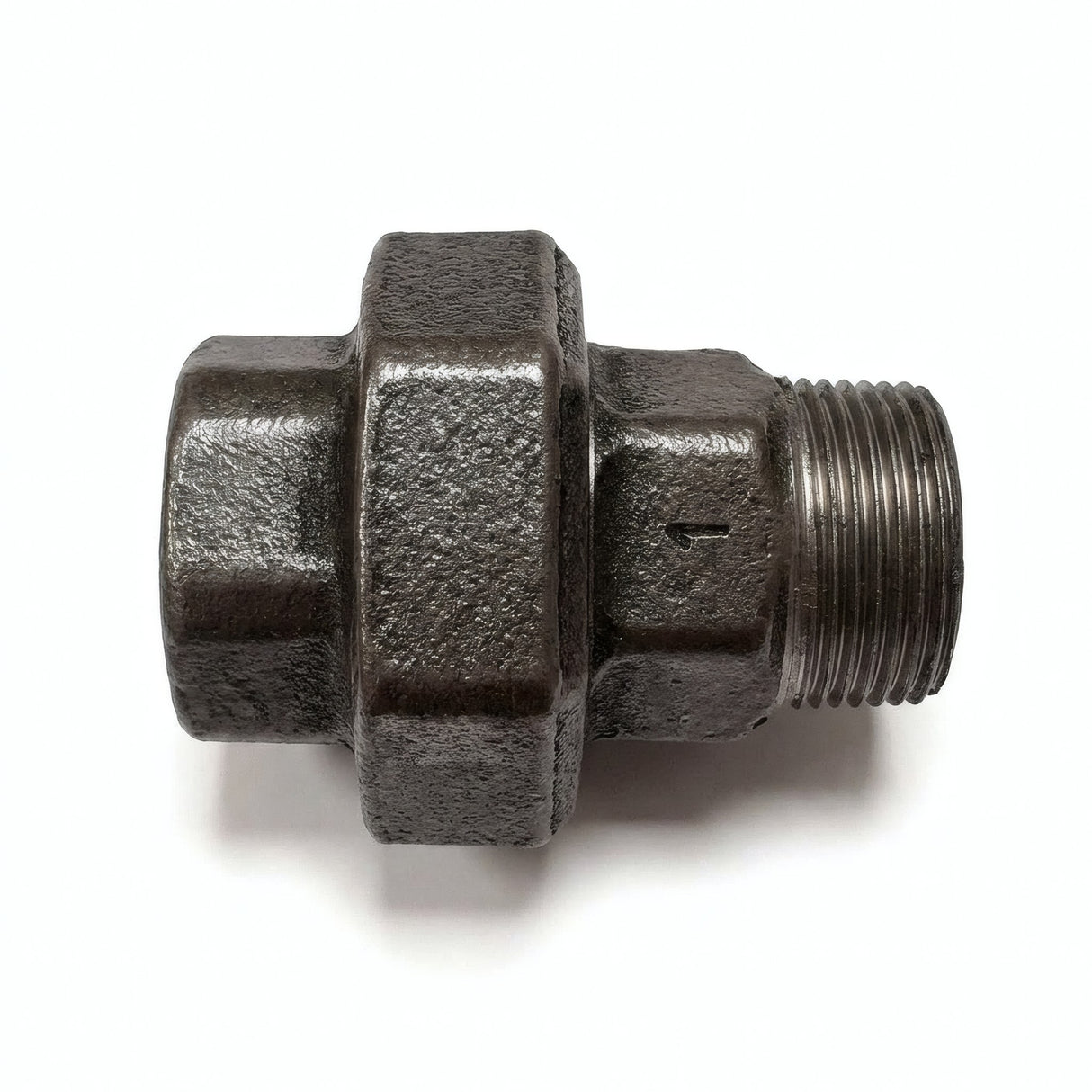

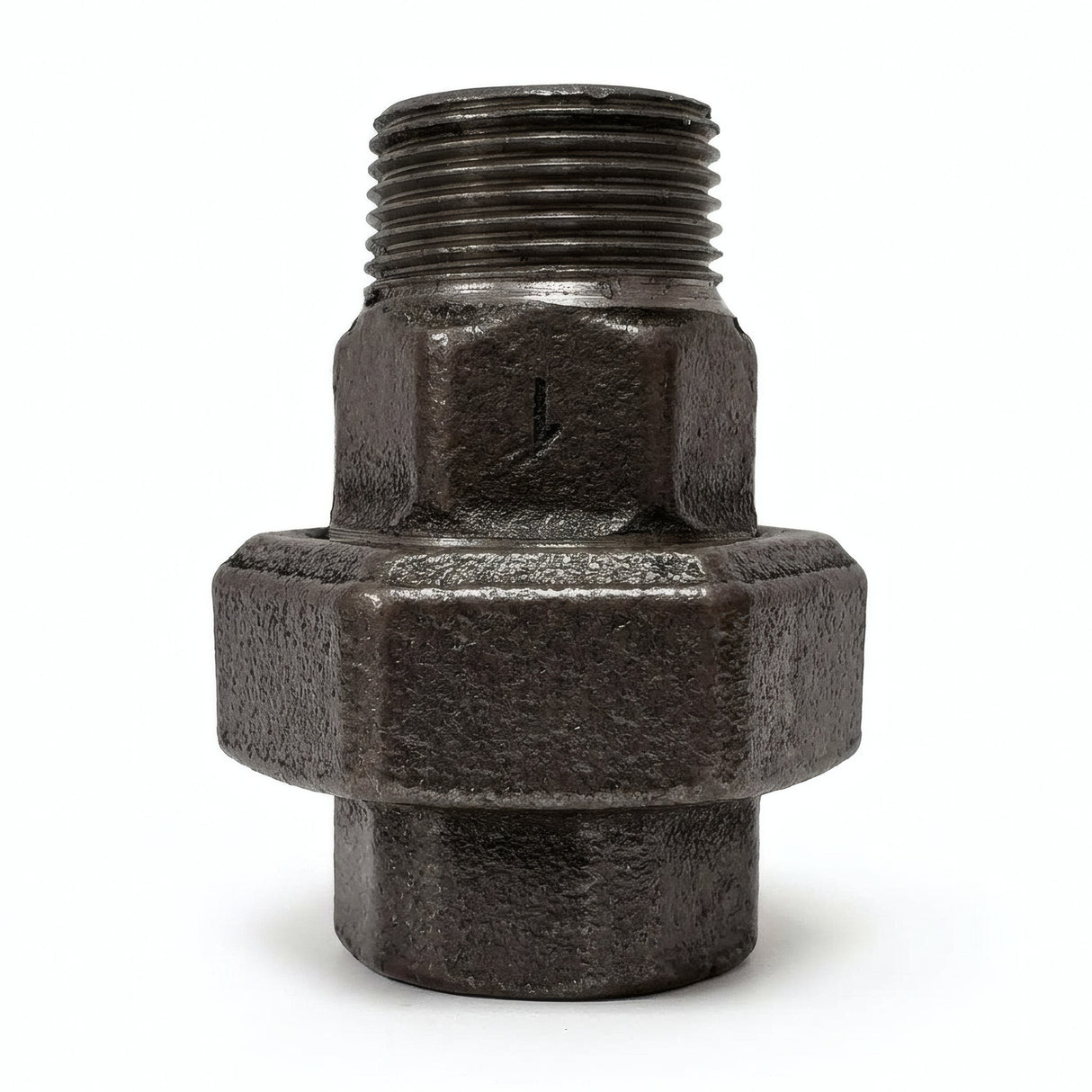

Black Cast Iron Male/female Union plumbing fitting

This Union fitting is ideal for creating complex closed structures (squares, rectangles) in cast iron and steel plumbing fittings. It is compatible with all black or galvanised cast iron fittings and black or galvanised steel threaded pipes of the same size sold in our online shop. The parts simply screw together, without welding, to make strong assemblies easily.

Description of the Union fitting:

The Union makes it easy to connect structural parts together that would otherwise be impossible to tighten properly due to the right-hand threads on all the parts.

The Union plumbing fitting is made up of 3 parts: 2 pieces to be screwed on each side of the fittings to be connected and a nut that joins the 2 parts.

Premium or Eco range?

This part is available in our Premium or Economic ranges. In both cases, these are genuine, fully functional plumbing fittings.

The differences are as follows:

Premium Eco
Colour Dark grey Grey
Aspect Light gloss Mat
Touched Smooth Slightly grainy

Union characteristics and uses:

The Male/female union is used to connect a female fitting and pipe or a male fitting (threaded). It is ideal for large structures that you can break down into smaller elements in this way to connect them easily at the end of assembly. It also allows you to create closed structures, i.e. squares or rectangles.

Although we use our fittings for decoration, they are a genuine piece of plumbing made from white-core malleable cast iron that complies with EN 10242 and ISO49 standards. Superior quality and a guarantee of foolproof sturdiness!

The Threads on this part are BSPT (ISO 7-1 standard) with cylindrical female (tapped) ends.

  • Vissage over 10 to 15mm (depending on the nature of the part being screwed and the strength of the screwing)
  • Materials: black cast iron
  • Colours: dark grey / grey
  • High quality
  • Made in Europe (premium)

Dimensions and Weight:

  • Tap / Thread: 3/8'' | 12x17mm
    Dimensions (mm): height 58 x width 45
    Weight (kg): 0.130
  • Tap / Thread: 1/2'' | 15x21mm
    Dimensions (mm): height 65 x width 48
    Weight (kg): 0.230
  • Tap / Thread: 3/4'' | 20x27mm
    Dimensions (mm): height 75 x width 55
    Weight (kg): 0.275
  • Tap / Thread: 1'' | 26x34mm
    Dimensions (mm): height 85 x width 60
    Weight (kg): 0.380
  • Tap / Thread: 1''1/4 | 33x42mm
    Dimensions (mm): height 95 x width 75
    Weight (kg): 0.755

Table of plumbing fitting sizes in inches and mm:

Size
inch.
Size
mm
Diameter
outside.
3/8" 12/17mm 17mm
1/2" 15/21mm 21mm
3/4" 20/27mm 27mm
1" 26/34mm 34mm
1"1/4 33/42mm 42mm
