Black steel half socket

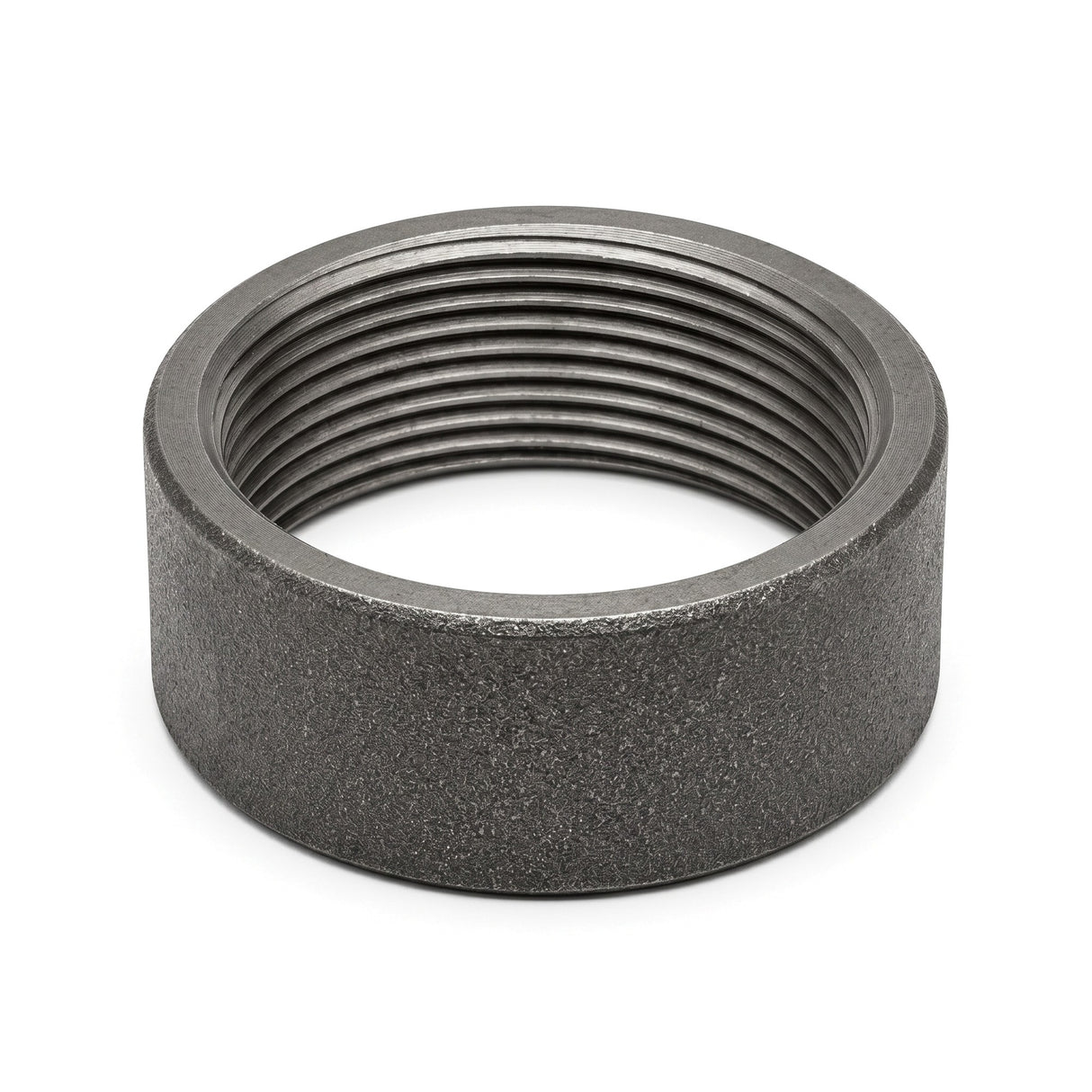

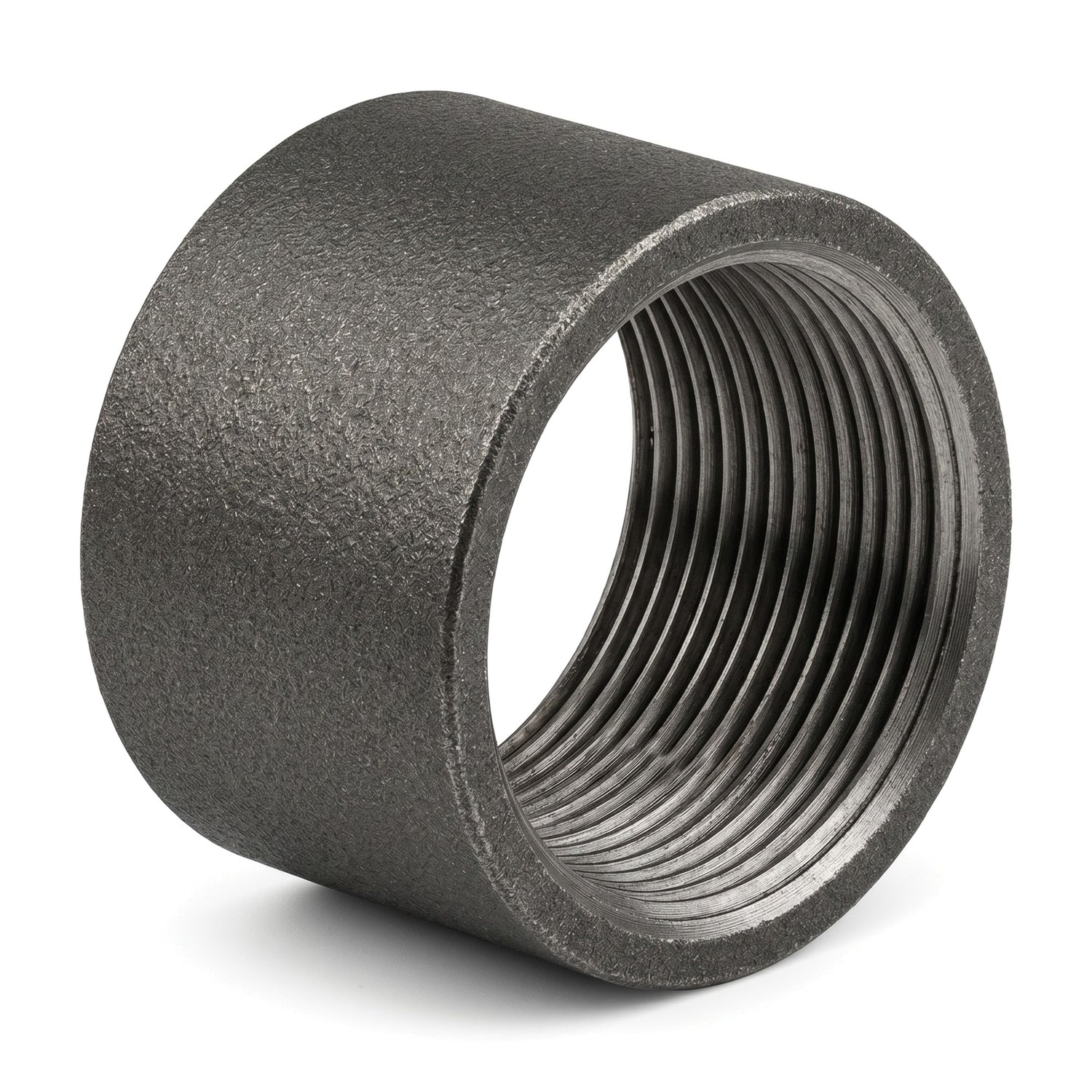

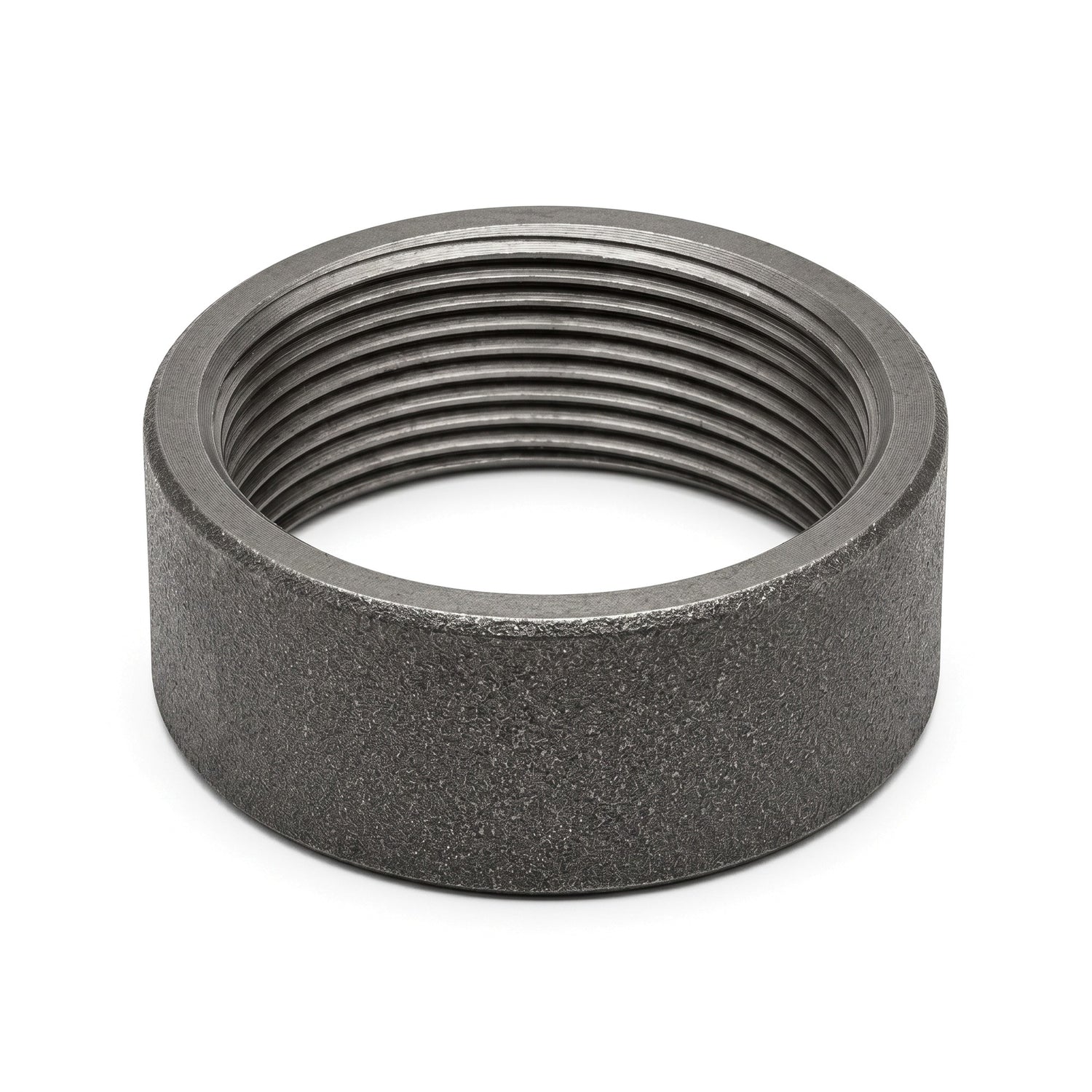

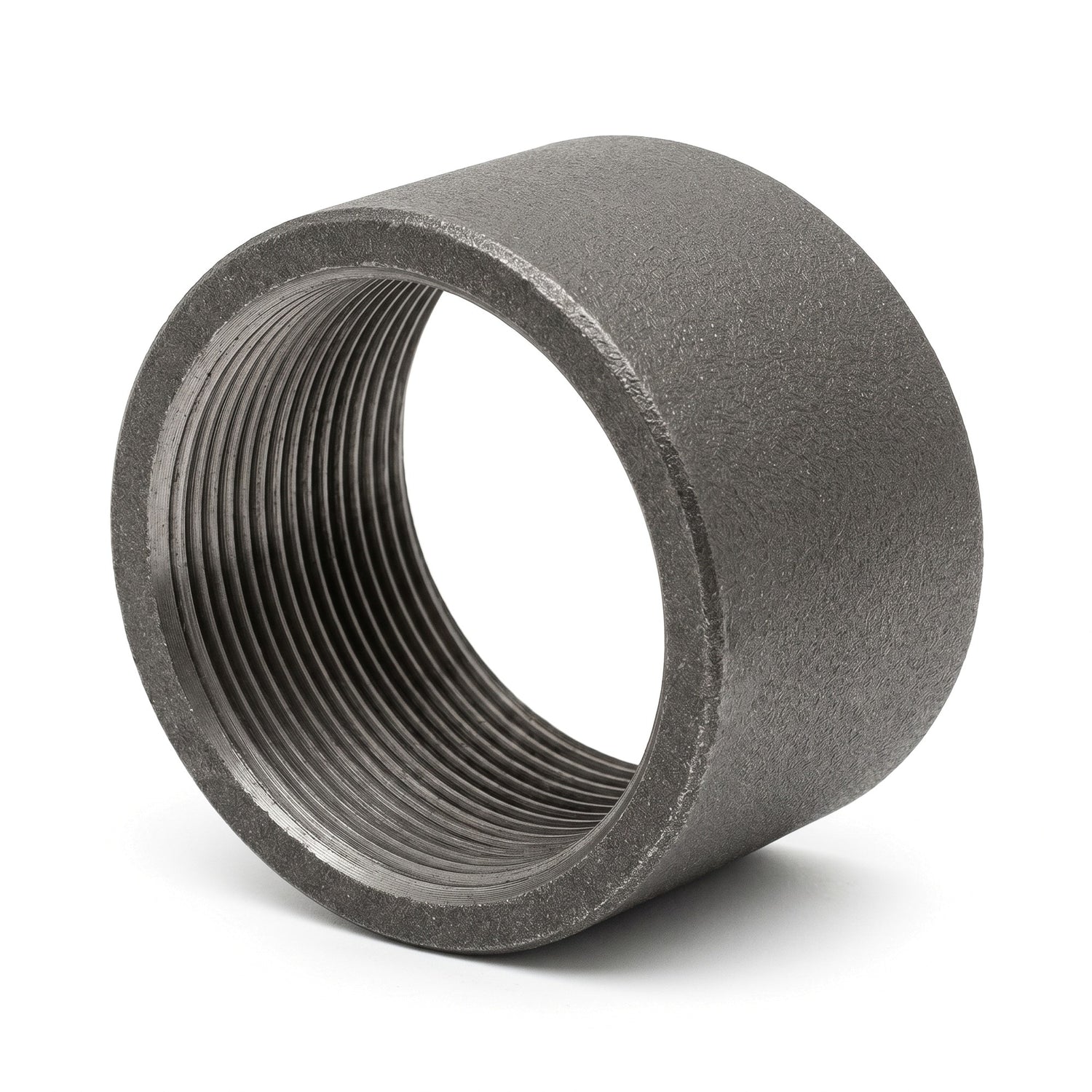

The black steel ring, or standard series steel half socket, is a short tapped fitting manufactured to EN 10241 from S235JR steel tube. Shorter than a regular coupling, this threaded ring screws onto any male BSP thread: the end of a steel pipe, a nipple or a malleable iron fitting. Its raw, slightly grainy black finish also makes it a great choice for industrial-style DIY projects: pipe clothes racks, lamps, furniture or finishing rings.
Technical specifications
- Type: half socket (tapped ring) — standard series, manufacturer ref. 2271
- Material: S235JR steel (weldable)
- Manufacturing standard: EN 10241, made from welded or seamless steel tube
- Connection: parallel through thread Rp to ISO 7-1 (BSP gas thread)
- Working pressure: PN 50 bar
- Finish: raw black steel
Dimensions and weight
D = outer diameter of the ring, L = length (see technical drawing below). The millimetre designation (15/21, 20/27…) is the French naming for gas threads.
| Thread Ø | DN | Designation | D (mm) | L (mm) | Weight |
|---|---|---|---|---|---|
| 1/2″ | 15 | 15/21 | 26.6 | 15 | 29 g |
| 3/4″ | 20 | 20/27 | 31.8 | 17 | 40 g |
| 1″ | 25 | 26/34 | 39.5 | 20 | 62 g |
| 1″1/4 | 32 | 33/42 | 48.3 | 22 | 92 g |
| 1″1/2 | 40 | 40/49 | 54.5 | 22 | 105 g |
| 2″ | 50 | 50/60 | 68.0 | 26 | 165 g |
| 2″1/2 | 65 | 66/76 | 84.0 | 30 | 275 g |
What is a half socket used for?
In plumbing, the steel half socket ends or extends a threaded connection over a short length: it screws onto a male gas thread of the same diameter and provides a through tapped bore. Made of weldable S235JR steel, it is also commonly welded onto a pipe or tank to create a tapped outlet.
In industrial decor, this black steel ring works as a finishing piece on threaded tube builds: a shoulder on a clothes rack, a stop ring on a furniture leg, or a trim on a plumbing-pipe lamp.
Compatibility
The ISO 7-1 gas thread is compatible with threaded steel pipes and malleable iron fittings of the same diameter. Pick the size matching your pipe: for example a 1/2″ pipe (15/21) screws into the 1/2″ ring.
