Brass 90° Elbow M/F
Shipping and Delivery
Shipping and Delivery
| Product Type | Delivery Method | Preparation Time | Transport Time | Delivery Time |
|---|---|---|---|---|
| All Parts | Pickup Point | 0 to 3 days | 3 to 6 days | 3 to 9 days |
| All Parts | Home Delivery | 0 to 3 days | 3 to 5 days | 3 to 8 days |
| Tubes > 90cm | Home Delivery | 0 to 3 days | 3 to 5 days | 3 to 8 days |
| Tubes > 200cm | Home Delivery | 0 to 3 days | 3 to 5 days | 3 to 8 days |
| Assembled Products | Home Delivery & Pickup Point | 0 to 5 days | (see methods) | 3 to 11 days |
* Tubes longer than 90cm cannot be delivered to a pickup point
For confirmation of delivery times on specific items, please send us a message

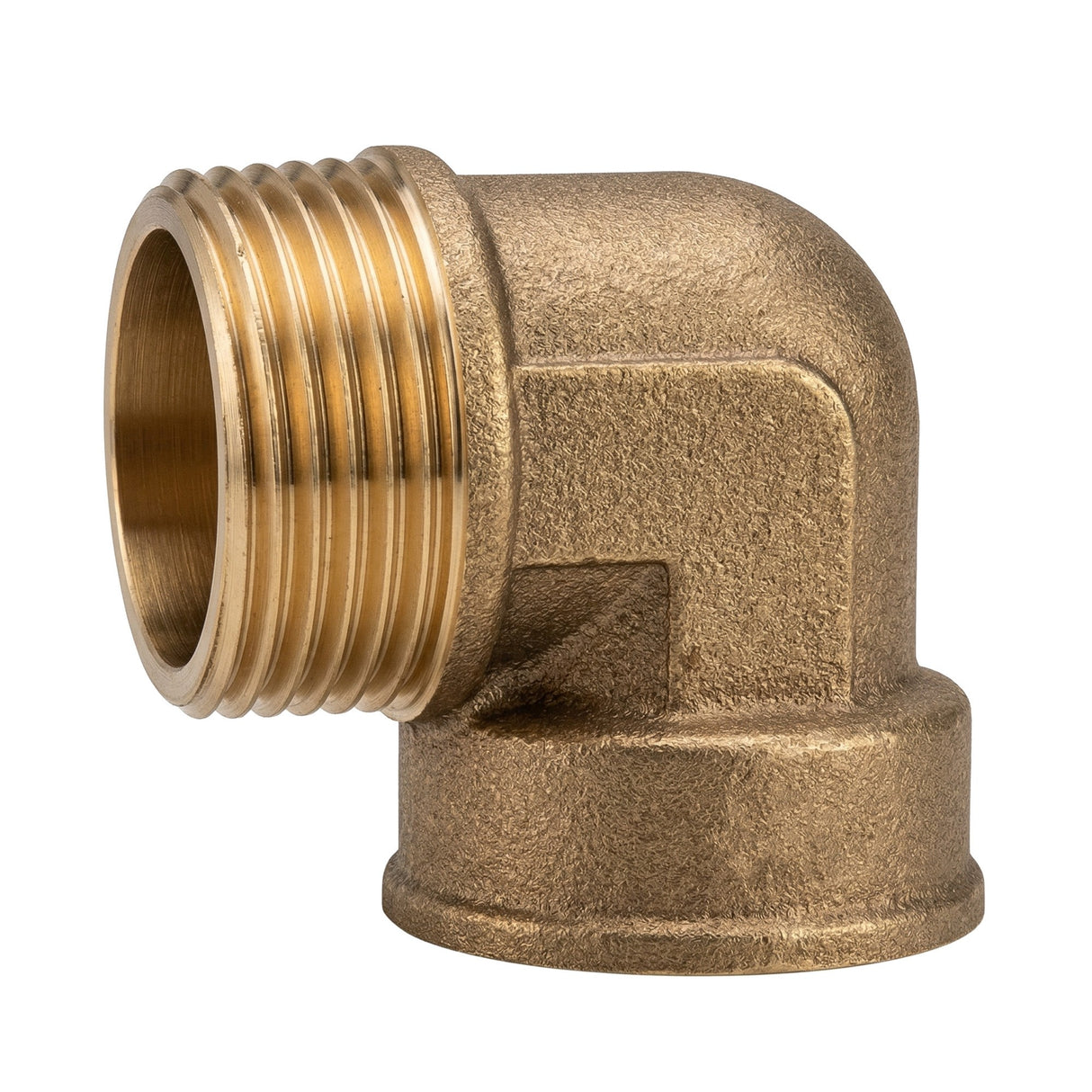

Brass 90° Elbow M/F
Coude 90° male/female brass screw-in fitting for a right-angle direction change in your plumbing ou vos créations decoration. Un côté threaded (male) et un côté female threaded (female) offrent une grande polyvalence de connection. ISO 228-1 BSPP standard.
Description of the Brass 90° M/F Elbow
Ce coude male/female assure la jonction à 90° entre un female fitting (female threaded) et un fitting male (threaded). Sa configuration mixte en fait l'un des fittings les plus polyvalents pour la plumbing and decoration. Il est compatible with all fittings de même taille sold on our site.
Assembly is done without soldering, by simply screwing. The hexagonal body ensures a firm grip with a wrench. Ce coude convient aussi bien aux circuits d'eau domestiques qu'aux decorative creations in exposed brass.
Technical Characteristics
| Material | Laiton CW617N - 4MS |
| Colour | Golden brass |
| Nominal pressure | PN 16 bar |
| Thread standard | ISO 228-1 - BSPP Gaz (thread cylindrique) |
| Sealing | By flat gasket (thickness from 1 mm) |
| Gasket seats | Flat and wide on male and female ends |
| Shape | 6-sided (wrench tightening) |
| Type | Male (threaded) / Female (threaded) |
| Angle | 90° |
| Compatible fluids | Drinking water, glycol water, compatible fluids |
| Temperature | Depending on the type of sealing chosen |
| Use | Drinking water supply, general plumbing, HVAC |
Conditions of Use and Installation
- Working pressure : PN 16 bar
- Temperature : Depending on the type of sealing chosen
- Fluids : Drinking water, glycol water, compatible fluids
- Installation : Appliquer un moderate tightening torque et choisir des matériaux adaptés (risque de corrosion galvanique). Plats de maintien adaptés aux clés du marché.
Certifications and Compliance
- Drinking water : Compliant with the decree of 25 June 2020 relating to metallic materials and products intended for installations en contact avec l'eau destinée à la consommation humaine.
- 4MS : Compliant with 4MS requirements — Harmonisation des règles de certification européennes pour les matériaux et produits en contact avec l'eau potable.
Applications and Installation Tips
Uses
- Domestic plumbing : connection d'installations eau chaude et froide
- Industrial plumbing : installations conformes PN 16 bar
- Interior decoration : création de luminaires, étagères, porte-serviettes en exposed brass
- DIY and creative home improvement : projets sur mesure avec fittings à screw
Installation tips
- Utilisez du PTFE tape (téflon) ou de la filasse pour assurer l'sealing sur les threads male
- Pour les portées de flat gasketes, utilisez un flat gasket d'épaisseur minimale 1 mm
- Serrez à la open-end wrench ou adjustable wrench — ne pas utiliser de pince multiprise pour éviter de marquer la pièce
- Appliquer un moderate tightening torque — un tightening excessif peut endommager le thread
Technical Drawing
Dimensions (mm)
All dimensions are expressed in millimetres (mm), unless otherwise stated.
| G | G (mm) | OD | L1 | L2 | E1 | E2 |
|---|---|---|---|---|---|---|
| 3/8" | 12x17 | 11 | 8.5 | 8.5 | 25.5 | 27.5 |
| 1/2" | 15x21 | 14.5 | 10 | 10 | 31 | 33 |
| 3/4" | 20x27 | 19.5 | 11 | 11 | 37 | 39.5 |
| 1" | 26x34 | 25 | 13 | 13 | 45.5 | 48 |
| 1"1/4 | 33x42 | 33 | 14 | 14 | 55 | 58 |
| 1"1/2 | 40x49 | 39 | 15.5 | 15.5 | 63 | 66.25 |
| 2" | 50x60 | 50 | 17 | 17 | 76.5 | 79.75 |
Size Correspondence
Ce coude est available in the following sizes. Utilisez ce tableau pour trouver la correspondance entre millimètres, pouces et DN.
| Size (mm) | 12x17 | 15x21 | 20x27 | 26x34 | 33x42 | 40x49 | 50x60 |
|---|---|---|---|---|---|---|---|
| Inches | 3/8'' | 1/2'' | 3/4'' | 1'' | 1''1/4 | 1''1/2 | 2'' |
| DN | DN10 | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 |
| Tube O.D. | 17 mm | 21 mm | 27 mm | 34 mm | 42 mm | 49 mm | 60 mm |
The appearance of the part may vary depending on the batch in stock (see photos). Contact us for confirmation.
