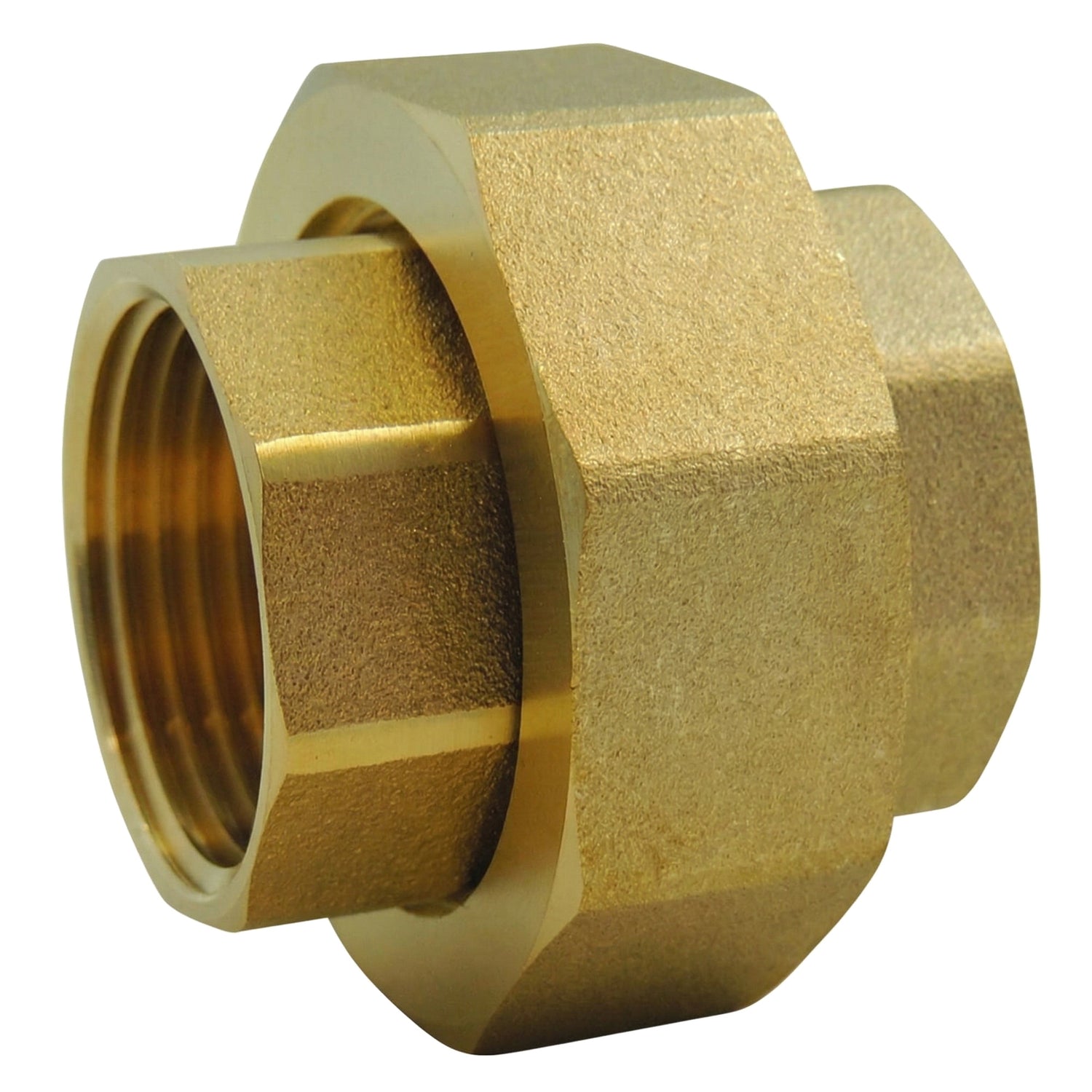

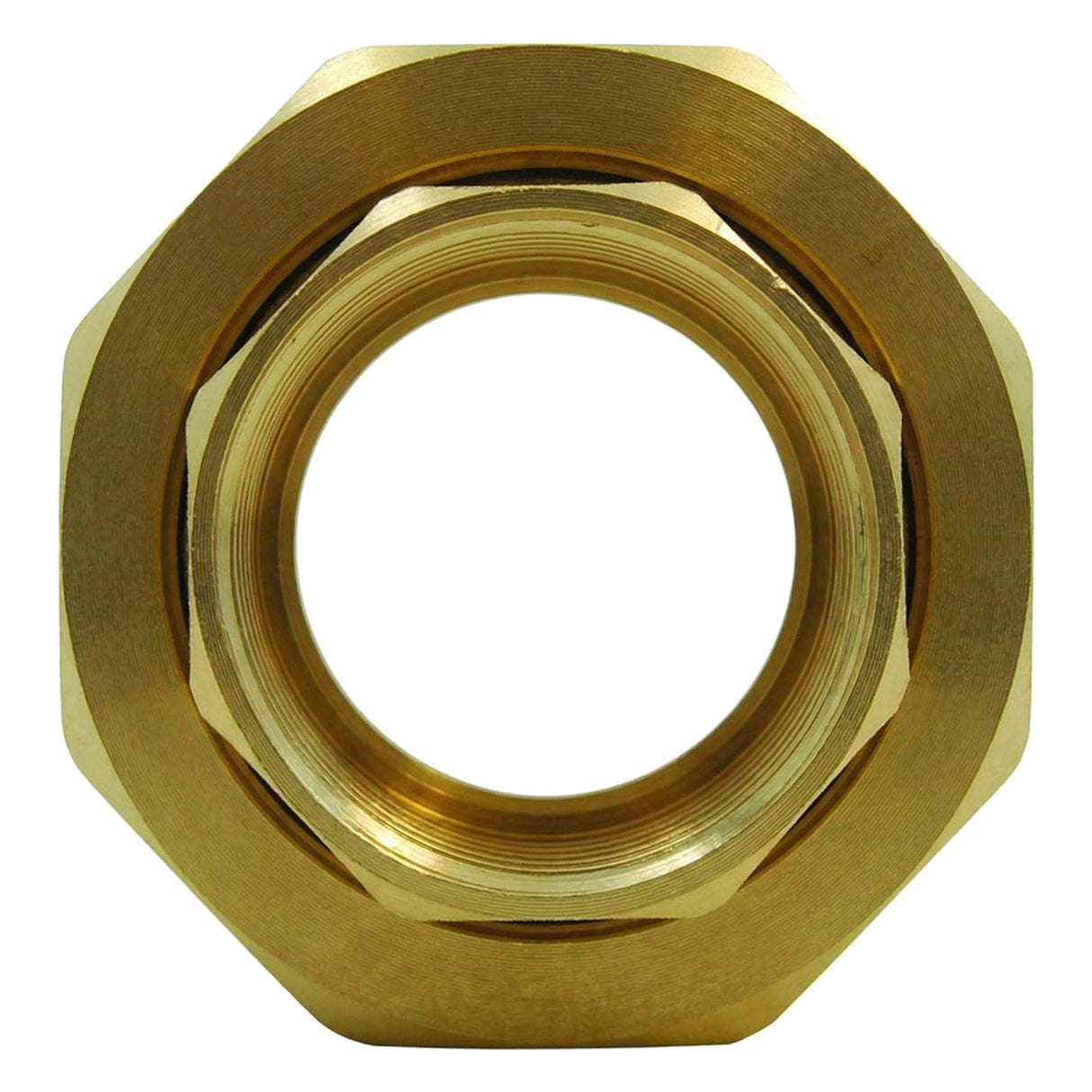

Brass Flat Seat Union F/F EPDM
Flat-seat union fitting F/F in brass with integrated EPDM gasket, for a dismountable and sealed connection between two male elements. The central swivel nut allows easy assembly and disassembly without moving the pipework. Standard ISO 228-1 BSPP.
Description of the Flat-Seat Union Fitting F/F in Brass
This three-piece union (two bodies + swivel nut) creates a dismounting point in a pipeline. Both tapped (female) sides accept male threaded fittings or pipes. The supplied EPDM gasket ensures sealing even after multiple disassemblies.
Essential for equipment requiring periodic maintenance (water heaters, pumps, filters). The union allows disconnecting the equipment without cutting or uncoupling the rest of the installation.
Technical Specifications
| Material | Brass CW617N - 4MS |
| Colour | Golden brass |
| Nominal pressure | PN 16 bar |
| Thread standard | ISO 228-1 - BSPP Gas (parallel thread) |
| Sealing | By EPDM gasket (supplied) |
| Gasket seats | Flat seat for EPDM gasket |
| Shape | Hexagonal (wrench tightening) |
| Gender | Female / Female (tapped on both sides) + swivel nut |
| Union type | Flat seat with gasket |
| Gasket | EPDM (supplied) |
| Compatible fluids | Drinking water, glycol water, compatible fluids |
| Temperature | Depending on the type of sealing chosen |
| Application | Drinking water supply, general plumbing, HVAC |
Conditions of Use and Installation
- Service pressure : PN 16 bar
- Temperature : Depending on the type of sealing chosen
- Fluids : Drinking water, glycol water, compatible fluids
- Installation : Apply moderate tightening torque and choose suitable materials (risk of galvanic corrosion). Flats adapted to standard wrench sizes.
Certifications and Compliance
- Drinking water : Compliant with the French decree of 25 June 2020 relating to metallic materials and products intended for installations in contact with water intended for human consumption.
- 4MS : Compliant with 4MS requirements — Harmonisation of European certification rules for materials and products in contact with drinking water.
Applications and Installation Tips
Applications
- Domestic plumbing : connection of hot and cold water installations
- Industrial plumbing : PN 16 bar compliant installations
- Interior decoration : creation of light fixtures, shelves, towel rails in exposed brass
- DIY and creative projects : custom projects with threaded fittings
Installation tips
- Check that the EPDM gasket is correctly positioned before tightening
- Tighten with an open-end wrench or adjustable wrench — do not use pliers to avoid marking the fitting
- Apply moderate tightening torque — over-tightening may crush the EPDM gasket
Technical Drawing
Dimensions (mm)
All dimensions are expressed in millimetres (mm), unless otherwise stated.
| G | G (mm) | U | U (mm) | OD | L1 | L2 | E | S1 | S2 |
|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 15x21 | 7/8" | 14.5 | 32.5 | 10 | 32.5 | 23 | 33 | |
| 3/4" | 20x27 | 1"1/8 | 19.5 | 38.5 | 11 | 38.5 | 29 | 41 | |
| 1" | 26x34 | 1"1/2 | 40x49 | 25 | 44 | 13 | 44 | 36 | 52 |
Size Equivalences
This union is available in the following sizes. Use this table to find the equivalence between millimetres, inches and DN.
| Size (mm) | 15x21 | 20x27 | 26x34 |
|---|---|---|---|
| Inches | 1/2'' | 3/4'' | 1'' |
| DN | DN15 | DN20 | DN25 |
| Outer tube dia. | 21 mm | 27 mm | 34 mm |
The appearance of the fitting may vary depending on the batch in stock (see photos). Contact us for confirmation.
