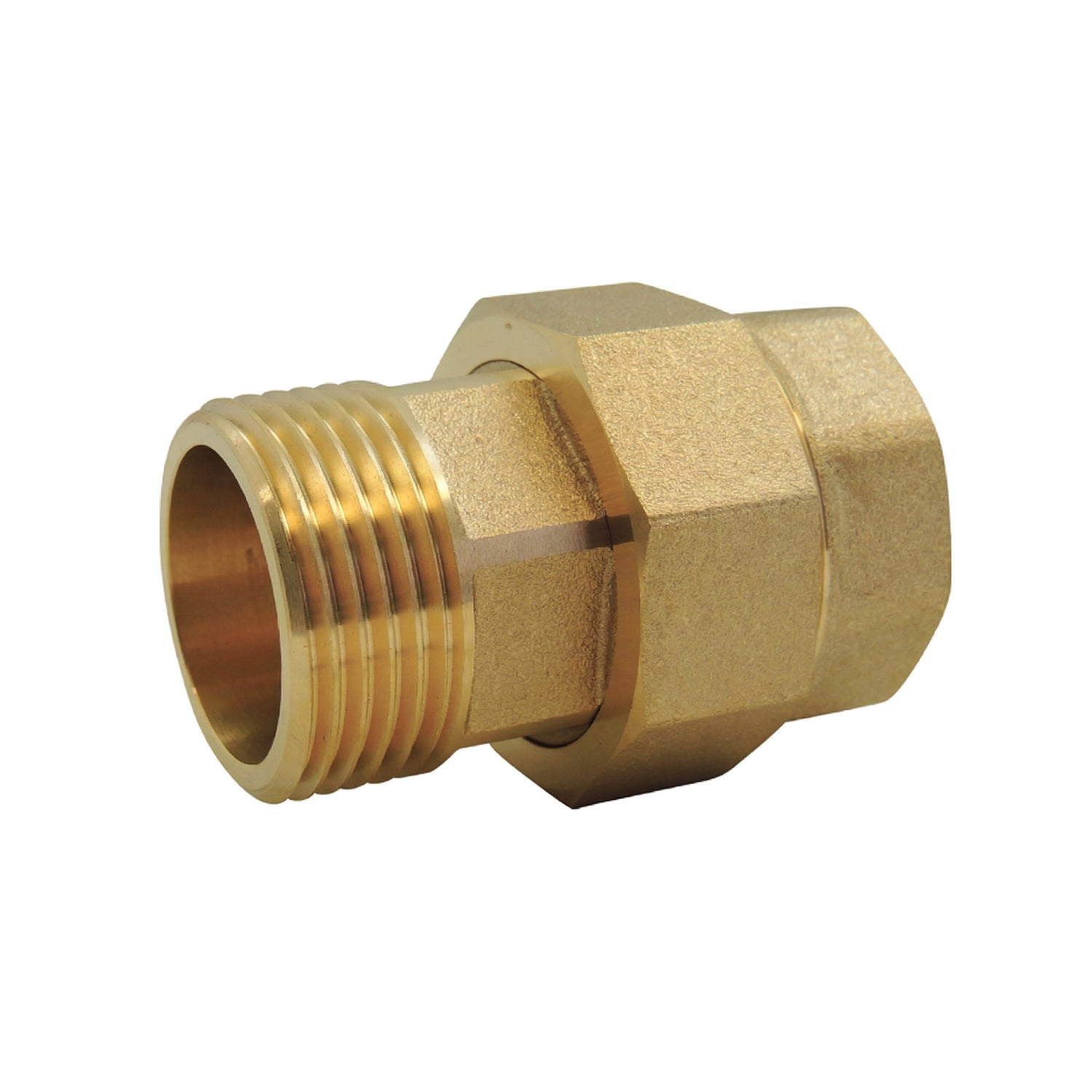

Brass Flat Seat Union M/F EPDM
Union flat seat M/F brass avec EPDM gasket intégré, offrant un point de connection detachable entre un élément female et un élément male. Configuration mixte idéale pour les connections d'équipements. ISO 228-1 BSPP standard.
Description of the Brass Flat Seat Union M/F
Cette union mixte M/F se compose de trois pièces : un corps male, un corps female et un swivel nut. Le EPDM gasket intégré assure l'sealing de la jonction plate. Elle crée un point de déconnexion rapide dans le circuit.
La configuration M/F est particulièrement utile pour le connection direct sur des appareils ou vannes qui possèdent déjà un male thread ou female. Déassembly et reassembly possibles sans affecter le reste de l'installation.
Technical Characteristics
| Material | Laiton CW617N - 4MS |
| Colour | Golden brass |
| Nominal pressure | PN 16 bar |
| Thread standard | ISO 228-1 - BSPP Gaz (thread cylindrique) |
| Sealing | By EPDM gasket (included) |
| Gasket seats | Flat seat for EPDM gasket |
| Shape | 6-sided (wrench tightening) |
| Type | Male (threaded) / Female (threaded) + swivel nut |
| Union type | Flat seat with gasket |
| Gasket | EPDM (included) |
| Compatible fluids | Drinking water, glycol water, compatible fluids |
| Temperature | Depending on the type of sealing chosen |
| Use | Drinking water supply, general plumbing, HVAC |
Conditions of Use and Installation
- Working pressure : PN 16 bar
- Temperature : Depending on the type of sealing chosen
- Fluids : Drinking water, glycol water, compatible fluids
- Installation : Appliquer un moderate tightening torque et choisir des matériaux adaptés (risque de corrosion galvanique). Plats de maintien adaptés aux clés du marché.
Certifications and Compliance
- Drinking water : Compliant with the decree of 25 June 2020 relating to metallic materials and products intended for installations en contact avec l'eau destinée à la consommation humaine.
- 4MS : Compliant with 4MS requirements — Harmonisation des règles de certification européennes pour les matériaux et produits en contact avec l'eau potable.
Applications and Installation Tips
Uses
- Domestic plumbing : connection d'installations eau chaude et froide
- Industrial plumbing : installations conformes PN 16 bar
- Interior decoration : création de luminaires, étagères, porte-serviettes en exposed brass
- DIY and creative home improvement : projets sur mesure avec fittings à screw
Installation tips
- Vérifiez que le EPDM gasket est correctement positionné avant tightening
- Serrez à la open-end wrench ou adjustable wrench — ne pas utiliser de pince multiprise pour éviter de marquer la pièce
- Appliquer un moderate tightening torque — un tightening excessif peut écraser le EPDM gasket
Technical Drawing
Dimensions (mm)
All dimensions are expressed in millimetres (mm), unless otherwise stated.
| G | G (mm) | U | U (mm) | OD | L1 | L2 | L3 | L4 | S1 | S2 | S3 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 15x21 | 3/4" | 20x27 | 14.5 | 47.5 | 11 | 10 | 10 | 19 | 29 | 23 |
| 3/4" | 20x27 | 7/8" | 19.5 | 53.5 | 12 | 11 | 10 | 24 | 33 | 29 | |
| 1" | 26x34 | 1"1/8 | 25 | 61 | 14 | 13 | 12 | 30 | 41 | 36 |
Size Correspondence
Cette union est available in the following sizes. Utilisez ce tableau pour trouver la correspondance entre millimètres, pouces et DN.
| Size (mm) | 15x21 | 20x27 | 26x34 |
|---|---|---|---|
| Inches | 1/2'' | 3/4'' | 1'' |
| DN | DN15 | DN20 | DN25 |
| Tube O.D. | 21 mm | 27 mm | 34 mm |
The appearance of the part may vary depending on the batch in stock (see photos). Contact us for confirmation.
