Brass Lock Nut

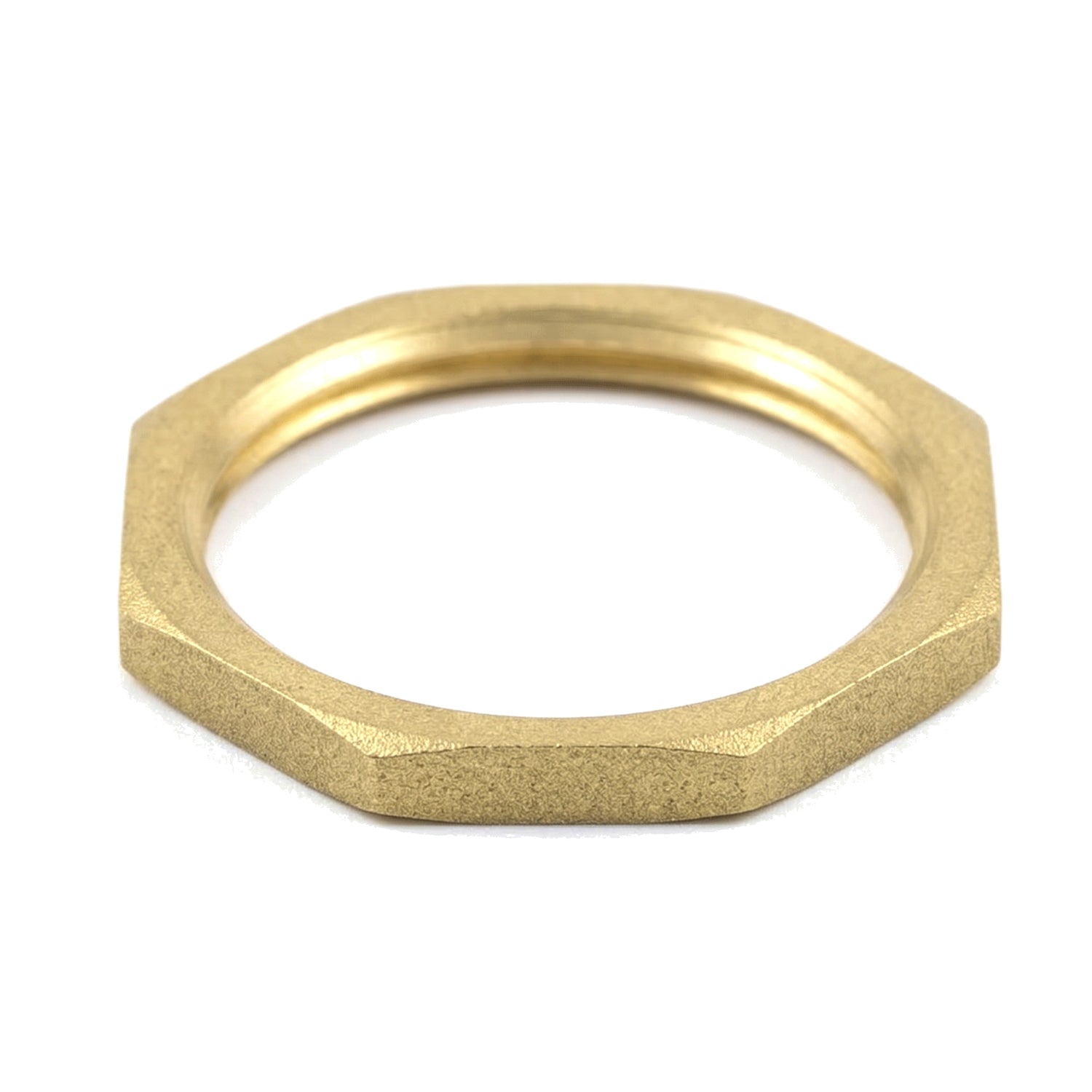

Brass lock nut to secure a threaded fitting in position. This standard hexagonal lock nut screws onto a male thread to prevent the fitting from loosening. ISO 228-1 BSPP standard.
Brass Lock Nut Description
This hexagonal lock nut screws onto a male thread alongside a main fitting to lock it in position. It prevents gradual loosening caused by vibrations or temperature variations in the system.
Its 6-sided profile allows precise tightening with a wrench. Widely used in plumbing to secure connections, it is also suitable for decorative purposes such as fixing elements on threaded rods (light fixtures, shelves).
Technical Specifications
| Material | Brass CW617N - 4MS |
| Colour | Golden brass |
| Nominal pressure | PN 16 bar |
| Thread standard | ISO 228-1 - BSPP Gas (parallel thread) |
| Sealing | Guaranteed flat gasket seal (minimum thickness 1 mm) |
| Gasket seats | Flat bearing faces on both sides |
| Shape | 6-sided (hexagonal) |
| Type | Female (internally threaded) |
| Compatible fluids | Drinking water, glycol water, compatible fluids |
| Temperature | Depends on the type of seal used |
| Application | Drinking water supply, general plumbing, HVAC |
Operating Conditions and Installation
- Operating pressure: PN 16 bar
- Temperature: Depends on the type of seal used
- Fluids: Drinking water, glycol water, compatible fluids
- Installation: Apply moderate tightening torque and use suitable materials (risk of galvanic corrosion). Wrench flats compatible with standard tools.
Certifications and Compliance
- Drinking water: Compliant with the French decree of 25 June 2020 on metallic materials and products intended for installations in contact with water for human consumption.
- 4MS: Compliant with 4MS requirements — Harmonisation of European certification rules for materials and products in contact with drinking water.
Applications and Installation Tips
Applications
- Domestic plumbing: hot and cold water installation connections
- Industrial plumbing: PN 16 bar compliant installations
- Interior decoration: creating light fixtures, shelves, towel rails in exposed brass
- DIY and creative projects: custom projects with screw-in fittings
Installation tips
- Use PTFE tape (Teflon) or hemp to ensure sealing on male threads
- For flat gasket seats, use a flat gasket with a minimum thickness of 1 mm
- Tighten with an open-end wrench or adjustable wrench — do not use slip-joint pliers to avoid damaging the fitting
- Apply moderate tightening torque — over-tightening may damage the thread
Technical Drawing
Dimensions (mm)
All dimensions are expressed in millimetres (mm) unless otherwise stated.
| G | G (mm) | S | L |
|---|---|---|---|
| 1/4" | 8x13 | 16 | 3 |
| 3/8" | 12x17 | 20 | 3.5 |
| 1/2" | 15x21 | 24 | 4 |
| 3/4" | 20x27 | 30 | 5 |
| 1" | 26x34 | 37 | 5 |
| 1"1/2 | 40x49 | 46 | 6 |
| 1"1/4 | 33x42 | 52 | 6 |
| 2" | 50x60 | 65 | 8 |
Size Equivalences
This lock nut is available in the following sizes. Use this table to find the equivalence between millimetres, inches and DN.
| Size (mm) | 8x13 | 12x17 | 15x21 | 20x27 | 26x34 | 33x42 | 40x49 | 50x60 |
|---|---|---|---|---|---|---|---|---|
| Inches | 1/4'' | 3/8'' | 1/2'' | 3/4'' | 1'' | 1''1/4 | 1''1/2 | 2'' |
| DN | DN8 | DN10 | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 |
| Ext. tube dia. | 13 mm | 17 mm | 21 mm | 27 mm | 34 mm | 42 mm | 49 mm | 60 mm |
The appearance of the part may vary depending on the batch in stock (see photos). Contact us for confirmation.
