E14 metal socket with double ring for lampshade
From
$14.00
Unit price
/
Unavailable
E14 metal socket with double ring for lampshade
E14 cap socket in a metal casing, whose two rings clamp the lampshade on either side of its opening. It connects to the cable through screw terminals and is fixed by its threaded hole.
Features and use
- Threaded shell and 43 mm double ring to hold a lampshade.
- E14 cap, rated voltage 250 Vac, rated current 2 A.
- Screw-type terminals, for rigid or flexible cable of 0.5 to 2.5 mm².
- Mounting via an M10x1 threaded hole.
- Designed for a 3x0.75 cable (3 conductors, including earth).
- Cable grip of your choice: conical in thermoplastic or cylindrical in metal.
Versions and finishes

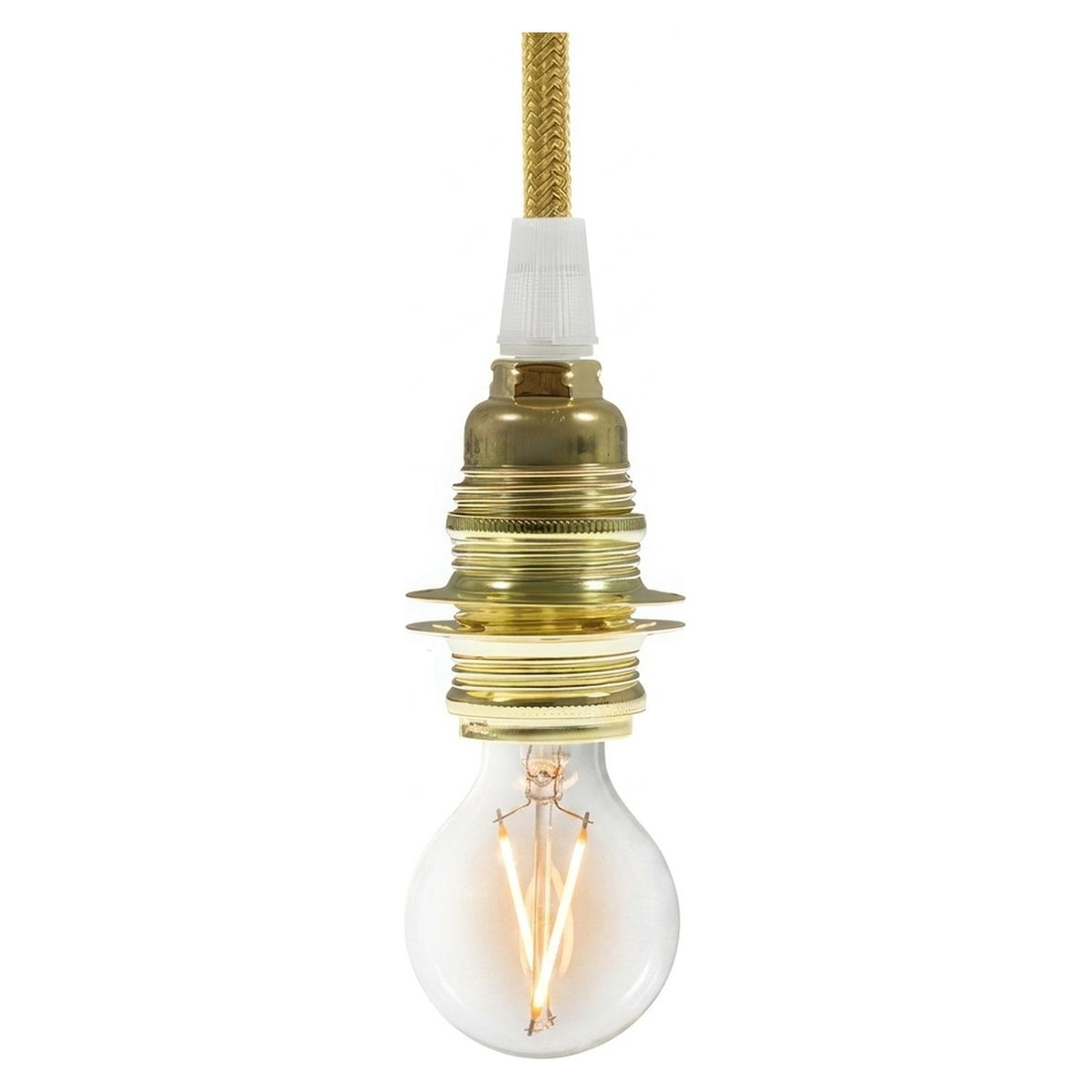

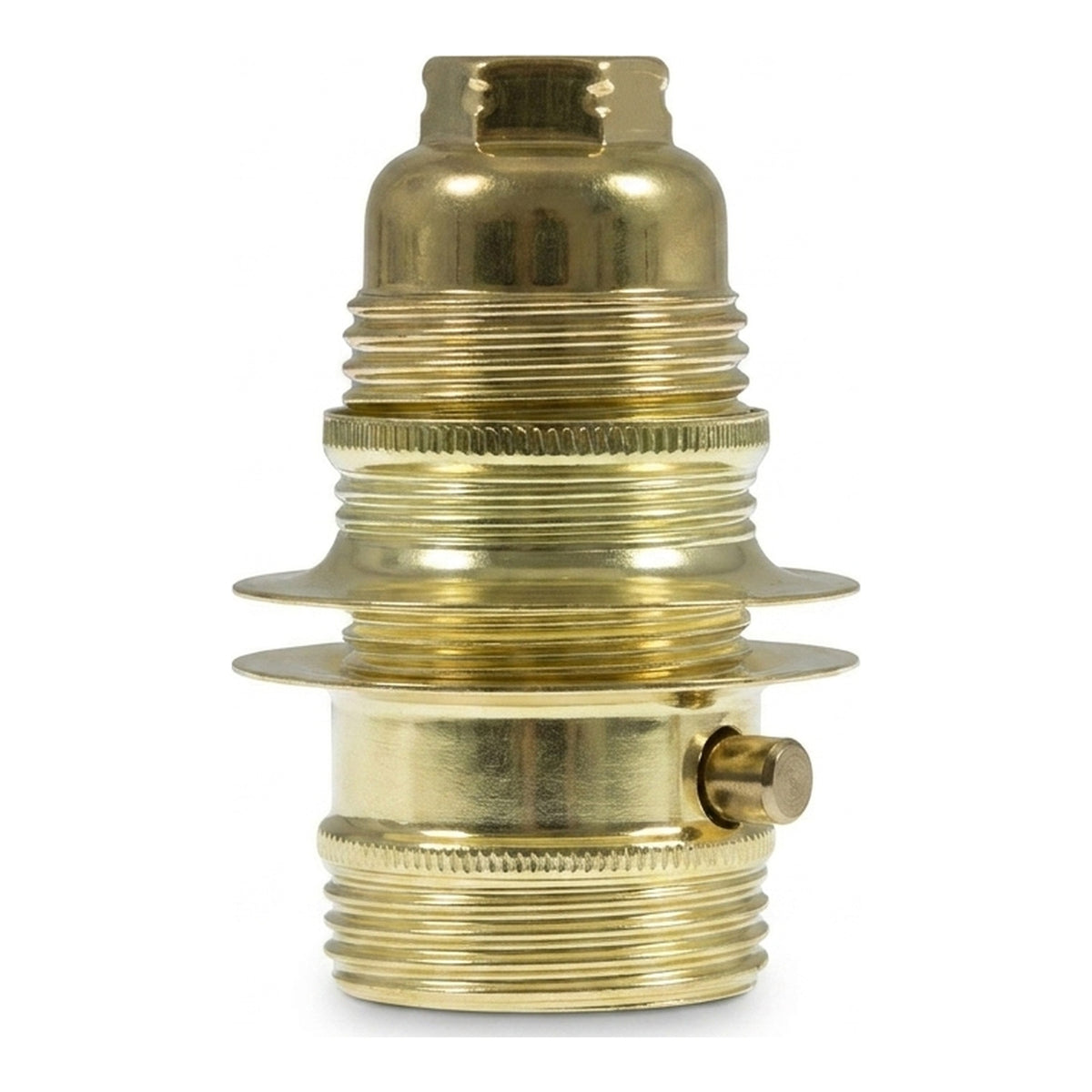

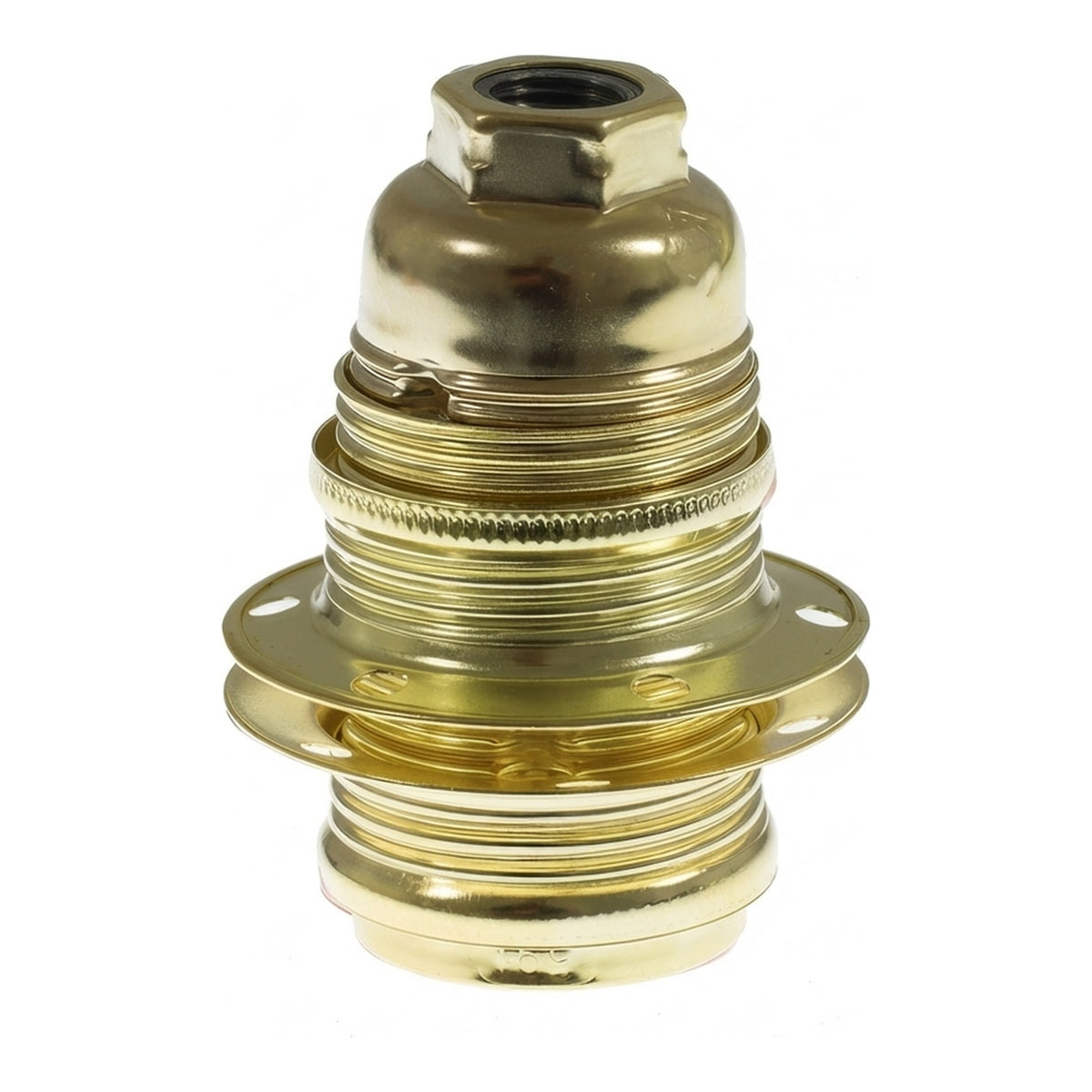

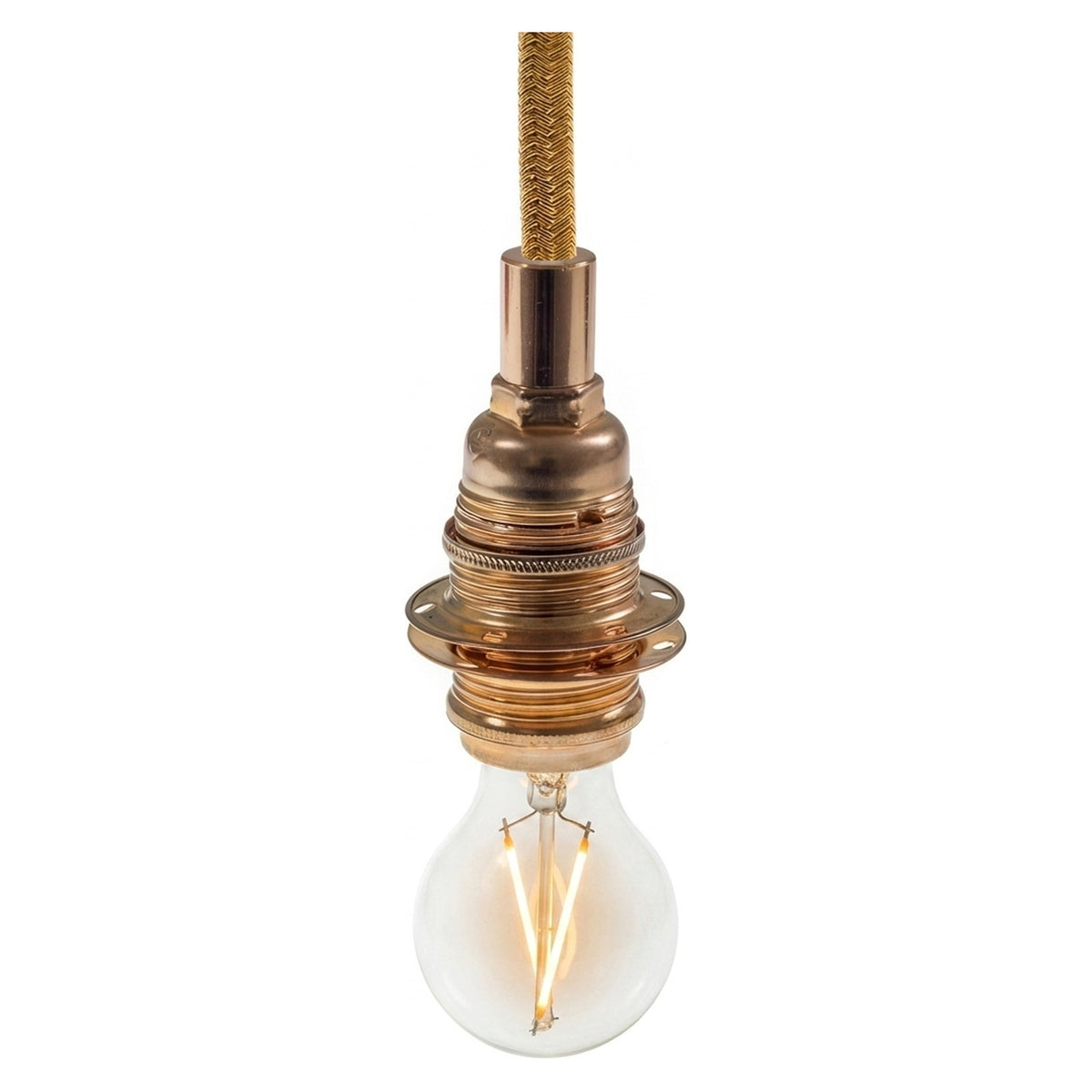

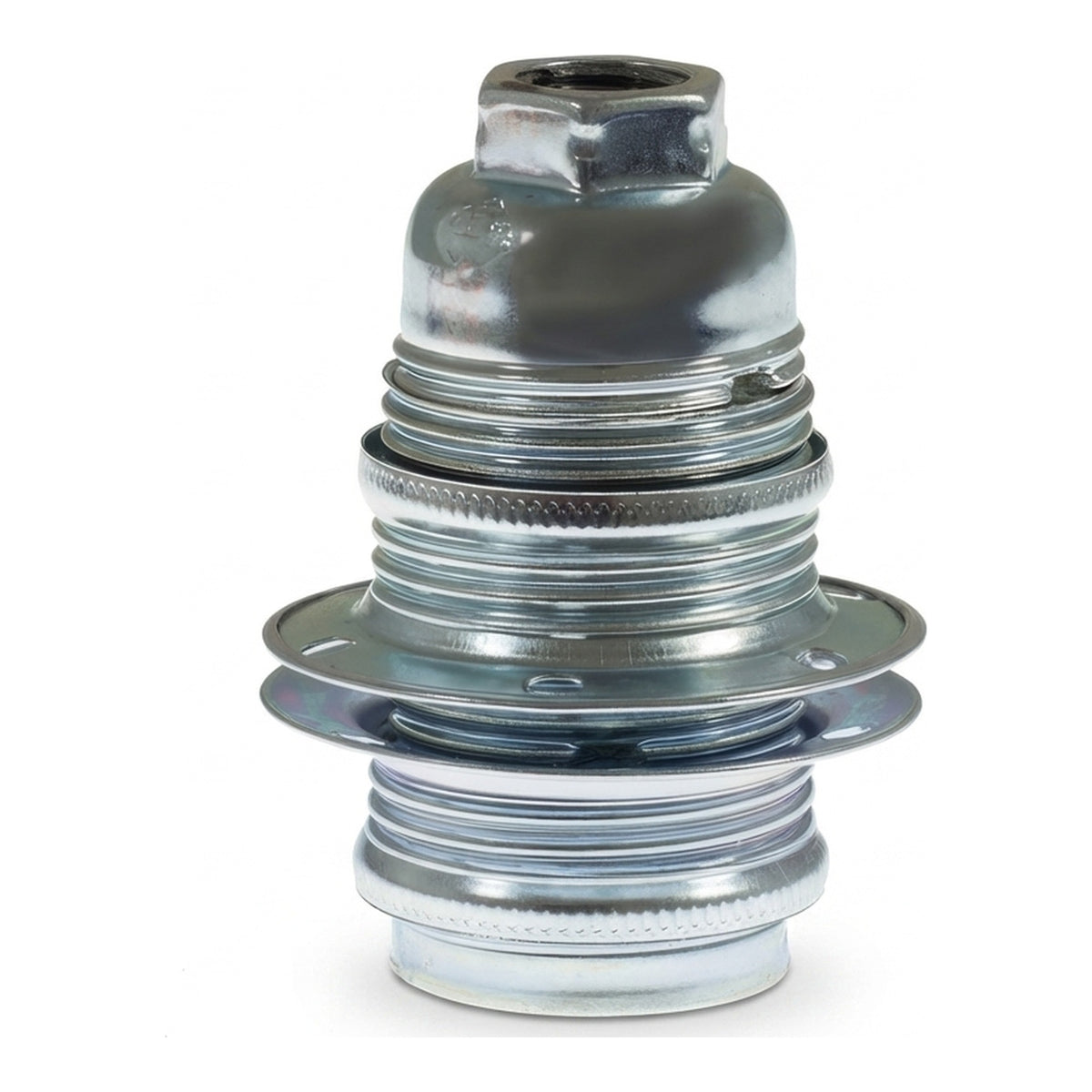

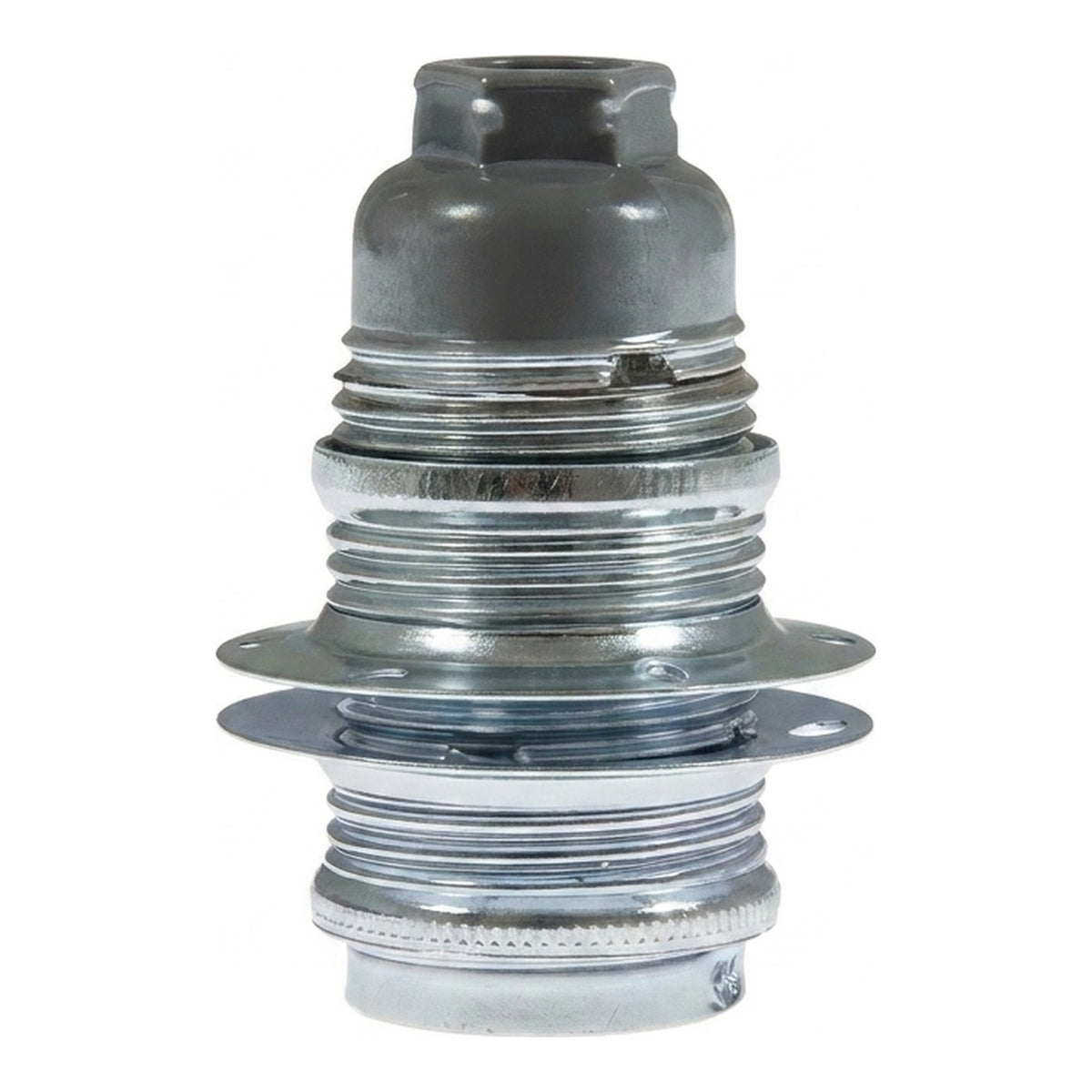

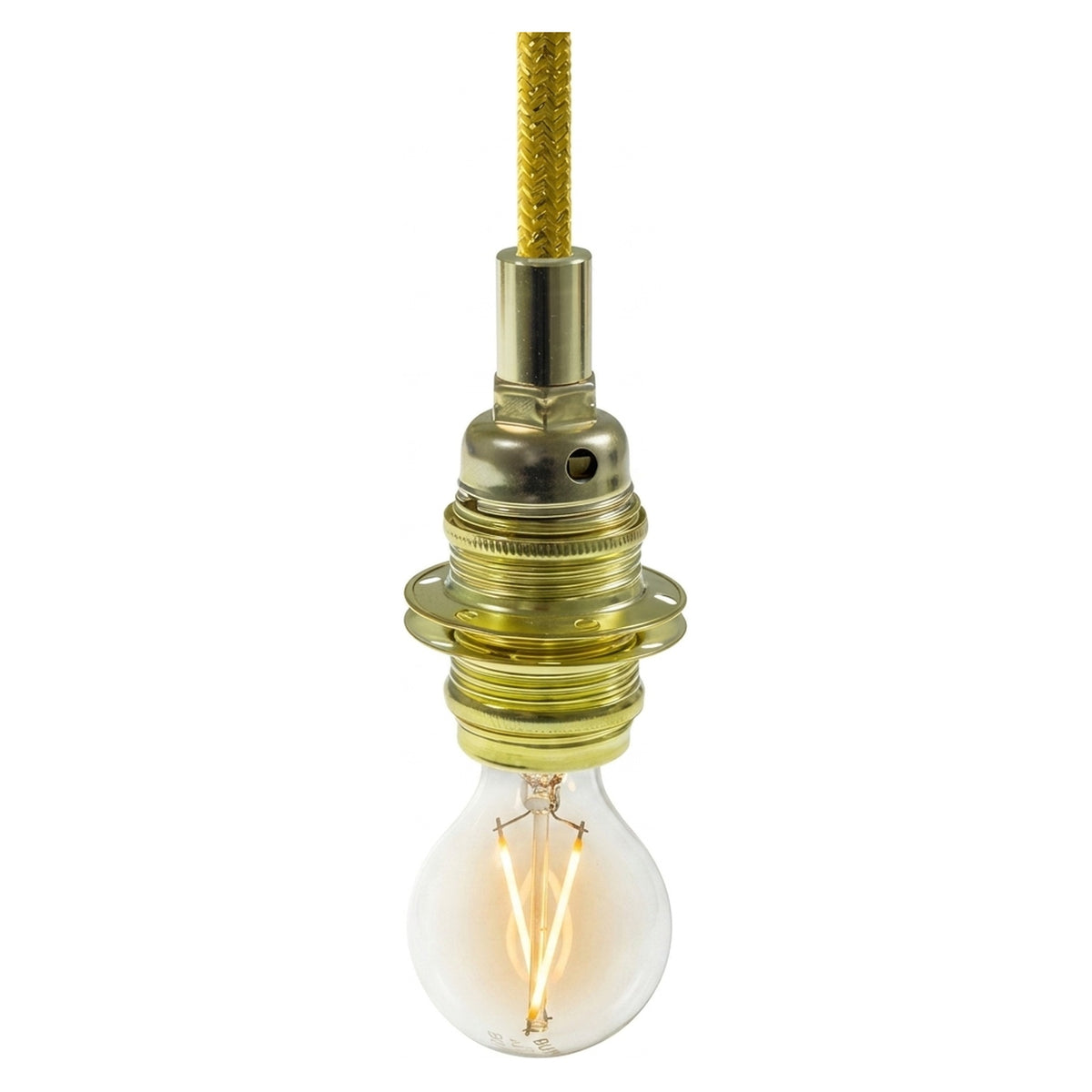

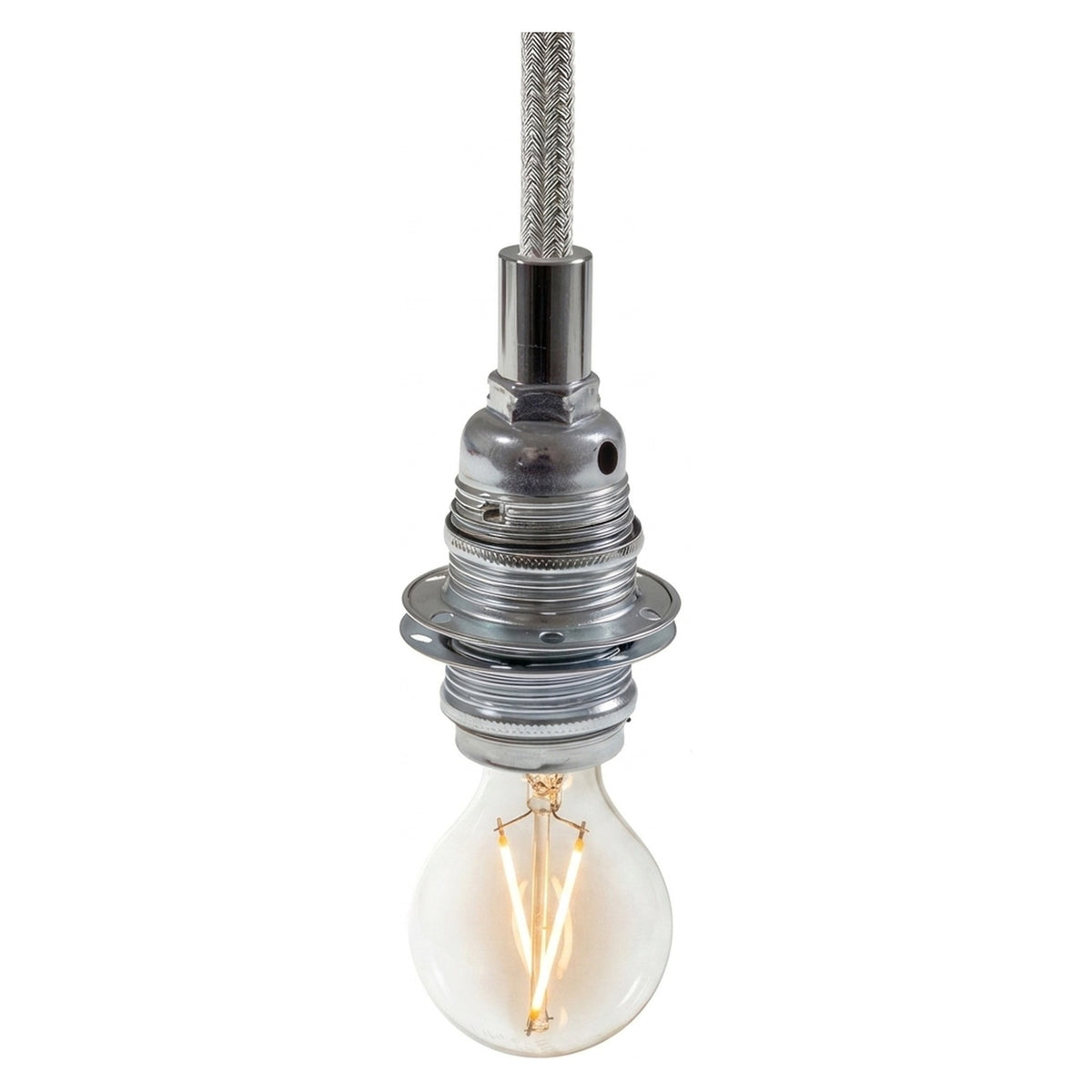

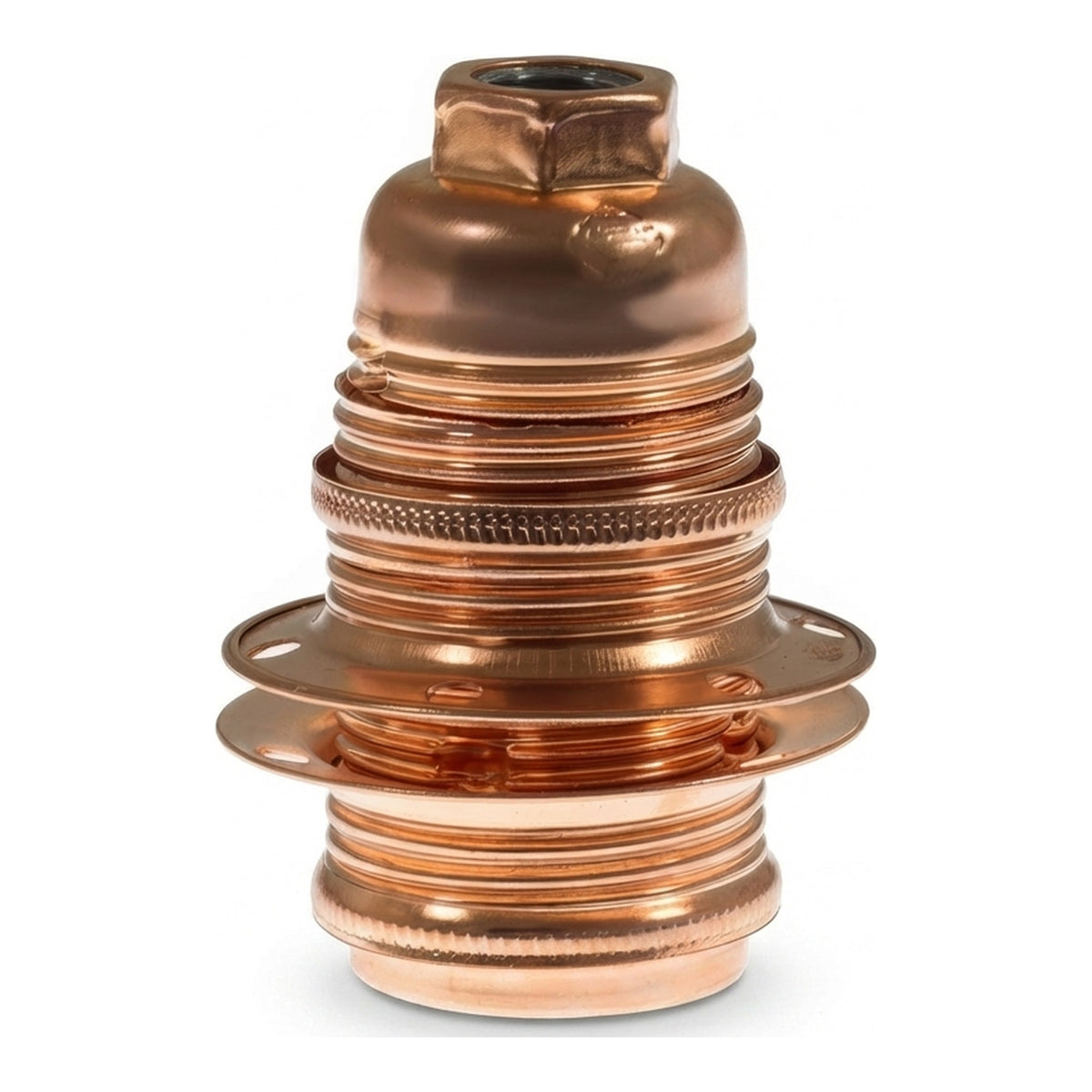

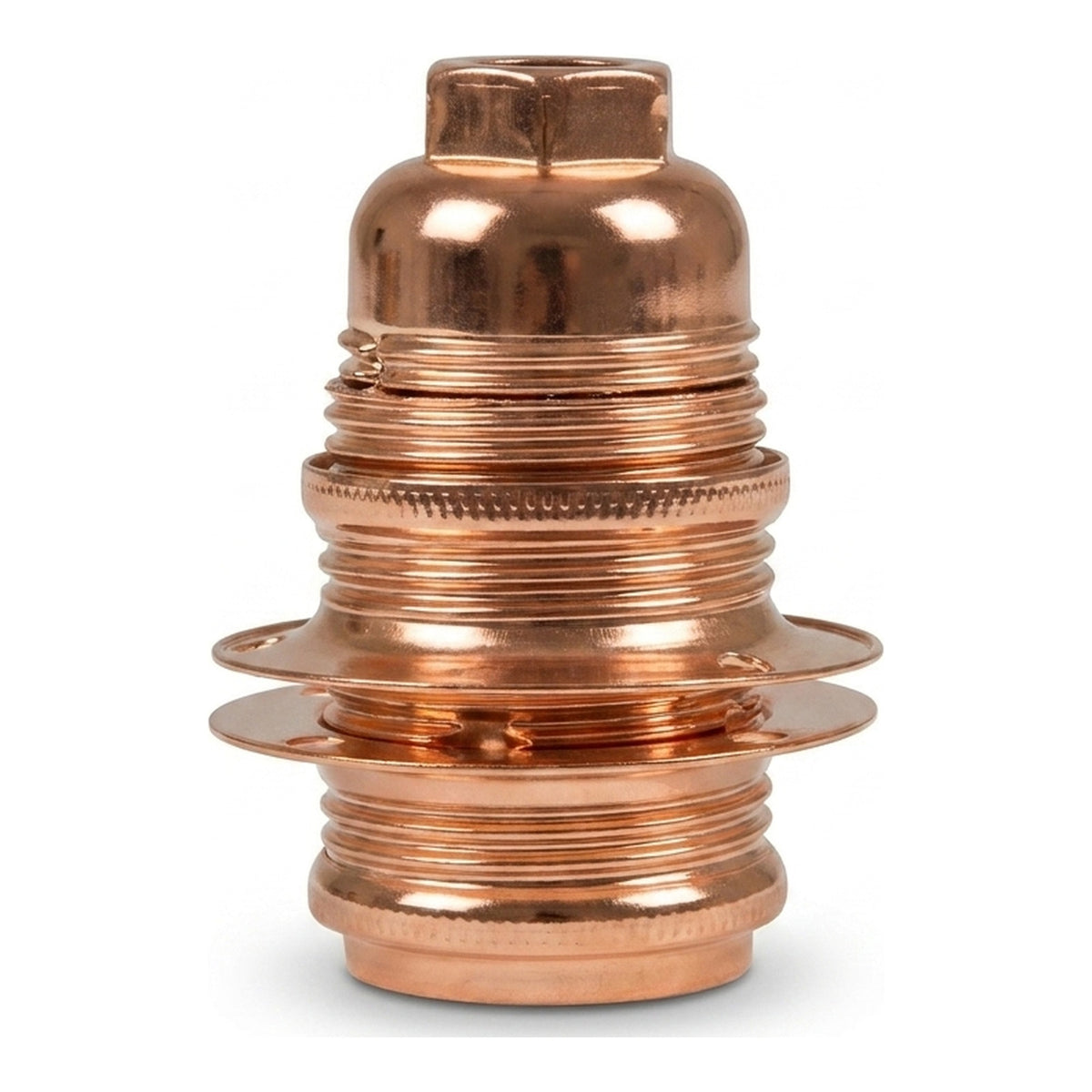

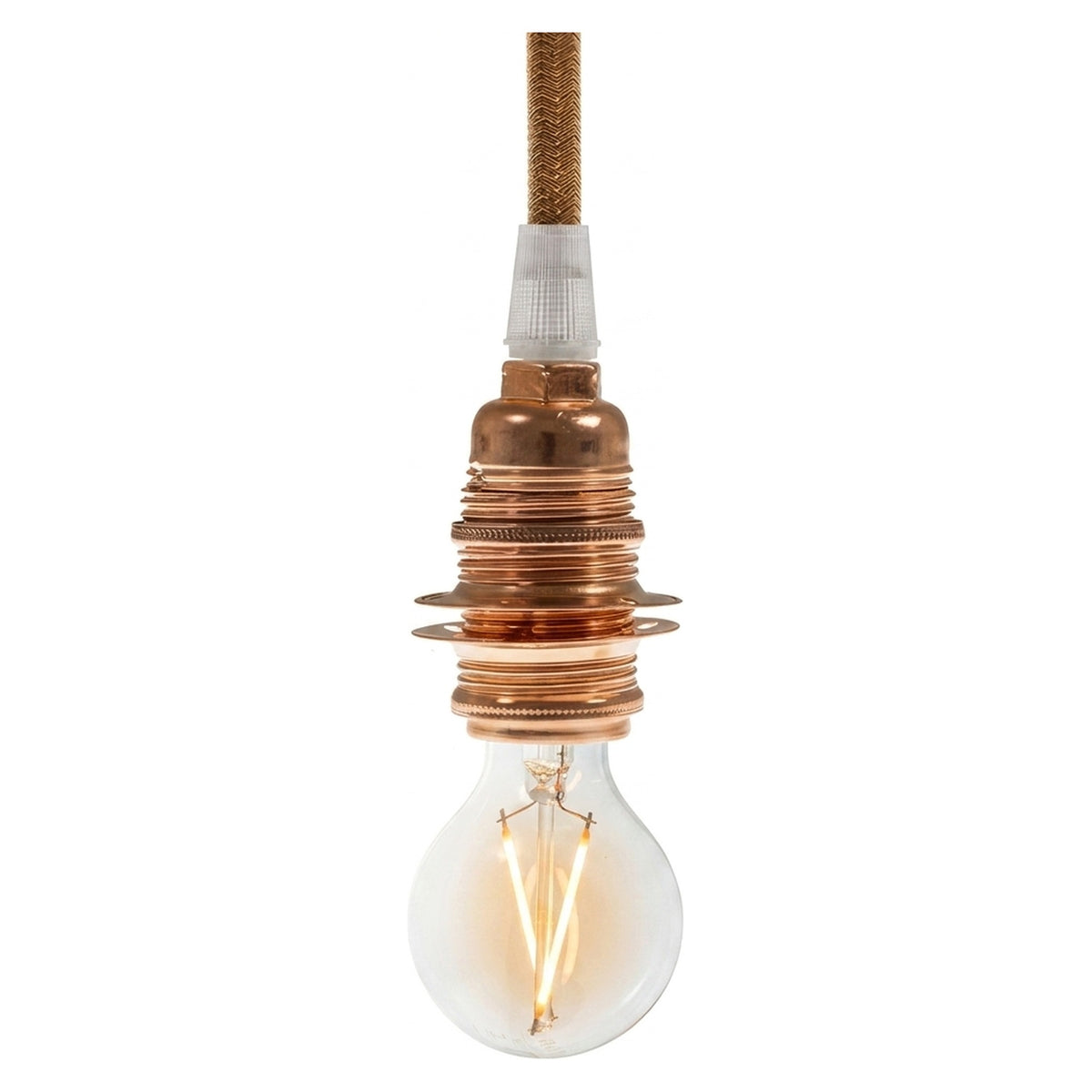

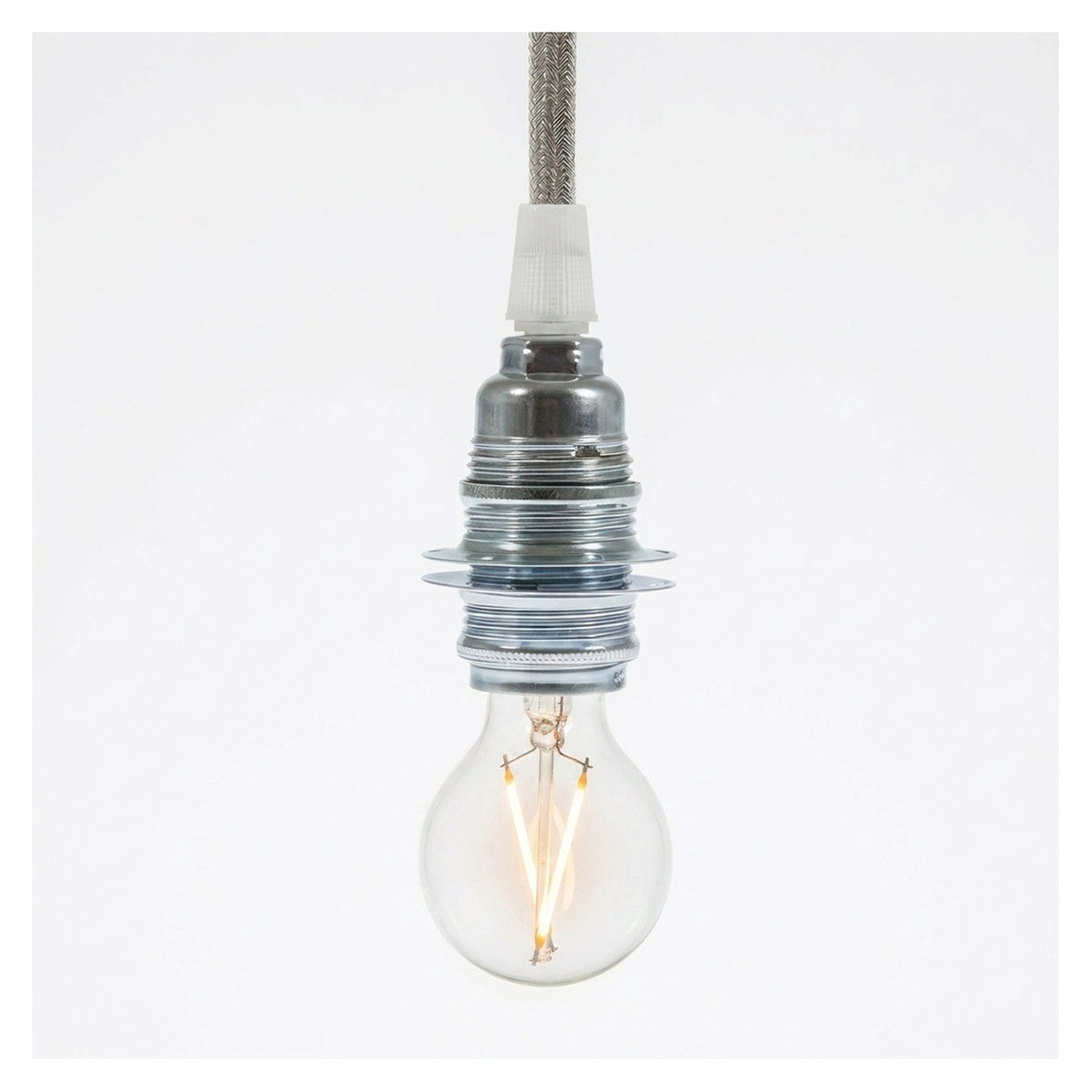

Two types of cable grip are offered: Conical plastic or Cylindrical metal. Each version comes in three finishes: Silver, Copper and Brass.
Technical information
- Cap: E14
- Insulating socket body: thermosetting polyester, T230 marking (maximum operating temperature 230 °C)
- Shell: threaded
- Rated voltage: 250 Vac
- Rated current: 2 A
- Terminals: screw type, rigid or flexible cables of 0.5 to 2.5 mm²
- Mounting: M10x1 threaded hole
- Diameter: 28 mm
- Height: 58 mm
- Ring diameter: 43 mm
- Conical cable grip: thermoplastic, height 43 mm, diameter 14.8 mm
- Cylindrical cable grip: metal, cap 13 mm in diameter and 17 mm high, M10x1 threaded tube 15 mm high
