E27 metal socket kit with double ring for lampshade
From
$15.00
Unit price
/
Unavailable
E27 metal socket kit with double ring for lampshade
E27 metal socket with a threaded body, fitted with a double ring for a lampshade. It fits on the end of a cable with its cylindrical metal cable grip, for a table, wall or ceiling lamp.
Features and use
- Threaded body, in metal.
- Double ring 60 mm in diameter, designed to hold a lampshade.
- E27 cap for a screw-in bulb.
- Cylindrical cable grip in metal, with an M10x1 threaded tube.
- Screw terminals and mounting via an M10x1 threaded hole.
- Designed for a 3x0.75 cable (3 conductors, including earth).
Versions and finishes

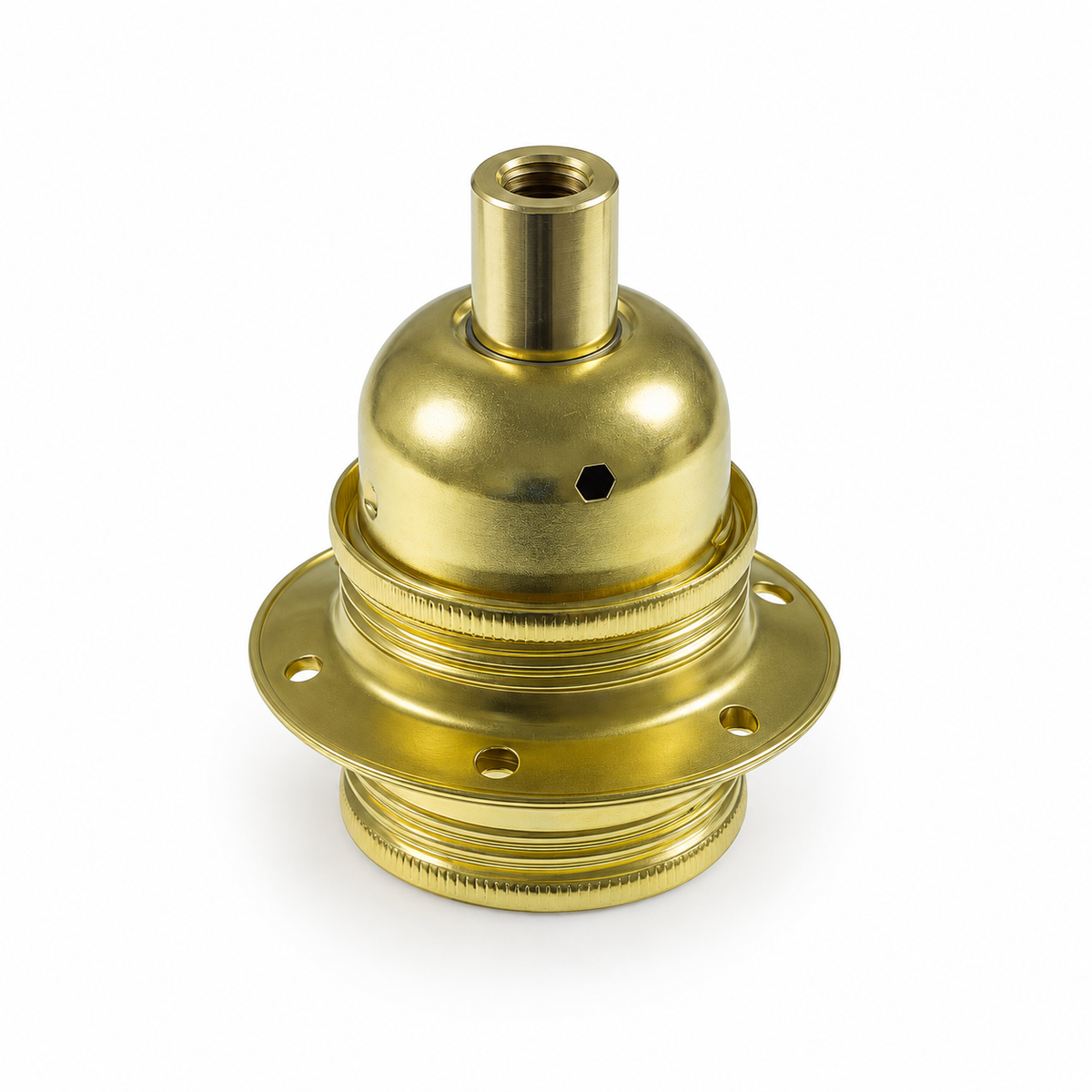

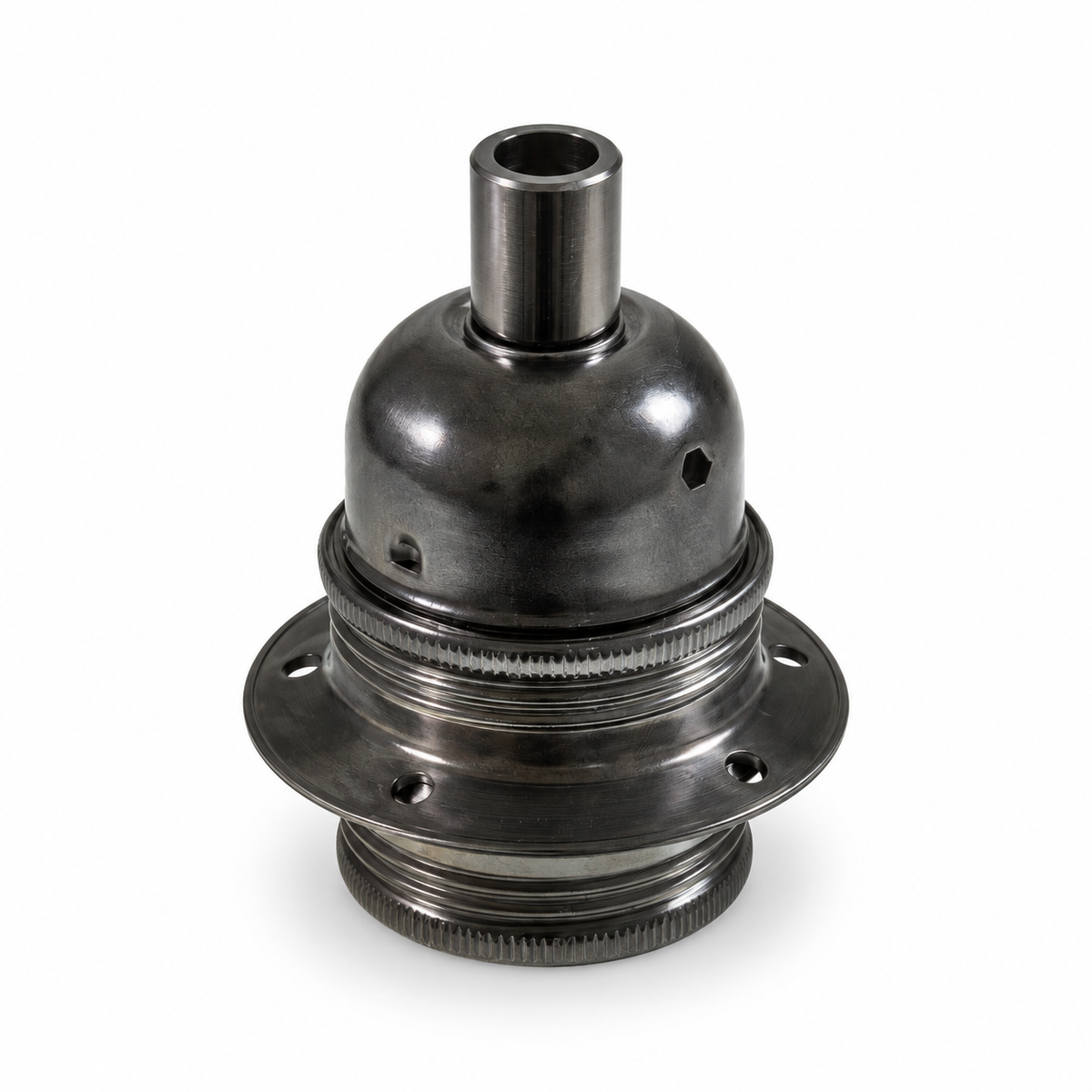

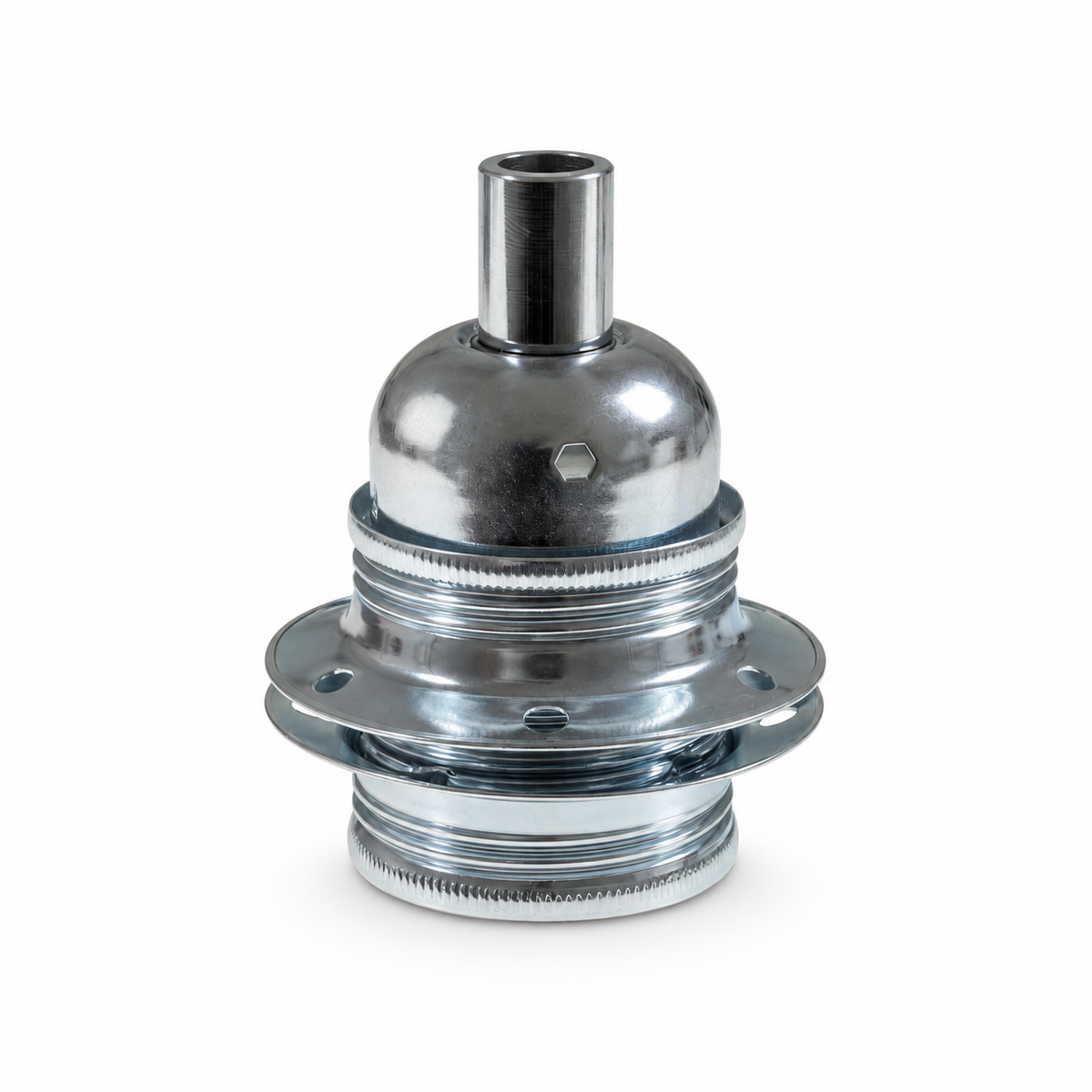

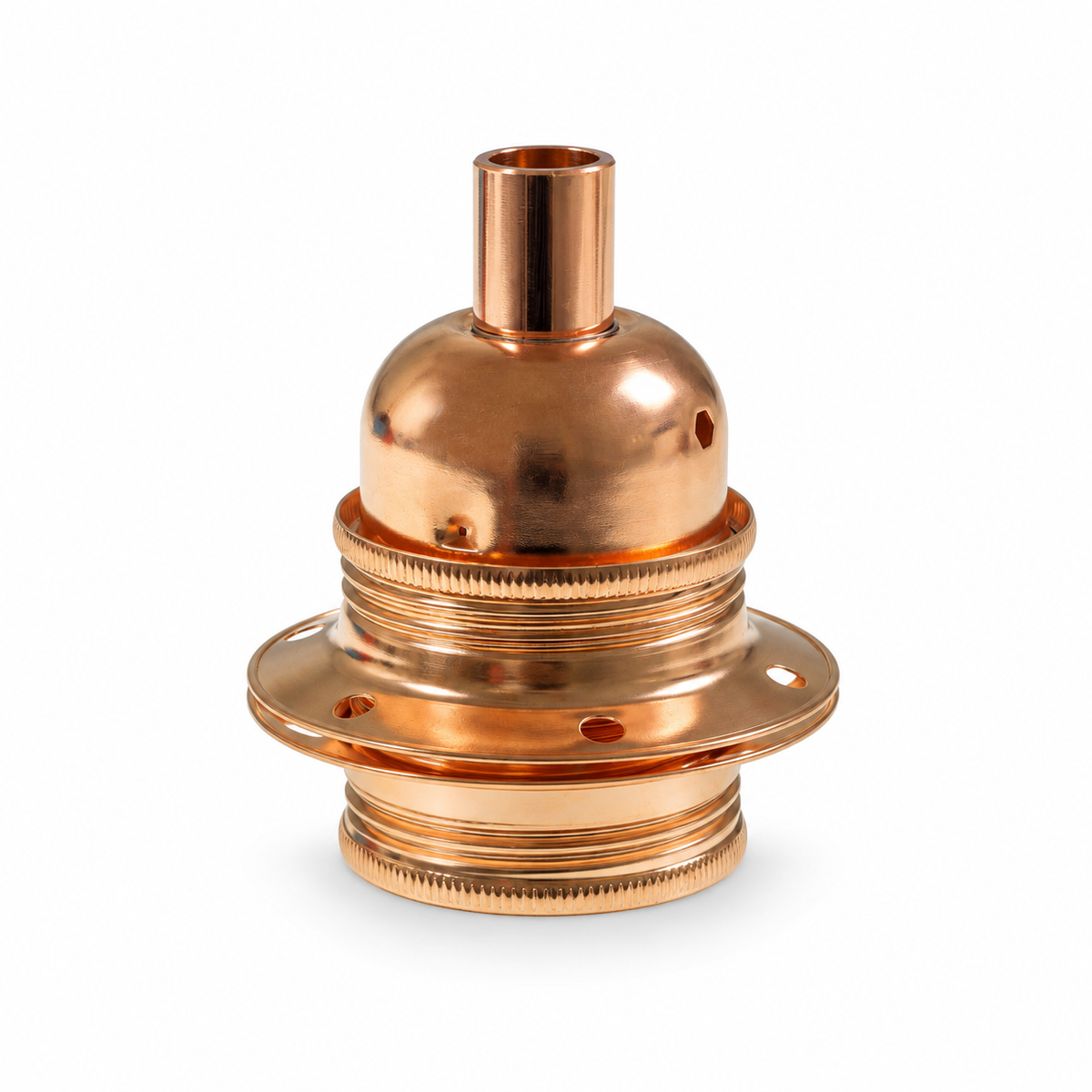

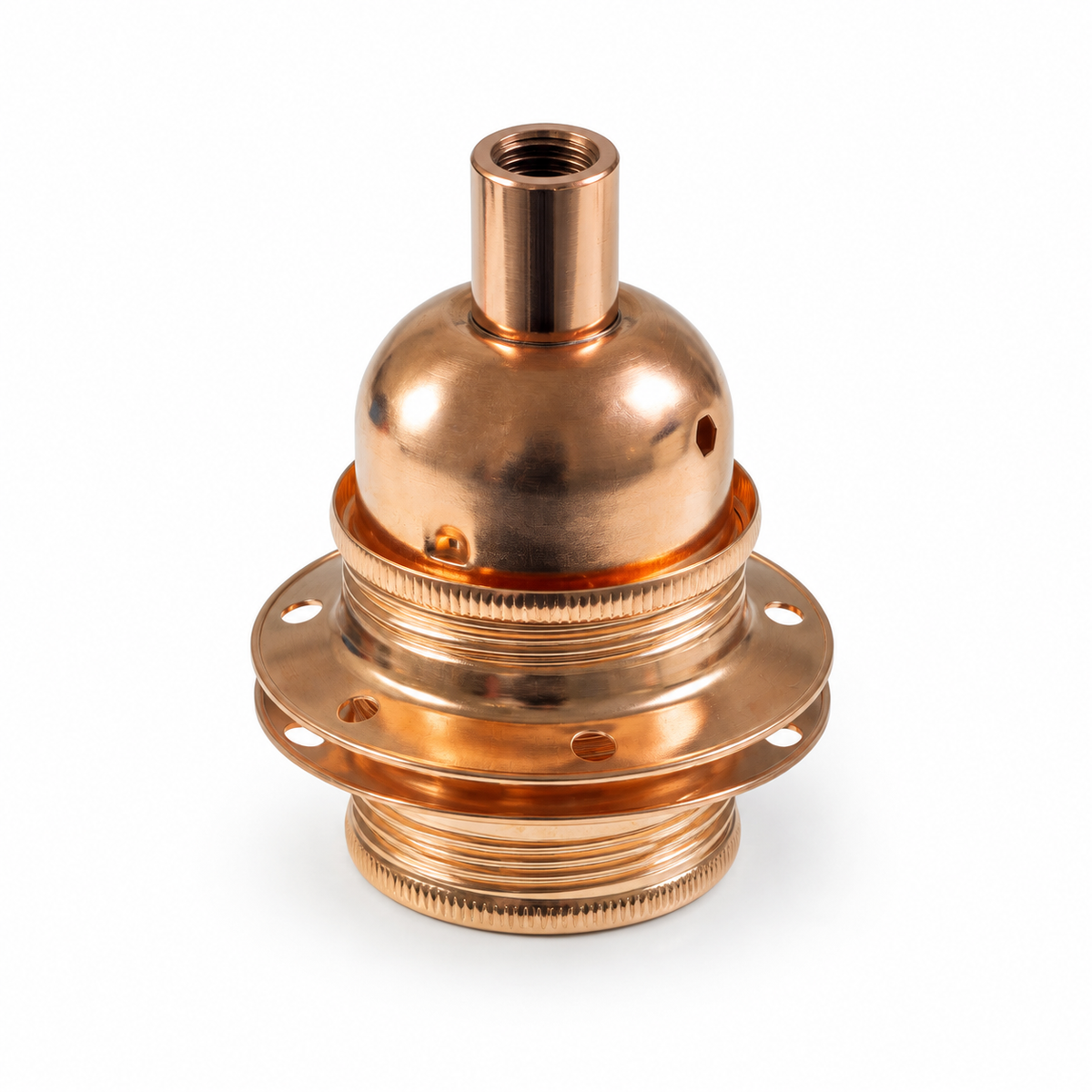

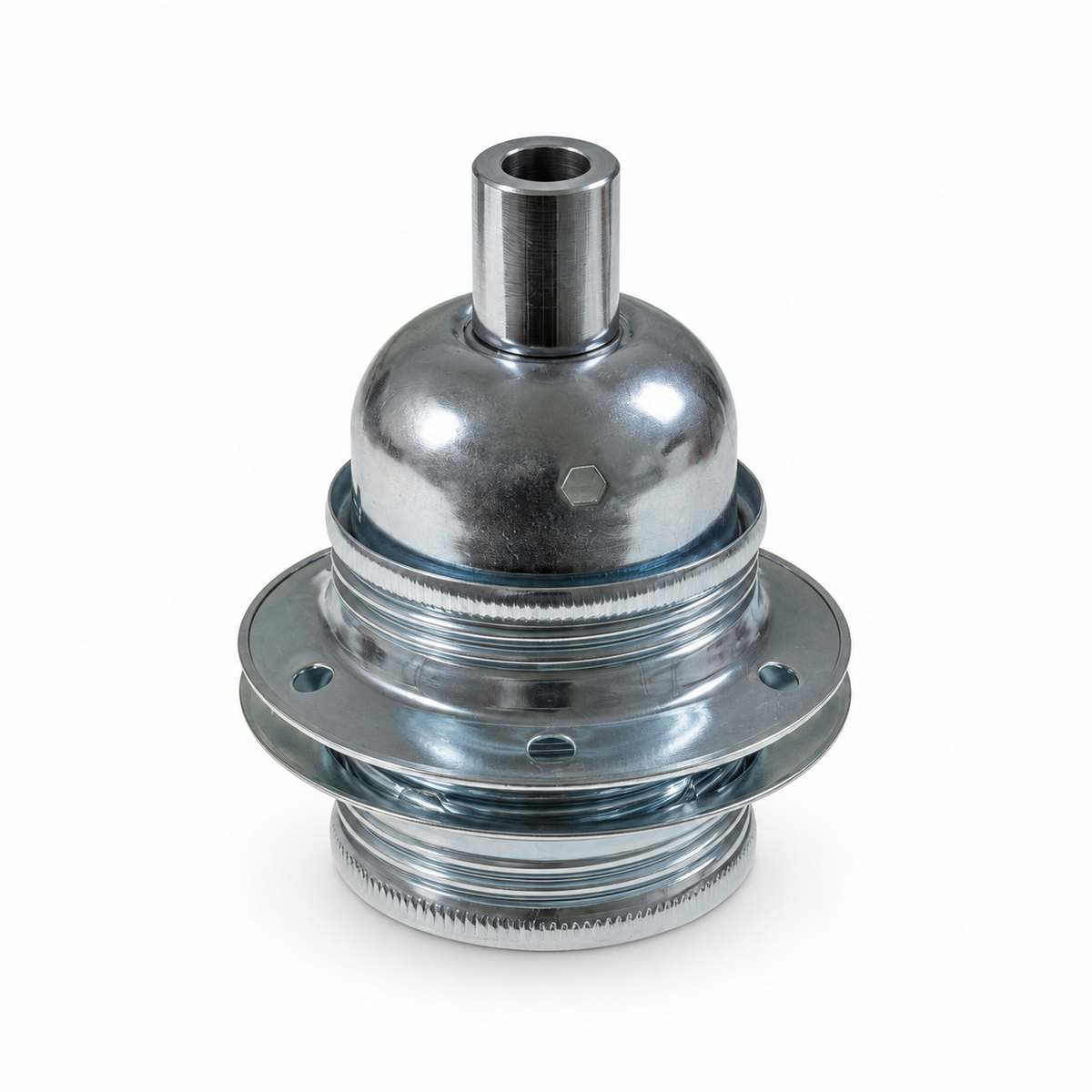

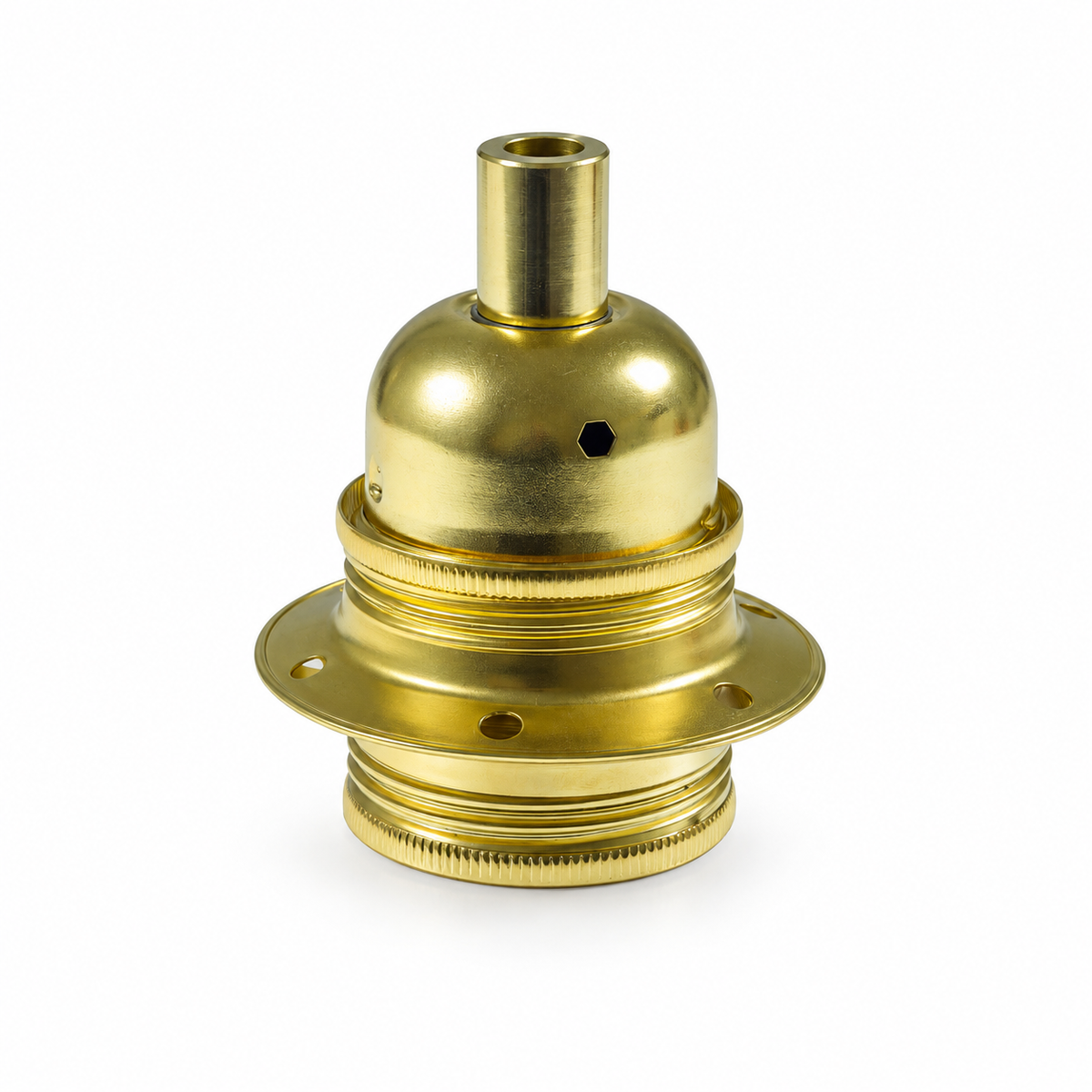

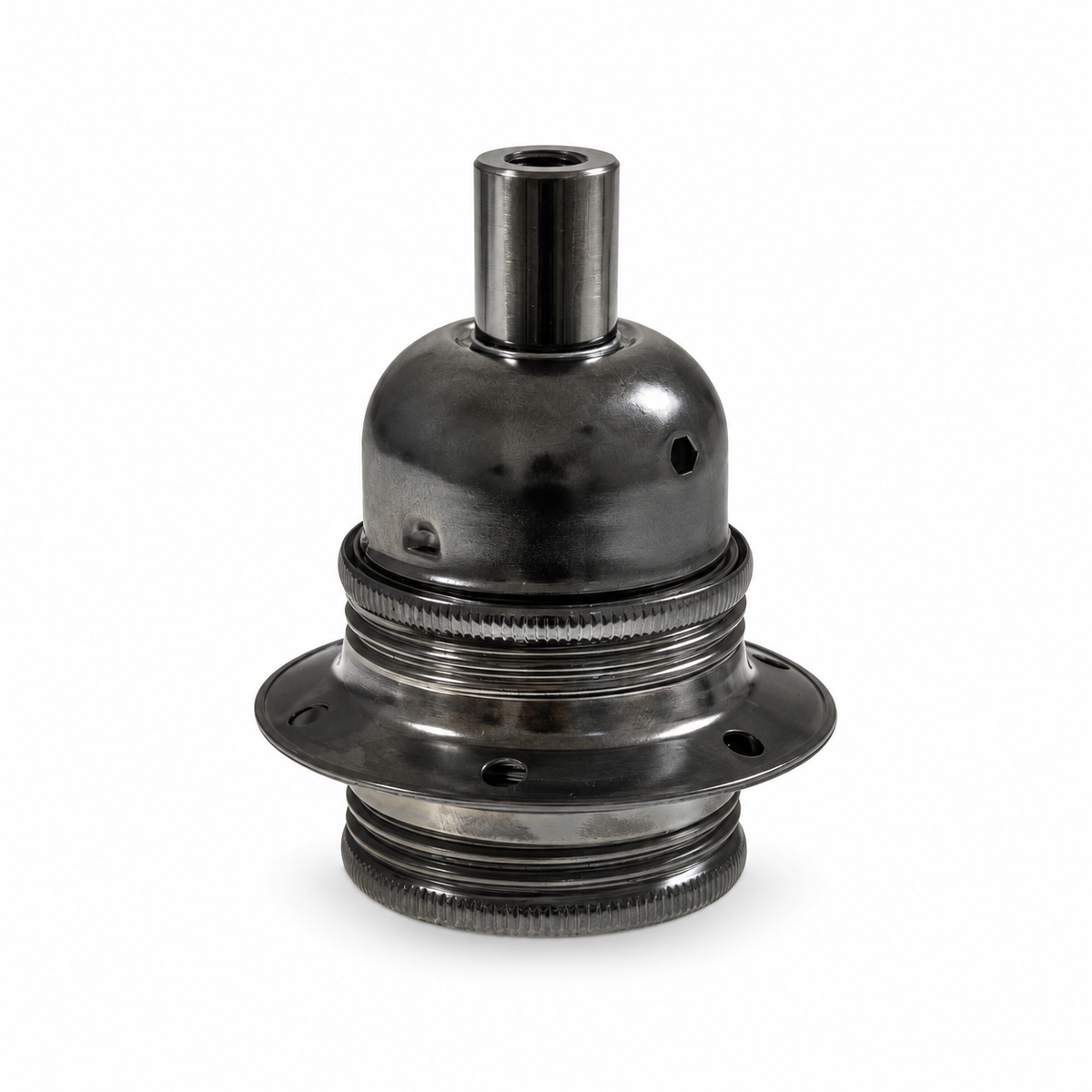

Four finishes to choose from: Silver, Copper, Brass and Black pearl.
Technical information
- Cap: E27
- Body: threaded
- Diameter: 40 mm
- Height: 55 mm
- Ring diameter: 60 mm
- Insulating socket body: thermosetting polyester, T230 marking (maximum operating temperature 230 °C)
- Rated voltage: 250 Vac
- Rated current: 4 A
- Terminals: screw type, for rigid or flexible cables of 0.5 to 2.5 mm²
- Mounting: M10x1 threaded hole
- Cylindrical cable grip: metal cap, 13 mm in diameter and 17 mm high
- Cable grip threaded tube: metal, M10x1, 15 mm high
